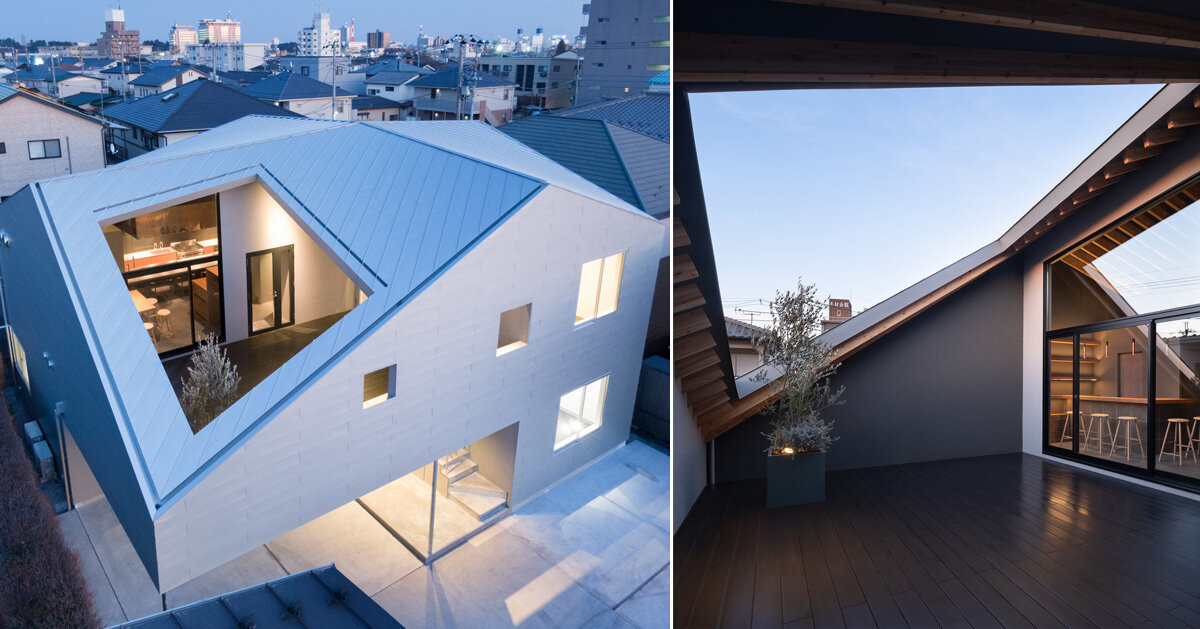

soeda and associates architects has sliced the roof of ‘ciel’, a mixed-use building in tochigi, japan, to create a secluded communal terrace. the wooden building comprises four tenant spaces

of around 50 sqm, planned for restaurants and offices, along with eight parking spaces. surrounded mostly by residential properties, the building reduces its impact on its neighbors by

taking the shape a gable roof house on all four elevations.all images by takumi ota

soeda and associates architects developed ‘ciel’ in an area where houses and low-rise stores coexist, and on a site surrounded by houses on three sides except for the front road. the wooden

‘in planning a building to be used by many people on a site surrounded by houses, our first priority was to consider possible impacts on the neighboring houses,’ notes soeda and associates

architects. in order to be exempted from the local sun shadow regulation, the building height was kept below 10 meters, while its form is developed to blend with the residential

surroundings. ‘as a result, we came up with elevations in the shape of a gable roof house on all four sides by lowering the four vertexes of the upper part of the cuboid,’ adds the japanese

architecture studio. ‘the height of the eaves is aligned with the neighboring houses to reduce impacts on the neighbors.’

by making the four sides into the shape of a gable roof house, the roof takes on the shape of a hyperbolic paraboloid (HP) shell. the curved surface of the HP shell was assembled by

installing 20mm-thick wood members on 60mm-thick rafters in a twisted manner and fastening curved plywood with nails. the entire roof is finished with gradually curving standing seam

roofing. a large opening on the roof above the terrace brings in natural light and air, forming a shared outdoor free space for a variety of uses that remains walled off from the surrounding

environment.

structure engineer: ryotaro sakata /ryotaro sakata structural engineers
