ABSTRACT To realize effective van der Waals (vdW) transistors, vdW dielectrics are needed in addition to vdW channel materials. We study the dielectric properties of 32 exfoliable vdW

materials using first principles methods. We calculate the static and optical dielectric constants and discover a large out-of-plane permittivity in GeClF, PbClF, LaOBr, and LaOCl, while the

in-plane permittivity is high in BiOCl, PbClF, and TlF. To assess their potential as gate dielectrics, we calculate the band gap and electron affinity, and estimate the leakage current

through the candidate dielectrics. We discover six monolayer dielectrics that promise to outperform bulk HfO2: HoOI, LaOBr, LaOCl, LaOI, SrI2, and YOBr with low leakage current and low

FLEXIBLE HIGH-Κ DIELECTRICS WITH NEGATIVE POISSON’S RATIOS Article Open access 17 October 2023 HIGH-_Κ_ PEROVSKITE MEMBRANES AS INSULATORS FOR TWO-DIMENSIONAL TRANSISTORS Article 11 May 2022

INTRODUCTION Van der Waals (vdW) layered materials such as Transitional Metal Dichalcogenides (TMDs) have been the subject of an enormous amount of research in the last decade1,2,3. The

appeal of vdW materials is the natural termination of each layer. Under ideal conditions, a monolayer of a vdW material realizes a “2D material”, i.e., a material with thickness less than a

nanometer but with a width and length extending over several microns. Having perfect uniformity of the thickness eliminates the severely detrimental effects of surface roughness seen in

non-vdW materials when scaled down to sub-nanometer thickness4. The natural termination also ensures the absence of surface states traversing the electronic band gap. The field of

nanoelectronics naturally invites the use of 2D materials since a reduction of the channel length and, more recently, channel thickness has been a driver for dramatic technological

progress5,6. Moreover, surface states have limited the performance and reliability in many nano-electronic applications7,8,9 whereas the naturally passivated surfaces of vdW materials

alleviate the concern of surface states. As a result, TMDs are now actively being considered as channel materials by the semiconductor industry10. High mobilities are reported3, doping

techniques11 are under development, metal-oxide-semiconductor field-effect transistors (MOSFETs) are being fabricated12,13, and contact technology is under investigation11. TMDs are thus

well on the way to commercial application in transistors, being investigated as a replacement of silicon in the active switching devices (“front-end”) of semiconductor technology but also as

an augmenting technology in the metallization layers that interconnect the devices in the “back-end”14. Suitable gate dielectric materials are critical components that allow the “gate” to

exercise electrostatic control of the “channel” where electrons flow. The dielectric blocks current flow between the gate and channel (gate leakage) and enhances the electrostatic

displacement field (electrostatic control). However, the selection of gate dielectrics to use for vdW materials has not received as much attention. Most TMD-based MOSFETs investigated to

date use atomic-layer deposited (ALD) oxides like HfO2 and Al2O315,16,17. Unfortunately, when an ALD oxide is deposited on a 2D material, the naturally terminated surfaces now become a large

drawback because covalent bonds between the oxide and the 2D material are hard to make18. Non-uniform nucleation will give rise to a non-uniform thickness and, in the absence of a uniform

thin dielectric, MOSFET performance will become unacceptably poor. One proposed solution addressing the non-uniformity is the deposition a perylene-tetracarboxylic dianhydride molecular

crystal layer19. Moreover, where covalent bonds are formed, the natural 2D material termination is broken and the surface states we wanted to avoid are reintroduced. It is thus hard to

foresee how ALD oxides can ever be a component of a 2D material MOSFET technology. h-BN is a vdW material that has successfully been used as a dielectric in transistors, in combination with

vdW channel materials5. However, h-BN also has significant drawbacks such as a low dielectric constant, which is undesired, and the requirement to either transfer h-BN or to grow at high

temperatures that are not compatible with semiconductor technology20,21. Recently, the crystalline dielectric CaF2 has also been investigated to avoid the drawbacks of amorphous oxides22,23.

Nevertheless, unlike Bi2SeO5, which is a layered material, CaF2 is not a layered compound with unterminated bonds at the surface, raising questions of passivation to eliminate interface

states and ensure reliability. Bi2SeO5 does present an interesting native layered oxide although the thickness of a single-layer Bi2SeO5 (~ 11.47 Å) is significantly thicker than most 2D

materials. In this paper, we use first principles calculations to identify novel vdW dielectric materials. We determine three critical properties for transistor dielectrics: the dielectric

constant, the band gap, and the electron affinity. Specifically, we calculate the macroscopic in-plane and out-of-plane dielectric constants of the bulk and monolayer of 32 novel vdW

materials using density-functional theory (DFT). We calculate the electron affinity and band gap of the monolayers using hybrid functionals. We model the performance of each vdW material as

a gate dielectric, considering its equivalent oxide thickness (EOT) as well as leakage current. To ensure that the materials under consideration are exfoliable24 or can be grown in monolayer

form, we compute the exfoliation energies. We find promising bulk and monolayer materials with high in-plane and out-of-plane dielectric constants for application in _n-_MOS and _p_-MOS

technologies. RESULTS For a good gate dielectric, a high barrier for electrons or holes, measured by the valence and conduction band offset, is required. The high barrier is required so a

dielectric can serve its main purpose, i.e., stopping current flow from the gate to the channel. In addition, a competitive gate dielectric also needs a high dielectric constant, i.e. a

“high-k” dielectric, to realize maximal capacitive coupling25,26. To first order, the conduction band offset can be approximated as the difference between the affinity of the channel and the

affinity of the dielectric while the valence band offset is the conduction band offset augmented by the difference in band gap. So, to identify promising novel dielectrics, reliable

estimates of the electron affinity, the band gap and the dielectric constant are required. A natural ground for exploration of novel materials is presented by the recently developed

materials databases Materials Cloud27, Materials Project28, and AFLOW29. These materials databases contain information on about three and half million inorganic and organic materials whose

properties are calculated from first principles using DFT calculations. For our purposes, Materials Cloud is of particular interest as it identifies 457 layered, i.e., “two-dimensional”

materials, from bulk materials. The databases contain a DFT estimate of the band gap and the dielectric constant but unfortunately, the reliability of the DFT estimate used in

high-throughput calculations is limited. On the one hand, band gaps are severely underestimated when using the local-density approximation (LDA) or the generalized gradient approximation

(GGA). On the other hand, the determination of the dielectric constant using DFT requires a much more stringent convergence criterion compared to calculations of the lattice constants or

band gaps, which are usually of interest. So, while indexing a wide variety of materials, the databases use a GGA functional for the band gap calculation, which will significantly

underestimate experimental values, electron affinities are not computed, and insufficient precision is used in the calculations to accurately determine the dielectric constant. To gain a

reliable estimate, we calculate the band gaps using hybrid functionals, we compute the electron affinity of a monolayer, and we calculate the dielectric constant with high precision for both

bulk and monolayers (see “Methods” section). Of course, using these more advanced calculations, the computational burden increases. So, instead of going through the entire database of 2D

materials, we narrow down our search to materials that show promise. Our selection procedure starts from the 457 materials in Materials Cloud. We consider binary and ternary 2D compounds and

select only materials with a band gap exceeding 2.5 eV as calculated using Perdew–Burke–Ernzerof (PBE) GGA functionals in Materials Cloud. The goal of the 2.5 eV criterion is to identify

materials that have a band gap 4–6 eV after correcting for the PBE underestimation. We then identify the 3D parent materials of the selected materials from Materials Cloud, selecting some

additional bulk compounds with the same parent material from Materials Project. Before proceeding with calculations, we prune the dataset through manual inspection. We exclude LiBH4 since it

is a deliquescent solid-state material (melting point of 275 °C) at ambient conditions and is highly sensitive to water and oxygen30. We also remove NaCN because of its toxic and corrosive

properties and its danger to the environment. RbCl is another material we remove from our dataset since, while Materials Cloud identifies it as a potential 2D material, the bulk does not

present a layered structure. LiOH, NaOH, Mg(OH)2, and Ca(OH)2 are also eliminated since they are elemental bases, which are very soluble in water and invariably appear as water complexes. We

also did not recalculate the values for h-BN as the dielectric properties have been reported accurately and in detail previously20. After imposing the >2.5 eV PBE band gap criterion,

pruning the aforementioned materials and adding some similar compounds (i.e. space group, crystal system) discovered on AFLOW and Materials Project, we obtain a list containing 32 vdW

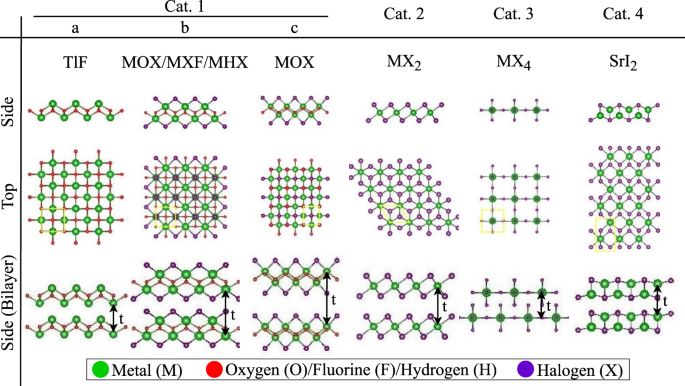

materials, all of which are halides. In Fig. 1, we illustrate the 32 vdW materials under consideration and divide the materials into four main categories based on their chemical

compositions, space groups, and lattice structures (Supplementary Table 1). Overall, 23 different elements of the periodic table appear: Halogens (F, Cl, Br, I), transition metals (Sc, Ti,

Zn, Y, Zr, and Cd), post-transition metals (Al, Bi, In, Sn, Pb), semiconductors (Ge), and Lanthanides (La, Nd, Ho, Lu). Category 1a has a tetragonal lattice with a central layer of

halogen/oxygen flanked by metal31. Category 1b has an outer halogen layer added to the metal32,33,34,35,36,37 and category 1c is category 1b but stretched into an orthorhombic structure.

Categories 2, 3, and 4 have a central metal and respectively have a trigonal, tetragonal, and orthorhombic unit cell38,39,40,41,42,43,44. To ensure all materials are in fact layered, we

first calculate the exfoliation energies, _E_ex. The exfoliation energy ranges from \(3.12\,{{{{{\rm{m}}}}}}{{{{{\rm{eV}}}}}}/{{{{{{\rm{A }}}}}}}^{2}\,\) PbI2 (Cat. 2) to

\(40.22\,{{{{{\rm{m}}}}}}{{{{{\rm{eV}}}}}}/{{{{{{\rm{A}}}}}}}^{2}\,\) LaOCl (Cat. 1b) and the values for each material are listed in the Supplementary Information (Supplementary Fig. 1). As

a rule-of-thumb, materials with _E_ex < 100 \({{{{{\rm{m}}}}}}{{{{{\rm{eV}}}}}}/{{{{{{\rm{\AA }}}}}}}^{2}\,\) are considered easily exfoliable compounds24. Using this criterion, all

materials under consideration are layered and exfoliable. Moreover, we calculate the phonon energies of monolayer and bulk for all materials to investigate the stability of our monolayers.

We list the value of monolayer and bulk form phonon energy in Supplementary Tables 9 and 10, respectively. The phonon energy calculation shows that all monolayer materials, except TlF and

GeClF, are predicted to be stable. Figure 2 shows the macroscopic in-plane and out-of-plane dielectric constants for the monolayer of 32 different layered materials. The corresponding values

are listed in Table 1. For category 1c, the dielectric constants in the plane are anisotropic and values are provided in Supplementary Table 2. The static dielectric constant (_ε_0)

includes both the electronic and the ionic contributions to the dielectric response, whereas the optical dielectric constant (_ε_∞) only contains the electronic response. We calculate both

the in-plane (||) and out-of-plane (⊥) values of the dielectric constants. To calculate the monolayer dielectric constant, we isolate monolayers in a computational supercell including

sufficient vacuum and then rescale the calculated dielectric constants of the supercell to those of the monolayer as done in ref. 34 and discussed in the “Methods” section. Our calculations

show that, for monolayers, the highest and the lowest static in-plane dielectric constants belong to TlF (98.4) and GeClF (5.9), while LaOCl (55.8) and MgCl2 (3.56) exhibit the highest and

the lowest out-of-plane static dielectric constants, respectively. Table 1 reveals that, in general, the optical dielectric constant is significantly lower than the corresponding static

dielectric constant, indicating a large ionic contribution to the dielectric response for all materials under consideration. Considering the out-of-plane direction, the optical dielectric

constant (_ε_∞,⊥) ranges from 2.4 (SnF4) to 4.9 (BiOCl) for bulk, and from 2.8 (MgCl2) to 5.8 (CaHI) for monolayers. In contrast, the static dielectric constant (ε0,⊥) is as high as 28.2 for

bulk PbClF and 55.8 for monolayer LaOCl. In Supplementary Table 3, we list the experimentally determined values of the dielectric constant for CdBr2, CdCl2, and PbI2, and find agreement

within 20% between the theoretical and experimental values43,44,45. Compared to the dielectric constants of 3D “high-k” oxides Al2O3 (9), Y2O3 (15), ZrO2 (25), and HfO2 (25);46,47 bulk

BiOCl, GeClF, PbClF, LaOBr, LaOCl, SrHBr, and TlF offer high out-of-plane static dielectric constants, ranging from 11.1 (SrHBr) to 28.2 (PbClF). The large difference between the in-plane

and out-of-plane static dielectric constants comes from the ionic contribution, as it is not observed at optical frequencies. Indeed, the ionic response is governed by the strength of the

covalent bonds in the in-plane versus the weak vdW bonding in the out-of-plane direction information (Supplementary Fig. 2). Going from bulk to monolayer, we first compare the dielectric

response at optical frequencies. We observe that the in-plane response (_ε_∞,||) changes by less than 15%, except for the Cat. 3 materials: PbF4 (−56%) and SnF4 (−57%). Turning out-of-plane,

we find a range of materials for which the optical dielectric response (_ε_∞,⊥) increases significantly: CaHI, LaOBr, LaOCl, SrHBr, PbF4, SnF4 and SrI2, by up to 39% for PbF4. Next, we

include the ionic response at low frequencies and look closer at the change in static dielectric response when going from bulk to monolayer. While the in-plane response (_ε_0,||) for most

materials does not change significantly; TlF, NdOI, PbClF, and MgBr2 show an increase between 33% and 54% which is caused by an increased ionic response in their monolayer form. In the

out-of-plane direction (ε0,⊥), the ionic contribution further increases the dielectric response for monolayer PbF4 and SnF4, compared to their bulk form. In contrast, the out-of-plane ionic

response in CaHBr, GeClF, PbClF, and SrHBr is suppressed by up to 50% compared to their bulk forms. Finally, note that compared to their bulk forms, monolayer LaOBr, LaOCl, SrBrF, and SrI2

are unique in showing a significantly improved out-of-plane electronic dielectric response, while they do not see a significant change in their ionic response. Of these materials, LaOBr has

the third-highest static out-of-plane dielectric constant among all monolayers (13.2). Only LaOCl (55.8) and PbClF (15.2) have higher out-of-plane dielectric constants, although the ionic

dielectric response in monolayer PbClF is significantly reduced compared to bulk, while it is strongly enhanced in monolayer LaOCl. Based only on their out-of-plane dielectric constants,

LaOBr, LaOCl, and PbClF could be good candidates for a gate dielectric, if they turn out to be good insulators as well. To investigate the insulating properties of the candidate dielectrics,

Fig. 3 shows the electron affinity and the band gap, or, equivalently, the conduction and valence band edges, where the vacuum level is set to zero. The red square points on each line

indicate the conduction band edge, i.e., minus the electron affinity, while the green circle points indicate the valence band edge. The band gap and its value (in eV) are indicated. We

calculate the band gaps and the electron affinity of all materials using the Heyd–Scuseria–Ernzerhof (HSE06) hybrid functional48,49. Compared to non-hybrid functional PBE calculations, HSE06

band gap predictions are much more reliable, producing considerably larger band gaps than those obtained from PBE calculations. We report the HSE and PBE band gap values along with the

electron affinity values in Supplementary Table 4. Even larger predicted G0W0 band gaps obtained from other theoretical studies50 along with experimental band gaps for some 2D

monolayers51,52 are included in Table S5. A good dielectric candidate material must have a band offset exceeding 1 eV with the channel material to minimize leakage current caused by Schottky

emission of carriers into the dielectric53. Materials such as CaHBr, LaOBr, LaOCl, and SrBrF are examples of wide-gap materials with conduction band offset greater than 1 eV, with respect

to a channel with a 4 eV affinity and are promising as dielectrics. Although there are superior methods available (e.g., GW) compared to hybrid functionals, they come at a significant

computational cost. HSE balances computational expense while avoiding the underestimation of the band gap resulting from LDA or GGA. In this work, we only report on the long-wavelength

dielectric constant54. This strongly reduces the severity of the long-range interactions that may adversely affect supercell methods. Since the Coulomb kernel of a 1D dipole is a step

function, it does not have a long-range interaction unlike a 2D or 3D dipole. To show that the long-range interactions are not an issue, we performed the monolayer calculations for LaOCl and

LaOBr with three additional different vacuum sizes (see Supplementary Table 6). The sensitivity of the extracted dielectric constant to the one calculated from DFT can be quantified by

calculating \(\frac{d{\varepsilon }_{2{{{{{\rm{D}}}}}}}}{d{\varepsilon }_{{{{{{\rm{sc}}}}}}}}\). In the out-of-plane direction \(\frac{d{\varepsilon }_{2{{{{{\rm{D}}}}}}}}{d{\varepsilon

}_{{{{{{\rm{sc}}}}}}}}=\frac{c}{t}\frac{{\varepsilon }_{2{{{{{\rm{D}}}}}}}^{2}}{{\varepsilon }_{{{{{{\rm{sc}}}}}}}^{2}}\) while in the in-plane direction \(\frac{d{\varepsilon

}_{2{{{{{\rm{D}}}}}}}}{d{\varepsilon }_{{{{{{\rm{sc}}}}}}}}=\frac{c}{t}\). For LaOBr and LaOCl, we reported the \(\frac{d{\varepsilon }_{2{{{{{\rm{D}}}}}}}}{d{\varepsilon

}_{{{{{{\rm{sc}}}}}}}}\) in the out-of-plane and in-plane directions in Supplementary Table 7. Since \(\frac{d{\varepsilon }_{2{{{{{\rm{D}}}}}}}}{d{\varepsilon }_{{{{{{\rm{sc}}}}}}}}\)

scales with \({\varepsilon }_{2{{{{{\rm{D}}}}}}}^{2}\), LaOCl is orders of magnitude more sensitive to error propagation. The extracted dielectric constants do no change significantly except

for the ionic response in LaOCl where the error propagation in the DFPT calculation affects the results. Nevertheless, these results indicate that environmental screening by periodic images

does not affect the obtained dielectric constants. The ideal dielectric is one with a small thickness, high dielectric constant, and small leakage current47,55. To quantitatively measure

the promise of a gate dielectric material for _n-_MOS and _p-_MOS applications, we compute the leakage current due to Fowler–Nordheim tunneling and thermionic emission56,57 using “standard”

equations as detailed in the “Methods” section and Supplementary information (Supplementary Table 8). To identify the most promising materials, we compare EOT versus leakage current, where

we assumed an _n_-MOS with a 4 eV electron affinity for the channel material. We make a similar analysis for _p_-MOS (Supplementary Fig. 3 and Supplementary Table 9) but this reveals that

_p_-MOS leakage current is unlikely to be an issue for any of the materials under consideration, except for PbF4 and SnF4. As a reference, we also compute the leakage current and EOT of

single-layer h-BN. Inspecting the International Roadmap for Devices and Systems (IRDS)58, we identify a leakage current less of \(100\,{{{{{\rm{pA}}}}}}/{{{{{\rm{\mu }}}}}}{{{{{\rm{m}}}}}}\)

as an absolute maximum for any viable gate dielectric. In Fig. 4, we show the performance of monolayer (1 L), and bilayer materials, compared to HfO2. Since the calculation of multilayer

(bilayer, trilayer, etc.) is computationally expensive, we estimate the bilayer performance based on the dielectric constant of the monolayer (filled squares) and bulk (hollow squares)

material, connected by a line. This representation shows the uncertainty in the dielectric response of the bilayer in our estimate. We show the calculated EOT with respect to the calculated

leakage current for an _n_-MOS. Materials closer to the lower left are better gate dielectrics, featuring low EOTs with low leakage currents. We identify several monolayer and bilayer

materials, which outperform HfO2 with a 0.4 nm interfacial layer of SiO259. Moreover, we identify 8 monolayer dielectrics that outperform pure bulk HfO2: HoOI, LaOBr, LaOCl, LaOI, SrHBr,

SrI2, TlF, and YOBr. These materials feature leakage current densities ranging from 10−52 A/cm2 to 10−19 A/cm2 and an EOT ranging from 0.05 to 0.5 nm. DISCUSSION The most promising is

monolayer LaOCl, having the lowest EOT (~ 0.05 nm), by a fair margin, among all materials, and with a leakage current less than 10−7 A/cm2. Furthermore, even bilayer LaOBr outperforms bulk

HfO2 with an EOT < 0.5 nm and leakage currents <10−18 A/cm2 making these rare-earth oxyhalides the most promising in our list of 32 materials. Note that while LaOBr is in the Materials

Cloud “layered materials” database, LaOCl is not and it is a material we added from the Materials Project database. We limited our search to 32 materials so other promising rare-earth

oxyhalides not included in our present investigation, like GdOCl or YOCl, may also be promising gate dielectrics to be identified in future investigations. Recently, two new dielectrics have

been proposed for vdW materials, CaF2 and Bi2SeO5. CaF2 has been shown to have a desirable dielectric constant of 8.4, and an enormous band gap of 12.1 eV22. The thermally stable Bi2SeO5

has been demonstrated with a dielectric constant of 21 and a moderate band gap of 3.9 eV23. However, while both CaF2 and Bi2SeO5 outperform other bulk dielectrics such as HfO2, CaF2 is not a

vdW material and is prone to the same surface roughness and interface defects of conventional oxides. It thus remarkable that we have identified eight monolayer vdW materials that

outperform HfO2, the industry-leading bulk dielectric, without even considering the intrinsic benefits of vdW dielectrics, e.g., perfect interfaces without defects. All eight monolayers

exhibit high band gaps (>3 eV), high dielectric constants (>5.8), tiny leakage current (\({ < 10}^{-5}{{{{{\rm{A}}}}}}/{{{{{{\rm{cm}}}}}}}^{2}\)), small EOT (< 0.6

\({{{{{\rm{nm}}}}}}\)), and suitable band offsets. Our most promising materials LaOBr and LaOCl, which outperform HfO2, CaF2, and Bi2SeO5, are known stable and readily available materials.

LaOBr and LaOCl are water insoluble and have been investigated for applications as scintillators and ion transport channels35,37. Previously, LaOBr and LaOCl have been synthesized using a

solid-state reaction between Lanthanum Oxide (La2O3) and ammonium chloride/ammonium bromide (NH4Cl/NH4Br). We could not find any literature on attempts to exfoliate or characterize

monolayers of LaOCl or LaOBr. Our calculations show that they are not just layered but in fact exfoliable and show that LaOBr and LaOCl have the potential to realize highly performant true

vdW field-effect transistors. We hope that our result encourages further experimental investigation into the materials we identified (HoOI, LaOBr, LaOCl, LaOI, SrHBr, SrI2, TlF, and YOBr)

and specifically into the monolayer and bilayer form of the rare-earth oxyhalides LaOBr and LaOCl. To conclude, starting from a database of layered materials, we selected 32 viable

candidates for suitable vdW dielectric applications (exfoliable, sufficiently large band gap, and stable). For each material, we calculated the in-plane and out-of-plane macroscopic

dielectric constants from first principles. Our calculations show a wide range of in-plane and out-of-plane dielectric constants, from 2.5 to 98.4. To gauge the performance of each material

as a gate dielectric in _n-_MOS applications, we calculated the leakage current and the EOT for each material. Since hydrobromides are generally hygroscopic materials and TlF monolayers were

found to be unstable, we exclude SrHBr and TlF from the shortlist of candidate materials ending up with six promising vdW dielectrics: HoOI, LaOBr, LaOCl, LaOI, SrI2, and YOBr, all of which

promise better performance than HfO2. The best performing material, monolayer LaOCl, shows immense promise as a gate dielectric, with an EOT < 0.1 nm while maintaining leakage currents

< \({10}^{-7}{{{{{\rm{A}}}}}}/{{{{{{\rm{cm}}}}}}}^{2}\). Monolayer dielectrics may not be sufficiently robust to defects and in this case, only LaOBr and LaOCl show sub−0.5 nm EOT in

their bilayer forms. Furthermore, LaOBr and LaOCl are known and stable materials. We hope that our research leads to the further exploration of rare-earth oxychlorides and oxybromides for

applications as layered dielectrics. METHODS CALCULATION DETAILS We employ DFT as implemented in the Vienna ab initio simulation package (VASP)60,61 and adopt the GGA as proposed by PBE62

for the electron exchange and correlation functional. To ensure high accuracy in our calculation, we increase the plane-wave energy cutoffs by at least 30% compared to their recommended

minimum value. For the 2D mono-, bi-, and trilayers, we use supercells with sufficient vacuum in the _z_ direction, measuring at least 15 Å (Supplementary Table 10). To obtain precise and

reliable dielectric values, we set the energy convergence criteria to 10−8 eV and relaxation is performed until the force on each atom is less than 10−3 eV Å−1. To sample the Brillouin Zone

(BZ), 12 × 12 × 12 and 12 × 12 × 1 k-point grids are used for the bulk and the few-layered structures, respectively. To account for vdW interactions, we use the DFT-D3 method of Grimme’s63.

Finally, the exfoliation energy is extracted as a difference between the ground state energies of bulk and monolayers64,65. DIELECTRIC TENSOR OF BULK We employ density-functional

perturbation theory (DFPT), as implemented in VASP, to calculate the permittivity tensor of the bulk unit cell, from which we extract the in-plane (_ε_||) and out-of-plane dielectric

constants (_ε_⊥). To calculate the in-plane dielectric constant (_ε_||) of the materials, we average over the _x_ and _y_ components, so that \({\varepsilon }_{\parallel }=({\varepsilon

}_{x}+{\varepsilon }_{y})/2\). The macroscopic out-of-plane dielectric constants are the same in both cases (_ε_⊥ = _ε_z). From VASP, we extract both optical and static dielectric constants.

The optical dielectric constant (_ε_∞) represents the high-frequency response where only the electrons can respond to an applied electric field. The static dielectric constant (_ε_0), on

the other hand, represents the low-frequency response where both the electrons and ions can respond66. We also calculate \({{{{{\rm{EOT}}}}}}=\left(\frac{{\varepsilon

}_{{{{{{{\rm{SiO}}}}}}}_{2}}}{{\varepsilon }_{{{{{{\rm{dielectric}}}}}}}}\right){t}_{{{{{{\rm{dielectric}}}}}}}\) to easily compare the performance of various dielectric materials. PHONON

CALCULATION We calculate the phonon energies and vibrational modes for both monolayer and bulk of all materials from DFPT. Phonon energy calculations, acoustic phonons in particular,

indicate the stability of a system. We report the monolayer and the bulk Phonon energies in Supplementary Tables 11 and 12, respectively. VACUUM ELIMINATION FROM THE 2D STRUCTURES Since VASP

implements DFT using a plane-wave basis, the unit cells are periodic in the _x_ and _y_ directions (in-plane) but also in the _z_ direction (out-of-plane). For 2D layers, the supercell

dielectric values contain a vacuum contribution that must be removed to analyze the dielectric constant of the layers themselves. To extract the dielectric values of the 2D monolayer

structures, we rescale the dielectric constants calculated for the supercells using the same procedure as bulk. Following ref. 20, we use the two following equations: $${\varepsilon

}_{2{{{{{\rm{D}}}}}},\perp }={\left[1+\frac{c}{t}\left(\frac{1}{{\varepsilon }_{{{{{{\rm{SC}}}}}},\perp }}-1\right)\right]}^{-1}$$ (1) $${\varepsilon

}_{2{{{{{\rm{D}}}}}},{{{{{\rm{||}}}}}}}=1+\frac{c}{t}\left({\varepsilon }_{{{{{{\rm{SC}}}}}},\parallel }-1\right)$$ (2) where _c_ is the supercell height, and _t_ is the thickness of

monolayers. The thickness is extracted from the inter-layer distance of the bilayer as indicated in Fig. 1. We also studied the sensitivity of our method with respect to vacuum size. While

our results are converged for most materials, we found that, for materials with extremely large out-of-plane dielectric constants, (_e.g_. LaOCl) significant errors are observed (see

Supplementary Table 6). Unfortunately, the ionic out-of-plane response does show sensitivity to the vacuum used and is not converged even at the strictest energy threshold. We attribute this

to the limitations in accuracy of the DFPT in VASP. The latter is not entirely surprising as the dielectric constant rescaling procedure amplifies errors, and phonon-related quantities,

especially those involving polarization vectors, are known to have much larger errors compared to the ground state67. TUNNELING CURRENT AND THERMIONIC EMISSION To calculate the leakage

current through the semiconductor-metal interface we use the Fowler–Nordheim tunneling current and thermionic emission over the barrier:56,57

$${J}_{{{{{\rm{tun}}}}}}=\frac{{q}^{3}\,{\varepsilon}^{2}}{8\pi h\varphi }\exp \left(-\frac{4\sqrt{2{m}{\ast }}\,{\varphi }^{3/2}}{3q{{\hbar }}{\large \varepsilon}}\right)$$ (3)

$${J}_{{{{{\rm{therm}}}}}}={A}^{\ast \ast }\,{T}^{2}\,{\exp}\left(\frac{-q\left(\varphi -\sqrt{q{\large \varepsilon}/(4\pi { \varepsilon }_{\tt i})}\right)}{{kT}}\right)$$ (4) where \(\large

{\varepsilon}\), \(\varphi\), \({\varepsilon }_{\tt i}\), \({A}{\ast \ast }\), _T_, _q_, \({m}{\ast }\), and _k_ are the electric field in the insulator, barrier height, insulator

permittivity, effective Richardson constant, temperature, electron charge, electron effective mass, and Boltzmann constant, respectively. The electric field (\({\large \varepsilon}\)) in the

equations above is the ratio of the applied voltage to the dielectric thickness, _t_. The total leakage current is given by the sum of the tunneling and the thermionic current, _J_tot = 

_J_tun + _J_therm. We use a 0.7 V power supply voltage, _V_dd, and 345 mV saturation voltage, _V_sat, taken from IRDS58 and yielding an applied voltage of 355 mV for setting an appropriate

criterion for the leakage current and the calculation of electric field in the insulator. For the monolayers, we use the electron effective mass as the out-of-plane tunneling mass. For HfO2,

we use a tunneling mass of 0.11me68, hole effective mass of 0.58me69, band gap of 6 eV and electron affinity of 2.5 eV70. To estimate leakage current, we calculate the out-of-plane

effective masses from the energy dispersion diagram _(E–K)_ across the conduction band minimum (for the electron effective mass) or the valence band maximum (for the hole effective mass). We

extract the effective mass by computing a 100 k-point path in the bulk band structure using the PBE functional. The k-point path traverses the BZ in the out-of-plane direction and is chosen

to start at the band extremum and to end at the BZ edge. The effective mass is extracted from the band curvature along the out-of-plane direction using: $$\frac{1}{{m}{\ast

}}=\frac{1}{{{{\hslash }}}^{2}}\frac{{d}^{2}E(k)}{{{dk}}^{2}}\,$$ (5) where _E_(_k_) is the energy of the carrier at wavevector _k_, varying in the out-of-plane direction, and \({{\hslash

}}\) is the reduced Plank constant. DATA AVAILABILITY The input files used in this study have been deposited in the NOMAD repository database under accession code

(https://doi.org/10.17172/NOMAD/2021.07.18-1). The processed dielectric data are available in the main paper. The lattice constant, band gap and calculated leakage current are provided in

the Supplementary Information file. CODE AVAILABILITY The codes that are necessary to reproduce the findings of this study are available from the corresponding author upon reasonable

request. All DFT calculations were performed by using the Vienna ab initio simulation package (VASP). REFERENCES * Duong, D. L., Yun, S. J. & Hee Lee, Y. van der Waals layered materials:

opportunities and challenges. _ACS Nano_ 11, 11803–11830 (2017). Article  CAS  PubMed  Google Scholar  * Manzeli, S. et al. 2D transition metal dichalcogenides. _Nat. Rev. Mater._ 2, 17033

(2017). Article  ADS  CAS  Google Scholar  * Wang, Q. H. et al. Electronics and optoelectronics of two-dimensional transition metal dichalcogenides. _Nat. Nanotechnol._ 7, 699–712 (2012).

Article  ADS  CAS  PubMed  Google Scholar  * Ando, T., Fowler, A. B. & Stern, A. F. Electronic properties of two-dimensional systems. _Rev. Mod. Phys._ 54.2, 437 (1982). Article  Google

Scholar  * Liu, Y. et al. Van der Waals heterostructures and devices. _Nat. Rev. Mater._ 1, 1–17 (2016). Article  ADS  Google Scholar  * Jing, X. et al. Engineering field effect transistors

with 2D semiconducting channels: status and prospects. _Adv. Funct. Mater._ 30, 1901971 (2020). Article  CAS  Google Scholar  * Pillarisetty, R. Academic and industry research progress in

germanium nanodevices. _Nature_ 479, 324–328 (2011). Article  ADS  CAS  PubMed  Google Scholar  * Tang, J. et al. Single-crystalline Ni2Ge/Ge/Ni2Ge nanowire heterostructure transistors.

_Nanotechnology_ 21, 505704 (2010). Article  ADS  PubMed  CAS  Google Scholar  * Del Alamo, J. A. Nanometre-scale electronics with III–V compound semiconductors. _Nature_ 479, 317–323

(2011). Article  ADS  PubMed  CAS  Google Scholar  * Chen M. C. et al, TMD FinFET with 4 nm thin body and back gate control for future low power technology, _2015 IEEE International Electron

Devices Meeting (IEDM)_, pp. 32.2.1–32.2.4 (2015). * Zhao, Y. et al. Doping, contact and interface engineering of two‐dimensional layered transition metal dichalcogenides transistors. _Adv.

Funct. Mater._ 27, 1603484 (2017). Article  CAS  Google Scholar  * Liu, T. et al. Crested two-dimensional transistors. _Nat. Nanotechnol._ 14, 223–226 (2019). Article  ADS  CAS  PubMed

Google Scholar  * Desai, S. B. et al. MoS2 transistors with 1-nanometer gate lengths. _Science_ 354, 99–102 (2016). Article  ADS  CAS  PubMed  Google Scholar  * Kozhakhmetov, A. et al.

Scalable BEOL compatible 2D tungsten diselenide. _2D Mater._ 7, 015029 (2019). Article  CAS  Google Scholar  * Park, J. H. et al. Atomic layer deposition of Al2O3 on WSe2Ge functionalized by

titanyl phthalocyanine. _ACS Nano_ 10, 6888–6896 (2016). Article  CAS  PubMed  Google Scholar  * Price, K. M. et al. Plasma-enhanced atomic layer deposition of HfO2Ge on monolayer, bilayer,

and trilayer MoS2 for the integration of high-κ dielectrics in two-dimensional devices. _ACS Appl. Nano Mater._ 2, 4085–4094 (2019). Article  CAS  Google Scholar  * Pan, R. et al.

First-principles investigation on the interface of transition metal dichalcogenide MX2 (M= Mo, W; X= S, Se) monolayer on Al2O3 (0 0 0 1). _Computat. Mater. Sci._ 122, 118–125 (2016). Article

  CAS  Google Scholar  * Hao, W., Marichy, C. & Journet, C. Atomic layer deposition of stable 2D materials. _2D Mater._ 6, 012001 (2018). Article  CAS  Google Scholar  * Li, W. et al.

Uniform and ultrathin high-κ gate dielectrics for two-dimensional electronic devices. _Nat. Electron._ 2, 563–2571 (2019). Article  ADS  CAS  Google Scholar  * Laturia, A., Van de Put, M. L.

& Vandenberghe, W. G. Dielectric properties of hexagonal boron nitride and transition metal dichalcogenides: from monolayer to bulk. _npj 2D Mater. Appl._ 2, 1–7 (2018). Article  CAS

Google Scholar  * Ohba, N. et al. First-principles study on structural, dielectric, and dynamical properties for three BN polytypes. _Phys. Rev. B_ 63, 115207 (2001). Article  ADS  CAS

Google Scholar  * Illarionov, Y. Y. et al. Ultrathin calcium fluoride insulators for two-dimensional field-effect transistors. _Nat. Electron._ 2, 230–235 (2019). Article  CAS  Google

Scholar  * Li, T. et al. A native oxide high-κ gate dielectric for two-dimensional electronics. _Nat. Electron._ 3, 473–478 (2020). Article  CAS  Google Scholar  * Mounet, N. et al.

Two-dimensional materials from high-throughput computational exfoliation of experimentally known compounds. _Nat. Nanotechnol._ 13, 246–252 (2018). Article  ADS  CAS  PubMed  Google Scholar

  * Ando, T. Ultimate scaling of high-κ gate dielectrics: higher-κ or interfacial layer scavenging? _Materials_ 5.3, 478–500 (2012). Article  ADS  CAS  Google Scholar  * Wilk, G. D.,

Wallace, R. M. & Anthony, J. High-κ gate dielectrics: current status and materials properties considerations. _J. Appl. Phys._ 89, 5243–5275 (2001). Article  ADS  CAS  Google Scholar  *

Talirz, L. et al. Materials Cloud, a platform for open computational science, _Sci. Data_ 7, 299 (2020). * Jain, A. et al. Commentary: The Materials Project: a materials genome approach to

accelerating materials innovation. _APL Mater._ 1, 011002 (2013). Article  ADS  CAS  Google Scholar  * Curtarolo, S. et al. AFLOW: an automatic framework for high-throughput materials

discovery. _Comput. Mater. Sci._ 58, 218–226 (2012). Article  CAS  Google Scholar  * Fan, Y. et al. Flexible, water-resistant and air-stable LiBH4 nanoparticles loaded melamine foam with

improved dehydrogenation. _Front. Chem._ 8, 45 (2020). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  * Hunter, L. R. et al. Prospects for laser cooling TlF. _Phys. Rev. A_ 85,

012511 (2012). Article  ADS  CAS  Google Scholar  * Leblans, P., Vandenbroucke, D. & Willems, P. Storage phosphors for medical imaging. _Materials_ 4, 1034–1086 (2011). Article  ADS  CAS

  PubMed  PubMed Central  Google Scholar  * Yedukondalu, N. & Mahdi Davari Esfahani, M. Unraveling the hidden martensitic phase transition in baclf and pbclf under high pressure using an

ab initio evolutionary approach. _Inorg. Chem._ 58, 5886–5899 (2019). Article  CAS  PubMed  Google Scholar  * Barhoumi, M. et al. Electronic properties of several two dimensional halides

from ab initio calculations. _Beilstein J. Nanotechnol._ 10, 823–832 (2019). Article  CAS  PubMed  PubMed Central  Google Scholar  * Marsal, A. et al. Characterisation of LaOCl sensing

materials using CO2-TPD, XRD, TEM and XPS. _Sens. Actuators B: Chem._ 109, 38–43 (2005). Article  CAS  Google Scholar  * Ye, L. et al. The {001} facets-dependent high photoactivity of BiOCl

nanosheets. _Chem. Commun._ 47, 6951–6953 (2011). Article  CAS  Google Scholar  * Chen, Y. et al. LaOCl nanofibers derived from electrospun PVA/Lanthanum chloride composite fibers. _Mater.

Lett._ 64, 6–8 (2010). Article  CAS  Google Scholar  * Lu, F. et al. A class of monolayer metal halogenides MX2Ge: electronic structures and band alignments. _Appl. Phys. Lett._ 108, 132104

(2016). Article  ADS  CAS  Google Scholar  * Chen, X.-F. et al, Strain-tunable electronic, elastic, and optical properties of CaI2 monolayer: first-principles study, _Philosoph. Mag_. 100,

1982–2000 (2020). * Tanaka, K. et al. A new luminescence due to an exciton–exciton collision process in lead iodide induced by two-photon absorption. _J. Lumin._ 122, 421–423 (2007). Article

  CAS  Google Scholar  * Guloy, A. M. et al. A new luminescent organic–inorganic hybrid compound with large optical nonlinearity. _Adv. Mater._ 13, 833–837 (2001). Article  CAS  Google

Scholar  * Singh, D. J. Near optical isotropy in noncubic Sr I 2: Density functional calculations. _Appl. Phys. Lett._ 92, 201908 (2008). Article  ADS  CAS  Google Scholar  * Bringans, R. D.

& Liang, W. Y. The dielectric functions of CdI2 CdBr2 and CdCl2 _Physics B+ C._ 99, 276–280 (1980). Article  ADS  CAS  Google Scholar  * Yadav, D. P., Rao, K. V. & Acharya, H. N.

Dielectric properties of PbI2 single crystals. _Phys. Status Solidi (a)_ 60, 273–276 (1980). Article  ADS  CAS  Google Scholar  * Salje, E., Palosz, B. & Wruck, B. In situ observation of

the polytypic phase transition 2H-12R in PbI2: investigations of the thermodynamic structral and dielectric properties, _J. Phys. C._ 20, 4077 (1987). * Wallace, R. M. & Wilk, G. D.

High-κ dielectric materials for microelectronics. _Crit. Rev. Solid State Mater. Sci._ 28, 231–285 (2003). Article  ADS  CAS  Google Scholar  * Robertson, J. & Wallace, R. M. High-K

materials and metal gates for CMOS applications. _Mater. Sci. Eng.: R: Rep._ 88, 1–41 (2015). Article  Google Scholar  * Heyd, J. & Scuseria, G. E. Efficient hybrid density functional

calculations in solids: Assessment of the Heyd–Scuseria–Ernzerhof screened Coulomb hybrid functional. _J. Chem. Phys._ 121, 1187–1192 (2004). Article  ADS  CAS  PubMed  Google Scholar  *

Krukau, A. V. et al. Influence of the exchange screening parameter on the performance of screened hybrid functionals. _J. Chem. Phys._ 125, 224106 (2006). Article  ADS  PubMed  CAS  Google

Scholar  * Haastrup, S. et al. The computational 2D materials database: high-throughput modeling and discovery of atomically thin crystals. _2D Mater._ 5, 042002 (2018). Article  CAS  Google

Scholar  * Lu, J. et al. Electronic structures and lattice dynamics of layered BiOCl single crystals. _J. Phys. Chem. Lett._ 11, 1038–1044 (2020). Article  CAS  PubMed  Google Scholar  *

Zhong, M. et al. Large-scale 2D PbI 2 monolayers: experimental realization and their indirect band-gap related properties. _Nanoscale_ 9, 3736–3741 (2017). Article  CAS  PubMed  Google

Scholar  * Robertson, J. Band offsets of high dielectric constant gate oxides on silicon. _J. non-crystalline Solids_ 303.1, 94–100 (2002). Article  ADS  Google Scholar  * Rasmussen, F. A.

et al. Efficient many-body calculations for two-dimensional materials using exact limits for the screened potential: Band gaps of MoS2 h-BN, and phosphorene. _Phys. Rev. B_ 94, 155406

(2016). Article  ADS  CAS  Google Scholar  * Illarionov, Y. Y. I. et al. Insulators for 2D nanoelectronics: the gap to bridge. _Nat. Commun._ 11, 1–15 (2020). Article  CAS  Google Scholar  *

Lenzlinger, M. & Snow, E. H. Fowler-Nordheim tunneling into thermally grown SiO2 _J. Appl. Phys._ 40, 278–283 (1969). Article  ADS  CAS  Google Scholar  * Brandes, E. A. & Brooks,

G. B. _Smithells Metals Reference Book_. (Elsevier, 2013). * Hoefflinger, B. _IRDS—International Roadmap for Devices and Systems, Rebooting Computing, S3S._NANO-CHIPS 2030. (Springer, Cham.,

2020). * Nichau, A. et al. Reduction of silicon dioxide interfacial layer to 4.6 Å EOT by Al remote scavenging in high-κ/metal gate stacks on Si. _Microelectron Eng._ 109, 109–112 (2013). *

Kresse, G. & Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. _Phys Rev. B_ 54, 11169 (1996). * Blöchl, P. E. Projector

augmented-wave method. _Phys. Rev. B_ 50, 17953 (1994). * Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient approximation made simple. _Phys. Rev. Lett._ 77, 3865 (1996).

Article  ADS  CAS  PubMed  Google Scholar  * Grimme, S. Semiempirical GGA-type density functional constructed with a long-range dispersion correction. _J. Comput. Chem._ 27, 1787–1799

(2006). Article  CAS  PubMed  Google Scholar  * Ashton, M. et al. Topology-scaling identification of layered solids and stable exfoliated 2D materials. _Phys. Rev. Lett._ 118, 106101 (2017).

Article  ADS  PubMed  Google Scholar  * Björkman, T. et al. van der Waals bonding in layered compounds from advanced density-functional first-principles calculations. _Phys. Rev. Lett._

108.23, 235502 (2012). Article  CAS  Google Scholar  * Wu, X., Vanderbilt, D. & Hamann, D. R. Systematic treatment of displacements, strains, and electric field in density-functional

theory. _Phys. Rev. B_ 72, 035105 (2005). * Gaddemane, G. et al. Limitations of ab initio methods to predict the electronic-transport properties of two-dimensional semiconductors: the

computational example of 2H-phase transition metal dichalcogenides. _J. Comput. Electron._ 20, 49–59 (2021). Article  CAS  Google Scholar  * Monaghan, S. et al. Determination of electron

effective mass and electron affinity in HfO2Ge using MOS and MOSFET structures. _Solid State Electron._ 53.4, 438–444 (2009). Article  ADS  CAS  Google Scholar  * Garcia, J. C. et al.

Effective masses and complex dielectric function of cubic HfO2Ge. _Appl. Phys. Lett._ 85, 5022–5024 (2004). Article  ADS  CAS  Google Scholar  * Robertson, J. Band offsets of wide-band-gap

oxides and implications for future electronic devices. _J. Vac. Sci. Technol. B_ 18.3, 1785–1791 (2000). Article  Google Scholar  Download references ACKNOWLEDGEMENTS The project or effort

depicted was or is sponsored by the Department of Defense, Defense Threat Reduction Agency. The content of the information does not necessarily reflect the position or the policy of the

federal government, and no official endorsement should be inferred. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Department of Physics, The University of Texas at Dallas, Richardson, TX,

USA Mehrdad Rostami Osanloo * Department of Materials Science and Engineering, The University of Texas at Dallas, Richardson, TX, USA Maarten L. Van de Put, Ali Saadat & William G.

Vandenberghe Authors * Mehrdad Rostami Osanloo View author publications You can also search for this author inPubMed Google Scholar * Maarten L. Van de Put View author publications You can

also search for this author inPubMed Google Scholar * Ali Saadat View author publications You can also search for this author inPubMed Google Scholar * William G. Vandenberghe View author

publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS M.R.O. and W.G.V. conceived the project. M.R.O. developed the code and performed the simulations.

M.L.V.de.P., A.S. and W.G.V. analyzed the obtained results. M.R.O. and A.S. wrote the paper with M.L.V.de.P. and W.G.V. contributing to the discussion and preparation of the manuscript.

CORRESPONDING AUTHOR Correspondence to William G. Vandenberghe. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION PEER REVIEW

INFORMATION _Nature Communications_ thanks the anonymous reviewer(s) for their contribution to the peer review of this work. Peer reviewer reports are available. PUBLISHER’S NOTE Springer

Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION PEER REVIEW FILE RIGHTS AND

PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any

medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The

images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not

included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly

from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Osanloo, M.R., Van

de Put, M.L., Saadat, A. _et al._ Identification of two-dimensional layered dielectrics from first principles. _Nat Commun_ 12, 5051 (2021). https://doi.org/10.1038/s41467-021-25310-2

Download citation * Received: 21 January 2021 * Accepted: 02 August 2021 * Published: 19 August 2021 * DOI: https://doi.org/10.1038/s41467-021-25310-2 SHARE THIS ARTICLE Anyone you share the

following link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer

Nature SharedIt content-sharing initiative
