ABSTRACT Measurement-based quantum computation with optical time-domain multiplexing is a promising method to realize a quantum computer from the viewpoint of scalability. Fault tolerance

and universality are also realizable by preparing appropriate resource quantum states and electro-optical feedforward that is altered based on measurement results. While linear feedforward

has been realized and become a common experimental technique, nonlinear feedforward was unrealized until now. In this paper, we demonstrate that a fast and flexible nonlinear feedforward

realizes the essential measurement required for fault-tolerant and universal quantum computation. Using non-Gaussian ancillary states, we observed 10% reduction of the measurement excess

access 14 July 2023 INTRODUCTION A quantum computer promises to solve certain computational tasks significantly faster than a modern computer does. The goal of the research on quantum

computing is to realize a practical quantum computer that is scalable, universal and fault tolerant. Various physical systems1—e.g., superconducting devices2,3, trapped-ion systems4,5, and

semiconductor systems6,7—have been investigated extensively. Among them, optical systems have unique potential regarding the scalability8,9,10,11. For example, generation of a large-scale

entangled states, the so-called cluster states, has been demonstrated using time-domain multiplexing methods12,13,14. The cluster states are resources of measurement-based quantum

computation (MBQC), where quantum operations are performed via local measurements on the large-scale cluster states and feedforward operations depending on the measurement outcomes15,16. The

demonstrated large-scale cluster states are categorized as continuous-variable cluster states, which treats continuous-valued quadratures \(\hat{x}\) and \(\hat{p}\) of an electro-magnetic

field that satisfy \(\left[\hat{x},\hat{p}\right]=i\). In continuous-variable MBQC, homodyne measurement is one of the most fundamental and powerful measurement17. When combined with

ancillary states and feedforward, homodyne measurement has an ability to implement fault-tolerant universal quantum computation18,19,20. For example, this combination can implement Clifford

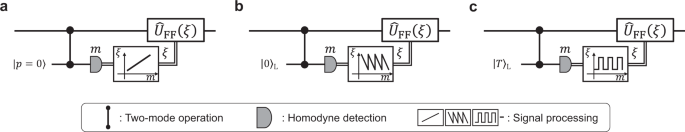

operations or Gaussian operations (Fig. 1a), error recovery operations (Fig. 1b), and fault-tolerant non-Clifford operations (Fig. 1c). It is, however, emphasized that ancillary states and

feedforward must be specifically customized for each operation18. In previous research, only deterministic Gaussian operations on Gaussian and non-Gaussian states have been demonstrated with

Gaussian ancillary states and solely linear feedforward21,22,23. Deterministic non-Gaussian operations have not been realized so far. The difficulty of implementing deterministic

non-Gaussian operations on traveling optical states stems from the requirement of complicated non-Gaussian ancillae and nonlinear feedforward — conditional Gaussian operations controlled by

the nonlinear function of the measurement outcomes. The ancillary states are crucial resources to obtaining quantum non-Gaussianity, and the adaptive control of nonlinear feedforward is

essential for deterministic operations. While the preparation of ancillary states in optical systems has been extensively researched theoretically24,25,26,27 and experimentally28,29, the

development of essential nonlinear feedforward has remained limited. There are a few reports about nonlinear feedforward such as digital feedforward with a primitive digital logic30 or

analog feedforward with dedicated circuits for a specific task31. The nonlinear feedforward in the previous researches is, however, inflexible or too slow to synchronize electrical signals

and optical signals, which is imperative for MBQC in time domain. Hence, nonlinear feedforward is a key piece to unlock the full potential of an optical quantum computer. Here, we

demonstrate flexible and fast nonlinear electro-optical feedforward and use it to implement a nonlinear quadrature measurement that, in combination with a suitable ancilla, projects the

state of traveling light into a non-Gaussian state, as is required for quantum computing. Our setup (Fig. 2a) measures the nonlinear combination of two quadratures \(\hat{x}\) and

\(\hat{p}\) of an electromagnetic field, \(\hat{p}+\gamma {\hat{x}}^{2}\) where _γ_ is a parameter we can tune. This nonlinear quadrature measurement can be readily applied to a non-Clifford

operation if combined with the cluster states already demonstrated in refs. 13, 14, 21, 22. Moreover, the nonlinear quadrature measurement is useful for a wide variety of

continuous-variable quantum protocols, such as Schrödinger’s cat state generation32, and high-fidelity quantum teleportation33. We perform tomography of the tailored measurement, observe 10%

reduction of excess noise thanks to the non-Gaussian ancilla, and verify its quantum non-Gaussian nature. The results signify that our feedforward system works properly and the nonlinear

quadratures are indeed measured. The nonlinear feedforward system developed in this work is flexible and capable of implementing various signal processing. Therefore, it is applicable not

only to specific non-Gaussian operations, but also to fault-tolerant non-Clifford operations on Gottesman-Kitaev-Preskill (GKP) qubits18, continuous-variable gate teleportation19 and analog

error correction of GKP qubits19,20, if appropriate ancillary states are prepared. This work has opened a new nonlinear regime beyond large-scale cluster states and Gaussian operations,

establishing an important cornerstone of optical quantum computation. RESULTS EXPERIMENTAL SETUPS Figure 2b shows a schematic diagram of the experimental system. An input state is interfered

with an ancillary state on a beam splitter, and one of the outputs is measured by a homodyne detector (HD1). The measured value _q_ of the homodyne detector is processed by nonlinear

functions on a field programmable gate array (FPGA) board. During this signal processing, the other output of the beam splitter is on hold in an optical delay line (ODL2). The calculated

results by the FPGA are fed forward to the other homodyne detector (HD2) and set the measurement basis to \({\hat{p}}_{\theta (q)}=\hat{p}\,\cos \left(\theta

\left(q\right)\right)+\hat{x}\,\sin \left(\theta \left(q\right)\right)\) via phase rotation \(\hat{R}\left(\theta (q)\right)\) of the local oscillator beam of HD2. The exact form of the

nonlinear feedforward is determined by \(\theta (q)=\arctan (\sqrt{2}\gamma q)\) as shown in Fig. 2d. To measure the nonlinear quadrature of \({\hat{p}}_{{{{{{{{\rm{in}}}}}}}}}+\gamma

{\hat{x}}_{{{{{{{{\rm{in}}}}}}}}}^{2}\), the measurement outcome of the second homodyne detector, _y_, is multiplied by the gain \(\sqrt{2}/\cos \left(\theta \left(q\right)\right)\) which is

determined by the measurement outcome _q_ of the first homodyne detector. Finally, the outcome \(m=\sqrt{2}\,y/\cos \left(\theta \left(q\right)\right)\) is obtained. This _m_ corresponds to

the nonlinear quadrature \(\hat{m}\), $$\hat{m}={\hat{p}}_{{{{{{{{\rm{in}}}}}}}}}+\gamma {\hat{x}}_{{{{{{{{\rm{in}}}}}}}}}^{2}+\left({\hat{p}}_{{{{{{{{\rm{anc}}}}}}}}}-\gamma

{\hat{x}}_{{{{{{{{\rm{anc}}}}}}}}}^{2}\right)$$ (1) where \({\hat{x}}_{{{{{{{{\rm{in}}}}}}}}},{\hat{p}}_{{{{{{{{\rm{in}}}}}}}}}\) are quadratures of the input state, and

\({\hat{x}}_{{{{{{{{\rm{anc}}}}}}}}},{\hat{p}}_{{{{{{{{\rm{anc}}}}}}}}}\) are quadratures of the ancillary state. Equation (1) shows that the nonlinear quadrature of the input state,

\({\hat{\delta }}_{{{{{{{{\rm{in}}}}}}}}}={\hat{p}}_{{{{{{{{\rm{in}}}}}}}}}+\gamma {\hat{x}}_{{{{{{{{\rm{in}}}}}}}}}^{2}\), is influenced by an excess noise caused by the corresponding

nonlinear quadrature of the ancillary state, \({\hat{\delta }}_{{{{{{{{\rm{anc}}}}}}}}}={\hat{p}}_{{{{{{{{\rm{anc}}}}}}}}}-\gamma {\hat{x}}_{{{{{{{{\rm{anc}}}}}}}}}^{2}\). Note that the

excess noise is independent from quadratures of the input state. Hence, the amount of excess noise is determined only by the ancillary state. The ideal ancillary state that gives

\({\hat{\delta}}_{{{\rm{anc}}}}=0\) is a cubic phase state (CPS), which satisfies $${\hat{\delta }}_{{{{{{{{\rm{anc}}}}}}}}}\left|{{{{{{{\rm{CPS}}}}}}}}\right\rangle=0.$$ (2) An ideal CPS is

an unphysical state because it requires infinite energy to generate. Thus, we must consider an approximated CPS similar to squeezed states substituted for ideal quadrature eigenstates in

continuous-variable quantum computation. We call the approximated cubic phase state as a nonlinearly squeezed state or cubic squeezed state34, since the variance of the nonlinear quadrature

operator \({\hat{\delta }}_{{{{{{{{\rm{anc}}}}}}}}}\) is squeezed beyond the lower bound imposed by Gaussian states and their mixtures35. It is known that a superposition of photon number

states can be a good approximation of nonlinearly squeezed state even with a moderate number of photons in the state35,36. Figure 2c shows the Wigner function of the ancillary state used in

our experiment. This ancillary state is nonlinearly squeezed by about 10% beyond any Gaussian states or their mixtures when _γ_ = 0.52 and it has clear regions of negativity. Note that the

level of the nonlinear squeezing depends on the coefficient _γ_, and this value is optimal for the experimental ancillary state. The ancillary state can be further improved by increasing the

number of the photons to generate larger nonlinear squeezing19,37. Fast nonlinear feedforward system is a key technological component in our challenging experimental setup. This is because

slow signal processing leads to a long optical delay line which entails adverse effects such as loss and phase fluctuation. To implement fast and flexible signal processing, we used an FPGA

board equipped with low-latency AD/DA converters and implement a look-up table inside the FPGA. The target function (arctangent) is pre-calculated and stored in the look-up table so that the

calculation is accurately completed within 1 clock cycle, 2.67 ns in this experiment. The total latency of the FPGA board is 26.8 ns, corresponds to about 8 meters of optical delay lines

which can be feasibly stabilized in experimental setups. This latency does not depend on the form of processing as the values of look-up tables are calculated in advance, thus the

feedforward system has significant flexibility. TOMOGRAPHY OF TAILORED MEASUREMENT To experimentally characterize our nonlinear measurement, we input various coherent states \(\left|\alpha

\right\rangle\), where _α_ is the complex amplitude written by two real values _α__x_, _α__p_ as \(\alpha=({\alpha }_{x}+i{\alpha }_{p})/\sqrt{2}\). The input coherent states are carefully

calibrated by dual homodyne measurement17, which is implemented by the same experimental setup with the feedforward system turned off. We choose 27 different amplitudes \(| {\alpha} |\)

equally spaced and ranging from 0 to 3.5. The coherent states are sampled with randomized phase in each fixed amplitude \(| {\alpha} |\) (see Supplementary Note 1). In the Heisenberg

picture, the quality of the measurement can be analyzed by looking at the first and second moments of the measured nonlinear quadrature in Eq. (1) for the set of sample coherent states. We

indeed saw that the value obtained by the nonlinear measurement matches the theoretical predictions, is unbiased both in the mean and the variance, and that the added noise is determined by

the nature of the ancillary quantum state (see Supplementary Notes 2 and  3). In addition, for comprehensive characterization of a quantum measurement, we consider in Schrödinger picture.

The ideal measurement of nonlinear quadrature in Eq. (1) with zero excess noise projects the measured field into the nonphysical displaced cubic phase state in Eq. (2). The practical

realization of Fig. 2b projects the field into unnormalized quantum states, which we call detector states in this paper. These unnormalized detector states are also known as positive

operator valued measure elements. This projection determines both the probability of obtaining the particular measurement result _m_ and the quantum state prepared in the case when the

measurement was applied to one part of a maximally entangled state. In this experiment, the detector state associated to a particular measurement outcome _m_ is $${\hat{\Pi }}_{m}\propto

\int{{{{{{{\rm{d}}}}}}}}q\,\,\hat{U}(q,m)\hat{T}{\hat{\rho }}_{{{{{{{{\rm{anc}}}}}}}}}{\hat{T}}^{{{{\dagger}}} }\hat{{U}}^{{{{\dagger}}} }(q,m)$$ (3) $$\hat{U}(q,m)=\exp \left[i\tan \theta

(q){\hat{x}}^{2}\right]\hat{D}(\sqrt{2}q,m-\sqrt{2}q\tan \theta (q))$$ (4) where \({\hat{\rho }}_{{{{{{{{\rm{anc}}}}}}}}}\) is the density matrix of the ancillary state,

\(\hat{D}({x}_{0},{p}_{0})=\exp \left[i\left({p}_{0}\hat{x}-{x}_{0}\hat{p}\right)\right]\) is a displacement operation, and \(\hat{T}\) is an anti-unitary operator represented by

\({\hat{T}}^{{{{\dagger}}} }\hat{x}\hat{T}=\hat{x}\) and \({\hat{T}}^{{{{\dagger}}} }\hat{p}\hat{T}=-\hat{p}\)38. See Supplementary Note 7 for the details. Note that the detector state is

described by the ancillary state with transformation by the nonlinear feedforward operations. For a reference of the detector states, we also test the case of using vacuum ancillary states

instead of the non-Gaussian states because vacuum states are the most experimentally feasible ideal Gaussian states. Note also that Eq. (3) is consistent with Heisenberg picture Eq. (1) as

the detector state \({\hat{\Pi }}_{m}\) would be proportional to the eigenstate of \(\hat{p}+\gamma {\hat{x}}^{2}\) with eigenvalue _m_ with an ideal ancillary CPS. The detector states can

be reconstructed by detector tomography from conditional probabilities \({{{{{{{\rm{prob}}}}}}}}(m|\alpha )={{{{{{{\rm{Tr}}}}}}}}\big[{\hat{\Pi }}_{m}\left|\alpha \right\rangle \left\langle

\alpha \right|\big]\), using the set of coherent states \(\{\left|\alpha \right\rangle \}\) forming an overcomplete basis for Hilbert space of the system, and the iterative maximum

likelihood analysis39 (see Supplementary Note 4). This is also advantageous experimentally as the coherent states are resilient to losses and have been already employed for tomography of

homodyne and photon number resolving detectors40,41. Figure 3 shows the normalized Wigner functions of the detector states. Figure 3a and b show the ideal detector states, calculated

according to Eq. (3), for the vacuum and the experimental non-Gaussian ancilla with \({{{{{{{\rm{var}}}}}}}}(\hat{p}+\gamma {\hat{x}}^{2})=0.64\) and \({{{{{{{\rm{var}}}}}}}}(\hat{p}+\gamma

{\hat{x}}^{2})=0.56\), respectively. Figure 3c and d then show detector states for vacuum and actual non-Gaussian ancilla reconstructed from experimental data. The fidelities between the

theoretically calculated detector states and experimentally reconstructed ones are 0.992 for the vacuum ancillary states and 0.993 for the non-Gaussian ancillary states. Detector states for

measured values _m_ differ simply by displacement in _p_, which is consistent with the analysis of the first moments. Although reconstructed detector states are noisy because of limited

number of data points (see Supplementary Note 6), the averaged detector states show the significant properties of the nonlinear quadrature measurement in Fig. 3. Note that the averaging and

renormalizing are done after _p_-displacement by measured results _m_ to cancel the intrinsic displacement of the detector states. The parabolic shape is qualitative evidence of the

nonlinear quadrature measurement. It is determined by the nonlinear feedforward and therefore present for both kinds of ancillary states. The main difference is that the non-Gaussian ancilla

leads to detector states with variance of the nonlinear quadrature operator \(\hat{p}+\gamma {\hat{x}}^{2}\) equal to 0.67 ± 0.01 in Fig. 3d. In contrast, the vacuum state produces variance

equal to 0.74 ± 0.01 (Fig. 3c). Note that the mean and standard error are calculated via a bootstrap method. This means the excess noise of the measurement with non-Gaussian ancilla,

constructed as a superposition of the vacuum and single photon states, is already suppressed by 10% relative to the vacuum level, which is consistent with the measured nonlinear squeezing of

the ancillary state. Thus we can see that even small nonlinear squeezing of the ancilla can already provide an observable effect. DISCUSSION We have implemented a nonlinear quadrature

measurement of \(\hat{p}+\gamma {\hat{x}}^{2}\) using the nonlinear electro-optical feedforward and non-Gaussian ancillary states. The nonlinear feedforward makes the tailored measurement

classically nonlinear, while the ancillary state pushes the measurement into highly non-classical regime and determines the excess noise of the measurement. By using a non-Gaussian ancilla

we have observed 10% reduction of the added noise relative to the use of vacuum ancillary state, which is consistent with the amount of nonlinear squeezing in the ancilla. Higher reduction

of the noise can be realized in the near future by a better approximation of the CPS using a superposition of higher photon number states38,42. We can now create broadband squeezed state of

light beyond 1 THz8,9 and can make a broadband amplitude measurement on it with 5G technology beyond 40 GHz10, as well as a broadband photon-number measurement beyond 10 GHz11. Furthermore,

the nonlinear feedforward presented here can be compatible with these technologies if an application specific integrated circuit (ASIC) is developed based on the FPGA board presented here.

By using such technologies we can efficiently create non-Gaussian ancillary states with large nonlinear squeezing by heralding schemes36,43 even when the success rate is very low. It is

because we can repeat heralding beyond 10 GHz and can compensate for the very low success rate. When supplied with such high-quality ancillary state, this nonlinear measurement can be

directly used in the implementation of the deterministic non-Gaussian operations required in the universal quantum computation. Our experiment is a key milestone for this development as it

versatilely encompasses all the necessary elements for universal manipulation of the cluster states. Furthermore, this method is extendable to multiple ancillary states case in

implementation of the higher-order quantum non-Gaussianity44 and multi-mode quantum non-Gaussianity45. Our experiment demonstrates an active, flexible, and fast nonlinear feedforward

technique applicable to traveling quantum states localized in time. If the nonlinear feedforward system is combined with the cluster states13,14 and GKP states19, all operations required for

large-scale fault-tolerant universal quantum computation can be implemented in the same manner. As such, we have demonstrated a key technology needed for optical quantum computing, bringing

it closer to reality. METHODS DETAILS OF OPTICAL SETUPS The light source of this experiment is a continuous-wave Ti:sapphire laser with a wavelength of 860 nm. The light is divided into

three parts. First, one of the beams is used to pump a second harmonic generator (SHG), which is a bow-tie shaped cavity with 500 mm roundtrip with a periodically-poled lithium niobate

(PPLN) crystal inside as a nonlinear medium for SHG. The generated beam from SHG with a wavelength of 430 nm pumps an optical parametric oscillator(OPO). Second part is used for local

oscillator (LO) beams of homodyne detectors, passing through two acousto-optic modulators (AOMs) and a mode cleaning cavity (MCC). The output beam from the MCC is distributed to two homodyne

detectors. One of the local oscillator beams is coupled to a waveguide electro-optic modulator (EOM) for phase rotation by the feedforward operation. Displacement beam for the idler mode is

also picked from this beam. The last part is used for controlling the optical path, i.e., for cavity locking (locking beams) and for phase locking (probe beams). Frequencies and amplitudes

of the control beams are controlled by AOMs. The frequencies of each beam are differently shifted for phase locking, where we actively feedback and control the phases of light to synchronize

beat notes of interference to reference signals. The frequency shifts are 120 kHz for the probe of the idler mode, 5.5 MHz for the probe of the input beam. Locking beam of the OPO is also

detuned by 1 MHz. The modulation signals and reference signals are generated by synchronized direct-digital synthesizers. The control beams are switched on and off periodically, which is

called as sample and hold technique. In the sample phase, the control beams are turned on and we activate the feedback controls of phase and cavity locking. In the hold phase, the control

beams are turned off and we deactivate the feedback, keeping the condition of the optical system. This technique is used to avoid the control beams to disturb photon detection as large fake

counts and to saturate the homodyne detectors. The setup for generating the ancillary state is the same as ref. 35. The OPO used in this experiment is a triangle cavity with 108 mm round

trip formed by two spherical mirrors and one plate polarizing beamsplitter (PBS). Inside the cavity, a type-II periodically-poled potassium titanyl phosphate (PPKTP) crystal with 20 mm long

is put between two spherical mirrors. One of the spherical mirrors is an output coupler with a transmittance of 14%. This OPO is called an asymmetric OPO because the cavity is single

resonant in the polarization to make the wave packet shape of the signal state into an exponentially rising shape for real-time quadrature measurement46. The pump beam is enhanced by a

buildup cavity around the OPO. The asymmetric OPO is pumped and generates a two-mode squeezed state in two orthogonal polarization. The idler mode is _s_-polarized and resonant to the OPO

while signal mode is _p_-polarized and does not resonant. The idler mode is displaced via interference of a coherent state at a beam splitter of 99% reflectivity. Frequency filters put on

the idler path are designed as Fabry-Perot cavities with linewidths of 140.1 MHz and 90.9 MHz, respectively. The filtered idler beam is sent to an avalanche photodiode (APD; Excelitas

technologies, SPCM-AQRH-16), and the click heralds the generation of non-Gaussian ancillary state. The non-Gaussian ancillary state is generated in a wave packet localized in time domain and

is compatible with time-domain multiplexing technique. Thus, we have to synchronize the feedforward system with the arrival of the wave packet accompanied by a heralding signal. To

compensate the delay of the electrical trigger of the heralding signal compared to the arrival timing of optical wave packet (which is occurred by asymmetric optical path lengths, latency of

the APD, and latency of cables from the APD to the FPGA board), 8.4 meters optical delay line is put on the signal path of the ancillary state. The delay line includes a Herriott cell,

whose two spherical mirrors (whose curvature radius is _R_ = 1000 mm) face each other at 168.5 mm distance. One of the mirrors has a hole through it to inject and output the light. The light

is injected into the cell and go back and forth between the mirrors 16 times, and is output from the cell after about 28 ns. The beam splitter used for interference of the input state with

the ancillary state is a variable beam splitter that consists of two plate PBS and a half wave plate. The transmittance of this beam splitter is set to 50% during the experiment of nonlinear

measurement, while it is set to about 100% during the characterization of the ancillary state. Another delay line synchronizes the optical signal and electrical signal for nonlinear

feedforward operation. This delay line is implemented by a Herriott cell with two spherical mirrors (_R_ = 1000 mm) at the distance of 645 mm. The length of optical path of the delay line is

about 17.3 m corresponding to 64 ns. DESIGN OF FEEDFORWARD CIRCUITS The feedforward circuits play two roles. One is to extract quadrature information from measurement outcomes of a homodyne

detector, and the other is to calculate a nonlinear function of the quadrature. To extract the quadrature of a real-valued temporal mode from a homodyne measurement with a continuous-wave

local oscillator, we have to integrate the measurement outcomes weighted with the mode function. This calculation can be processed in real-time with passive system if the impulse response of

the measurement devices is designed as time-reversal of a desired mode function. Hence, this technique is called as real-time quadrature measurement and used in a few researches of quantum

states35,46,47. For that purpose, we construct the circuits mainly with broadband and flat frequency response components, and add a low-pass filter which determines the shape of impulse

response. While the quantum state is localized in the wave packet with the bandwidth of about 35 MHz, we use homodyne detectors with about 200 MHz flat bandwidth, DC-coupled amplifiers and

offset controller with about 1 GHz bandwidth. The low-pass filter is the same as the one used in ref. 35, and has the frequency response corresponded to the asymmetric OPO and the filtering

cavities. To calculate the nonlinear function of the quadrature, we employ a low-latency FPGA board (Fig. 4). The board is equipped with two analog-to-digital converters (ADCs), two

digital-to-analog converters (DACs), and a field programmable gate array (FPGA) for signal processing. The ADCs (EV10AS152A, Teledyne e2v) are synchronized with a 3 GHz sampling clock. The

output signal (10 bits resolution) is deserialized to 8 parallel channels inside the FPGA (Kintex-7 325T, Xilinx) with a 375 MHz processing clock via ADCs themselves and

input-double-data-rate (IDDR) primitive of the FPGA. The DACs (EV10DS130AG, Teledyne e2v) also runs at 3 GHz, serializing the 8 parallel channels via output-DDR(ODDR) primitives of FPGA and

DACs themselves. An essential property of the ADC and DAC is low latency, where the pipeline delay of the ADC and the DAC are 7.5 clock cycles and 4.5 clock cycles, respectively. Analog

parts of the FPGA board has about 450 MHz − 1dB bandwidth, which is enough broad to treat the signal from a homodyne detector. Looking-up tables for the nonlinear calculation in the FPGA

board are implemented by block random access memories (BRAMs). Pre-computed values of the nonlinear function are loaded to the BRAMs by a soft microprocessor core. The output signal of the

FPGA board is normally turned off. A heralding signal of the ancilla preparation turns on the feedforward operation, holding the results of nonlinear calculation until the end of wave packet

of the ancillary state. Since the quadrature signals are deserialized to 8 parallel channels inside the FPGA, we have to take care of the timing for triggering nonlinear feedforward.

Because of the 8 parallel channels, if we employ conventional strategy, jitters up to 2.67 ns occur. In this work, however, we implement a time-to-digital converter for the trigger signal

via a tapped delay lines, to cancel this jitter. The output signal of the FPGA board is amplified to drive the EOM. The gain is tuned so that the range of the output voltage is the half-wave

modulation voltage of the EOM to maximize the resolution of the phase rotation. DATA AVAILABILITY The data generated in this study are deposited in the RIKEN repository under accession code

[https://dmsgrdm.riken.jp/3gvw2/]. CODE AVAILABILITY All codes used in this work for data analysis and simulations are available from the corresponding authors upon request. REFERENCES * de

Leon, N. P. et al. Materials challenges and opportunities for quantum computing hardware. _Science_ 372, eabb2823 (2021). Article  ADS  PubMed  Google Scholar  * Nakamura, Y., Pashkin, Y.

A. & Tsai, J. S. Coherent control of macroscopic quantum states in a single-Cooper-pair box. _Nature_ 398, 786–788 (1999). Article  ADS  CAS  Google Scholar  * Jurcevic, P. et al.

Demonstration of quantum volume 64 on a superconducting quantum computing system. _Quantum Sci. Technol._ 6, 025020 (2021). Article  ADS  Google Scholar  * Cirrac, J. I. & Zoller, P.

Quantum computation with cold trapped ions. _Phys. Rev. Lett._ 74, 4091 (1995). Article  ADS  Google Scholar  * Harty, T. P. et al. High-fidelity preparation, gates, memory, and readout of a

trapped-ion quantum bit. _Phys. Rev. Lett._ 113, 220501 (2014). Article  ADS  CAS  PubMed  Google Scholar  * Loss, D. & DiVincenzo, D. P. Quantum computation with quantum dots. _Phys.

Rev. A_ 57, 120–126 (1998). Article  ADS  CAS  Google Scholar  * Veldhorst, M. et al. An addressable quantum dot qubit with fault-tolerant control-fidelity. _Nat. Nanotechnol._ 9, 981–985

(2014). Article  ADS  CAS  PubMed  Google Scholar  * Kashiwazaki, T. et al. Continuous-wave 6-dB-squeezed light with 2.5-THz-bandwidth from single-mode PPLN waveguide. _APL Photonics_ 5,

036104 (2020). Article  ADS  CAS  Google Scholar  * Kashiwazaki, T. et al. Fabrication of low-loss quasi-single-mode PPLN waveguide and its application to a modularized broadband high-level

squeezer. _Appl. Phys. Lett._ 119, 251104 (2021). Article  ADS  CAS  Google Scholar  * Inoue, A. et al. Toward a multi-core ultra-fast optical quantum processor: 43-GHz bandwidth real-time

amplitude measurement of 5-dB squeezed light using modularized optical parametric amplifier with 5G technology. _Appl. Phys. Lett._ 122, 104001 (2023). Article  ADS  CAS  Google Scholar  *

Endo, M. et al. Quantum detector tomography of a superconducting nanostrip photon-number-resolving detector. _Opt. Express_ 29, 11728 (2021). Article  ADS  CAS  Google Scholar  * Yoshikawa,

J. et al. Invited article: generation of one-million-mode continuous-variable cluster state by unlimited time-domain multiplexing. _APL Photonics_ 1, 060801 (2016). Article  ADS  Google

Scholar  * Asavanant, W. et al. Generation of time-domain-multiplexed two-dimensional cluster state. _Science_ 366, 373–376 (2019). Article  ADS  CAS  MathSciNet  PubMed  Google Scholar  *

Larsen, M. V. et al. Deterministic generation of a two-dimensional cluster state. _Science_ 366, 369–372 (2019). Article  ADS  CAS  MATH  MathSciNet  PubMed  Google Scholar  * Raussendorf,

R. & Briegel, H. J. A one-way quantum computer. _Phys. Rev. Lett._ 86, 5188–5191 (2001). Article  ADS  CAS  MATH  PubMed  Google Scholar  * Zhang, J. & Braunstein, S. L.

Continuous-variable Gaussian analog of cluster states. _Phys. Rev. A_ 73, 032318 (2006). Article  ADS  Google Scholar  * Braunstein, S. L. & van Loock, P. Quantum information with

continuous variables. _Rev. Mod. Phys._ 77, 513–577 (2005). Article  ADS  MATH  MathSciNet  Google Scholar  * Konno, S. et al. Non-Clifford gate on optical qubits by nonlinear feedforward.

_Phys. Rev. Res._ 3, 043026 (2021). Article  CAS  Google Scholar  * Gottesman, D., Kitaev, A. & Preskill, J. Encoding a qubit in an oscillator. _Phys. Rev. A_ 64, 012310 (2001). Article

  ADS  Google Scholar  * Fukui, K., Tomita, A. & Okamoto, A. Analog quantum error correction with encoding a qubit into an oscillator. _Phys. Rev. Lett._ 119, 180507 (2017). Article  ADS

  MathSciNet  PubMed  Google Scholar  * Asavanant, W. et al. Time-domain-multiplexed measurement-based quantum operations with 25-MHz clock frequency. _Phys. Rev. Appl._ 16, 034005 (2021).

Article  ADS  CAS  Google Scholar  * Larsen, M. V. et al. Deterministic multi-mode gates on a scalable photonic quantum computing platform. _Nat. Phys._ 17, 1018–1023 (2021). Article  CAS

Google Scholar  * Miwa, Y. et al. Exploring a new regime for processing optical qubits: Squeezing and unsqueezing single photons. _Phys. Rev. Lett._ 113, 013601 (2014). Article  ADS  PubMed

  Google Scholar  * Glancy, S. & de Vasconcelos, H. M. Methods for producing optical coherent state superpositions. _J. Opt. Soc. Am. B_ 25, 712–733 (2008). Article  ADS  CAS  Google

Scholar  * Vasconcelos, H. M., Sanz, L. & Glancy, S. All-optical generation of states for “encoding a qubit in an oscillator”. _Opt. Lett._ 35, 3261–3263 (2010). Article  ADS  CAS

PubMed  Google Scholar  * Weigand, D. J. & Terhal, B. M. Generating grid states from Schrödinger-cat states without postselection. _Phys. Rev. A_ 97, 022341 (2018). Article  ADS  CAS

Google Scholar  * Baragiola, B. Q. et al. All-Gaussian universality and fault tolerance with the Gottesman-Kitaev-Preskill code. _Phys. Rev. Lett._ 123, 200502 (2019). Article  ADS  CAS

PubMed  Google Scholar  * Hacker, B. et al. Deterministic creation of entangled atom–light Schrödinger-cat states. _Nat. Photonics_ 13, 110–115 (2019). Article  ADS  CAS  Google Scholar  *

Arrazola, J. M. et al. Quantum circuits with many photons on a programmable nanophotonic chip. _Nature_ 591, 54–60 (2021). Article  ADS  CAS  PubMed  Google Scholar  * Prevedel, R. et al.

High-speed linear optics quantum computing using active feed-forward. _Nature_ 445, 65–69 (2007). Article  ADS  CAS  PubMed  Google Scholar  * Miyata, K. et al. Experimental realization of a

dynamic squeezing gate. _Phys. Rev. A_ 90, 060302(R) (2014). Article  ADS  Google Scholar  * Sokolov, I. V. Schrödinger cat states in continuous variable non-Gaussian networks. _Phys. Lett.

A_ 384, 126762 (2020). Article  CAS  MATH  MathSciNet  Google Scholar  * Zinatullin, E. R., Korolev, S. B. & Golubeva, T. Y. Teleportation with a cubic phase gate. _Phys. Rev. A_ 104,

032420 (2021). Article  ADS  CAS  MathSciNet  Google Scholar  * Kala, V., Filip, R. & Marek, P. Cubic nonlinear squeezing and its decoherence. _Opt. Express_ 30, 31456–31471 (2022).

Article  ADS  PubMed  Google Scholar  * Konno, S. et al. Nonlinear squeezing for measurement-based non-Gaussian operations in time domain. _Phys. Rev. Appl._ 15, 024024 (2021). Article  ADS

  CAS  Google Scholar  * Yukawa, M. et al. Emulating quantum cubic nonlinearity. _Phys. Rev. A_ 88, 053816 (2013). Article  ADS  Google Scholar  * Yanagimoto, R. et al. Engineering a

Kerr-based deterministic cubic phase gate via Gaussian operations. _Phys. Rev. Lett._ 124, 240503 (2020). Article  ADS  CAS  PubMed  Google Scholar  * Miyata, K. et al. Implementation of a

quantum cubic gate by an adaptive non-Gaussian measurement. _Phys. Rev. A_ 93, 022301 (2016). Article  ADS  Google Scholar  * Fiurášek, J. Maximum-likelihood estimation of quantum

measurement. _Phys. Rev. A_ 64, 024102 (2001). Article  ADS  Google Scholar  * Lundeen, J. S. et al. Tomography of quantum detectors. _Nat. Phys._ 5, 27–30 (2009). Article  CAS  Google

Scholar  * Grandi, S., Zavatta, A., Bellini, M. & Paris, M. G. A. Experimental quantum tomography of a homodyne detector. _New. J. Phys._ 19, 053015 (2017). Article  ADS  MATH  Google

Scholar  * Takase, K. et al. Generation of Schrödinger cat states with Wigner negativity using a continuous-wave low-loss waveguide optical parametric amplifier. _Opt. Express_ 30, 14161

(2022). Article  ADS  CAS  PubMed  Google Scholar  * Fukui, K. et al. Efficient backcasting search for optical quantum state synthesis. _Phys. Rev. Lett._ 128, 240503 (2022). * Marek, P. et

al. General implementation of arbitrary nonlinear quadrature phase gates. _Phys. Rev. A_ 97, 022329 (2018). Article  ADS  CAS  Google Scholar  * Sefi, S., Marek, P. & Filip, R.

Deterministic multi-mode nonlinear coupling for quantum circuits. _New. J. Phys._ 21, 063018 (2019). Article  ADS  CAS  Google Scholar  * Ogawa, H. et al. Real-time quadrature measurement of

a single-photon wave packet with continuous temporal-mode matching. _Phys. Rev. Lett._ 116, 233602 (2016). Article  ADS  PubMed  Google Scholar  * Asavanant, W. et al. Generation of highly

pure Schrödinger’s cat states and real-time quadrature measurements via optical filtering. _Opt. Express_ 25, 32227–32242 (2017). Article  ADS  CAS  Google Scholar  Download references

ACKNOWLEDGEMENTS This work was partly supported by Japan Science and Technology Agency (Moonshot R&D) Grant No. JPMJMS2064, Japan Society for the Promotion of Science KAKENHI Grant No.

18H05207 and No. 21J11615, the UTokyo Foundation, and donations from Nichia Corporation. F.H. acknowledges supports from the Forefront Physics and Mathematics Program to Drive Transformation

(FoPM). W.A. acknowledges supports from the Research Foundation for Opto-Science and Technology. H.Y. acknowledges the Australian Research Council Centre of Excellence for Quantum

Computation and Communication Technology (Project No. CE170100012). P.M. acknowledges Grant No. 22-08772S of Czech Science Foundation (GACR) and the European Union’s HORIZON Research and

Innovation Actions under Grant Agreement no. 101080173 (CLUSTEC). R.F. acknowledges the project 21-13265X of Czech Science Foundation. P.M. and R.F. acknowledges EU H2020-WIDESPREAD-2020-5

project NONGAUSS (951737) under the CSA - Coordination and Support Action. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Department of Applied Physics, School of Engineering, The University

of Tokyo, 7-3-1 Hongo, Bunkyo-ku, Tokyo, 113-8656, Japan Atsushi Sakaguchi, Shunya Konno, Fumiya Hanamura, Warit Asavanant, Kan Takase, Hisashi Ogawa, Jun-ichi Yoshikawa & Akira Furusawa

* Optical Quantum Computing Research Team, RIKEN Center for Quantum Computing, 2-1 Hirosawa, Wako, Saitama, 351-0198, Japan Atsushi Sakaguchi, Warit Asavanant, Kan Takase, Jun-ichi

Yoshikawa & Akira Furusawa * Department of Optics, Palacký University, 17. listopadu 1192/12, 77146, Olomouc, Czech Republic Petr Marek & Radim Filip * Centre for Quantum Computation

and Communication Technology, School of Engineering, College of Engineering Computing and Cybernetics, Australian National University, Canberra, ACT 2600, ACT, Australia Elanor Huntington *

Centre for Quantum Computation and Communication Technology, School of Engineering and Information Technology, University of New South Wales, Canberra, ACT 2600, ACT, Australia Hidehiro

Yonezawa Authors * Atsushi Sakaguchi View author publications You can also search for this author inPubMed Google Scholar * Shunya Konno View author publications You can also search for this

author inPubMed Google Scholar * Fumiya Hanamura View author publications You can also search for this author inPubMed Google Scholar * Warit Asavanant View author publications You can also

search for this author inPubMed Google Scholar * Kan Takase View author publications You can also search for this author inPubMed Google Scholar * Hisashi Ogawa View author publications You

can also search for this author inPubMed Google Scholar * Petr Marek View author publications You can also search for this author inPubMed Google Scholar * Radim Filip View author

publications You can also search for this author inPubMed Google Scholar * Jun-ichi Yoshikawa View author publications You can also search for this author inPubMed Google Scholar * Elanor

Huntington View author publications You can also search for this author inPubMed Google Scholar * Hidehiro Yonezawa View author publications You can also search for this author inPubMed

Google Scholar * Akira Furusawa View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS A.S., S.K., and H.O. designed and built the experimental

setups supported by K.T., and J.Y. for debugging. E.H. designed the FPGA board used for the feedforward. A.S. and F.H. acquired and analyzed the data with discussions with W.A., P.M., R.F.

and other co-authors. P.M. and R.F. led the theoretical simulations. A.F supervised the project. A.S. wrote the manuscripts with assistance from W.A., P.M., R.F., H.Y. and other co-authors.

CORRESPONDING AUTHORS Correspondence to Atsushi Sakaguchi or Akira Furusawa. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. PEER REVIEW PEER REVIEW

INFORMATION _Nature Communications_ thanks the anonymous reviewer(s) for their contribution to the peer review of this work. A peer review file is available. ADDITIONAL INFORMATION

PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION

PEER REVIEW FILE RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation,

distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and

indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to

the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will

need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE

CITE THIS ARTICLE Sakaguchi, A., Konno, S., Hanamura, F. _et al._ Nonlinear feedforward enabling quantum computation. _Nat Commun_ 14, 3817 (2023). https://doi.org/10.1038/s41467-023-39195-w

Download citation * Received: 18 November 2022 * Accepted: 02 June 2023 * Published: 12 July 2023 * DOI: https://doi.org/10.1038/s41467-023-39195-w SHARE THIS ARTICLE Anyone you share the

following link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer

Nature SharedIt content-sharing initiative
