ABSTRACT The inherent trade-off between efficiency and bandwidth of three-wave mixing processes in _χ_2 nonlinear waveguides is the major impediment for scaling down many well-established

frequency conversion schemes onto the level of integrated photonic circuit. Here, we show that hybridization between modes of a silica microfiber and a LiNbO3 nanowaveguide, amalgamated with

laminar _χ_2 patterning, offers an elegant approach for engineering broadband phase matching and high efficiency of three-wave mixing processes in an ultra-compact and natively

fiber-integrated setup. We demonstrate exceptionally high normalized second harmonic generation (SHG) efficiency of up to _η__nor_ ≈ 460% W−1 cm−2, combined with a large phase matching

74% QUANTUM EFFICIENCY IN A _Χ_(2) WAVEGUIDE Article Open access 06 November 2023 VISIBLE-TO-ULTRAVIOLET FREQUENCY COMB GENERATION IN LITHIUM NIOBATE NANOPHOTONIC WAVEGUIDES Article 15

January 2024 INTRODUCTION Advancement of nano-scale and integrated optical components has always been in the mainstream of research in photonics. While the majority of studies to date are

focused on silicon1,2, silicon nitride3, aluminum nitride4, and III-V compound semiconductor platforms5,6 for nano-photonic circuits, recent rapid development of the full wafer technology

for single-crystalline LiNbO3 on insulator (LNOI) thin films7 introduces a strong competitor. Lithium niobate (LN), also called the “silicon of photonics (nonlinear optics)” for its

outstanding and balanced optical, ferroelectric and electro-optical properties8, has been widely recognized as a versatile material for integrated optics9. In particular, its broad

transparency range (0.4–5.0 _μ_m) combined with the strong second-order (_χ_2) nonlinearity are essential to enable three-wave mixing processes. Such processes play important roles in many

frequency conversion applications, including second harmonic, sum- and difference-frequency generation. Recently, spontaneous down-conversion (SPDC) in _χ_2 nonlinear crystals and waveguides

became recognized as one of the key platforms for development of sources of indistinguishable single photons and correlated/entangled photon pairs, that can operate reliably at room

temperature and ambient conditions10,11. A possibility to substantially reduce the footprint of such devices, offered by the emergence of LNOI nano-waveguides, could trigger a revolutionary

advancement in design of functional ultra-compact quantum photonic components and circuits, including ultra-compact photon sources based on spatial multiplexing schemes12. However, such

devices require a convenient and compact nonlinear waveguide platform that offers the important combination of efficient and broadband _χ_2 functionality, low losses, including out-coupling

losses to fiber-optic systems, and adjustability. Being inherently parametric, three-wave mixing processes critically rely on the phase matching condition: while energy conservation

establishes the relationship between frequencies of the three interacting waves _ω_1 = _ω_2 + _ω_3, conservation of momentum requires matching of propagation constants _β_(_ω_1) = _β_(_ω_2) 

+ _β_(_ω_3). Due to material dispersion the latter condition is generally not possible to satisfy for plane waves in a bulk medium. Conventional approaches, involving manipulations with

input fields (e.g. polarization and angle of incidence) and material structure (e.g. periodic poling), usually require a compromise between the efficiency, bandwidth, and overall size and

complexity of the setup. In waveguides with relatively small core-to-cladding refractive index contrasts Δ_n__core_/_n_ ≪ 1 (weak guidance), such as LN micro-waveguides13, the material

dominated dispersion can be effectively balanced by a periodic poling (PPLN). This quasi-phase matching (QPM) scheme allows highly efficient three-wave mixing processes (normalized SHG

efficiency of up to 150% W−1 cm−2 in the 1550 nm telecom band13), and is generally considered as the primary platform for _χ_2 waveguides. Recently, periodic poling techniques have been

successfully adopted to LNOI films14 and nano-waveguides7,15. Thanks to tighter light confinement (and hence stronger effective nonlinearities) and substantially reduced poling period, such

PPLNOI waveguides can potentially offer an order of magnitude increase of efficiency in a smaller footprint device, compared to PPLN (theoretically estimated value of 1600% W−1 cm−2 15). In

practice, the measured normalized SHG efficiencies in PPLNOI appear to be more modest (up to 160% W−1 cm−2 15, i.e. an order of magnitude below theoretical estimations, and comparable to

best PPLN results) due to non-uniformity of periodic poling. Taking aside technical challenges associated with periodical structuring in LNOI nano-waveguides15,16, the fixed relationship

between the longitudinal period and the momentum mismatch for a particular combination of interacting frequencies represents a major generic constraint of QPM scheme. In particular, this

leaves little room for any adjustments of individual waveguides integrated in a circuit. The conventional method of temperature or external DC electric field control is not suitable for

high-density on-chip integration due to the lack of sufficient resolution. Adiabatic variation of period17 and other types of chirping of QPM gratings18,19 can be implemented to expand the

bandwidth, however, it adds to the technical complexity, and ultimately production costs, of the setup and requires much longer waveguides. Apart from the practical issues due to incongruity

with compact design and dense on-chip integration, longer waveguides suffer from stronger walk-offs between interacting harmonics due to group velocity mismatch (GVM). This limits the

overall efficiency and bandwidth of three-wave mixing processes, in particular it induces temporal distinguishability (“timing jitter”) and associated visibility degradation of SPDC

generated photon pairs20. Utilizing the specific dispersion of LNOI thin films, it is possible to reduce GVM for some combinations of interacting harmonics14. However, this method requires

fine-tuning of LNOI film thickness14, which restrains adjustability of individual waveguides produced from a single wafer. In strongly-guiding LNOI waveguides \(({\rm{\Delta

}}{n}_{core}/n\gtrsim 1)\), geometrical dispersion is significant and can be utilized to counter-act material dispersion16,21,22. Thus modal phase matching (MPM) between modes of different

orders becomes a viable alternative to QPM scheme. However, the appreciable modal dispersion and involvement of higher-order modes impose considerable fundamental constraints on both the

bandwidth and efficiency of three-wave mixing processes22. In this work, we demonstrate that mode hybridization between a silica microfiber (MF) and LN nano-waveguide represents a very

effective method of dispersion management, which allows to achieve simultaneous broadband phase and group velocity matching in a desired wavelength range. We also show that laminar

nonlinearity patterning, by virtue of an embedded proton exchange (PE) layer, represents a distinctive way to break the fundamental bottleneck of poor modal overlap in conventional MPM

scheme. By introducing a novel hybrid MF-LNOI architecture, we illustrate how the combination of the above two powerful dispersion and nonlinearity engineering tools helps to achieve highly

efficient and broadband three-wave mixing processes in a ultra-compact and natively fiber-integrated architecture, that allows high degree of adjustability. In our proof-of-concept SHG

experiments we achieve unprecedentedly high conversion efficiencies of up to _η__nor_ ~ 460% W−1cm−2 with a bandwidth of up to Δ_λ_ ~ 100 nm (the bandwidth-length product of up to 5 _μ_m2).

These results bring the traditionally low-efficient MPM scheme back into competition with the well-established QPM scheme. THEORY AND DESIGN BANDWIDTH-EFFICIENCY TRADE-OFF AND DISPERSION

ENGINEERING For SHG process in a waveguide of length _L_ pumped by a CW source of power _P__F_, the generated signal power is given by23: $${P}_{SH}\propto {({P}_{F}L{\rho }_{2})}^{2}\cdot

{{\rm{s}}{\rm{i}}{\rm{n}}{\rm{c}}}^{2}({\rm{\Delta }}\beta L/2),$$ (1) where _ρ_2 is the waveguide second-order nonlinear coefficient, pump depletion is neglected under assumption

\({L}^{2}{P}_{F}{\rho }_{2}^{2}\ll 1\) (i.e. short waveguide), and Δ_β_(_λ__F_) = 2_β__F_ − _β__SH_ = 4_π_(_n__F_ − _n__SH_)/_λ__F_ is the propagation constant mismatch between the modes at

fundamental (_ω_2 = _ω_3 = _ω__F_) and second harmonic (SH) (_ω_1 = _ω__SH_ = 2_ω__F_) frequencies. For efficient interaction, the argument of the sinc function in the above formula must be

small: \(|{\rm{\Delta }}\beta |L/2\ll \pi \). Hence the inherent trade-off between bandwidth and efficiency of _χ_2 processes in nonlinear waveguides becomes apparent: while efficiency grows

with the waveguide length as ~_L_2, the bandwidth, implicitly determined via Δ_β_(_λ__F_), generally narrows. Since sinc2(0.44_π_) ≈ 0.5, the bandwidth (FWHM) of the function sinc2(Δ_βL_/2)

in Eq. (1) around a particular wavelength of phase matching [_λ__F_0, Δ_β_(_λ__F_0) = 0] is determined by the roots \({\lambda }_{F}^{\mathrm{(1)}} < {\lambda }_{F0} < {\lambda

}_{F}^{\mathrm{(2)}}\) of the following equation: $$\frac{2{\rm{\Delta }}{n}_{eff}({\lambda }_{F})}{{\lambda }_{F}}=\pm \,\frac{0.44}{L},$$ (2) where Δ_n__eff_ (_λ__F_) = _n__F_(_λ__F_) − 

_n__SH_(_λ__F_/2). For long waveguides with \(L\gg {\lambda }_{F}\), the roots of the above equation converge, \({\lambda }_{F}^{\mathrm{(1,2)}}\to {\lambda }_{F0}\), and the bandwidth

shrinks. In a vicinity of _λ__F_0, the l.h.s. of Eq. (2) can be approximated as: \(2{\rm{\Delta }}{n}_{eff}/{\lambda }_{F}\approx 2({n^{\prime} }_{F}-{n^{\prime} }_{SH})\cdot {\lambda

}_{F0}^{-1}\cdot ({\lambda }_{F}-{\lambda }_{F0})\) with \({n^{\prime} }_{F,SH}=d{n}_{F,SH}/d{\lambda }_{F}\). Accordingly, the bandwidth \({\rm{\Delta }}\lambda =\) \({\lambda

}_{F}^{\mathrm{(1)}}-{\lambda }_{F}^{\mathrm{(2)}}\) is inversely proportional to the waveguide length _L_, and the product Δ_λ_⋅_L_ does not depend on _L_: $${\rm{\Delta }}\lambda \cdot

L\approx \frac{0.44{\lambda }_{F0}}{{n^{\prime} }_{F}-{n^{\prime} }_{SH}}.$$ (3) The single-core geometry of a LNOI waveguide offers limited degrees of freedom for dispersion engineering:

adjusting height and width of the waveguide, one can achieve phase matching between different pairs of modes at a desired wavelength, but there is no control over the gradient mismatch. For

LNOI waveguides, the latter can be as high as \(({n^{\prime} }_{F}-{n^{\prime} }_{SH}) \sim 0.5\,\mu {{\rm{m}}}^{-1}\), limiting the bandwidth-length product to \({\rm{\Delta }}\lambda \cdot

L\lesssim 1.5\,\mu {{\rm{m}}}^{2}\) when using _λ__F_ = 1.5 _μ_m. On the other hand, in PPLN and PPLNOI waveguides13,15, by using QPM, this bandwidth-length product can reach \({\rm{\Delta

}}\lambda \cdot L \sim 10\,\mu {{\rm{m}}}^{2}\). To resolve the intrinsic bandwidth-efficiency conflict in MPM scheme, an advanced control over waveguide dispersion is required, that would

allow simultaneous and independent management of effective indexes and their gradients. In this work we demonstrate how the well-known mode hybridization mechanism can be effectively

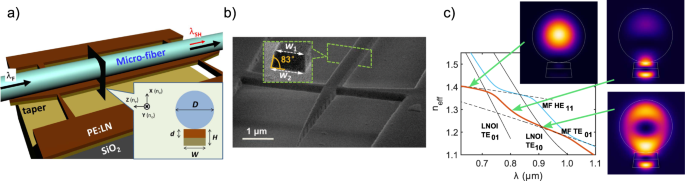

exploited for this purpose. The central element of our design is a vertical stack of a silica microfiber (MF) and a free-standing LNOI waveguide supported by suspending arms, as shown in

Fig. 1(a,b). The modest refractive index difference between silica and LN, and the suspended geometry of LNOI waveguide, make it possible to bring propagation constants of guided modes of

the MF and LNOI waveguide close together. The resulting mode hybridization, featured by a series of anti-crossing points, has a strong impact on the dispersion of the MF-LNOI structure, see

Fig. 1(c). Proper adjustments of geometrical parameters can bring suitable modifications to the overall dispersion, as the positions of anti-crossing points shift. Having three parameters

available to tailor (fiber diameter, waveguide height and width), this represents a powerful approach to dispersion (and its gradient) engineering, and give us enough flexibility to

fine-tune the structure and compensate for manufacturing inaccuracies. Earlier we demonstrated theoretically how by tuning the MF diameter and LNOI waveguide size, phase matching between

different sets of modes and in a desired wavelength range can be arranged24. In Fig. 2(a) such engineered phase matchings are illustrated as crossings between _n__F_(_λ__F_) and

_n__SH_(_λ__F_/2) curves for LNOI waveguide (single crossing at around _λ__F_0 ≈ 1.55 _μ_m) and MF-LNOI hybrid structure (altogether four crossings in the interval 1.45 _μ_m < _λ__F_ <

 1.9 _μ_m). What was overlooked in our previous work24 is the advantage of strong modification of the dispersion of hybridized modes for expanding the phase matching bandwidth. Indeed,

hybridization offers an additional “lever” to simultaneously minimize phase (_n__F_ − _n__SH_) and its gradient \(({n^{\prime} }_{F}-{n^{\prime} }_{SH})\) mismatches. Since gradients of the

interacting MF and LNOI modes differ considerably, by effectively “averaging” the gradients in hybridized MF-LNOI modes, which happens near anti-crossing points, one can strongly tailor the

gradient of the corresponding mode within broad wavelength ranges, see Fig. 2(a). This represents a completely unexploited paradigm for nano-waveguide dispersion engineering. Furthermore,

multiple anti-crossings between a MF mode and several LNOI modes of different orders result in a nonlinear relationship of Δ_n_(_λ__F_), cf. Figs 1(c) and 2(a,b). This breaks the above

described inverse proportionality of bandwidth and waveguide length, typical for conventional waveguides. In Fig. 2(b) the condition determining FWHM of the sinc2(Δ_βL_/2) function, i.e. Eq.

(2), is presented graphically, while in Fig. 2(c) we plot the product Δ_λ_⋅_L_ as a function of the waveguide length _L_. In conventional LNOI waveguide the linear characteristic of

Δ_n_(_λ__F_) results in an _L_-independent product of Δ_λ_⋅_L_. In long MF-LNOI waveguide [e.g. _L_ > 200 _μ_m in Fig. 2(c)], the phase-matching function represents a series of isolated

peaks, each demonstrating a similar linear relationship of Δ_n_(_λ__F_) as in conventional waveguides. In this limit, the product Δ_λ_⋅_L_ approaches a constant value (~10 _μ_m2), similar to

PPLN and PPLNOI waveguides. Remarkably, due to substantial reduction of the gradient mismatch between hybridized MF-LNOI modes, this limiting value has been nearly one order of magnitude

higher than in typical LNOI waveguides. Yet the most appealing advantage of MF-LNOI geometry is in the ability to depart from the conventional constant trend of Δ_λ_⋅_L_ when the waveguide

length becomes small enough. In this regime, the nonlinear nature of Δ_n_(_λ__F_) becomes apparent, and the phase-matching function differs considerably from the standard sinc-square shape

[see the curves in Fig. 2(d) for LNOI and MF-LNOI structures]. As illustrated in Fig. 2(c,d), for _L_ < 200 _μ_m adjacent peaks of the phase-matching function start to merge, resulting in

a series of step-wise increases of bandwidth (and bandwidth-length product). The nonlinear relationship of Δ_n_(_λ__F_) thereby provides a new mechanism to bypass fundamental

bandwidth-efficiency conflict without sacrifice of size compactness. MODAL OVERLAP AND NONLINEARITY ENGINEERING The effective nonlinear coefficient _ρ_2 is determined by modal overlap23,25:

$${\rho }_{2}=\frac{\pi c{\varepsilon }_{0}}{2{\lambda }_{F}\sqrt{{N}_{SH}}{N}_{F}}{\iint }_{WG}{\overrightarrow{{\bf{e}}}}_{SH}\cdot ({\hat{\chi }}_{2}\vdots

{\overrightarrow{{\bf{e}}}}_{F}^{2})dA.$$ (4) Here \({\overrightarrow{{\bf{e}}}}_{F}\) and \({\overrightarrow{{\bf{e}}}}_{SH}\) are electric field profiles of the fundamental and SH modes,

\({\hat{\chi }}_{2}\) is the LN second-order nonlinear tensor26, and the integral is taken over the waveguide cross-section, \({N}_{k}=\mathrm{(1}/\mathrm{4)}\iint

({\overrightarrow{{\bf{e}}}}_{k}\times {\overrightarrow{{\bf{h}}}}_{k}^{\ast }+{\overrightarrow{{\bf{e}}}}_{k}^{\ast }\times {\overrightarrow{{\bf{h}}}}_{k})\cdot \hat{y}dA\), (_k_ = 

_F_,_SH_), are normalization factors (total power carried by each guided mode in the propagation direction, _y_). In QPM scheme interaction can happen between modes of the same order

(typically, lowest order modes), while the phase mismatch is canceled out by introducing longitudinal periods. This guarantees a strong modal overlap, and hence highly efficient three-wave

mixing. However, in MPM scheme the two modes have different symmetries, and the resulting overlap is generally weak22,27 - which is a major pitfall of this scheme. While the abolishment of

longitudinal modulation makes MPM scheme particularly attractive for design and fabrication of integrated photonic components, poor modal overlap requires long waveguides for efficient

interactions, and thus revokes any advantages over QPM. Additionally, both the nonlinearity (_ρ_2) and dispersion (Δ_β_) characteristics are governed by the same waveguide geometry, and

hence are inherently linked. This represents another fundamental problem of _χ_2 waveguides: an independent control of _ρ_2 and Δ_β_ is usually not possible. Removing this constrain would

substantially enrich design capabilities for engineering of broadband and efficient three-wave mixing processes. Here we demonstrate how laminar nano-structuring offers an elegant solution

to the problem of poor modal overlap, and helps to achieve nearly independent control of nonlinearity and dispersion of a waveguide. The second important element of our architecture is the

nonlinearity patterning via introduction of a shallow PE layer. This enables us to control the modal overlap by enforcing the transverse profile of the material tensor, and thus to engineer

the effective nonlinearity of the whole structure. In Fig. 3(a) profiles of a pair of phase-matched modes are illustrated. Despite having a good overlap of intensities in LN, due to the

different phase structure of these modes, the integrand in Eq. (4) changes sign across the waveguide as shown in Fig. 3(b). By introducing a shallow PE layer28, we eliminate _χ_2

nonlinearity of LN in the corresponding upper part of the waveguide29,30. Interestingly, an appropriate local suppression of material nonlinearity helps to enhance the effective waveguide

nonlinearity. By inhibiting one of the lobes of the integrand function, we boost the effective nonlinear coefficient of the whole waveguide by almost two orders of magnitude, see Fig. 3(c),

reaching the level of best performing PPLN and PPLNOI waveguides. Thus laminar nonlinearity patterning technique, reconciled with field distributions of interacting modes, resolves the

fundamental problem of poor modal overlap in MPM scheme, and revives the competition with QPM. Furthermore, PE process is known to introduce less than 5% variations to the refractive index

of LN (see Supplementary Fig. S1)28,30. Insertion of a shallow PE layer hence brings only minor changes to linear properties of the waveguide, i.e. field profiles and mode dispersion. Such

partial PE of adjustable depth represents a powerful technique to control nonlinearity, which does not bring a notable disturbance to the phase matching, see the plots of Δ_n__eff_ in Fig.

3(c). This independent nonlinearity engineering is a unique feature of our platform, which can facilitate nonlinear waveguide design. EXPERIMENT We prepared two LNOI waveguides of the same

length _L_ = 50 _μ_m and widths of ~565 nm (sample A) and ~495 nm (sample B). From numerical simulations and experiments we found that MF diameter _D_ ~ 1.25 _μ_m gives the broadest

phase-matching, while PE layer of thickness ~130 nm maximizes the nonlinear coefficient in both samples. In experiment we mounted different sections of one MF with a few centimeter length on

the top of waveguides to adjust the diameter parameter _D_, see Fig. 4(a). To obtain conversion efficiency, we first measured input power by monitoring transmitted pump through isolated

(not in contact with LNOI) MF. Then, we attached the MF to the LNOI waveguide and measured generated SH signal. The raw data of output SH power _vs_ input pump power are plotted in the

insets of Fig. 4(b,d) for samples A and B when pumped at _λ__F_ = 1.495 _μ_m and _λ__F_ = 1.450 _μ_m, respectively. From 7.8 mW (5.75 mW) pump power in sample A(B) we measured ~4.1 nW (~1.37

 nW) SH light. In order to estimate the pump power coupled into the MF-LNOI structure and the SH power at the output end of the waveguide, and then to calculate the conversion efficiency, we

calibrated our measurements by taking into account simulated in- and out-coupling losses for pump and SH lights (see Supplementary Fig. S2). In both samples, we obtained exceptionally high

normalized efficiencies, reaching the peak values to 460% W−1 cm−2 (290% W−1 cm−2) in sample A(B), see Fig. 4(b,d). This is more than six orders of magnitude higher than reported results of

SHG in fibers31, and several times higher than in PPLN waveguides13,15. As illustrated in Fig. 4(c,e), our experimental measurements are in good agreement with numerical simulations.

Remarkably, the high efficiencies are combined with large bandwidths of 38 nm in sample A and 108 nm in sample B. The bandwidth-length products are 1.9 _μ_m2 and 5.4 _μ_m2, respectively. The

apparent reduction of this product, compared to theoretical estimates in Fig. 2(c), is due to the dispersion of nonlinear coefficient, _ρ_2(_λ__F_), which introduces additional restraint to

the bandwidth according to Eq. (1). We emphasize that MF and LNOI are kept together and aligned symmetrically by virtue of van der Waals and electrostatic attraction. The adjustability of

mode dispersion by varying geometrical parameters of the structure, and the possibility to detach and re-attach MF at different sections along the fiber taper, provide unique flexibility in

fine tuning bandwidth and efficiency of generic three-wave mixing processes. By adjusting MF position in sample B we observe a considerable spectrum shift of the peak SHG efficiency, as

shown in Fig. 4(d) by the dashed curve. Numerical simulation verifies the similar behavior when varying the MF diameter, as shown in Fig. 4(e). DISCUSSION AND CONCLUSION We believe that the

consolidation of mode hybridization and nonlinearity patterning by means of laminar nano-structuring represents a novel versatile approach to design of ultra-compact _χ_2 nonlinear

waveguides. Particularly, it offers advanced tools for comprehensive and independent dispersion and nonlinearity engineering of the structure. In a proof-of-concept experiment, we

demonstrate a combination of high normalized efficiency, broad bandwidth (large bandwidth-length product), and high degree of tunability of three-wave mixing processes in a compact and

natively fiber-integrated MF-LNOI architecture. We show how the mode hybridization provides a unique and powerful method to adjust and match index gradients _n_’ = _dn_/_dλ__F_ of

interacting harmonics. This helps to break the fundamental trade-off between bandwidth and efficiency, inherent in conventional _χ_2 waveguides, and potentially achieve extremely broad

bandwidths without a necessary sacrifice of efficiency in compact waveguides. Furthermore, the simultaneously obtained matching of effective indexes and their gradients ensures matching of

group velocities of interacting harmonics, _c_/_v__g_ = _n_ − _n_’_λ_. The suppression of the walk-off between interacting waves is of essential importance for efficient frequency conversion

with pulsed sources and improving visibility of SPDC generated photon pairs. Also, we demonstrate how nonlinearity patterning resolves the well-known problems of poor modal overlap and lack

of independent control of nonlinearity and dispersion in conventional MPM scheme. Interplay between dispersion and nonlinearity is an important and fundamental aspect of all nonlinear

optical processes. The comprehensive and independent manipulation of these two characteristics demonstrated in our MF-LNOI platform enables versatile functional waveguide design, and opens

new avenues for research in nonlinear and quantum photonics. The geometry of proposed MF-LNOI structure allows efficient multi-parameter adjustments of the bandwidth and efficiency of

three-wave mixing processes. We demonstrated a considerable shift of SHG peak wavelength by changing the MF diameter. Compared to conventional methods of varying temperature or external

electric field, such geometrical adjustment provides much higher resolution and accuracy, which is essential for fine-tuning of densely integrated photonic devices. Furthermore, appropriate

adjustments of the MF diameter can be used to compensate for manufacturing imperfections. Following the fine-tuning procedure, a firm fixing of MF on LNOI waveguide could be realized e.g.

with the help of optically transparent adhesives. Last but not least, inefficient coupling to conventional fiber optic systems causes significant losses7 and restrains functionality of

nano-waveguides, especially for photon sources and quantum information applications. Here, MF-LNOI platform can offer an outstanding alternative to conventional waveguide. Thanks to the

exceptionally weak material absorption and atomic level surface flatness, silica MF exhibit excellent light guidance in a broad spectral range32,33. Introducing in- and out-coupling tapering

sections of LNOI waveguide, as shown in Fig. 1(a,b), we can utilize adiabatic mode conversion to optimize light coupling. When used in combination with the taper transition from MF to

conventional fiber, a nearly lossless integration of the MF-LNOI nano-structure with fiber optics can ultimately be arranged. The combination of all the above features is very advantageous

for the development of integrated nonlinear and quantum photonic circuits. For such applications, we believe the platform demonstrated in this work can offer a superior alternative to other

conventional _χ_2 waveguides. METHODS SAMPLE FABRICATION AND CHARACTERIZATION An X-cut LNOI wafer with a ~300 nm-thick LN film bonded on a SiO2/LN substrate was used. The wafer was immersed

in a molten benzoic acid at 200 °C for 3 minutes. The exchange of _H_+ ions (proton) in the melt and _Li_+ ions in the LN thin film resulted in a shallow layer of step-like _β__i_-phase

PE:LN with the depth of roughly half of the total LN thickness measured by focused ion beam (FIB) milling cut. After PE we did not carried out annealing in order to preclude further proton

diffusion and keep _χ_2 in the PE:LN layer nearly zero. Then, 100 nm-thick chromium (Cr) was deposited onto the surface to serve as a conductive and protective coating in the milling

process. FIB milling within one write-field was applied to fabricate waveguides of designed widths and length (50 _μ_m) along the Y axis of the crystal. According to our previous

calculation24, the waveguide width non-uniformity will not affect SHG in such a distance. An acceleration voltage of 30 kV and a beam current of 100 pA ensure smooth and nearly vertical

sidewalls of the waveguides. The milling process introduces a sidewall angle of ~83°, as measured in SEM image. We adapted the corresponding cross-section in our modeling. On both ends of

each waveguide linear tapers and suspending arms were added to facilitate light coupling and mechanical strength, respectively, as shown in Fig. 1(b). Finally, the Cr coating was removed by

Cr etchant, and the _SiO_2 layer (~2 _μ_m thick) beneath the LNOI waveguide was wet etched by hydrofluoric acid. After fabrication the free-standing LNOI waveguides can withstand chemical

cleaning and preserve good qualities of optical and mechanical properties over more than one year. A silica MF was fabricated from conventional optical fiber (Corning SMF28) by standard

heat-and-pull technique34. Its insertion loss was measured to be less than 0.1 dB at both fundamental and SH wavelengths. It can be attached to and detached from the LNOI waveguide

repeatedly, and can slip along the waveguide smoothly (see Supplementary video), thus allowing us to fine-tune dispersion of the MF-LNOI structure. By measuring the output powers at 1500 nm

from fiber pigtail with and without the LNOI waveguide (sample A) attaching to the MF, we also attain the in/out-coupling loss at this wavelength to be ~1.1 dB, agreeing well with the

simulated result of 1.0 dB. This insertion loss is caused by a linear taper of length 12.5 _μ_m and two 0.3 _μ_m-wide suspending arms. FDTD simulations give the in/out-coupling losses at

other wavelengths and modes. Detailed information on the measurements and simulations can be found in Supplementary Sec. S2. MODELING Propagation constants and field profiles of fundamental

and SH modes, which are needed in calculation of Δ_β_ and _ρ_2, were obtained with the help of COMSOL Multiphysics software. In simulations we adopted the trapezoid shape of LNOI waveguide

with a PE layer of variable thickness, as shown in Fig. 3(b). We used available and well established in literature material dispersions of fused silica23 and LN26. According to our previous

work28, for shallow depths of PE channel, the lateral diffusion can be ignored, and so we applied the step changes of ordinary and extraordinary LN refractive indeces, Δ_n__o_ and Δ_n__e_,

inside the PE layer. We measured the corresponding changes of LN refractive index by prism coupling method at wavelengths of 633 nm and 1539 nm (see Supplementary Fig. S1 for details). Our

results of Δ_n__e_ are in good agreement with the empirical Sellmeier equation reported in ref.35: $${\rm{\Delta }}{n}_{e}=\sqrt{0.00743+\frac{0.00264\mu {m}^{2}}{{\lambda

}^{2}-{\mathrm{(0.336}\mu m)}^{2}}}.$$ (5) For the ordinary refractive index, we adopted a constant value of Δ_n__o_ = −0.06035. We believe that the uncertainty of the refractive index

profile across the PE layer is the major cause of discrepancies between theoretical and experimental SHG efficiency data reported in Fig. 4. For calculations of the nonlinear coefficient

_ρ_2 we used the reduced second order nonlinear tensor \(\hat{d}\) (\({\hat{\chi }}_{2}\) = 2\(\hat{d}\)) with the following structure26: $$\hat{d}=[\begin{array}{cccccc}0 & 0 & 0

& 0 & {d}_{31} & -{d}_{22}\\ -{d}_{22} & {d}_{22} & 0 & {d}_{31} & 0 & 0\\ {d}_{31} & {d}_{31} & {d}_{33} & 0 & 0 & 0\end{array}],$$ (6)

where _d_22 = 2 pm/V, _d_31 = 5 pm/V, and _d_33 = 19 pm/V36. All components of \(\hat{d}\) were set to zero inside the PE layer29,30. SHG EFFICIENCY MEASUREMENTS The schematic of our

experimental setup is shown in Fig. 4(a). A tapered MF was fixed at and precisely positioned by two xyz-stages. An optical microscope with a CCD camera was used to monitor MF and LNOI

waveguide. At one end of the MF, a tunable laser (Santec TSL210) launched light into the sample through an in-line polarization controller. At the other end, a highly-sensitive visible

spectrometer (Ocean Optics QE65000) and a power meter were used to measure the SH wavelength and power. Since the spectrometer only responds in the visible, we had not used filter to remove

the pump light. Before measurement, the spectrometer was carefully calibrated with the power meter. The normalized SHG efficiencies inside the MF-LNOI structures were calculated by taking

into account the in/out-coupling losses, as illustrated in Supplementary Fig. S2. REFERENCES * Simply silicon. _Nat. Photonics_ 4, 491 (2010). * Leuthold, J., Koos, C. & Freude, W.

Nonlinear silicon photonics. _Nat. Photonics_ 4, 535–544 (2010). Article  ADS  CAS  Google Scholar  * Moss, D. J., Morandotti, R., Gaeta, A. L. & Lipson, M. New CMOS-compatible platforms

based on silicon nitride and Hydex for nonlinear optics. _Nat. Photonics_ 7, 597–607 (2013). Article  ADS  CAS  Google Scholar  * Xiong, C., Pernice, W. H. P. & Tang, H. X. Low-Loss,

Silicon integrated, Aluminum Nitride photonic circuits and their use for electro-optic signal processing. _Nano Lett._ 12, 3562–3568 (2012). Article  ADS  PubMed  CAS  Google Scholar  *

Huang, Y., Duan, X. & Lieber, C. M. Nanowires for integrated multicolor nanophotonics. _Small_ 1, 142–147 (2005). Article  PubMed  CAS  Google Scholar  * Yan, R., Gargas, D. & Yang,

P. Nanowire photonics. _Nat. Photonics_ 3, 569–576 (2009). Article  ADS  CAS  Google Scholar  * Poberaj, G., Hu, H., Sohler, W. & Günter, P. Lithium niobate on insulator (LNOI) for

micro-photonic devices. _Laser & Photonics Rev._ 6, 488–503 (2012). Article  ADS  CAS  Google Scholar  * Manzo, M., Laurell, F., Pasiskevicius, V. & Gallo, K. Lithium Niobate: The

Silicon of Photonics! 421–422 (Springer, Dordrecht, 2013). * Lawrence, M. Lithium niobate integrated optics. _Reports on Prog. Phys._ 56, 363–429 (1993). Article  ADS  CAS  Google Scholar  *

Hong, C. K. & Mandel, L. Experimental realization of a localized one-photon state. _Phys. Rev. Lett._ 56, 58–60 (1986). Article  ADS  PubMed  CAS  Google Scholar  * Eisaman, M. D., Fan,

J., Migdall, A. & Polyakov, S. V. Invited Review Article: Single-photon sources and detectors. _Rev. Sci. Instruments_ 82, 071101 (2011). Article  ADS  CAS  Google Scholar  * Collins,

M. J. _et al_. Integrated spatial multiplexing of heralded single photon sources. _Nat. Commun._ 4, 2582 (2013). Article  PubMed  PubMed Central  CAS  Google Scholar  * Parameswaran, K. R.

_et al_. Highly efficient second-harmonic generation in buried waveguides formed by annealed and reverse proton exchange in periodically poled lithium niobate. _Opt. Lett._ 27, 179–181

(2002). Article  ADS  PubMed  CAS  Google Scholar  * Li, G., Chen, Y., Jiang, H. & Chen, X. Broadband sum-frequency generation using d33 in periodically poled LiNbO3 thin film in the

telecommunications band. _Opt. Lett._ 42, 939–942 (2017). Article  ADS  PubMed  Google Scholar  * Chang, L. _et al_. Thin film wavelength converters for photonic integrated circuits.

_Optica_ 3, 531–535 (2016). Article  CAS  Google Scholar  * Wang, C. _et al_. Second harmonic generation in nano-structured thin-film lithium niobate waveguides. _Opt. Express_ 25, 6963–6973

(2017). Article  ADS  PubMed  CAS  Google Scholar  * Suchowski, H., Porat, G. & Arie, A. Adiabatic processes in frequency conversion. _Laser & Photonics Rev._ 8, 333–367 (2014).

Article  ADS  Google Scholar  * Tehranchi, A. & Kashyap, R. Design of novel unapodized and apodized step-chirped quasi-phase matched gratings for broadband frequency converters based on

second-harmonic generation. _J. Light. Technol._ 26, 343–349 (2008). Article  ADS  Google Scholar  * Bostani, A., Tehranchi, A. & Kashyap, R. Super-tunable, broadband up-conversion of a

high-power CW laser in an engineered nonlinear crystal. _Sci. Rep._ 7, 883 (2017). Article  ADS  PubMed  PubMed Central  CAS  Google Scholar  * Harada, K.-i. _et al_. Indistinguishable

photon pair generation using two independent silicon wire waveguides. _New J. Phys._ 13, 065005 (2011). Article  ADS  CAS  Google Scholar  * Hu, H., Ricken, R. & Sohler, W. Lithium

niobate photonic wires. _Opt. Express_ 17, 24261–24268 (2009). Article  ADS  PubMed  CAS  Google Scholar  * Geiss, R. _et al_. Fabrication of nanoscale lithium niobate waveguides for

second-harmonic generation. _Opt. Lett._ 40, 2715–2718 (2015). Article  ADS  PubMed  CAS  Google Scholar  * Agrawal, G. P. _Nonlinear Fiber Optics_, 5th edn (Academic Press, 2013). *

Gorbach, A. & Ding, W. Microfiber-lithium niobate on insulator hybrid waveguides for efficient and reconfigurable second-order optical nonlinearity on a chip. _Photonics_ 2, 946–956

(2015). Article  CAS  Google Scholar  * Boyd, R. W. _Nonlinear Optics_, second edn (Academic Press, 2003). * Dmitriev, V. G., Gurzadian, G. G. & Nikogosian, D. N. _Hanbook of Nonlinear

Optical Crystals_, 3rd edn (Springer-Verlag Berlin and Heidelberg GmbH\& Co, Berlin, 1996). * Rao, S. V., Moutzouris, K. & Ebrahimzadeh, M. Nonlinear frequency conversion in

semiconductor optical waveguides using birefringent, modal and quasi-phase-matching techniques. _J. Opt. A_ 6, 569–584 (2004). Article  CAS  Google Scholar  * Cai, L., Kong, R., Wang, Y.

& Hu, H. Channel waveguides and y-junctions in x-cut single-crystal lithium niobate thin film. _Opt. Express_ 23, 29211–29221 (2015). Article  ADS  PubMed  CAS  Google Scholar  * Bortz,

M. L., Eyres, L. A. & Fejer, M. M. Depth profiling of the d33 nonlinear coefficient in annealed proton exchanged LiNbO3 waveguides. _Appl. Phys. Lett._ 62, 2012–2014 (1993). Article  ADS

  CAS  Google Scholar  * Korkishko, Y. N., Fedorov, V. A. & Laurell, F. The SHG-response of different phases in proton exchanged lithium niobate waveguides. _IEEE J. Sel. Top. Quant._ 6,

132–142 (2000). Article  CAS  Google Scholar  * Canagasabey, A. _et al_. High-average-power second-harmonic generation from periodically poled silica fibers. _Opt. Lett._ 34, 2483–2485

(2009). Article  ADS  PubMed  CAS  Google Scholar  * Tong, L. _et al_. Subwavelength-diameter silica wires for low-loss optical wave guiding. _Nature_ 426, 816–819 (2003). Article  ADS

PubMed  CAS  Google Scholar  * Brambilla, G. _et al_. Optical fiber nanowires and microwires: fabrication and applications. _Adv. Opt. Photonics_ 1, 107–161 (2009). Article  ADS  CAS  Google

Scholar  * Birks, T. & Li, Y. The shape of fiber tapers. _J. Light. Technol._ 10, 432–438 (1992). Article  ADS  Google Scholar  * Bortz, M. L. & Fejer, M. M. Annealed

proton-exchanged LiNbO3 waveguides. _Opt. Lett._ 16, 1844–1846 (1991). Article  ADS  PubMed  CAS  Google Scholar  * Shoji, I., Kondo, T., Kitamoto, A., Shirane, M. & Ito, R. Absolute

scale of second-order nonlinear-optical coefficients. _J. Opt. Soc. Am. B_ 14, 2268–2294 (1997). Article  ADS  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS This work was

supported by the National Key R&D Program of China (No. 2017YFA0303800) and the National Natural Science Foundation of China (No. 61575218). AUTHOR INFORMATION AUTHORS AND AFFILIATIONS *

Laboratory of Optical Physics, Institute of Physics, Chinese Academy of Sciences, Beijing, 100190, China Lutong Cai & Wei Ding * School of Physics, Shandong University, Jinan, 250100,

China Lutong Cai, Yiwen Wang & Hui Hu * Centre for Photonics and Photonic Materials, Department of Physics, University of Bath, Bath, BA2 7AY, UK Andrey V. Gorbach Authors * Lutong Cai

View author publications You can also search for this author inPubMed Google Scholar * Andrey V. Gorbach View author publications You can also search for this author inPubMed Google Scholar

* Yiwen Wang View author publications You can also search for this author inPubMed Google Scholar * Hui Hu View author publications You can also search for this author inPubMed Google

Scholar * Wei Ding View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS W.D. conceived the idea and supervised the project. L.C. designed and

fabricated nanowaveguides and the microfiber. W.D. and L.C. built the measurement set-up. L.C. and Y.W. performed measurements. A.G., W.D. and L.C. implemented simulations and data analysis.

H.H. provided LNOI wafers. A.G., W.D. and L.C. prepared the manuscript. CORRESPONDING AUTHOR Correspondence to Wei Ding. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no

competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE: Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

ELECTRONIC SUPPLEMENTARY MATERIAL SUPPLEMENTARY INFORMATION VIDEO RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License,

which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link

to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless

indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or

exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints

and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Cai, L., Gorbach, A.V., Wang, Y. _et al._ Highly efficient broadband second harmonic generation mediated by mode hybridization and

nonlinearity patterning in compact fiber-integrated lithium niobate nano-waveguides. _Sci Rep_ 8, 12478 (2018). https://doi.org/10.1038/s41598-018-31017-0 Download citation * Received: 11

May 2018 * Accepted: 26 July 2018 * Published: 20 August 2018 * DOI: https://doi.org/10.1038/s41598-018-31017-0 SHARE THIS ARTICLE Anyone you share the following link with will be able to

read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing

initiative
