ABSTRACT Hand position can be estimated by vision and proprioception (position sense). The brain is thought to weight and integrate these percepts to form a multisensory estimate of hand
position with which to guide movement. Force field adaptation, a type of cerebellum-dependent motor learning, is associated with both motor and proprioceptive changes. The cerebellum has
connections with multisensory parietal regions; however, it is unknown if force adaptation is associated with changes in multisensory perception. If force adaptation affects all relevant
sensory modalities similarly, the brain’s weighting of vision vs. proprioception should be maintained. Alternatively, if force perturbation is interpreted as somatosensory unreliability,
vision may be up-weighted relative to proprioception. We assessed visuo-proprioceptive weighting with a perceptual estimation task before and after subjects performed straight-ahead reaches
grasping a robotic manipulandum. Each subject performed one session with a clockwise or counter-clockwise velocity-dependent force field, and one session in a null field. Subjects increased
their weight of vision vs. proprioception in the force field session relative to the null session, regardless of force field direction, in the straight-ahead dimension (F1,44 = 5.13, p =
0.029). This suggests that force field adaptation is associated with an increase in the brain’s weighting of vision vs. proprioception. SIMILAR CONTENT BEING VIEWED BY OTHERS SENSORIMOTOR
ADAPTATION REVEALS SYSTEMATIC BIASES IN 3D PERCEPTION Article Open access 31 January 2025 CEREBELLAR OUTPUT SHAPES CORTICAL PREPARATORY ACTIVITY DURING MOTOR ADAPTATION Article Open access
15 March 2025 TACTILE CONTRIBUTION EXTENDS BEYOND EXTEROCEPTION DURING SPATIALLY GUIDED FINGER MOVEMENTS Article Open access 29 April 2025 INTRODUCTION To keep voluntary movement accurate in
the face of internal or environmental perturbations, the brain may make adjustments in both sensory and motor systems. In the context of motor learning, sensory changes have been suggested
in both animal1 and human studies2. Xerri _et al_. (1999) trained monkeys to pick up food pellets. As the monkeys learned the task, they began using smaller regions of their fingers to pick
up the pellets. The corresponding representations in somatosensory cortex (S1) grew about two times larger than the same S1 fingertip regions for the contralateral hand, suggesting an effect
of motor learning on the somatosensory system1. Ostry _et al_. (2010) instructed human subjects to make straight-ahead reaches while grasping a robotic manipulandum that applied a
velocity-dependent force field. Initial movement errors were reduced with trial-and-error practice, a sign of cerebellum-dependent motor adaptation3,4,5; interestingly, Ostry _et al_. (2010)
found systematic changes in somatosensation (kinesthesia) in the adapted arm. These perceptual changes may indicate the involvement of somatosensory cortex in motor adaptation6,7. In
addition, visuomotor adaptation to a cursor rotation results in systematic proprioceptive changes for the adapted hand8,9, which is consistent with somatosensory involvement in motor
learning whether the perturbation is visual (cursor rotation) or somatosensory (force field). While somatosensory involvement in motor adaptation has been an important area of investigation
in the last ten years, the potential role of multisensory processing in motor adaptation has yet to be considered. Multiple sensory systems play an important role in voluntary movement. For
example, to plan an accurate reach, the brain must have an accurate initial estimate of the hand’s position. We normally have access to true hand position (_Y_) through vision and
proprioception. The image of the hand on the retina provides a visual estimate (_Ŷ__V_), while receptors in the muscles and joints of the arm provide a proprioceptive estimate (_Ŷ__P_). To
form a single estimate with which to guide behavior, the brain is thought to weight and combine them into a single, integrated estimate of hand position10. If _Ŷ__VP_ is this integrated
estimate, and _W__V_ is the weight of vision vs. proprioception (_W__V_ < 0.5 implies greater reliance on proprioception):
$${\hat{{\rm{Y}}}}_{VP}={W}_{V}{\hat{{\rm{Y}}}}_{V}+(1-{W}_{V}){\hat{{\rm{Y}}}}_{P}$$ (1) Although the neural basis of this process is unknown, it may involve multisensory regions of
posterior parietal cortex such as the intraparietal sulcus11 or angular gyrus12. The weighting of each sensory input is thought to be inversely proportional to the associated variance; this
is known as the minimum variance or maximum likelihood estimation model13, and it has experimental support from a variety of human behaviors10,14,15,16. Importantly, the reliability of a
given sensory input, and its weighting in multisensory integration, is not constant, but may vary with environmental conditions17 and locus of attention18,19,20. Thus, multisensory
integration can respond to changes in the body or environment that affect sensory perception. For example, a decrease in illumination likely results in a multisensory estimate that relies
more on proprioception than vision17. In addition, the computation being performed may affect sensory weighting; subjects rely more on vision for planning movement vectors and more on
proprioception for planning the joint-based motor command21. The modality of the target being reached also plays a role, with subjects minimizing coordinate transformations by relying more
on vision when reaching to visual targets, and more on proprioception when reaching to proprioceptive targets22. Even different aspects of what might be considered the same computation can
use different weightings; vision is weighted more heavily relative to proprioception when localizing the hand in azimuth than in depth23. Most of the evidence of multisensory involvement in
motor learning comes from studies asking which sensory signals are necessary for force field adaptation. This form of motor adaptation can occur without a proprioceptive error, using visual
feedback24,25,26, but also without a visual error, using only proprioception25,27. This suggests subjects can flexibly use available error information, whether visual or proprioceptive25. To
our knowledge, only one study has considered force field effects on vision and proprioception in the same experiment: Haith _et al_. (2008) had subjects point at a series of visual or
proprioceptive targets interspersed with force field adaptation trials. Results suggest spatial recalibration of both visual and proprioceptive estimates occurs after force field learning28.
However, simultaneous visual and proprioceptive processing, where visuo-proprioceptive integration can occur, has not been considered in the context of force adaptation. Multisensory
integration, unlike intersensory interactions, can only be assessed by looking at what subjects do when multiple modalities are available at the same time and integration is thus possible.
In other words, to test whether force field adaptation affects the weighting and combining of visual and proprioceptive information to create an integrated multisensory estimate of hand
position, sensory estimation trials with simultaneous visual and proprioceptive information about hand position would be required. Here we asked whether force field adaptation affects the
brain’s weighting of visual and proprioceptive estimates of hand position when both are available. Given that multisensory integration plays a key role in movement planning, one possibility
is that force field adaptation affects all relevant sensory modalities similarly, such that a constant weighting of vision vs. proprioception is maintained. Alternatively, the somatosensory
perturbation could be considered a source of proprioceptive unreliability, which we would expect to result in vision being up-weighted relative to proprioception. We assessed
visuo-proprioceptive weighting with a perceptual estimation task before and after subjects performed straight-ahead reaches while grasping a robotic manipulandum. Each subject performed one
session with reaches in a clockwise or counter-clockwise velocity-dependent force field, and one session in a null field to control for perceptual changes not specific to force adaptation.
METHODS SUBJECTS 46 healthy right-handed adults (aged 18–33, mean age 22.7 years; 22 female) completed two sessions each, scheduled at least 4 days apart. We can roughly estimate from the
standard deviation of weighting changes in an earlier experiment using a similar sensory estimation task18 that to detect a 10% change in weight of vision vs. proprioception with 90% power
(α = 0.05), we would need a sample size of 21 per group. Subjects reported that they were free of neurological or musculoskeletal problems, and had normal or corrected-to-normal vision in
both eyes. All procedures were approved by the Indiana University Institutional Review Board and carried out in accordance with IRB guidelines and regulations. All subjects provided written
informed consent. SESSION DESIGN Subjects were randomly assigned to the clockwise (CW) or counterclockwise (CCW) group (N = 23 each), and to have the real or null session first. In each
session, subjects performed a series of straight-ahead reaching movements grasping a robotic manipulandum (KINARM End Point, BKIN), with a sensory estimation task to assess visual and
proprioceptive perception of hand position before and after the reaching task. In the real session, subjects adapted to a CW or CCW velocity-dependent force field, according to group
assignment. The null session comprised the same number of reaching movements, but no force field. This was intended to control for any perceptual changes not specific to force field
adaptation, such as making reaching movements, grasping the manipulandum, viewing the task display, etc. Each session consisted of five blocks of trials (Fig. 1A): baseline reaching in the
null field with the left and right hands (16 trials each hand); pre-adaptation visuo-proprioceptive estimation task (35 trials); adaptation block of reaching with the right hand (208 trials
with the right hand in a real or null field depending on session); post-adaptation visuo-proprioceptive estimation task (35 trials); and washout reaching in the null field with the left and
right hands (16 trials each hand). Left hand baseline and washout reaching trials were included so we could assess any intermanual transfer of force field learning, as the left hand was used
to indicate the subject’s perception of right hand position in the visuo-proprioceptive estimation task. APPARATUS Subjects were seated in front of a reflected rear projection apparatus (TV
and mirror) throughout the session, such that the task display appeared to be in the same horizontal plane as the manipulandum (Fig. 1). Both hands remained below the mirror at all times,
preventing direct vision of either hand, and a cape attached to the edge of the mirror was draped over subjects’ shoulders to prevent vision of the upper arms. Subjects were centered with
the apparatus and strapped to the chair with a harness to limit torso motion. A headband across the forehead was attached to the edge of the TV with Velcro, restricting subjects’ head
motion. REACHING TASK Subjects grasped the manipulandum handle and made a series of straight-ahead movements to a visual target 20 cm from the start position (Fig. 1B). A 1 cm white disc was
displayed over the center of the manipulandum handle, providing online feedback throughout the reach. Subjects were instructed to make their movement paths straight and brisk. During the
adaptation block of the real force session only, subjects experienced a CW or CCW velocity-dependent force field (Fig. 1Bii): $$[\begin{array}{c}{f}_{x}\\
{f}_{y}\end{array}]=D[\begin{array}{cc}0 & 18\\ -18 & 0\end{array}][\begin{array}{c}{v}_{x}\\ {v}_{y}\end{array}]$$ (2) where _f__x_ and _f__y_ are the commanded force to the
manipulandum in the lateral (x) and sagittal (y) directions, _v__x_ and _v__y_ are hand velocities, and _D_ is the force direction (1 for CW, −1 for CCW). The desired movement time was
575–650 ms, and subjects received feedback telling them when movements were too fast or too slow. Each trial ended when the manipulandum reached the target, at which point the hand was
passively moved back to the start position. The maximum perpendicular deviation of the manipulandum from a straight-line path was computed for each trial as a measure of movement error. To
normalize movement errors to baseline levels, max perpendicular deviation at the end of right hand baseline was subtracted from every right hand trial, and max perpendicular deviation at the
end of left hand baseline was subtracted from every left hand trial. To quantify the degree of perturbation at the beginning of the adaptation block, we averaged max perpendicular error on
the first 8 trials of adaptation. The washout blocks were used to estimate negative aftereffect (1) in the right hand as a measure of force field learning, and (2) in the left hand to
measure transfer of learning to the untrained left hand, which was used to indicate the subject’s perceptions in the sensory estimation task. Negative aftereffect was estimated by taking the
mean of the first 8 washout trials in each hand. VISUO-PROPRIOCEPTIVE ESTIMATION TASK Immediately before and after the force adaptation block, subjects performed a sensory estimation task
to assess visual and proprioceptive estimates of their right hand position (Fig. 1C). With no direct vision of either hand, subjects used their left (indicator) index finger to point to the
perceived location of three target types15,18,29,30: a visuo-proprioceptive target (1 cm white disc displayed directly above their right hand, which grasped a stationary manipulandum handle

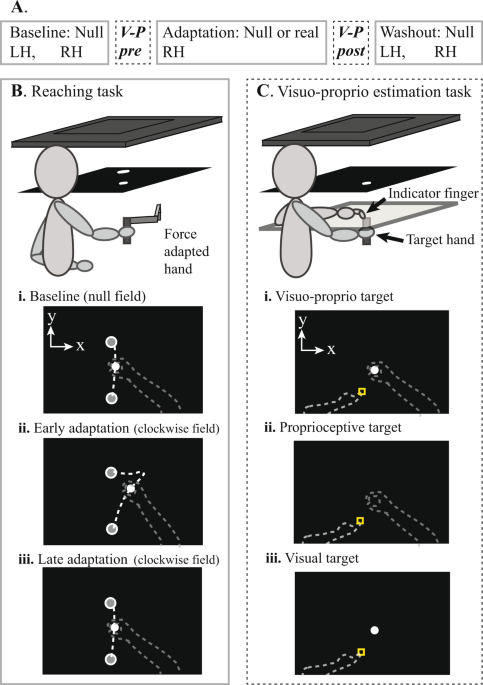

beneath the touchscreen glass) (Fig. 1Ci); proprioceptive-only target (right hand grasping the handle, with no white disc) (Fig. 1Cii); and a visual-only target (white disc alone, with the
right hand lowered to rest in the subject’s lap) (Fig. 1Ciii). For this task, a touchscreen, consisting of a 3-mm pane of glass with an infrared touch overlay (PQ Labs), was slid into place
directly above the robotic manipulandum (and below the mirror) to record indicator finger positions. To prevent subjects from learning or repeating a particular movement direction or extent
with the left hand, indicator finger start position was randomized trial-to-trial between five start positions, and targets between two target positions, all centered with the body midline.
Subjects received step-by-step instructions to guide them through the task via pre-recorded audio prompts. Subjects received no online or endpoint feedback about the left indicator finger
and no knowledge of results. There were no speed requirements, and subjects were instructed to take their time and be as accurate as possible. Subjects were asked not to slide their finger
on the glass. Adjustments of indicator finger position were permitted, with the final position recorded once the finger had not moved more than 2 mm in 2 seconds. Each block of the
visuo-proprioceptive estimation task (pre- and post-adaptation) comprised 35 trials: 15 visual-only (V), 15 proprioceptive-only (P), and 5 visuo-proprioceptive (VP) trials, in pseudorandom
order. We computed an estimate of subjects’ weighting of vision vs. proprioception (_w__V_) when both modalities were available, on VP targets18. We computed _w__V_ separately in the lateral
(_w__Vx_) and sagittal dimension (_w__Vy_) because _w__V_ has been observed to differ across spatial dimensions13,16,23. van Beers _et al_. (2002) suggested the brain determines lateral and
sagittal weights independently, based on differences in the spatial properties of visual and proprioceptive variance. To compute _w__V_ in each dimension, we divided the distance between P
and VP target estimates by the sum of the P-to-VP and V-to-VP distances. For the lateral (x) dimension (Fig. 2A): $${w}_{Vx}=\frac{|Px-VPx|}{|Px-VPx|+|Vx-VPx|}$$ (3) where _|Px_ − _VPx|_ and
_|Vx_ − _VPx|_ are the x-dimension distances between the mean final position of the indicator finger on P or V targets, respectively, and the mean position of the indicator finger on VP
targets. Similarly, for the sagittal (y) dimension (Fig. 2B): $${w}_{Vy}=\frac{|Py-VPy|}{|Py-VPy|+|Vy-VPy|}$$ (4) In other words, if VP endpoint positions are closer to P than V positions in
the y-dimension, the subject relied more on proprioception than vision (_w__Vy_ < 0.5). This method takes advantage of the different spatial biases inherent in vision and
proprioception31,32, even with no perturbation33. Because _w__V_ undergoes small fluctuations over time, as we have done previously18, we computed a separate _w__V_ for each of the 5 VP
trials pre- and post-adaptation, comparing each VP trial indicator finger endpoint with the means of the 4 V and 4 P trials occurring closest in time. The 5 values were then averaged for
each subject to give a weighting estimate for the pre- or post-adaptation sensory task. It is important to note that this method does not rely on variance or precision of the endpoints for
the different target types, only spatial bias. Weights based on endpoint precision are a predicted weight, usually assuming the subject follows minimum variance integration16,34. Subjects’
weight of vision vs. proprioception can also be inferred from their adaptation23 or, as we have done here, from their spatial biases in estimating V, P, and VP targets12,18,29,35. This
latter method does not involve the precision or scatter of the endpoints, so the number of trials is less critical. Any effect of force field adaptation on _w__V_ could potentially dissipate
in a few minutes, given that _w__V_ can quickly change based on the subject’s attention and environment18. Therefore, because we were not trying to generate variance-based predictions of
_w__V_, we chose the spatial bias method to reduce the number of trials. The spatial estimation task incorporates many pauses and audio prompts compared to reaching with the robotic
manipulandum, so 35 trials (15 V, 15 P, 5 VP) took most subjects about 10 minutes. STATISTICAL ANALYSIS All statistical inferences were performed two-tailed, with α of 0.05. The two primary
outcome variables were _w__Vx_ and _w__Vy_. A separate mixed model 2 × 2 × 2 ANOVA (timepoint x session x group) was used to analyze each of these. Timepoint (pre- and post-adaptation) and
session (real and null) were within-subjects factors, and group (CW and CCW force field) was a between-subjects factor. A significant 3-way interaction (timepoint x session x group) would
indicate that the variable changed differently in the real vs. null sessions, _and_ that force field direction matters. In the absence of the 3-way interaction, a significant timepoint x
session interaction would indicate that the variable changed differently in the real vs. null session, but force field direction (i.e., group) does not make a difference. Because each ANOVA
was 2 × 2 × 2, no post-hoc pairwise comparisons were necessary. Consistent with the idea that weights in the sagittal and lateral dimensions are determined independently23, _w__Vx_ and
_w__Vy_ were not correlated with each other (r = 0.07). To evaluate whether our sensory estimation task could replicate findings of spatial shifts in proprioceptive or visual estimate, we
also analyzed Px, Py, Vx, and Vy as secondary outcome variables. We performed a mixed model 2 × 2 × 2 ANOVA on each of these, with the same factors as the _w__V_ ANOVAs. The remaining
secondary outcome variables consisted of force field adaptation and aftereffect magnitudes. To evaluate whether either hand experienced aftereffects after force field adaptation, we
performed a separate paired-sample t-test for each hand in each group. In each case, we compared max perpendicular error in the appropriate washout block (right or left hand) across the real
and null sessions. A significant difference between sessions would suggest the presence of aftereffect for that hand. We predicted aftereffects in the right hand, which was exposed to the
force field, but not in the left hand, which was not exposed. Because this research is exploratory, we did not adjust p-values to compensate for analyzing multiple outcome variables36.
Therefore, statistically significant results should be regarded as an indication for further study, rather than as confirmatory. RESULTS All means are given with their 95% confidence
intervals (CI). REACHING TASK In the real session, both groups had small perpendicular errors during baseline. Both CW and CCW groups initially had large perpendicular errors when the force
was introduced: 20 ± 9 mm rightward and 23 ± 8 mm leftward, respectively (mean ± 95% CI). In contrast, at the same point in the null session, error was only 1 ± 5 mm leftward for the CW
group, and 0.5 ± 4 mm leftward for the CCW group. After 208 force field trials in the real session’s adaptation block, error returned to approximately baseline levels, suggesting adaptation
to the perturbation had occurred (Fig. 3). In the null session, max perpendicular errors were small throughout the reaching task for both groups, as expected, although blocks performed with
the left hand appeared to have slight rightward errors compared to blocks performed with the right hand (Fig. 3). Post-adaptation washout blocks performed with the right hand tended to have
larger perpendicular errors in the real session than the null session—leftward for the CW group and rightward for the CCW group—suggesting the presence of negative aftereffect. This
difference did not reach statistical significance for the CW group (t22 = −1.98, p = 0.06), but did for the CCW group (t22 = 2.69, p = 0.013). In the CW group, right hand aftereffect was 7 ±
5 mm to the left in the real session, and 1 ± 5 mm to the left in the null session (Fig. 3A). In the CCW group, right hand aftereffect was 8 ± 3 mm to the right in the real session, and 0.6
± 4 mm to the left in the null session (Fig. 3B). These adaptation and aftereffect magnitudes are similar to those that have been observed by others with a similar paradigm37.
Post-adaptation washout blocks performed with the left hand were similar in the real and null sessions (Fig. 3), which is not consistent with intermanual transfer of learning. In the CW
group, left hand aftereffect was 2 ± 7 mm to the left in the real session, and 3 ± 5 mm to the right in the null session (t22 = −1.02, p = 0.32). In the CCW group, left hand aftereffect was
6 ± 4 mm to the right in the real session, and 5 ± 6 mm to the right in the null session (t22 = 0.27, p = 0.79). WEIGHTING OF VISION VS. PROPRIOCEPTION (_W_ _V_) In the visuo-proprioceptive
estimation task, the example subject in Fig. 4 increased their reliance on vision over proprioception in the y-dimension (positive Δ_w__Vy_) in the real (CCW field) session, but not the null
session. In contrast, Δ_w__Vx_ was slightly negative in the real session, but positive in the null session (Fig. 4). At the group level, we found Δ_w__Vy_ to be consistently more positive
in the real session than the null session, for both groups (Fig. 5 and Supplementary Figs S1 and S2). In the CW group, Δ_w__Vy_ was 0.12 ± 0.10 for the real session (mean ± 95% CI) and 0.006
± 0.094 for the null session. In the CCW group, Δ_w__Vy_ was 0.020 ± 0.10 for the real session and −0.075 ± 0.083 for the null session. There was no main effect of timepoint (pre, post),
session (real, null) or group (CW, CCW) for _w__Vy_ (F1,44 = 0.54, 0.49, 0.32, respectively, and p = 0.46, 0.49, and 0.57, respectively). However, there was a significant interaction of
timepoint × session (F1,44 = 5.13, p = 0.029). The interaction of timepoint × session × group was not significant (F1,44 = 0.08, p = 0.78), nor was the interaction of session x group (F1,44
= 1.0, p = 0.32). The interaction of timepoint × group did not reach significance (F1,44 = 3.61, p = 0.064). Taken together, these results suggest that _w__Vy_ increased more in the real
session than the null session (timepoint × session interaction), and this occurred for both the CW and CCW group, as indicated by the lack of timepoint × session × group interaction.
Weighting changes in the x-dimension (Fig. 6) were less consistent than in the y-dimension. In the CW group, Δ_w__Vx_ was −0.031 ± 0.093 for the real session (mean ± 95% CI) and −0.088 ±
0.079 for the null session. In the CCW group, Δ_w__Vx_ was −0.014 ± 0.089 for the real session and −0.049 ± 0.090 for the null session. In other words, on average, subjects reduced their
reliance on vision and increased their reliance on proprioception in the x-dimension, regardless of session or group (main effect of timepoint, F1,44 = 4.34, p = 0.043). There was no effect
of session (F1,44 = 1.0, p = 0.32) and no significant interactions (all p > 0.2). However, the groups apparently differed in some way on _w__Vx_ (main effect of group, F1,44 = 5.82, p =
0.020). Because we have previously observed that subjects vary substantially in weighting of vision vs. proprioception even with no perturbation, we wondered if pre-adaptation _w__Vx_ in
either of our two groups differed substantially from subjects in earlier studies. To find out, we compared pre-adaptation _w__Vx_ in the CW and CCW group with _w__Vx_ in 80 healthy young
adults (mean age 23.4 years) described previously15. Mean _w__Vx_ in these three samples was 0.43 ± 0.07, 0.53 ± 0.05, and 0.49 ± 0.04 (mean ± 95% CI), respectively. A one-way ANOVA found no
significant differences among these three samples (F2,125 = 1.71, p = 0.18). In other words, although pre-adaptation _w__Vx_ favored proprioception more in the CW group than in the CCW
group, perhaps explaining the main effect of group on _w__Vx_ in the present study, neither sample differed significantly from subjects we have tested previously. SPATIAL SHIFTS IN VISUAL
AND PROPRIOCEPTIVE ESTIMATES We did not observe any pattern of shifts in visual or proprioceptive estimates that would be consistent with previous literature28,38. Specifically, if either
estimate had shifted laterally in a direction related to force field direction, we would have predicted a significant timepoint × session × group interaction. However, there was no such
interaction for Px (F1,44 = 0.022, p = 0.88; Supplementary Fig. S3) or Vx (F1,44 = 0.028, p = 0.87, Supplementary Fig. S4). Since we observed the greatest change in _w__v_ in the sagittal
dimension, we also looked at Py and Vy, but neither showed the three-way interaction (F1,44 = 0.21, 140, and p = 0.65, 0.24, respectively; Supplementary Figs S5 and S6). DISCUSSION Here we
asked whether force field adaptation is associated with changes in visuo-proprioceptive weighting. Subjects increased their weight of vision vs. proprioception in the force field session
relative to the null field session, regardless of force field direction, in the straight-ahead dimension. This increase in reliance on vision over proprioception could indicate that the
brain interprets the force field as a somatosensory perturbation or sign of proprioceptive unreliability. MULTISENSORY PROCESSING IN MOTOR CONTROL Inherent in any target-directed hand
movement is an estimate of hand position, which can be encoded by both vision and proprioception. The brain is thought to weight and combine available sensory estimates to form an integrated
multisensory estimate of hand position with which to guide movement10. Multisensory research has made substantial progress in determining the principles by which multisensory integration
occurs and demonstrating their relevance in human perception39,40. In addition, it is known that multisensory weights have a role in motor control. E.g., different visuo-proprioceptive
weights are evident for different reach target modalities and reach directions22. However, it is not clear whether a perceptual computation such as visuo-proprioceptive weighting is affected
by, or plays a role in, motor adaptation or learning. Motor adaptation is a trial-by-trial process of reducing movement error. E.g., visuomotor adaptation occurs in response to a visual
perturbation. A visuomotor rotation paradigm deviates the cursor representing hand position by some angular offset such as 30°. With practice, subjects adapt their movements so the cursor
reaches the target. Shifts in proprioceptive estimates of hand position (proprioceptive realignment or recalibration) have been observed in conjunction with visuomotor adaptation8,41, but
differing in time course and generalization pattern from visuomotor adaptation42. Force field adaptation involves a somatosensory perturbation rather than visual. When forces are
systematically applied to the hand during a reach, e.g. pushing the hand to the right when the subject is trying to reach straight ahead, rightward errors occur at first. However, error
feedback recalibrates the sensorimotor map, gradually reducing movement error. Until recently, a force perturbation had been thought to elicit motor adaptation only, as visuo-proprioceptive
signals remain veridical41,43; sensory realignment was thought to require inter-sensory misalignment44. However, Ostry _et al_. (2010) tested arm proprioception and found systematic changes
during force adaptation, independent of motor adaptation rate45. This could reflect a common sensorimotor map, with modifications affecting parameters of multisensory integration.
VISUO-PROPRIOCEPTIVE WEIGHTING INCREASED DURING FORCE FIELD ADAPTATION To our knowledge, subjects’ weighting of vision vs. proprioception, with both signals available simultaneously, has not
been examined in either visuomotor or force field adaptation. We chose to study visuo-proprioceptive weighting in the context of force field adaptation because from the perspective of
multisensory processing, the predictions are straightforward: The target is visual, the hand is represented by a visual cursor, and the perturbation disrupting the movement to the target is
somatosensory. All these factors would be expected to favor vision over proprioception in the weighting computation. To control for aspects of the task other than the somatosensory
perturbation, subjects in the present study performed one session entirely in the null field, and one session with the force perturbation. We predicted that compared to the control session,
subjects would up-weight vision relative to proprioception. Our results provide evidence that this is indeed the case. For y-dimension weighting, the presence of a timepoint × session
interaction in the absence of a timepoint × session × group interaction indicates that subjects’ increase in weighting of vision was specific to the real force field session, regardless of
whether that field was CW or CCW. Thus, unlike force field-related spatial recalibration of proprioception45,46 or vision28, force field _direction_ does not appear to impact
visuo-proprioceptive weighting. In other words, people increased their reliance on vision in the sagittal dimension by about 10% in their real session (whether force field was CW or CCW) vs.
their null session. That this occurred in both groups’ real but not null sessions suggests it is a robust, though small, effect. To put this in context, we have previously seen a ~8% change
in _w__V_ by manipulating error history and a ~20% change by manipulating target salience18. The present result may indicate that the force field in general is interpreted by the brain as
somatosensory unreliability or perturbation. Literature from postural control supports this conclusion: Decreasing the reliability of somatosensory input increases reliance on the visual and
vestibular systems47. It is important to note that we cannot infer causal relationships from these results. It is possible that force field adaptation, or even exposure to the force field,
caused subjects to increase their reliance on vision. However, it is also possible that the observed weighting changes form an unrecognized component of motor adaptation whose absence would
impair performance. To distinguish these possibilities, future studies could assess motor adaptation rate, magnitude, and retention after manipulating subjects’ visuo-proprioceptive
weighting, perhaps via target modality21 or salience18. RESULTS WERE DIMENSION-SPECIFIC Interestingly, we found robust evidence of force field-related increase in visuo-proprioceptive
weighting for the y-dimension (sagittal plane), but not the x-dimension (lateral plane). This is somewhat counter-intuitive, given that previous measurements of proprioceptive change have
shown effects in the lateral dimension37,46. However, the force field used here was a curl field, so it acts in both dimensions. To our knowledge, no one has actually looked for visual or
proprioceptive shifts in the sagittal dimension in a forward-reaching task with a curl field, but our results suggest that multiple dimensions should be examined when possible. Haith _et
al_.28 found significant changes in both vision and proprioception in the lateral but not the sagittal dimension, although they used a lateral field rather than a curl field. We analyzed the
x- and y-dimensions separately because of evidence that visuo-proprioceptive weighting computations vary by spatial dimension23. Certain spatial aspects of motor adaptation are also thought
to be controlled separately: Distinct coordinate systems for adaptation of movement direction and extent have been observed48. The force field perturbation in the present study was a curl
field, with equal components in the x- and y-dimensions (eq. 2). However, the desired movement was entirely in the y-dimension, since the target was straight ahead of the starting position.
In addition, subjects were explicitly instructed to move the manipulandum handle straight ahead. Since visuo-proprioceptive weighting is affected by locus of attention and target salience18,
these factors in the task design could have created a situation where the straight-ahead dimension was more sensitive to changes in visuo-proprioceptive weighting associated with the force
field. This could be tested by altering the dimensional parameters in a new experiment. An alternative explanation for the lack of force field session-specific change in weighting for the
x-dimension could be the weighting characteristics of the two groups. The main effect of group in this parameter may indicate that subjects in the two groups differed in their x-dimension
weighting in general, not in a way that changed differently over time or in different sessions. We have observed substantial inter-subject variability in visuo-proprioceptive weighting even
in unperturbed situations15,18. However, the absence of a main effect of session for x-dimension weighting, or any interaction involving session, leads us to hypothesize that even two groups
with more similar baseline x-dimension weighting would not change differently in the force field relative to null field session. One result we did not expect was the near-significant
interaction of timepoint x group in the y-dimension. It is indeed possible that this variable changed differently in the two groups. However, any such change would have applied similarly in
the force and null sessions. In other words, this interaction, even if truly present, was unrelated to the presence of the force field. CONSIDERATIONS FOR A BIMANUAL SENSORY ESTIMATION TASK
While similar sensorimotor studies have used this method28,46, psychometric procedures using two-alternative forced choice (2AFC) tasks are perhaps more common. However, such tasks in motor
control experiments have almost always been used to measure proprioceptive spatial alignment, not visuo-proprioceptive integration parameters. A bimanual estimation task presents several
advantages over single-modality blocks of 2AFC trials when the goal is to estimate visuo-proprioceptive weighting. Using the left hand, which is not exposed to the force perturbation, to
indicate perceived right hand position allows simultaneous estimation in both lateral and sagittal dimensions49. It is also more analogous to using sensory information for motor planning,
and lends itself to mixing up the visual, proprioceptive, and visuo-proprioceptive trial types to make it apparent that the visual and proprioceptive signals, while sometimes presented alone
and sometimes together, relate to the same object. Given that multisensory weighting can change instantaneously and differs for different computations, the bimanual approach is better able
to assess the computation of interest, multisensory weighting. A bimanual task in this situation does carry risks. Namely, any intermanual transfer of force field adaptation to the left hand
would bias the sensory estimates. However, this risk is small considering that proprioceptive recalibration9 and motor adaptation do not transfer well to movements with different kinematics
or contexts50, and the movements of the left hand in the sensory task differ in posture, orientation, and movement path from the reaching task. We can reasonably expect that if any transfer
were to occur, it should be very small. If there was interlimb transfer of motor or sensory changes to the left hand, then we would have predicted negative aftereffects in the left hand. We
tested for such aftereffects by including left hand reaches in the null field pre- and post-adaptation block. However, we did not detect any consistent change in errors made by the left
hand (no left hand aftereffect in either group), suggesting there was no consistent motor or somatosensory transfer to the left hand. POTENTIAL NEURAL SUBSTRATES Recent years have brought a
number of advances in our understanding of the neural substrates of motor adaptation. For example, the early stages of motor adaptation are thought to engage spatial working memory and
explicit processes51, associated with activations in DLPFC and inferior parietal lobule52,53,54,55. Late adaptation involves implicit processes to a greater extent51. Learning at this point
may depend more on the cerebellum56,57,58,59. Many neuroimaging and patient studies have also suggested that the cerebellum is critical for motor adaptation5,60,61,62. Indeed, non-invasive
brain stimulation studies have found that manipulating cerebellar excitability can alter the rate of error reduction in motor adaptation63,64,65. In addition, plasticity in somatosensory
cortex is associated with force adaptation38; somatosensory training has been found to improve motor adaptation6,66. Several of the brain regions thought to have a role in motor adaptation
are also known to have multisensory visuo-proprioceptive properties, suggesting potential neural substrates for our observation of visuo-proprioceptive weighting changes associated with
force field adaptation. First, certain parietal regions have been found to respond to both the “seen” and “felt” position of the limb in monkeys67,68, suggesting possible involvement in
visuo-proprioceptive integration. Second, while the cerebellum has traditionally been classified as a motor structure and its importance in motor adaptation is well known, this structure
also has multimodal sensory responses. Indeed, individual cerebellar granule cells have been found to integrate somatosensory, visual, and auditory inputs69. In humans, the cerebellum has
been implicated in multisensory integration for postural control70 and reaction time71. Finally, the role in perception of regions historically considered unisensory, such as somatosensory
cortex, vs. areas considered multisensory, such as portions of PPC, is far from settled72. Such unisensory areas are now known to have multisensory response properties73, and likely both
modulate, and are modulated by, each other as well as multisensory regions in PPC72. In other words, if changes in visuo-proprioceptive integration accompany force field adaptation, as our
results suggest, it is plausible that networks containing regions thought to be involved in both processes (PPC, cerebellum, somatosensory cortex) may mediate the interaction. NO EVIDENCE OF
CONSISTENT SPATIAL SHIFTS IN PROPRIOCEPTIVE OR VISUAL ESTIMATES There are several likely reasons we were unable to replicate previous findings of lateral shift in proprioceptive estimate
related to force field direction6,37,38,45,46. Most importantly, Ostry’s group assesses proprioception with a psychometric 2AFC method that is presumably much more sensitive to small changes
than our method of pointing with the left hand. They have reported proprioceptive shifts on the order of 2 mm46, and our pointing method is likely too noisy to detect such a small shift. It
includes motor and sensory noise from the left (indicator) hand; it is not unusual for a subject’s pointing estimates to extend over a range of 8 cm, as our example subject did for P
targets (Fig. 4Ai). Thus, while this method is useful for quickly getting V, P, and VP estimates to compute _w__V_, it is not ideal for detecting millimeter shifts in perception.
Interestingly, Haith _et al_.28 did use a pointing method to estimate visual and proprioceptive targets, and did report a shift in both, in the lateral dimension, after adaptation to a
leftward lateral force field28. There are several methodological differences that could explain why we were not able to replicate this finding: (1) Haith _et al_. used a gradually imposed
lateral field, not an abruptly-imposed curl field; (2) V and P estimates were interspersed throughout the force field task, not taken pre and post force field; (3) intermanual transfer of
adaptation to the indicator hand was not assessed, nor were results compared with V and P estimates during a null field or rightward force field. In sum, while the Haith _et al_. paper was a
smaller experiment in a single group/condition, their gradually-imposed force field and interspersed sensory estimates may be important factors for finding consistent sensory shifts when
using a pointing method to obtain V and P estimates. Unfortunately, the present experiment cannot explain why weighting changes were observed in the sagittal but not lateral dimension, when
previous studies have observed proprioceptive shifts in the lateral dimension, and our pointing method did not lend itself to finding small shifts in proprioceptive or visual estimates in
either dimension. It is important to note, however, that proprioceptive estimates have not been examined in the sagittal dimension after curl field adaptation using the more sensitive 2AFC
method, so it is possible that proprioception does shift in the sagittal dimension. However, spatial recalibration of proprioceptive estimates can be independent of the weighting of vision
vs. proprioception29, so there may be no connection between proprioceptive shifts and weighting. Another possibility is that weighting is more susceptible to change in the dimension that is
most functionally relevant to the subject, which in a straight-ahead-reaching task, could be the sagittal dimension. CONCLUSION Results of the present study suggest that subjects increase
their reliance on vision vs. proprioception when they undergo force field adaptation. This change in visuo-proprioceptive weighting was specific to the sagittal plane, perhaps reflecting the
importance of straight-ahead movements in the task design. Force field direction did not play a role, as the effect was comparable for clockwise and counter-clockwise force field exposure.
Taken together, these results could indicate that the brain interprets a force field as a somatosensory perturbation and adjusts visuo-proprioceptive integration accordingly. DATA
AVAILABILITY The datasets generated during and/or analyzed during the current study are available from the corresponding author on request. REFERENCES * Xerri, C., Merzenich, M. M., Jenkins,
W. & Santucci, S. Representational Plasticity in Cortical Area 3b Paralleling Tactual-motor Skill Acquisition in Adult Monkeys. _Cereb. Cortex_ 9, 264–276 (1999). Article CAS Google
Scholar * Ostry, D. J., Darainy, M., Mattar, A. A. G., Wong, J. & Gribble, P. L. Somatosensory plasticity and motor learning. _J. Neurosci. Off. J. Soc. Neurosci._ 30, 5384–5393 (2010).
Article CAS Google Scholar * Baizer, J. S., Kralj-Hans, I. & Glickstein, M. Cerebellar lesions and prism adaptation in macaque monkeys. _J. Neurophysiol._ 81, 1960–1965 (1999).
Article CAS Google Scholar * Block, H. J. & Bastian, A. J. Cerebellar involvement in motor but not sensory adaptation. _Neuropsychologia_ 50, 1766–1775 (2012). Article Google Scholar
* Martin, T. A., Keating, J. G., Goodkin, H. P., Bastian, A. J. & Thach, W. T. Throwing while looking through prisms. I. Focal olivocerebellar lesions impair adaptation. _Brain_ 119(Pt
4), 1183–1198 (1996). Article Google Scholar * Darainy, M., Vahdat, S. & Ostry, D. J. Perceptual learning in sensorimotor adaptation. _J. Neurophysiol._ 110, 2152–2162 (2013). Article
Google Scholar * Vahdat, S., Darainy, M. & Ostry, D. J. Structure of Plasticity in Human Sensory and Motor Networks Due to Perceptual Learning. _J. Neurosci._ 34, 2451–2463 (2014).
Article CAS Google Scholar * Clayton, H. A., Cressman, E. K. & Henriques, D. Y. P. The effect of visuomotor adaptation on proprioceptive localization: the contributions of perceptual
and motor changes. _Exp_. _Brain Res_. 1–14, https://doi.org/10.1007/s00221-014-3896-y (2014). Article Google Scholar * Henriques, D. Y. P. & Cressman, E. K. Visuomotor adaptation and
proprioceptive recalibration. _J. Mot. Behav._ 44, 435–444 (2012). Article Google Scholar * Ghahramani, Z., Wolpert, D. M. & Jordan, M. I. Computational models for sensorimotor
integration. In _Self-Organization_, _Computational Maps and Motor Control_ (eds Morasso, P. G. & Sanguineti, V.) 117–147 (North-Holland, 1997). * Limanowski, J. & Blankenburg, F.
Integration of Visual and Proprioceptive Limb Position Information in Human Posterior Parietal, Premotor, and Extrastriate Cortex. _J. Neurosci. Off. J. Soc. Neurosci._ 36, 2582–2589 (2016).
Article CAS Google Scholar * Block, H., Bastian, A. & Celnik, P. Virtual lesion of angular gyrus disrupts the relationship between visuoproprioceptive weighting and realignment. _J.
Cogn. Neurosci._ 25, 636–648 (2013). Article Google Scholar * Bays, P. M. & Wolpert, D. M. Computational principles of sensorimotor control that minimize uncertainty and variability.
_J Physiol_ 578, 387–396 (2007). Article CAS Google Scholar * Ernst, M. O. & Banks, M. S. Humans integrate visual and haptic information in a statistically optimal fashion. _Nature_
415, 429–433 (2002). Article CAS ADS Google Scholar * Liu, Y., Sexton, B. M. & Block, H. J. Spatial bias in estimating the position of visual and proprioceptive targets. _J.
Neurophysiol._ https://doi.org/10.1152/jn.00633.2017 (2018). Article PubMed PubMed Central Google Scholar * van Beers, R. J. & Sittig, A. C. & Denier van der Gon, J. J. How
humans combine simultaneous proprioceptive and visual position information. _ExpBrain Res_ 111, 253–261 (1996). Google Scholar * Mon-Williams, M., Wann, J. P., Jenkinson, M. & Rushton,
K. Synaesthesia in the normal limb. _Proc.Biol.Sci_ 264, 1007–1010 (1997). Article CAS Google Scholar * Block, H. J. & Bastian, A. J. Sensory reweighting in targeted reaching: effects
of conscious effort, error history, and target salience. _J.Neurophysiol._ 103, 206–217 (2010). Article Google Scholar * Warren, D. H. & Schmitt, T. L. On the plasticity of
visual-proprioceptive bias effects. _J ExpPsycholHumPerceptPerform_ 4, 302–310 (1978). CAS Google Scholar * Welch, R. B. & Warren, D. H. Immediate perceptual response to intersensory
discrepancy. _Psychol.Bull._ 88, 638–667 (1980). Article CAS Google Scholar * Sober, S. J. & Sabes, P. N. Multisensory integration during motor planning. _J Neurosci_ 23, 6982–6992
(2003). Article CAS Google Scholar * Sober, S. J. & Sabes, P. N. Flexible strategies for sensory integration during motor planning. _Nat Neurosci_ 8, 490–497 (2005). Article CAS
Google Scholar * van Beers, R. J., Wolpert, D. M. & Haggard, P. When feeling is more important than seeing in sensorimotor adaptation. _Curr.Biol._ 12, 834–837 (2002). Article Google
Scholar * Melendez-Calderon, A., Masia, L., Gassert, R., Sandini, G. & Burdet, E. Force field adaptation can be learned using vision in the absence of proprioceptive error. _IEEE Trans.
Neural Syst. Rehabil. Eng. Publ. IEEE Eng. Med. Biol. Soc._ 19, 298–306 (2011). Article Google Scholar * Miall, R. C. _et al_. Proprioceptive loss and the perception, control and learning
of arm movements in humans: evidence from sensory neuronopathy. _Exp. Brain Res._ 236, 2137–2155 (2018). Article Google Scholar * Sarlegna, F. R., Malfait, N., Bringoux, L., Bourdin, C.
& Vercher, J.-L. Force-field adaptation without proprioception: can vision be used to model limb dynamics? _Neuropsychologia_ 48, 60–67 (2010). Article Google Scholar * Scheidt, R. A.,
Conditt, M. A., Secco, E. L. & Mussa-Ivaldi, F. A. Interaction of visual and proprioceptive feedback during adaptation of human reaching movements. _J. Neurophysiol._ 93, 3200–3213
(2005). Article Google Scholar * Haith, A., Jackson, C., Miall, R. C. & Vijayakumar, S. Unifying the Sensory and Motor Components of Sensorimotor Adaptation. In _Proceedings of the
Neural Information Processing Systems_ 1–8 (2008). * Block, H. J. & Bastian, A. J. Sensory weighting and realignment: independent compensatory processes. _J.Neurophysiol._ 106, 59–70
(2011). Article Google Scholar * Munoz-Rubke, F., Mirdamadi, J. L., Lynch, A. K. & Block, H. J. Modality-specific Changes in Motor Cortex Excitability After Visuo-proprioceptive
Realignment. _J_. _Cogn_. _Neurosci_. 1–14, https://doi.org/10.1162/jocn_a_01171 (2017). Article Google Scholar * Crowe, A., Keessen, W., Kuus, W., van Vliet, R. & Zegeling, A.
Proprioceptive accuracy in two dimensions. _Percept. Mot. Skills_ 64, 831–846 (1987). Article CAS Google Scholar * Foley, J. M. & Held, R. Visually directed pointing as a function of
target distance, direction, and available cues. _Percept. Psychophys._ 12, 263–268 (1972). Article Google Scholar * Smeets, J. B., van den Dobbelsteen, J. J., de Grave, D. D., van Beers,
R. J. & Brenner, E. Sensory integration does not lead to sensory calibration. _Proc.Natl.Acad.Sci.USA_ 103, 18781–18786 (2006). Article CAS ADS Google Scholar * van Beers, R. J.,
Sittig, A. C. & Denier van der Gon, J. J. Localization of a seen finger is based exclusively on proprioception and on vision of the finger. _ExpBrain Res_ 125, 43–49 (1999). Google
Scholar * van Beers, R. J., Sittig, A. C. & Gon, J. J. Integration of proprioceptive and visual position-information: An experimentally supported model. _J. Neurophysiol._ 81, 1355–1364
(1999). Article Google Scholar * Feise, R. J. Do multiple outcome measures require p-value adjustment? _BMC Med. Res. Methodol._ 2, 8 (2002). Article Google Scholar * Ohashi, H.,
Valle-Mena, R., Gribble, P. L. & Ostry, D. J. Movements following force-field adaptation are aligned with altered sense of limb position. _Exp. Brain Res._ 237, 1303–1313 (2019). Article
Google Scholar * Ostry, D. J. & Gribble, P. L. Sensory Plasticity in Human Motor Learning. _Trends Neurosci._ 39, 114–123 (2016). Article CAS Google Scholar * Angelaki, D. E., Gu,
Y. & DeAngelis, G. C. Multisensory integration. _Curr. Opin. Neurobiol._ 19, 452–458 (2009). Article CAS Google Scholar * Fetsch, C. R., DeAngelis, G. C. & Angelaki, D. E.
Bridging the gap between theories of sensory cue integration and the physiology of multisensory neurons. _Nat_. _Rev_. _Neurosci_. 14 (2013). * Cressman, E. K. & Henriques, D. Y. Sensory
recalibration of hand position following visuomotor adaptation. _J. Neurophysiol._ 102, 3505–3518 (2009). Article Google Scholar * Ruttle, J. E., Cressman, E. K., t Hart, B. M. &
Henriques, D. Y. P. Time Course of Reach Adaptation and Proprioceptive Recalibration during Visuomotor Learning. _PLoS ONE_ 11 (2016). * Cressman, E. K. & Henriques, D. Y. P.
Generalization patterns for reach adaptation and proprioceptive recalibration differ after visuomotor learning. _J. Neurophysiol._ 114, 354–365 (2015). Article CAS Google Scholar *
Sarlegna, F. R. & Bernier, P.-M. On the Link between Sensorimotor Adaptation and Sensory Recalibration. _J. Neurosci._ 30, 11555–11557 (2010). Article CAS Google Scholar * Mattar, A.
A. G., Darainy, M. & Ostry, D. J. Motor learning and its sensory effects: time course of perceptual change and its presence with gradual introduction of load. _J. Neurophysiol._ 109,
782–791 (2013). Article Google Scholar * Ostry, D. J., Darainy, M., Mattar, A. A., Wong, J. & Gribble, P. L. Somatosensory plasticity and motor learning. _J.Neurosci._ 30, 5384–5393
(2010). Article CAS Google Scholar * Mahboobin, A., Loughlin, P. J., Redfern, M. S. & Sparto, P. J. Sensory re-weighting in human postural control during moving-scene perturbations.
_Exp. Brain Res._ 167, 260–267 (2005). Article Google Scholar * Poh, E., Carroll, T. J. & de Rugy, A. Distinct coordinate systems for adaptations of movement direction and extent. _J.
Neurophysiol._ 118, 2670–2686 (2017). Article Google Scholar * Haggard, P., Newman, C., Blundell, J. & Andrew, H. The perceived position of the hand in space. _Percept.Psychophys._ 62,
363–377 (2000). Article CAS Google Scholar * Martin, T. A., Keating, J. G., Goodkin, H. P., Bastian, A. J. & Thach, W. T. Throwing while looking through prisms. II. _Specificity and
storage of multiple gaze-throw calibrations. Brain J. Neurol._ 119(Pt 4), 1199–1211 (1996). Google Scholar * Seidler, R. D. & Carson, R. G. Sensorimotor Learning: Neurocognitive
Mechanisms and Individual Differences. _J. Neuroengineering Rehabil._ 14, 74 (2017). Article CAS Google Scholar * Anguera, J. A., Reuter-Lorenz, P. A., Willingham, D. T. & Seidler, R.
D. Failure to engage spatial working memory contributes to age-related declines in visuomotor learning. _J. Cogn. Neurosci._ 23, 11–25 (2011). Article Google Scholar * Anguera, J. A.,
Reuter-Lorenz, P. A., Willingham, D. T. & Seidler, R. D. Contributions of spatial working memory to visuomotor learning. _J. Cogn. Neurosci._ 22, 1917–1930 (2010). Article Google
Scholar * Christou, A. I., Miall, R. C., McNab, F. & Galea, J. M. Individual differences in explicit and implicit visuomotor learning and working memory capacity. _Sci. Rep._ 6, 36633
(2016). Article CAS ADS Google Scholar * Taylor, J. A., Krakauer, J. W. & Ivry, R. B. Explicit and implicit contributions to learning in a sensorimotor adaptation task. _J. Neurosci.
Off. J. Soc. Neurosci._ 34, 3023–3032 (2014). Article CAS Google Scholar * Bernard, J. A. & Seidler, R. D. Cerebellar contributions to visuomotor adaptation and motor sequence
learning: an ALE meta-analysis. _Front_. _Hum_. _Neurosci_. 7 (2013). * Cassady, K. _et al_. Neural predictors of sensorimotor adaptation rate and savings. _Hum. Brain Mapp._ 39, 1516–1531
(2018). Article Google Scholar * Flament, D., Ellermann, J. M., Kim, S. G., Ugurbil, K. & Ebner, T. J. Functional magnetic resonance imaging of cerebellar activation during the
learning of a visuomotor dissociation task. _Hum. Brain Mapp._ 4, 210–226 (1996). Article CAS Google Scholar * Kim, S., Ogawa, K., Lv, J., Schweighofer, N. & Imamizu, H. Neural
Substrates Related to Motor Memory with Multiple Timescales in Sensorimotor Adaptation. _PLoS Biol._ 13, e1002312 (2015). Article Google Scholar * Diedrichsen, J., Verstynen, T., Lehman,
S. L. & Ivry, R. B. Cerebellar involvement in anticipating the consequences of self-produced actions during bimanual movements. _J.Neurophysiol._ 93, 801–812 (2005). Article Google
Scholar * Tseng, Y. W., Diedrichsen, J., Krakauer, J. W., Shadmehr, R. & Bastian, A. J. Sensory prediction errors drive cerebellum-dependent adaptation of reaching. _J. Neurophysiol._
98, 54–62 (2007). Article Google Scholar * Weiner, M. J., Hallett, M. & Funkenstein, H. H. Adaptation to lateral displacement of vision in patients with lesions of the central nervous
system. _Neurology_ 33, 766–772 (1983). Article CAS Google Scholar * Block, H. & Celnik, P. Stimulating the cerebellum affects visuomotor adaptation but not intermanual transfer of
learning. _Cerebellum Lond. Engl._ 12, 781–793 (2013). Article Google Scholar * Galea, J. M., Vazquez, A., Pasricha, N., Orban, de & Celnik, P. Dissociating the Roles of the Cerebellum
and Motor Cortex during Adaptive Learning: The Motor Cortex Retains What the Cerebellum Learns. _Cereb.Cortex_ 21, 1761–1770 (2011). Article Google Scholar * Jayaram, G. _et al_.
Modulating locomotor adaptation with cerebellar stimulation. _J. Neurophysiol._ 107, 2950–2957 (2012). Article Google Scholar * Wong, J. D., Kistemaker, D. A., Chin, A. & Gribble, P.
L. Can proprioceptive training improve motor learning? _J. Neurophysiol._ 108, 3313–3321 (2012). Article Google Scholar * Graziano, M. S. Where is my arm? The relative role of vision and
proprioception in the neuronal representation of limb position. _Proc. Natl. Acad. Sci. USA_ 96, 10418–10421 (1999). Article CAS ADS Google Scholar * Graziano, M. S., Cooke, D. F. &
Taylor, C. S. Coding the location of the arm by sight. _Science_ 290, 1782–1786 (2000). Article CAS ADS Google Scholar * Ishikawa, T., Shimuta, M. & Häusser, M. Multimodal sensory
integration in single cerebellar granule cells _in vivo_. _eLife_ 4 (2015). * Helmchen, C., Kirchhoff, J.-B., Göttlich, M. & Sprenger, A. Postural Ataxia in Cerebellar Downbeat
Nystagmus: Its Relation to Visual, Proprioceptive and Vestibular Signals and Cerebellar Atrophy. _PloS One_ 12, e0168808 (2017). Article Google Scholar * Ronconi, L. _et al_. When one is
Enough: Impaired Multisensory Integration in Cerebellar Agenesis. _Cereb. Cortex N. Y. N 1991_ 27, 2041–2051 (2017). CAS Google Scholar * Yau, J. M., DeAngelis, G. C. & Angelaki, D. E.
Dissecting neural circuits for multisensory integration and crossmodal processing. _Philos. Trans. R. Soc. Lond. B. Biol. Sci._ 370, 20140203 (2015). Article Google Scholar * Ghazanfar,
A. A. & Schroeder, C. E. Is neocortex essentially multisensory? _Trends Cogn Sci_ 10, 278–285 (2006). Article Google Scholar Download references ACKNOWLEDGEMENTS The authors wish to
acknowledge Dr. David Ostry for helpful feedback on the study design and interpretation, and Ms. Stephanie Dickinson for advice on the statistical procedures. This work was supported by
National Science Foundation award #1753915 to H.J.B. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Department of Kinesiology & Program in Neuroscience, Indiana University Bloomington,
Bloomington, USA Brandon M. Sexton, Yang Liu & Hannah J. Block Authors * Brandon M. Sexton View author publications You can also search for this author inPubMed Google Scholar * Yang Liu
View author publications You can also search for this author inPubMed Google Scholar * Hannah J. Block View author publications You can also search for this author inPubMed Google Scholar
CONTRIBUTIONS B.M.S. Conceptualization, Methodology, Data collection, Data analysis, Writing – original draft. Y.L. Methodology, Data analysis, Writing – review & editing. H.J.B.
Conceptualization, Data analysis, Writing – review & editing, Supervision. CORRESPONDING AUTHOR Correspondence to Hannah J. Block. ETHICS DECLARATIONS COMPETING INTERESTS The authors
declare no competing interests. ADDITIONAL INFORMATION PUBLISHER’S NOTE: Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional
affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY FIGURES RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License,
which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link
to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless
indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or
exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints
and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Sexton, B.M., Liu, Y. & Block, H.J. Increase in weighting of vision vs. proprioception associated with force field adaptation. _Sci
Rep_ 9, 10167 (2019). https://doi.org/10.1038/s41598-019-46625-7 Download citation * Received: 04 March 2019 * Accepted: 02 July 2019 * Published: 15 July 2019 * DOI:
https://doi.org/10.1038/s41598-019-46625-7 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not
currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
