ABSTRACT We propose a novel class of mixed fluctuations with different orientations and fractal scaling features as a model for anisotropic two-dimensional (2D) trajectories hypothesized to

appear in complex systems. Furthermore, we develop the oriented fractal scaling component analysis (OFSCA) to decompose such mixed fluctuations into the original orientation components. In

the OFSCA, the original orientations are detected based on the principle that the original angles are orthogonal to the angles with the minimum and maximum scaling exponents of the mixed

fluctuations. In our approach, the angle-dependent scaling properties are estimated using the Savitzky–Golay-filter-based detrended moving-average analysis (DMA), which has a higher

components in the 2D trajectories by applying OFSCA to real-world time-series, such as human postural fluctuations during standing and seismic ground acceleration during the great 2011

Tohoku-oki earthquake. SIMILAR CONTENT BEING VIEWED BY OTHERS MULTI-FRACTAL DETRENDED CROSS-CORRELATION HEATMAPS FOR TIME SERIES ANALYSIS Article Open access 15 December 2022 TIME-FREQUENCY

SUPER-RESOLUTION WITH SUPERLETS Article Open access 12 January 2021 FRACTIONAL-ORDER STATE SPACE RECONSTRUCTION: A NEW FRONTIER IN MULTIVARIATE COMPLEX TIME SERIES Article Open access 05

August 2024 INTRODUCTION Noise and fluctuations frequently display fractal-like scaling properties associated with long-range correlations in real-world complex systems, such as biological,

geophysical, and economical systems1,2. The appearance of such fluctuations has been considered as a key marker associated with a universal principle hidden in the complex system dynamics3.

Hence, various analysis methodologies have been developed to provide a detailed characterisation of such complex fluctuations. These methods have demonstrated that the scaling properties

emerge not only in an auto-correlation of the time series4,5,6, but also in higher moment correlation (e.g. multi-fractality)7,8,9 and in a cross-correlation between multivariate time

series10,11. The fractal scaling behaviour in two-dimensional (2D) trajectories is also of interest in real-world applications. For instance, human postural fluctuations during quiet

standing12 and animal movement patterns13 have been modelled using 2D fractional Brownian motion (fBm) and fractional Gaussian noise (fGn). Most of the previous studies have characterised

the 2D trajectories using the projections onto the orthogonal directions and otherwise under the assumption of 2D isotropic properties12,13. Such approaches cannot provide any information on

geometrically anisotropic structure of the system. In this study, we hypothesise that real-world 2D trajectories display anisotropy that is different from conventional, isotropic 2D fBm and

fGn14. Moreover, we propose a novel class of mixed fluctuations with different orientations and scaling features as a model for anisotropic 2D trajectories. In our model, the mixed

fluctuations are assumed to consist of two independent components with non-orthogonal orientations as shown in Fig. 1. Such anisotropy has not yet been systematically investigated. The open

problem here is to detect the hidden orientation components in the observed trajectories. To solve this problem, we develop the oriented fractal scaling component analysis (OFSCA) to

characterise the directional properties of such trajectories and decompose the mixed fluctuations into the original components. In the OFSCA, the original orientations are detected based on

the principle that the original angles are orthogonal to the angles with the minimum and maximum scaling exponents of the mixed fluctuations. In our approach, we introduce an extension of

the detrended moving-average analysis (DMA)15: the directional DMA (DDMA). The purpose of DDMA is to estimate the Hurst scaling exponent associated with the fBm- and fGn-like property in the

projection of the observed time-series onto an axis forming angle \(\theta \) with the abscissa axis. In real-world time-series analysis, it has been shown that non-stationary trends

embedded in the time series harmfully affect the scaling exponent estimation and induce a misinterpretation of the correlation properties16. Therefore, scaling analysis methods such as

detrending procedures have been widely used instead of conventional Fourier power spectral, rescaled range4, and structure-function17 analyses. For instance, the practical options are the

wavelet-decomposition-based method with a wavelet having vanishing moments5 and detrending-operation-based scaling analysis methods, such as detrended fluctuation analysis (DFA)16,18 and

DMA19. Recently, we have established the theoretical foundation for DMA including higher-order DMA6,15,20 and developed a fast implementation algorithm for DMA21 to increase the reliability

and applicability of DMA. In this study, we further extend the application of DMA to 2D trajectory analysis. The remainder of this paper is organised as follows. First, we introduce the

analysis procedure of anisotropic 2D trajectories. We illustrate our approach using a numerical sample, assuming a mixed fGn model displaying anisotropic long-range correlations. We then

analyse real-world time-series, such as human postural fluctuations during standing and seismic ground acceleration during the great 2011 Tohoku-oki earthquake and discuss the interpretation

of the oriented scaling components in the 2D trajectories. Finally, we provide a summary and some perspectives on future research. ANALYSIS METHOD FOR ANISOTROPIC 2D TRAJECTORIES Let us

consider a 2D time-series (trajectory) represented as the ordered series of points in the Cartesian coordinate plane, \(\left\{ (x^{(1)}[i], x^{(2)}[i])\right\} \) (\(i = 1, 2, \ldots N\),

where _N_ is the length of the time series). If the time series is a sample path of 2D fGn given by two independent fGn sample paths, \(\left\{ x^{(1)}[i]\right\} \) and \(\left\{

x^{(2)}[i]\right\} \), which are two series of fBm increments with the same Hurst exponent _H_, the auto-correlation properties are isotropic, independent of the orientation. Thus, the

scaling property of each angular component (projection onto a rotated axis) is identical and not affected by any rotational transform. We introduce methods for detailed anisotropic

characterisation assuming an anisotropic 2D time-series different from such 2D fGn. In our approach, we first evaluate the angle-dependent scaling properties using higher-order DMA21

(henceforth, called DDMA) and then decompose the observed 2D time series into two components with different orientations and scaling properties. ANGLE-DEPENDENT SCALING ANALYSIS The observed

time series is projected onto an axis forming angle \(\theta \) with the positive direction of the abscissa axis to detect the anisotropic scaling behaviour. Projected time series \(\left\{

x^{(\theta )} [i]\right\} \) is given as $$\begin{aligned} x^{(\theta )} [i] = x^{(1)}[i] \, \cos \theta + x^{(2)}[i] \, \sin \theta , \end{aligned}$$ (1) where \(\theta \) is varied across

the range of \(0 \le \theta < \pi \). Time series \(\left\{ x^{(\theta )} [i]\right\} \) for each \(\theta \) is analysed using the Savitzky–Golay-filter-based DMA6,22. In the DDMA, we

first calculate the integrated series of \(\left\{ x^{(\theta )} [i]\right\} \). $$\begin{aligned} y^{(\theta )} [i] = \sum _{j=1}^{i} x^{(\theta )} [j] . \end{aligned}$$ (2) Note that, if

\(\left\{ x^{(\theta )} [i]\right\} \) is an fBm trajectory, we can skip this integration procedure and analyse \(\left\{ x^{(\theta )} [i]\right\} \) instead of \(\left\{ y^{(\theta )}

[i]\right\} \) in the following calculation. We then calculate the directional fluctuation function, \(F^{(\theta )}(s)\), defined as $$\begin{aligned} F^{(\theta )} (s) = \sqrt{ \frac{1}{N

- s + 1} \sum _{i= (s+1)/2}^{ N - (s-1)/2} \left( y^{(\theta )} [i] - \widetilde{y}_{\mathrm{SG}}^{(m,s)}[i] \right) ^2 }, \end{aligned}$$ (3) where \(\widetilde{y}_{\mathrm{SG}}^{(m,s)}\)

represents the smoothed version of \(y^{(\theta )} [i]\) obtained after applying the Savitzky–Golay filter with a polynomial of degree _m_ and window length _s_. In Eq. (3), the signals

\(\left\{ \widetilde{y}_{\mathrm{SG}}^{(m,s)} [i]\right\} \) locally smoothed using the Savitzky–Golay filter are removed from the time series22 to attenuate the baseline non-stationarity

embedded in the observed time series \(\left\{ y^{(\theta )} [i]\right\} \). The Savitzky–Golay filter smoothes a noisy signal by adjusting a piecewise polynomial function with degree _m_ to

the signal and can remove the polynomial trends up to the order \((m + 1)\). Anisotropic properties can be evaluated using the \(\theta \)-dependent heterogeneity in \(F^{(\theta )} (s)\).

In addition, the long-range correlation observed in each orientation, \(\theta \), is evaluated using the power-law increase of \(F^{(\theta )} (s)\) as $$\begin{aligned} F^{(\theta )} (s)

\sim s^{\alpha (\theta )}, \end{aligned}$$ (4) and quantified using scaling exponent \(\alpha (\theta )\) estimated as the slope of the double-logarithmic plot of \(F^{(\theta )} (s)\)

against _s_. Note that \(F^{(\theta )}(s)\) can be directly linked with auto-correlation function \(C^{(\theta )} (k)\) and power spectrum \(S^{(\theta )}(f)\) of \(\left\{ x^{(\theta )} [i]

\right\} \)11,23. That is, we have $$\begin{aligned} F^{(\theta )} (s) = \sqrt{\sum _{k=-s}^{s} C^{(\theta )} (k)\, L(k, s)} = \sqrt{\int _{-1/2}^{1/2} \left| S^{(\theta )}(f)\right| \left|

G_s(f) \right| ^2 df}. \end{aligned}$$ (5) The analytical forms of kernels _L_(_k_, _s_) and \(\left| G_s(f) \right| ^2\) were demonstrated in11,23. Using these relations and assuming Eq.

(4), we can show the scaling relations, \(\alpha = 1-\gamma /2 \) when \(C^{(\theta )} (k) \sim k^{-\gamma }\) (\(0< \gamma < 1\)) and \(\alpha = (\beta +1)/2 \) when \(S^{(\theta )}

(f) \sim f^{-\beta }\) (\(-1< \beta < 2 m + 3\)). In particular, when \(C^{(\theta )}(k)\) decays exponentially to zero and \(S^{(\theta )}(f)\) shows the low-frequency plateau

indicating short-term correlation, the scaling exponent results asymptotically in \(\alpha = 0.5\). In a previous study11, it was analytically shown that time-scale distortion between the

scale in the time domain of DMA and the frequency in the Fourier spectral domain is induced by the higher-order DMA. Thus, we use the corrected time scale, \(\tilde{s}\), instead of _s_.

Although scale _s_ in the zeroth-order DMA corresponds well to frequency _f_ in the Fourier spectral domain, i.e., \(\tilde{s}=s/1.00\), \(\tilde{s}\) are given by \(\tilde{s}=s/1.93\) and

\(\tilde{s}=s/2.74\) in the second- and fourth-order DMAs, respectively. Note that a straightforward implementation of the aforementioned procedure has a high computational complexity. Thus,

a fast algorithm of DMA should be employed in the practical analysis21. DECOMPOSITION OF MIXED LONG-RANGE CORRELATED FLUCTUATIONS We introduce a new class of 2D long-range correlated

processes displaying special orientations and an orientation decomposition method for such processes. We illustrate our approach by assuming a mixed fGn model displaying anisotropic

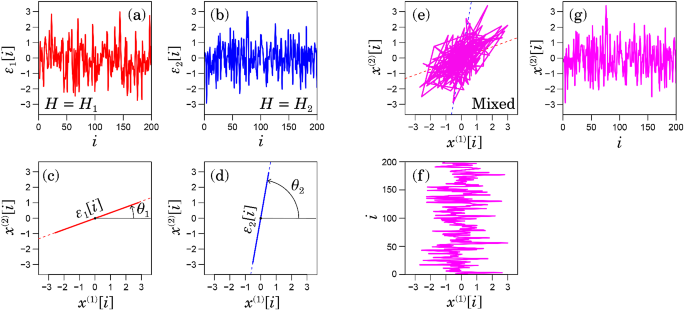

long-range correlations (Fig. 1). Our model consists of two independent fGn processes \(\{\epsilon _{1}[i]\}\) and \(\{\epsilon _{2}[i]\}\) with two different Hurst exponents \(H_1\) and

\(H_2\) (\(H_{1} > H_{2}\)), respectively (Fig. 1a,b). It mixes these processes oriented at angles \(\theta _1\) and \(\theta _2\) to the _x_-axis (Fig. 1c,d) as $$\begin{aligned}

\begin{bmatrix} x^{(1)}[i]\\ x^{(2)}[i] \end{bmatrix} = \begin{bmatrix} \cos \theta _1 &{} \cos \theta _2\\ \sin \theta _1 &{} \sin \theta _2 \end{bmatrix} \begin{bmatrix} \epsilon

_{1}[i]\\ \epsilon _{2}[i] \end{bmatrix}. \end{aligned}$$ (6) Now, we consider the problem of decomposing the observation of \(\left\{ \left( x^{(1)}[i], x^{(2)}[i]\right) \right\} \) (Fig.

1e,g,f) into the original fGn time series, \(\{\epsilon _{1}[i]\}\) and \(\{\epsilon _{2}[i]\}\). Notably, the independent component analysis (ICA) is not properly applicable to our model,

because both \(x^{(1)}[i]\) and \(x^{(2)}[i]\) in our model follow Gaussian distributions. Two linearly mixed independent Gaussian processes cannot be separated uniquely into two independent

components (ICA for Gaussian processes is equivalent to principal component analysis). Our approach is described as follows (Fig. 2). In this model [Eq. (6)], the projected time series is

given by $$\begin{aligned} x^{(\theta )}[i] = \epsilon _{1}[i] \cos \left( \theta - \theta _1 \right) + \epsilon _{2}[i] \cos \left( \theta - \theta _2 \right) . \end{aligned}$$ (7) This

equation indicates that, when \(\theta = \theta _1 \pm \pi /2\), \(x^{(\theta )} [i]\) is orthogonal and independent of \(\epsilon _{1}[i]\) (see Fig. 2c). That is, we obtain

$$\begin{aligned} x^{(\theta _1 + \pi /2)}[i]= \epsilon _{2}[i] \cos \left( \theta _1 - \theta _2 + \pi /2 \right) , \end{aligned}$$ (8) which is proportional to the original \(\epsilon

_{2}[i]\) with \(H_2\). For the same reason, \(x^{(\theta _2 \pm \pi /2)} [i]\) is orthogonal to \(\epsilon _{2}[i]\) and proportional to \(\epsilon _{1}[i]\) with \(H_1\). In contrast, when

\(\theta \ne \theta _1 \pm \pi /2\) and \(\theta \ne \theta _2 \pm \pi /2\), \(F^{(\theta )}(s)\) shows a crossover of scaling exponents (see Fig. 2b). The forced linear fit to the broken

lines in the log–log plot of \(F^{(\theta )} (s)\) vs. _s_ yields a slope in the range \((H_1, H_2)\). Therefore, seeking two main orientations, \(\hat{\theta }_{\mathrm{min}}\) and

\(\hat{\theta }_{\mathrm{max}}\), respectively, with the minimum and maximum values of \(\alpha (\theta )\), we can estimate the original orientations of \(\epsilon _{1}[i]\) and \(\epsilon

_{2}[i]\) as \(\hat{\theta }_1 = \hat{\theta }_{\mathrm{min}} \pm \pi /2\) and \(\hat{\theta }_2 = \hat{\theta }_{\mathrm{max}} \pm \pi /2\), respectively. In this paper, the hat denotes an

estimate of the corresponding quantity. Using the angles \(\hat{\theta }_1\) and \(\hat{\theta }_2\), we can estimate the original signals as $$\begin{aligned} \begin{bmatrix} \hat{\epsilon

}_{1}[i]\\ \hat{\epsilon }_{2}[i] \end{bmatrix} = \begin{bmatrix} {\sin \hat{\theta }_2}/{\sin \left( \hat{\theta }_2 - \hat{\theta }_1\right) } &{} {\cos \hat{\theta }_2}/{\sin \left(

\hat{\theta }_1 - \hat{\theta }_2\right) }\\ {\sin \hat{\theta }_1}/{\sin \left( \hat{\theta }_1 - \hat{\theta }_2\right) } &{} {\cos \hat{\theta }_1}/{\sin \left( \hat{\theta }_2 -

\hat{\theta }_1\right) } \end{bmatrix} \begin{bmatrix} x^{(1)}[i]\\ x^{(2)}[i] \end{bmatrix} . \end{aligned}$$ (9) We refer to this approach as the OFSCA. NUMERICAL TEST We analyse the

sample time series (Fig. 3a) of the mixed fGn model with \(H_1 = 0.8\), \(\theta _1=\pi /6 = 30^{\circ }\), \(H_2 = 0.6\), and \(\theta _1=4 \pi /9 = 80^{\circ }\) as a numerical

demonstration of the OFSCA. The angle dependence of \(F^{(\theta )} (\tilde{s})\) is evaluated over the range of \(0 \le \theta < \pi \) in increments of \(\pi /64\) rad. The estimated

\(F^{(\theta )}(\tilde{s})\) are plotted in a circular cylindrical coordinate \((\rho , \phi , z)=(\log _{10} \tilde{s}, \theta , \log _{10} F^{(\theta )}(\tilde{s}))\), where \(\rho \) is

the distance of a coordinate point from the Cartesian _z_-axis, and \(\phi \) is its azimuthal angle. In Fig. 3b, \(\log _{10} F^{(\theta )}(\tilde{s})\) are plotted using the colour scale.

In addition, the local slopes of \(\log _{10} F^{(\theta )}(\tilde{s})\) vs. \(\log _{10} \tilde{s}\) at each \(\theta \) are plotted in Fig. 3c. Although Fig. 3b,c show anisotropic scaling

properties, the apparent orientations are observed in the major and minor axes of the ellipse-shaped fluctuations in Fig. 3a. Therefore, the conventional principal component analysis cannot

decompose the observed time-series into the original orientations. In contrast, our approach makes it possible to estimate the original orientations of the two component time-series and to

reconstruct the original time-series. In our approach, we first estimate \(\hat{\theta }_{\mathrm{min}} = 121^{\circ }\) and \(\hat{\theta }_{\mathrm{max}} = 172^{\circ }\) based on the

angle dependence of the least-squares-fit slope as shown in Fig. 3d. Using Eq. (9) with \(\hat{\theta }_1=\hat{\theta }_{\mathrm{min}} - 90^{\circ } = 31^{\circ }\) and \(\hat{\theta

}_2=\hat{\theta }_{\mathrm{max}} - 90^{\circ } = 82^{\circ }\), we decompose \(\left\{ \left( x^{(1)}[i], x^{(2)}[i]\right) \right\} \) into \(\{\hat{\epsilon }_{1}[i]\}\) and

\(\{\hat{\epsilon }_{2}[i]\}\) (Fig. 3e). The isotropic scattering behaviour in Fig. 3f indicates that the decomposed \(\{\hat{\epsilon }_{1}[i]\}\) and \(\{\hat{\epsilon }_{2}[i]\}\) are

well uncorrelated with each other. The estimated scaling exponents of \(\{\hat{\epsilon }_{1}[i]\}\) and \(\{\hat{\epsilon }_{2}[i]\}\) reproduced the theoretical values (Fig. 3f).

REAL-WORLD ANISOTROPIC SCALING We demonstrate the existence of anisotropic scaling by analysing real-world time-series, such as human postural fluctuations during standing (Figs. 4 and 5)

and seismic ground acceleration during the great 2011 Tohoku-oki earthquake (Fig. 6). Python source code for computing OFSCA and obtaining results of examples presented in the paper are

public available for download in24. CENTRE-OF-PRESSURE FLUCTUATIONS OF POSTURAL SWAY We apply the proposed method to the human centre-of-pressure (CoP) trajectories in a standing posture25.

The CoP is the projection of the centroid of the vertical force distribution on the ground plane. The CoP characteristics have been studied extensively to evaluate balance dysfunction for

patients with neurological and motor disorders and to understand the postural control mechanism26,27. To extract the oriented scaling components from the CoP characteristics, we analysed CoP

trajectories measured in two standing posture conditions: quiet standing with eyes open (Fig. 4a) and a voluntary sway movement from the steady position to right-backward position with eyes

open (Fig. 5a); the recording duration was 30 s with a sampling frequency of 100 Hz (for more details of the measurement, see28,29). Recordings of CoP trajectories were obtained from a

project approved by the Institutional Review Board of the National University of Physical Education and Sport of Ukraine. The procedures complied with the Declaration of Helsinki regarding

human experimentation. Written informed consent was obtained from all the participants prior to the test. The angle dependence of \(F^{(\theta )} (\tilde{s})\) was evaluated over the range

of \(0 \le \theta < \pi \) in increments of \(\pi /64\) rad (Figs. 4b,c, 5b,c). We set the scaling range \(1.2< \log _{10} \tilde{s} < 2.5\) (from 0.16 to 3.2 s) and estimated the

slopes of linear regressions (Fig. 4d) to find two representative orientations. In the quiet standing condition, the minimum and maximum slopes were observed at \(\hat{\theta

}_{\mathrm{min}} = 6^{\circ }\) and \(\hat{\theta }_{\mathrm{max}} = 124^{\circ }\), respectively (Fig. 4d). Thus, the estimated orientations were \(\hat{\theta }_{1} = 96^{\circ }\) and

\(\theta _{\mathrm{max}} = 34^{\circ }\). As shown in Fig. 4d, the estimated minimum and maximum slopes (1.92 and 2.07, respectively) were almost equal. Nevertheless, the scaling behaviours

of the decomposed components \(\left\{ \hat{\epsilon }_1 [i] \right\} \) and \(\left\{ \hat{\epsilon }_2 [i] \right\} \) (Fig. 4e) showed a nontrivial difference. As shown in Fig. 4f, a

crossover point around \(\log _{10} \tilde{s} = 2.2\) was observed only in the component \(\hat{\epsilon }_2\) with an orientation of \(34^{\circ }\). The observed scaling exponent \(\alpha

\approx 2.0\) indicates an fBm-like behaviour with long-range-correlated increments, which suggests a rather anomalously expanding and unstable CoP trajectory. In contrast, the smaller

scaling exponent (\(< 1.0\)) observed at the larger scales in the \(\hat{\epsilon }_2\) orientation suggests a bounded and stable CoP trajectory. Therefore, the \(\hat{\epsilon }_2\)

orientation would correspond to the most stable direction of the posture control. This result is reasonable from an anatomical point of view, as a standing human body has more stability

against left-right oscillations than against forward-backward oscillations while attempting to stand still. The \(\hat{\epsilon }_1\) orientation almost coincided with the face-front

(anteroposterior) direction, whereas the \(\hat{\epsilon }_2\) orientation was considerably deviated from the shoulder-width (mediolateral) direction. This deviation originates from the

motor asymmetry of the lower limbs. The mean CoP position of the subject was shifted slightly to the right from the coordinate centre of the platform, i.e. the subject body weight was

distributed more on his dominant right leg than on his left one. Hence, we conclude that the subject controlled the postural balance mainly with his right foot30. In the condition of

voluntary sway movement, the subject was asked to perform swaying movements in the backward-right direction (Fig. 5a). In this condition, the minimum and maximum slopes were observed at

\(\hat{\theta }_{\mathrm{min}} = 37^{\circ }\) and \(\hat{\theta }_{\mathrm{max}} = 132^{\circ }\), respectively (Fig. 5d). Thus, the estimated orientations were \(\hat{\theta }_{1} =

127^{\circ }\) and \(\theta _{\mathrm{max}} = 42^{\circ }\). The orientation with \(\hat{\theta }_{1}\) almost coincided with the body sway direction, and the orientation with \(\hat{\theta

}_{2}\) was almost perpendicular to it. The scaling exponent of \(\hat{\epsilon }_1\) along the body sway direction was 2.5 (Fig. 5f), indicating a smoothly spreading fluctuation. In

contrast, the scaling exponent of \(\hat{\epsilon }_2\) at larger scales (\(> 1\) s) was 1.5 (Fig. 5f), indicating a Brownian-motion-like fluctuation. The decomposed components

\(\hat{\epsilon }_1\) and \(\hat{\epsilon }_2\) (Figs. 4e and 5e) appeared to be moving along each axis in an independent manner. Moreover, the cross-correlations between \(\hat{\epsilon

}_1\) and \(\hat{\epsilon }_2\) were almost zero in both conditions. The Pearson cross-correlation coefficients were \(-0.07\) and \(-0.12\), respectively, in the quiet standing and leaning

motion conditions. Hence, our approach could detect and reconstruct the reasonable main orientations in the posture control dynamics. However, the kinetic and mathematical mechanism

generating the observed fluctuations is still unclear. GREAT 2011 TOHOKU-OKI EARTHQUAKE The second application is the analysis of the largest earthquake on record in Japan and the fourth

largest earthquake in the world from 1900 to 2020. The Tohoku-oki earthquake occurred at 14:46 JST (05:46 UTC) on 11 March 2011 in Japan. It was a magnitude 9.0 undersea mega-thrust

earthquake off the coast of Japan31. It induced a giant tsunami with waves over tens of meters high, which caused serious nuclear power plant accidents. The time evolution of the main

earthquake lasted for approximately 150 s and was associated with a fault rupture 440 km long in a north–south direction and 180 km wide along the plate interface. The source of the

earthquake was not a single large earthquake but several interdependent earthquakes linked to each other. We analyse the recordings32 of a seismic sensor located at Shin-Machi, Wakuya-cho,

Toda-gun Miyagi Prefecture (Latitude: 38.5401\(^{\circ }\)N, Longitude: 141.1272\(^{\circ }\)E) to characterise the complicated earthquake process. From this location, the epicentre was

located approximately 111 km east and the earthquake sources were distributed over the azimuth angle range of approximately \(102^{\circ }\) to \(140^{\circ }\), where the azimuth angle

\(\phi \) is defined as the angle from the north direction counted clockwise, (i.e. \(\phi \approx \pi /2 - \theta \)). The analysed 2D time series is the acceleration on the ground surface

with the north–south (NS) and east–west (EW) axes at the sampling frequency of 100 Hz. The ground acceleration has been considered the most important factor in determining the stress induced

to structures during earthquakes. The top two panels in Fig. 6 show 3-min time series. This time series could be separated into four representative phases: P-, first S-, second S-, and

aftershock waves (Fig. 6a,b). The previous studies31 using inversion analysis have identified three main sources generating the representative waveforms. The first and second S-waves were

generated, respectively, by the first and second main sources in the east–southeast direction from the measurement point. In addition, even in the aftershock phase, the earthquake wave

induced by the third main source in the south–southeast direction was overlapped. However, the corresponding S-wave was not dominant because of the distance decay effect. In each phase, the

angle dependence of \(F^{(\theta )} (\tilde{s})\) was estimated over the range of \(0 \le \theta < \pi \) in increments of \(\pi /64\) rad using fourth-order DDMA. \(F^{(\theta )}

(\tilde{s})\) and the local slopes are shown in Fig. 6c,d, together with the estimated representative orientations (red and blue dashed lines). We set the scaling range \(1.3< \log _{10}

\tilde{s} < 2.2\) (from 0.20 to 1.6 s) and estimate the slopes in this range using linear regressions (Fig. 6e) to find two representative orientations. A remarkable transition was

observed in the orientations and the correlation properties before and after the arrival of the first S-wave. In the P-wave phase, the estimated orientations of \(\hat{\epsilon }_1\) and

\(\hat{\epsilon }_2\) were \(\hat{\theta }_1 \approx 85^{\circ }\) and \(\hat{\theta }_2 \approx 170^{\circ }\), respectively (the first column in Fig. 6 c,d). The corresponding slopes in

the range of \(1.3< \log _{10} s < 2.2\) were close to 0.5 and less than 1.0 (Fig. 6e). The fluctuation functions showed an evident difference between \(\hat{\epsilon }_1\) and

\(\hat{\epsilon }_2\) (Fig. 6f). A change in the orientations was observed immediately after the arrival of the first S-wave (the second column in Fig. 6c,d). In the first and second

S-waves, the orientations of \(\hat{\epsilon }_1\) and \(\hat{\epsilon }_2\) were \(\hat{\theta }_1 \approx 135^{\circ }\) and \(\hat{\theta }_2 \approx 45^{\circ }\), respectively. In the

aftershock wave, the orientations were rotated approximately \(20^{\circ }\) in the counter clockwise (the fourth column in Fig. 6c,d). In addition, gradual increases of the slopes in the

range of \(1.3< \log _{10} \tilde{s} < 2.2\) were observed through the earthquake process (Fig. 6f). The slopes approached 1.5 through and after the second S-wave phase. All the plots

of the fluctuation functions (Fig. 6f) showed a (non-increasing) plateau in the range of \(\log _{10} \tilde{s} > 2.1\), indicating oscillating behaviour. To illustrate such behaviour, we

also analysed the numerical time-series of a purely sinusoidal wave (Fig. 7a) and a second-order auto-regressive (AR(2)) model (Fig. 7b) using DMA. Here, the periods in the sinusoidal wave

and the AR(2) model are set to \(10^{2.1}\) points. In Fig. 7d, the plot of \(\log _{10} F^{(\theta )}(\tilde{s})\) vs. \(\log _{10} \tilde{s}\) shows a power-law increase in scales shorter

than the oscillating period (\(\log _{10} \tilde{s} < 2.1\)) and a plateau in scales longer than the oscillating period. Notably, the power-law (scaling) exponents of the purely

sinusoidal wave (Fig. 7d) cannot be linked with the power-law correlation properties and the exponent depends on the order of the DMA. In contrast, the AR(2) model (Fig. 7b) shows a

short-term power-law correlation characterised by \(\alpha =2.5\) (dashed lines in Fig. 7e) because of the power-law of the power spectrum as \(S(f) \sim f^{-4}\) for the high-frequency

range. However, as shown in Fig. 7d, zeroth-order DMA cannot detect a scaling exponent larger than 26. That is, zeroth-order DMA (commonly called DMA so far) cannot distinguish between a

purely sinusoidal wave (Fig. 7a) and an AR(2) model. Therefore, the consistency of the scaling behaviour needs to be tested using higher-order DMAs to detect meaningful scaling behaviour. In

our earthquake analysis (Fig. 7c,f), the scaling behaviour in the range of \(\log _{10} \tilde{s} > 1.3\) in higher-order DMAs showed consistent results. The observed transition before

and after the arrival of the first S-wave would reflect the mechanism difference. The P-wave is a compressional wave with no shear components and it travels faster than other seismic waves.

In contrast, the S-wave is a shear wave and propagates faster than the P-wave. Although a detailed interpretation of our observation is not possible at present, our approach would provide a

new method for earthquake analysis and advance the existing earthquake research activities, such as Refs.33,34,35. DISCUSSION We have proposed a sum of mixed fluctuations with different

orientations and fractal scaling features as a model for anisotropic 2D trajectories. A decomposition method called OFSCA was developed to decompose a 2D trajectory into the original

oriented components. Through the analysis of a sample anisotropic 2D fGn model, we have demonstrated that the OFSCA estimates the model parameters (the orientation angle of each component

and its scaling parameter) successfully. Moreover, the analysis of real-world anisotropic 2D trajectories, such as human CoP and the great 2011 Tohoku-oki earthquake, has demonstrated the

existence of their oriented fractal scaling components and provided detailed characterisation of their properties. These findings are merely exploratory, and further studies of the oriented

scaling components will provide new insights on the complex fluctuations. Our observations on earthquake data analysis based on OFSCA are consistent with the findings of Ref.31, where the

motion characteristics of the tectonic movement during the Tohoku earthquake were studied using inverted teleseismic P- wave data. The authors showed the relationship between slip

distribution (tectonic movements) and strong ground motion while considering a long slip duration, large stress drop, and extensional (normal faulting) aftershocks. We consider that there

could be a relationship between the Hurst exponent and strong ground motion, since as discussed in the Ref.36 the power law in the earthquake statistics and non-linear nature of the

earthquake propagation comes from the fractal nature of rough crack surfaces of crust and tectonic plate dynamics. We assume that OFSCA approach might provide basic information about the

rupture process for real-time monitoring (real-time seismology). Further application of OFSCA to seismic data and the interpretation of the fluctuation characteristics of tectonic movements

are required to understand the earthquakes more deeply and to predict their occurrence and propagation in the future. Further extension of OFSCA is feasible for postural sway analysis, which

has been used for the medical diagnosis and prognosis of patients with neurological and motor disorders. When a subject has a motor/sensory disorder (such as hemiplegia or incomplete spinal

cord injury), which has an asymmetrical effect on the standing stability37, the evaluation of the directional dependency of the CoP trajectory could provide useful information on the

stabilising ability and dysfunction. The proposed OFSCA can be used to characterise other real-world 2D trajectories. For instance, in Ref.38, an automated continuous monitoring system for

tracking the behaviour of pigs was used to monitor their movements with a depth camera. Then, using 2D trajectories of pig movement, the directional behaviour and characteristics of the

locomotion dynamics could be quantified with OFSCA and mapped onto the animal health issues to detect warning signs. This approach can be used to characterise the trajectories of other

animals, such as fish, cows, and unicellular organisms. It can also be applied in several other behavioural, ecological, and veterinarian studies, and to amend the existing techniques of 2D

and 3D trajectory analyses39,40. Another promising application is the analysis of the 2D trajectories of individuals encountered in group games, such as soccer, in both humans41 and

robots42. The group dynamics and interconnections of the player’s movement dynamics may provide interesting insights for sports studies, and the orientation of the fluctuation

characteristics can be a valuable feature of single, group, and event-specific trajectories43. Furthermore, the OFSCA approach can be extended to higher-dimensional data analysis, e.g.

studying complex evolutionary dynamics44, or understanding the structure and patterns in high-dimensional RNA sequencing datasets45. REFERENCES * Takayasu, H. _Fractals in the Physical

Sciences_. Nonlinear science : theory and applications (Manchester University Press, Manchester, 1990). * Jin, Y., Wu, Y., Li, H., Zhao, M. & Pan, J. Definition of fractal topography to

essential understanding of scale-invariance. _Sci. Rep._ 7, 46672 (2017). Article  ADS  PubMed  PubMed Central  Google Scholar  * Sornette, D. _Critical Phenomena in Natural Sciences: Chaos,

Fractals, Selforganization and Disorder: Concepts and Tools_. Springer Series in Synergetics (Springer, Berlin, 2003). * Graves, T., Gramacy, R., Watkins, N. & Franzke, C. A brief

history of long memory: Hurst, mandelbrot and the road to arfima, 1951–1980. _Entropy_ 19, 437. https://doi.org/10.3390/e19090437 (2017). Article  ADS  Google Scholar  * Veitch, D. &

Abry, P. A wavelet-based joint estimator of the parameters of long-range dependence. _IEEE Trans. Inf. Theory_ 45, 878–897 (1999). Article  MathSciNet  Google Scholar  * Höll, M., Kiyono, K.

& Kantz, H. Theoretical foundation of detrending methods for fluctuation analysis such as detrended fluctuation analysis and detrending moving average. _Phys. Rev. E_ 99, 033305.

https://doi.org/10.1103/PhysRevE.99.033305 (2019). Article  ADS  PubMed  Google Scholar  * Muzy, J. F., Bacry, E. & Arneodo, A. Multifractal formalism for fractal signals: The

structure-function approach versus the wavelet-transform modulus-maxima method. _Phys. Rev. E_ 47, 875–884. https://doi.org/10.1103/PhysRevE.47.875 (1993). Article  ADS  CAS  Google Scholar

  * Kantelhardt, J. W. _et al._ Multifractal detrended fluctuation analysis of nonstationary time series. _Phys. A Stat. Mech. Appl._ 316, 87–114.

https://doi.org/10.1016/s0378-4371(02)01383-3 (2002). Article  MATH  Google Scholar  * Lashermes, B., Jaffard, S. & Abry, P. Wavelet leader based multifractal analysis. In _Proceedings.

(ICASSP ’05). IEEE International Conference on Acoustics, Speech, and Signal Processing, 2005._, vol. 4, iv/161–iv/164 Vol. 4 (2005). * Podobnik, B. & Stanley, H. E. Detrended

cross-correlation analysis: A new method for analyzing two nonstationary time series. _Phys. Rev. Lett._ 100, 084102. https://doi.org/10.1103/PhysRevLett.100.084102 (2008). Article  ADS  CAS

  PubMed  Google Scholar  * Nakata, A. _et al._ Generalized theory for detrending moving-average cross-correlation analysis: A practical guide. _Chaos Solitons Fractals: X_ 3, 100022.

https://doi.org/10.1016/j.csfx.2020.100022 (2019). Article  Google Scholar  * Collins, J. J. & Luca, C. J. D. Open-loop and closed-loop control of posture: A random-walk analysis of

center-of-pressure trajectories. _Exp. Brain Res._ 95, 308–318 (2004). Article  Google Scholar  * Bartumeus, F. LÉvy processes in animal movement: An evolutionary hypothesis. _Fractals_ 15,

151–162. https://doi.org/10.1142/S0218348X07003460 (2007). Article  Google Scholar  * Qian, H., Raymond, G. M. & Bassingthwaighte, J. B. On two-dimensional fractional brownian motion and

fractional brownian random field. _J. Phys. A Math. Gen._ 31, L527–L535. https://doi.org/10.1088/0305-4470/31/28/002 (1998). Article  ADS  MathSciNet  PubMed Central  MATH  PubMed  Google

Scholar  * Carbone, A. & Kiyono, K. Detrending moving average algorithm: Frequency response and scaling performances. _Phys. Rev. E_ 93, 063309.

https://doi.org/10.1103/PhysRevE.93.063309 (2016). Article  ADS  CAS  PubMed  Google Scholar  * Peng, C., Havlin, S., Stanley, H. . E. & Goldberger, A. . L. Quantification of scaling

exponents and crossover phenomena in nonstationary heartbeat time series. _Chaos Interdiscip. J. Nonlinear Sci._ 5, 82–87. https://doi.org/10.1063/1.166141 (1995). Article  CAS  Google

Scholar  * Pan, Y. & Chamecki, M. A scaling law for the shear-production range of second-order structure functions. _J. Fluid Mech._ 801, 459–474. https://doi.org/10.1017/jfm.2016.427

(2016). Article  ADS  MathSciNet  Google Scholar  * Peng, C.-K. _et al._ Mosaic organization of DNA nucleotides. _Phys. Rev. E_ 49, 1685–1689. https://doi.org/10.1103/PhysRevE.49.1685

(1994). Article  ADS  CAS  Google Scholar  * Alvarez-Ramirez, J., Rodriguez, E. & Echeverría, J. C. Detrending fluctuation analysis based on moving average filtering. _Phys. A Stat.

Mech. Appl._ 354, 199–219. https://doi.org/10.1016/j.physa.2005.02.020 (2005). Article  Google Scholar  * Kiyono, K. & Tsujimoto, Y. Time and frequency domain characteristics of

detrending-operation-based scaling analysis: Exact dfa and dma frequency responses. _Phys. Rev. E_ 94, 012111. https://doi.org/10.1103/PhysRevE.94.012111 (2016). Article  ADS  CAS  PubMed

Google Scholar  * Tsujimoto, Y., Miki, Y., Shimatani, S. & Kiyono, K. Fast algorithm for scaling analysis with higher-order detrending moving average method. _Phys. Rev. E_ 93, 053304.

https://doi.org/10.1103/PhysRevE.93.053304 (2016). Article  ADS  CAS  PubMed  Google Scholar  * Savitzky, A. & Golay, M. J. E. Smoothing and differentiation of data by simplified least

squares procedures. _Anal. Chem._ 36, 1627–1639. https://doi.org/10.1021/ac60214a047 (1964). Article  ADS  CAS  Google Scholar  * Kiyono, K. Theory and applications of

detrending-operation-based fractal-scaling analysis. In _2017 International Conference on Noise and Fluctuations (ICNF)_, 1–4 (2017). * Ivan Seleznov, K. K. Ofsca (2020).

https://gitlab.com/IvanSeleznov/ofsca/, Accessed 12/11/2020. * Yamamoto, T. . _et al._ Universal and individual characteristics of postural sway during quiet standing in healthy young

adults. _Physiol. Rep._ 3, e12329. https://doi.org/10.14814/phy2.12329 (2015). Article  PubMed Central  PubMed  Google Scholar  * Ghamkhar, L. & Kahlaee, A. H. The effect of trunk muscle

fatigue on postural control of upright stance: A systematic review. _Gait Posture_ 72, 167–174 (2019). Article  PubMed  Google Scholar  * Prieto, T. E., Myklebust, J. B., Hoffmann, R. G.,

Lovett, E. G. & Myklebust, B. M. Measures of postural steadiness: Differences between healthy young and elderly adults. _IEEE Trans. Biomed. Eng._ 43, 956–966 (1996). Article  CAS

PubMed  Google Scholar  * Kolomiiets, B. & Popov, A. System for registration and analysis of human stabilograms. In _2018 14th International Conference on Advanced Trends in

Radioelecrtronics, Telecommunications and Computer Engineering (TCSET)_, 660–664 (2018). * Kolomiiets, B., Seleznov, I., Kiyono, K., Popov, A. & Kolosova, E. Detrending moving average

analysis of center-of-pressure patterns. In _2019 Signal Processing Symposium (SPSympo)_, 130–135 (2019). * Delignières, D., Torre, K. & Bernard, P. .-L. Transition from persistent to

anti-persistent correlations in postural sway indicates velocity-based control. _PLoS Comput. Biol._ 7, 1–10. https://doi.org/10.1371/journal.pcbi.1001089 (2011). Article  CAS  Google

Scholar  * Yagi, Y. & Fukahata, Y. Rupture process of the. tohoku-oki earthquake and absolute elastic strain release. _Geophys. Res. Lett._ https://doi.org/10.1029/2011GL048701 (2011).

Article  Google Scholar  * Japan meteorological agency. available at: https://www.jma.go.jp/jma/indexe.html. Accessed 7 July 2020. _Japan Meteorological Agency_ (2020). * Picozzi, M., Bindi,

D., Zollo, A., Festa, G. & Spallarossa, D. Detecting long-lasting transients of earthquake activity on a fault system by monitoring apparent stress, ground motion and clustering. _Sci.

Rep._ 9, 1–11 (2019). Article  CAS  Google Scholar  * Shcherbakov, R., Zhuang, J., Zöller, G. & Ogata, Y. Forecasting the magnitude of the largest expected earthquake. _Nat. Commun._ 10,

1–11 (2019). Article  CAS  Google Scholar  * Kirkpatrick, J. D. _et al._ Subduction megathrust heterogeneity characterized from 3d seismic data. _Nat. Geosci._ 13, 369–374 (2020). Article

ADS  CAS  Google Scholar  * Chakrabarti, B. K. & Stinchcombe, R. B. Stick-slip statistics for two fractal surfaces: A model for earthquakes. _Phys. A Stat. Mech. Appl._ 270, 27–34.

https://doi.org/10.1016/S0378-4371(99)00146-6 (1999). Article  Google Scholar  * Granat, M., Barnett, R., Kirkwood, C. & Andrews, B. Technique for calculating the direction of postural

sway. _Med. Biol. Eng. Comput._ 29, 599 (1991). Article  CAS  PubMed  Google Scholar  * Matthews, S. G., Miller, A. L., Plötz, T. & Kyriazakis, I. Automated tracking to measure

behavioural changes in pigs for health and welfare monitoring. _Sci. Rep._ 7, (2017). * McLean, D. . J. & Skowron Volponi, M. . A. trajr: An r package for characterisation of animal

trajectories. _Ethology_ 124, 440–448. https://doi.org/10.1111/eth.12739 (2018). Article  Google Scholar  * Calenge, C., Dray, S. & Royer-Carenzi, M. The concept of animals’ trajectories

from a data analysis perspective. _Ecol. Inform._ 4, 34–41. https://doi.org/10.1016/j.ecoinf.2008.10.002 (2009). Article  Google Scholar  * Sanford, R., Gorji, S., Hafemann, L. G.,

Pourbabaee, B. & Javan, M. Group activity detection from trajectory and video data in soccer. arXiv:abs/2004.10299 (2020). * Fukushima, T., Nakashima, T. & Akiyama, H. Similarity

analysis of action trajectories based on kick distributions. In _RoboCup 2019: Robot World Cup XXIII_ (eds. Chalup, S., Niemueller, T., Suthakorn, J. & Williams, M.-A.), 58–70 (Springer

International Publishing, Cham, 2019). * Shao, L., Sacha, D., Neldner, B., Stein, M. & Schreck, T. Visual-interactive search for soccer trajectories to identify interesting game

situations. In _Visualization and Data Analysis_ (2016). * Agarwala, A. & Fisher, D. S. Adaptive walks on high-dimensional fitness landscapes and seascapes with distance-dependent

statistics. _Theor. Popul. Biol._ 130, 13–49 (2019). Article  PubMed  Google Scholar  * Moon, K. R. _et al._ Visualizing structure and transitions in high-dimensional biological data. _Nat.

Biotechnol._ 37, 1482–1492 (2019). Article  CAS  PubMed  PubMed Central  Google Scholar  Download references ACKNOWLEDGEMENTS This work was partially supported by JSPS KAKENHI Grant No.

19H04282. We used strong ground motion data observed by JMA (Japan Meteorological Agency). AUTHOR INFORMATION Author notes * These authors contributed equally: Ivan Seleznov and Ken Kiyono.

AUTHORS AND AFFILIATIONS * Graduate School of Engineering Science, Osaka University, Toyonaka, 560-8531, Japan Ivan Seleznov, Akio Nakata, Miki Kaneko & Ken Kiyono * Department of

Electronic Engineering, Igor Sikorsky Kyiv Polytechnic Institute, Kyiv, 03056, Ukraine Ivan Seleznov, Anton Popov & Bohdan Kolomiiets * Ciklum Data & Analytics, Kyiv, Ukraine Anton

Popov * School of Statistical Thinking, Institute of Statistical Mathematics, Tokyo, 190-8562, Japan Kazuhei Kikuchi * Scientific Research Institute, National University of Physical

Education and Sport of Ukraine, Kyiv, 03150, Ukraine Elena Kolosova * Development Department, Union Tool Co., Tokyo, 140-0013, Japan Akio Nakata Authors * Ivan Seleznov View author

publications You can also search for this author inPubMed Google Scholar * Anton Popov View author publications You can also search for this author inPubMed Google Scholar * Kazuhei Kikuchi

View author publications You can also search for this author inPubMed Google Scholar * Elena Kolosova View author publications You can also search for this author inPubMed Google Scholar *

Bohdan Kolomiiets View author publications You can also search for this author inPubMed Google Scholar * Akio Nakata View author publications You can also search for this author inPubMed

Google Scholar * Miki Kaneko View author publications You can also search for this author inPubMed Google Scholar * Ken Kiyono View author publications You can also search for this author

inPubMed Google Scholar CONTRIBUTIONS K.K., I.S., and A.P. contributed to the conception, methodology and design of the study. B.K. and E.K. designed and organized the CoP data collection.

I.S., A.P. and K.K. curated the data. I.S. and K.K. created the software. I.S. conducted analysis and visualization. A.P. administered the project. K.K., I.S., A.P., E.K., B.K., M.K., A.N.

prepared the original draft of the manuscript. All authors contributed to manuscript revision, read and approved the submitted version. CORRESPONDING AUTHOR Correspondence to Ken Kiyono.

ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION PUBLISHER'S NOTE Springer Nature remains neutral with regard to jurisdictional

claims in published maps and institutional affiliations. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which

permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to

the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless

indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory

regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Seleznov, I., Popov, A., Kikuchi, K. _et al._ Detection of oriented fractal scaling

components in anisotropic two-dimensional trajectories. _Sci Rep_ 10, 21892 (2020). https://doi.org/10.1038/s41598-020-78807-z Download citation * Received: 27 July 2020 * Accepted: 23

November 2020 * Published: 14 December 2020 * DOI: https://doi.org/10.1038/s41598-020-78807-z SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content:

Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
