Argonaute (Ago) proteins are found in all three domains of life. The best-characterized group is eukaryotic Argonautes (eAgos). Being the structural core of RNA interference machinery, they

use guide RNA molecules for RNA targeting. Prokaryotic Argonautes (pAgos) are more diverse, both in terms of structure (there are eAgo-like ‘long’ and truncated ‘short’ pAgos) and mechanism,

as many pAgos are specific for DNA, not RNA guide and/or target strands. Some long pAgos act as antiviral defence systems. Their defensive role was recently demonstrated for short

pAgo-encoding systems SPARTA and GsSir2/Ago, but the function and action mechanisms of all other short pAgos remain unknown. In this work, we focus on the guide and target strand preferences

of AfAgo, a truncated long-B Argonaute protein encoded by an archaeon Archaeoglobus fulgidus. We demonstrate that AfAgo associates with small RNA molecules carrying 5′-terminal AUU

nucleotides in vivo, and characterize its affinity to various RNA and DNA guide/target strands in vitro. We also present X-ray structures of AfAgo bound to oligoduplex DNAs that provide

atomic details for base-specific AfAgo interactions with both guide and target strands. Our findings broaden the range of currently known Argonaute-nucleic acid recognition mechanisms.

Similar content being viewed by others Prokaryotic Argonaute from Archaeoglobus fulgidus interacts with DNA as a homodimer Article Open access 25 February 2021 Structural basis of antiphage

immunity generated by a prokaryotic Argonaute-associated SPARSA system Article Open access 11 January 2024 Nucleic-acid-triggered NADase activation of a short prokaryotic Argonaute Article

02 October 2023 Introduction

Argonaute (Ago) proteins are found in all three domains of life (bacteria, archaea, and eukaryotes). The best-characterized group is eukaryotic Ago (eAgo) proteins. Being the functional core

of RNA interference machinery, eAgos are involved in the regulation of gene expression, silencing of mobile genome elements, and defence against viruses1,2. From the structural and

mechanistic point of view, all characterized eAgos are very similar, as they all use small (~ 13–30 nt) RNA molecules as guides for sequence-specific recognition of RNA targets, and are

monomeric proteins sharing four major conserved functional domains and two linker domains, which are organized in a bilobed structure3,4,5. The N-terminal lobe consists of N-domain that

separates guide and target strands6, and PAZ domain responsible for binding the 3′-terminus of the guide RNA; the C-terminal lobe consists of MID domain, which binds the 5′-terminus of the

guide RNA, and PIWI domain, an RNase H homologue1,2,7,8. The two linker domains, L1 and L2 connect N and PAZ and PAZ and MID domains, respectively. Upon recognition of the RNA target, eAgos

may either cleave it employing catalytic activity of the PIWI domain or, particularly eAgo proteins that encode catalytically inactive PIWI domains, recruit partner proteins leading to

degradation of the target RNA or repression of its translation1,9. Target specificity of eAgos is determined solely by correct base pairing between guide and target RNA strands.

Nevertheless, all eAgos associate only with 5′-phosphorylated guide RNAs, and many have intrinsic specificity for the 5′-terminal nucleotide of the guide RNA (gRNA). For example, A. thaliana

AGO1, K. polysporus KpAgo, and H. sapiens hAgo2 prefer guide RNAs with a 5′-terminal uridine, A. thaliana AGO2 prefers 5′-A, and A. thaliana AGO5 prefers 5′-C10,11,12,13. The 5′-phosphate

and the 5′-terminal nucleotide are recognized in conserved pockets of the MID domain.

Ago proteins are also identified in 9% and 32% of sequenced bacterial and archaeal genomes, respectively14. Unlike eAgos, prokaryotic Agos (pAgos) are diverse in terms of their structure,

mechanism, and function8,15,16,17,18. The best understood are the so-called full-length or long pAgos, which are composed of N, PAZ, MID and PIWI domains, and thus closely resemble eAgos.

There is mounting evidence that long pAgos function as prokaryotic antiviral systems, with the PIWI domain performing cleavage of invading nucleic acids1,13. However, unlike eAgos, which

canonically use RNA guides for recognition of RNA targets in a process called RNA interference (RNAi)19,20,21, different long pAgos may use either RNA or DNA guides and/or targets13,14,18,

and in vitro may associate with phosphorylated (e.g. AaAgo, PfAgo, and RsAgo from Aquifex aeolicus, Pyrococcus furiosus, and Rhodobacter sphaeroides, respectively)13, non-phosphorylated

guide strands (e.g., MpAgo and TpAgo from Marinitoga piezophila and Thermotoga profunda, respectively) or lack preference for 5′-phosphorylation (CbAgo, LrAgo, KjAgo from Clostridium

butyricum, Limnothrix rosea, Kordia jejudonensis, respectively)13,22,23,24. Interestingly, the recently described KmAgo from Kurthia massiliensis can utilize both DNA and RNA guides to

cleave DNA and RNA targets in vitro, albeit with different efficiencies25,26. Some long pAgos also specifically recognize the 5′-terminal nucleotide of the guide strand, e.g., CbAgo from

Clostridium butyricum prefers 5′-terminal deoxyadenosine, and TtAgo prefers 5′-terminal dC13,27, while RsAgo from Rhodobacter sphaeroides prefers guide RNA with 5′-U28,29. The majority (~ 

60%) of identified pAgos are ‘short’, as they encode just MID and PIWI domains, the latter being catalytically inactive due to active site mutations. The mechanism, guide/target preferences

and function of short pAgos is an emerging topic in the Argonaute field, as evidenced by recent characterization of SPARTA and GsSir2/Ago antiviral systems15,16,30.

In this work we focus on the truncated long-B8 prokaryotic Argonaute AfAgo (also known as AfPIWI or Af131831,32) encoded by a hyperthermophilic archaeon Archaeoglobus fulgidus8. Although

phylogenetically classified as a truncated long-B pAgo, AfAgo contains only MID and catalytically inactive PIWI domains in a single polypeptide chain, akin to typical short pAgos, and could

therefore be considered a pseudo-short pAgo33. Even though AfAgo is one of the first and one of the best structurally characterized prokaryotic Argonautes, with an apo-, DNA-, and two

RNA-bound structures currently available31,32,34,35, its guide/target preferences remain undefined. We show here that AfAgo co-purifies with small RNA molecules carrying 5′-terminal AU

nucleotides in vivo and investigate its affinity to various RNA and DNA guide/target strands in vitro. We also present X-ray structures of AfAgo bound to DNA oligoduplexes with 5′-ATT and

5′-ATC terminal sequences that provide structural details on the base-specific AfAgo interactions with the termini of both guide and target strands. Our findings broaden the range of

currently known Argonaute-nucleic acid recognition mechanisms.

When overexpressed in E. coli, AfAgo co-purifies with tightly bound nucleic acids, predominantly RNA (Fig. 1A, Supplementary Fig. S1). This interaction is disrupted only at NaCl

concentrations exceeding 1.0 M, implying tight association. The length of the AfAgo-bound RNA varies from a few dozen to a few hundred nucleotides (Fig. 1A), with sequencing data showing

that most reads fall between 14 and 30 nucleotides (Fig. 1B). Sequencing of AfAgo-bound RNA revealed that most successfully mapped RNAs (73%) are derived from the AfAgo expression vector

(Fig. 1C), while a smaller fraction (27%) was derived from the E. coli genome (Supplementary file 1). Surprisingly, AfAgo had a strong preference for two 5′-terminal RNA nucleotides, A at

the first and U at the second position (occupancies 0.862 and 0.846, respectively), and a discernible preference for U at the third position (occupancy 0.476, Fig. 1D). Thus, AfAgo, like

many eAgos and long pAgos, has intrinsic specificity for the 5′-terminus of the bound nucleic acid.

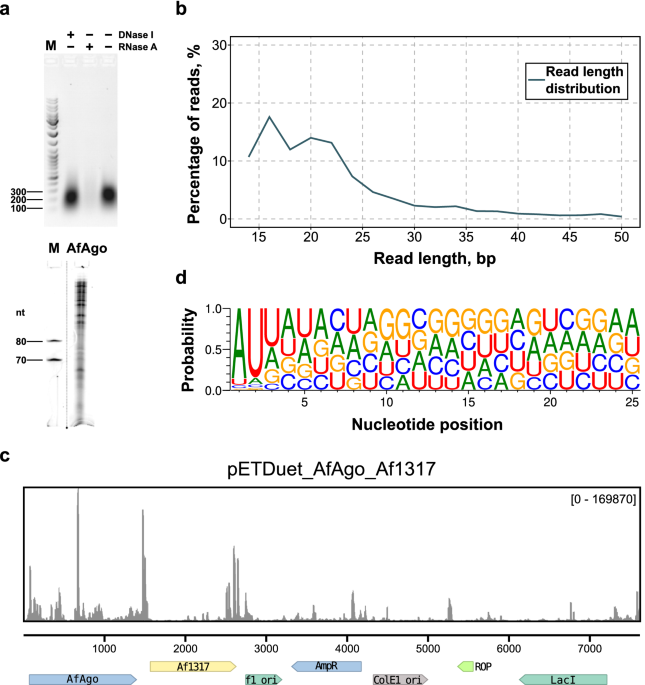

Analysis of in vivo (E. coli) AfAgo-bound nucleic acids. (a) Top-Digestion of AfAgo nucleic acids with DNAse I and RNase A. Bottom-Size analysis of AfAgo-bound RNA. (b) Read length

distribution of sequenced AfAgo-bound nucleic acids. (c) Sequencing read alignments to the AfAgo expression vector. 73% of all reads map to the expression vector, compared to 27% to E. coli

genome (Supplementary file 1). (d) Small RNAs copurified with AfAgo show 5′-AUU bias.

Previous studies suggested that AfAgo has a strong preference for single- and double-stranded DNA over single- or double-stranded RNA34. However, these studies were performed using

double-stranded DNA with 5′-C and 5′-T terminal nucleotides, neither of which, according to our analysis of in vivo-bound nucleic acids, is optimal for AfAgo binding. To re-evaluate AfAgo

affinity to nucleic acids, we have employed the electrophoretic mobility shift assay (EMSA) and synthetic single-stranded (ss) RNA and DNA oligonucleotides containing phosphorylated 5′-AUU

and 5′-ATT termini, respectively (Supplementary Table S1). The experiments revealed that under our experimental conditions (see Methods), AfAgo preferentially binds ssRNA over ssDNA. Binding

of ssDNA was detected only at exceedingly high (> 0.5 µM) AfAgo concentrations (Fig. 2, Supplementary Fig. S2). Next, to determine the specificity of AfAgo for the terminal bases, we

employed a set of ssRNA oligonucleotides with varying 1st, 2nd, and 3rd 5′-terminal nucleotides (Table 1, Fig. 2). AfAgo showed a preference for the 5′-AUU-containing ssRNA (Table 1, Fig. 2

), while substitution of each of the three 5′-terminal nucleotides of the preferred 5′-AUU ssRNA (1st A, 2nd and 3rd U) reduced the binding affinity (Fig. 2, Table 1). This shows that AfAgo

is capable of discriminating the first three 5′-terminal nucleotides of bound ssRNA and has a preference for a 5′-AUU RNA sequence in vitro.

AfAgo interactions with nucleic acids in vitro. EMSA experiments were performed with 5 nM total 5′P-ssRNA (a) and ssDNA (b), and varying concentrations of AfAgo, indicated above each lane.

Calculated Kd values are provided in Table 1.

Argonaute proteins usually use a nucleic acid guide to search for and bind a complementary target. Binding experiments described above suggest that AfAgo may use ssRNA guides with 5′-AUU

terminal nucleotides. Thus, in the next set of experiments we employed EMSA to test RNA-guided DNA and RNA targeting by AfAgo (Fig. 3). We found that AfAgo pre-loaded with a guide RNA (gRNA)

specifically binds DNA and RNA targets, showing higher affinity to DNA targets. To further probe discrimination of DNA vs. RNA targets by the AfAgo-gRNA complex, we supplemented the target

binding reaction with heparin, a competitor of nucleic acid binding (Fig. 3B). We found that under these conditions AfAgo-gRNA complex shows an even stronger preference for DNA targets over

RNA targets, similarly to related long-B and short pAgos15,16,36 (Table 1). Experiments with pre-formed RNA/RNA, RNA/DNA and DNA/DNA duplexes (Table 1, Supplementary Fig. S2) were also

consistent with the mechanism where AfAgo uses ssRNA as a guide for recognition of ssDNA targets.

AfAgo RNA-guided NA targeting mechanism and double-stranded nucleic acid binding probed using EMSA. (a) Titration of labelled target ssDNA (top) and ssRNA (bottom) with a pre-formed

AfAgo-guide RNA complex (1:2 ratio, AfAgo concentrations indicated above each lane) for either 8 nt complementary (left) or 4 nt complementary (lc-“low complementarity”, right) targets. A

schematic of guide-target complementarity is shown adjacent to each respective gel, with 5′-terminal bases of the guide and 3′-terminal bases relevant to AfAgo base recognition highlighted

in black, remaining strands in grey. 5′32P-labelled target strands are denoted with an asterisk. Cd-duplex control, where guide and target were mixed in the absence of AfAgo at a ratio

equivalent to lane “200”. Ct-target control, where RNA-free AfAgo was mixed with the target at a ratio equivalent to lane “200”. (b) Experiment equivalent to (a), left, conducted in the

presence of 100 ng/µl heparin.

To obtain structural insights into the mechanism of 5′-terminus recognition, we have attempted to crystallize AfAgo with various RNA guides carrying 5′-AUU and RNA/DNA heteroduplexes, as

well as with various DNA oligoduplexes. Crystallization attempts with RNA-containing duplexes were not successful, but we were able to solve crystal structures of AfAgo in complex with

self-complementary 14 bp DNA-DNA oligoduplexes carrying a 5′P-ATT terminus, which is analogous to the optimal ssRNA terminus 5′-AUU (PDB ID 6T5T and 6TUO, respectively) and a 5′P-ATC

terminus, which is analogous to a suboptimal ssRNA terminus 5′-AUC (PDB ID 6XUP and 6XU0) (Supplementary Table S2, Fig. 4). Although AfAgo interactions with 5′-ATT DNA oligoduplexes revealed

in our structures may not directly translate to possible interactions with 5′-AUU RNA guide, our data provide valuable insights into the base-specific interactions formed by AfAgo and the

guide-target duplex.

Structure of the AfAgo-DNA complex. (a) The 5′-ATT DNA oligoduplex used for crystallization. (b) The overall structure of the AfAgo-DNA complex. The backbone of DNA strands is coloured as in

A. DNA bases are transparent. The Mg2+ ion involved in coordination of the 5′-phosphate of the guide strand is shown as a magenta sphere. (c) Schematic representation of AfAgo contacts with

the DNA.

The AfAgo complex with the suboptimal 5′P-ATC DNA formed crystals of P1 symmetry that contained two DNA-bound protein subunits per asymmetric unit. The main conformations of both subunits

are nearly identical, the most significant difference being the main chain conformation of the loop formed by residues 144–149 (Supplementary Fig. S3 A). Electron density for both DNA

strands is good only for the first 5–6 bp, i.e. the part that makes direct contacts to the protein; the remaining part of the DNA duplex points into solution and is disordered. The overall

structure of AfAgo protein superimposes closely with the previously published AfAgo complexes with RNA and DNA32,34,35 (RMSD 1–1.64 Å when overlaid by residues 11–427).

The AfAgo complexes with two variants of the 5′P-ATT DNA oligoduplex crystallized in the P22121 space group and contained a single DNA-bound protein subunit per asymmetric unit

(Supplementary Table S2). The distal end of bound DNA in this crystal form was fixed by crystal packing against the neighbouring protein subunit, thereby helping to model the full-length

oligoduplex. The guide strand anchors to AfAgo via its 5′-phosphate group, which is accommodated in the conserved MID domain binding pocket32,34,35, where it makes direct contacts with

Lys127, Ser136, Gln137, Phe138, Met139 and Lys163, and Mg2+-mediated contacts with Gln159 and the C-terminal Leu427 (Fig. 4C). The gA1:tT1’ base pair (the first guide strand adenine and the

complementary target strand thymine) is disrupted, with the bases flipped into separate protein pockets. The flipped gA1 base is inserted into the MID domain pocket, where it is fixed by

stacking between Tyr123 and Tyr118, base-specific H-bonds to the main chain N atom of Asn119 and the hydroxyl group of Thr120, and a water-mediated H-bond to the hydroxyl of Tyr124 (Figs.

4C, 5A). The tT1’ base of the target strand is displaced into the "side" pocket (Figs. 4C, 5B) formed by helices 26–36 (linker domain) and 149–163 (MID domain), where it stacks against

Phe151 and forms H-bonds with Asp154 and Asn155. It should be noted that Asn155 can be modelled in two orientations, one of which is fixed by an H-bond between the OD1 atom to the main chain

amide of Phe382. In this case, the ND2 atom of Asn155 is capable of H-bonding to the tT1’ and gT2 bases (Fig. 4).

AfAgo interaction with the first three base pairs of the 5′-ATT DNA duplex. gA1 (a) and tT1‘ (b) in their respective pockets. (c, d) Recognition of gT2 and tA2’ of the second base pair. (e,

f) Interactions with gT3 and tA3’ of the third base pair.

The base pairs following the gA1:tT1’ of the bound DNA oligoduplex remain undisrupted. As summarized in Extended Data Table 2, AfAgo makes direct contacts to the 2nd and 3rd base pairs. Most

extensive sequence-specific contacts are made by the gT2 base of the second base pair, including the contact of the thymine methyl group to Ile143, and base-specific H-bonds of thymine O2

and O4 atoms to Asn155 and Arg147, respectively (Fig. 5C). The tA2’ adenine from the complementary strand stacks against Phe151, and makes a water-mediated H-bond to the main chain of Asn148

from the major groove side and a direct H-bond to Arg383 from the minor groove side (Fig. 5D). Bases from the gT3-tA3' make two water-mediated H-bonds to the protein, Arg383 in the minor

groove side, and Arg147 in the major groove side (Fig. 5E,F). In the AfAgo crystal structures with 5′-ATC oligoduplex, we observe two slightly different patterns of the interaction with the

2nd and the 3rd base pairs due to two different conformations of the loop 144–149 that includes residues Arg147 and Asn148 (Supplementary Fig. S3B,C, Extended Data Table 2), one of which is

nearly identical to that found in AfAgo crystal structures with 5′-ATT oligoduplexes. Taken together, the structures presented in our work reveal the structural details of AfAgo

base-specific interactions with three terminal base pairs of the bound guide/target duplex.

Argonaute proteins use a RNA or DNA guide strand for specific recognition of RNA or DNA target strands1,13. Correct base-pairing between the two strands triggers target strand cleavage

(catalytically active eAgos and long pAgos involved in antiviral defence) or recruitment of partner proteins (catalytically inactive eAgos). However, the function and action mechanisms of

most prokaryotic Ago proteins, in particular catalytically inactive ‘short’ pAgos, remain unknown. In this work, we analyzed guide and target strand preferences of a truncated long-B8

prokaryotic Argonaute AfAgo from a hyperthermophilic archaeon A. fulgidus, and revealed its sequence specificity to the 5′-terminal nucleotides of the guide strand, and to the complementary

fragment of the target strand.

First, we show that AfAgo in vivo tightly interacts with nucleic acids, preferentially short RNA fragments with 5′-terminal AUU sequences. Co-purification of pAgo proteins with RNA was

observed before, e.g., for RsAgo, which had a preference for 5′-UY RNA36. The tight interaction of AfAgo with RNA seemingly contradicts previous studies32,34, in which authors described

preferential binding of AfAgo to single- and double-stranded DNA, but not RNA. Presumably, this discrepancy arose due to non-optimal 5′-terminal RNA and DNA sequences (5′-U or 5′-C) used, as

we find that in vitro AfAgo also preferentially binds RNA with a 5′-AUU terminus and substitutions at the 5′-terminus reduce affinity (Fig. 2, Table 1). This is a clear indication that

AfAgo uses ssRNA as the guide strand and is capable of base-specific interactions with its 5′-terminus.

Further, we demonstrate ssDNA and ssRNA target binding activity in vitro of the AfAgo-gRNA complex, which similarly to many other pAgos13,18 displays a notable preference for ssDNA targets

over ssRNA. This implies that in vivo AfAgo may also use gRNA to target tDNA. While A. fulgidus is a hyperthermophilic organism, most of our experiments were performed at room temperature

(25 °C, which is not uncommon in the field37,38). However, this should not invalidate our conclusions related to AfAgo preferences for ssRNA and ssDNA as the optimal guide and target

strands, respectively. Indeed, pre-incubation the AfAgo-ssRNA binding reaction mixtures at elevated temperatures (70 °C) prior to EMSA did not alter the ability of AfAgo to discriminate the

5′-terminal ssRNA sequences, albeit it decreased the observed AfAgo binding affinities to all ssRNA variants (Supplementary Fig. S7), presumably due to the lack of chaperones and other

protein-stabilizing factors normally present in host cells.

We have also solved four crystal structures of AfAgo bound to DNA-DNA oligoduplexes with the 5′-AT terminal sequences, which mimic the 5′-AU terminus of the in vivo bound RNAs. Two

structures were obtained with different optimal-like 5′P-ATT oligoduplexes (PDB ID 6T5T and 6TUO, respectively) and two structures with a suboptimal-like 5′-ATC oligoduplex (PDB ID 6XUP and

6XU0). Although interactions with 5′-ATT oligoduplexes may not directly translate to possible interactions with 5′-AUU RNA guides, where AfAgo might adopt a slightly different conformation

and potentially interact with the RNA guide less strongly, our structural data suggest that AfAgo employs base-specific readout of the terminal nucleotides of the bound guide and target

strands (Figs. 4, 5, Extended Data Table 2). This interpretation is consistent with the previously published structures of AfAgo bound to the non-optimal DNA duplexes (5′P-TTC, PDB ID 2W4235

and 5′P-UUC, PDB ID 2BGG32), and to the near-optimal RNA-RNA duplex (5′-terminal sequence 5′P-AGA, PDB ID 1YTU34).

The most extensive base-specific contacts are made to the 5′-terminal guide strand adenine (gA1) and the complementary target strand thymine tT1’, which is disrupted, and the bases are

placed into separate protein pockets (Extended Data Table 2). As shown in Supplementary Fig. S4, interactions with gA1 observed in our structures with duplex DNA are very similar to those

observed in the RNA-bound structure 1YTU34 (bases at other positions of these structures differ and therefore can not be directly compared). This similarity of base-specific contacts

observed with gRNA34 and DNA [this work] indicates that the terminus of the gDNA/tDNA duplex used in our study may provide an adequate mimic for the optimal gRNA/tDNA heteroduplex. Similar

disruption of the equivalent base pair was also observed in the AfAgo structures with non-optimal 5′-terminal nucleotides (PDB ID 2W4235 and 2BGG32). In this case, the flipped gT/U1 base in

the 5′-end binding pocket is unable to form adenine-specific contacts observed in our crystal structures, including H-bonds with gA1 base made by Asn119 main chain N, Thr120 OH and

water-mediated H-bond between 124 OH group and N7 atom of gA1 (Supplementary Fig. S5). Since in all available structures of AfAgo with RNA the unpaired t1' base does not enter the "side"

pocket, we can only compare the "side" pocket interactions of tT1' in our structures with tA1' in PDB ID 2W4235 (Supplementary Fig. S5B). In our structures the Asn155 side chain interacts

simultaneously with both t1' (tT1’) and g2 (gT2) bases, and tT1' makes an additional H-bond with Asp154. In 2W4235, the tA1’ base in the "side" pocket makes an H-bond with the side chain of

Asp154, but the conformation of Asn155 is not suitable for interaction with tA1'. Base-specific contacts formed by the bases of the second guide strand nucleotide gT2 and its complementary

target strand nucleotide tA2’ are less numerous (Fig. 5, Extended Data Table 2), but still sufficient for discrimination against alternative base pairs.

Specific recognition of both guide and target strand nucleotides distinguishes AfAgo from previously characterized Argonaute proteins, which limit specific recognition of terminal

nucleotides either to the guide strand (e.g., RsAgo, PDB ID 6D8P29), or to the target strand39. Another unique feature of AfAgo is that it is a homodimeric protein that can bring together

two copies of the guide-target duplex40. In crystal structures presented in this study we observed the same dimerization mode (in 6T5T and 6TUO dimer is formed by a crystallographic symmetry

operator), raising further questions regarding possible AfAgo functions in vivo. To understand its role in bacterial cells, we are currently performing further structural and functional

studies of AfAgo and its putative partner proteins encoded in the same operon.

All nucleic acids used in this work were supplied by Metabion.

E. coli cells expressing His6-tagged AfAgo were disrupted by sonication in a lysis buffer containing 20 mM Tris–HCl (pH 8.0 at 25 °C), 500 mM NaCl, 5 mM 2-mercaptoethanol, supplemented with

2 mM phenylmethylsulfonyl fluoride, incubated for 20 min at 50 °C; cell debris was removed by centrifugation at 48,400 × g for 1 h. The supernatant was loaded onto a HiTrap chelating HP

column charged with Ni2+ (GE Healthcare) and eluted with a linear gradient (15–500 mM) of imidazole in the lysis buffer. Protein-containing fractions were pooled, diluted to 0.2 M of NaCl

with a buffer containing 20 mM Tris–HCl (pH 8.0 at 25 °C), 10% (v/v) glycerol, 5 mM 2-mercaptoethanol and incubated for 1 h at 37 °C with 1 mM EDTA (ethylenediaminetetraacetic acid) and

RNase A/T1 (ThermoFisher Scientific) (1:100). Next, the protein solution was centrifuged at 48,400 g for 30 min, the supernatant containing RNA-free AfAgo was loaded onto a HiTrap Heparin HP

column (GE Healthcare) and eluted using a 0.2–1.0 M NaCl gradient. Finally, the protein was run through the HiLoad 16/600 Superdex 200 column (GE Healthcare) in lysis buffer supplemented

with NaCl to 1 M and dialyzed against 20 mM Tris–HCl (pH 8.0 at 25 °C), 500 mM NaCl, 50% (v/v) glycerol. AfAgo with bound RNA was purified as above, omitting RNase treatment.

sequencing and analysis

The pETDuet-1 plasmid with the cloned hypothetical protein AfAgo from Archaeoglobus fulgidus DSM 4304 (GenBank accession nos. NP_070147.1 and NC_000917.1, respectively) was used in this

work. AfAgo-bound RNA was purified using phenol isolation from an RNase-untreated AfAgo preparation. RNA sequencing was performed as described in41. The raw reads were first processed by

trimming adapter sequences using AdapterRemoval42. Reads then were aligned to the reference genome with BWA-MEM43. After the alignment, only the aligned reads were retrieved from the

alignment file using the ‘bam2fastq’ program from the SAMtools toolkit44. The processed reads were analysed using a Unix ‘awk’ filter to extract RNA sequences and a Perl program that counted

the occurrence of each RNA base in the first 50 positions of the reads. The weblogo45 program was used to plot these nucleotide frequencies. The most frequently occurring nucleotide letter

in the first position was A (86.2%) and in the second position was U (84.6%); these positions were also among the most reliable positions in all reads.

The raw RNA reads are deposited to the Sequence Read Archive as the file “LT_02.fq.bz2” (sample name “LT_02”) under the BioProject accession number PRJNA763829.

Nucleic acid-free AfAgo was diluted to a 2 × final concentration in a binding buffer consisting of 40 mM Tris–acetate (pH 8.4 at 25 °C), 1 mM EDTA, 100 mM potassium acetate (KAc), 0.1 mg/ml

bovine serum albumin, 1 mM DTT and 10% (v/v) glycerol, and mixed in different ratios with 5′32P-labelled nucleic acids, also pre-diluted to a 2 × final concentration in the same buffer.

Nucleic acids used for binding studies were MZ-1480 and MZ-1698-1708 for ssRNA and MZ-1447 for ssDNA. Duplexes were prepared by annealing MZ-1480 to MZ-1481 for dsRNA, MZ-1447 to MZ-1455 for

dsDNA, and MZ-1480 to MZ-1455 for RNA/DNA heteroduplex. Nucleic acids were diluted such that the final NA-protein mixture would contain 1 nM 5′32P-labelled and 4 nM unlabelled 5′P-NA. The

binding reaction mixture was incubated for 10 min at room temperature (25 °C) and loaded onto an 8% PAAG gel (29:1 acrylamide/bis-acrylamide) prepared with 40 mM Tris–acetate (pH 8.4 at 25

°C), 1 mM EDTA, 100 mM KAc. Additional experiments with MZ-1480 and MZ-1707 were conducted by incubating the binding reaction mixture for 10 min at 70 °C. Electrophoresis was run at room

temperature in all cases. To study the RNA-guided nucleic acid targeting mechanism, AfAgo was pre-mixed with MZ-1480, a 5′P-ssRNA guide, at 0.4:0.8 µM ratio of AfAgo:guide, incubated for 10

min at room temperature and diluted to 2 × final binding reaction concentration in the same buffer as above. Diluted target NAs were added to the reaction mixture at a 1:1 volumetric ratio

to a final reaction concentration of 5 nM (1 nM 5′32P + 4 nM 5′P), the mixture was incubated for 10 min at room temperature and analyzed as described above. Target NAs used were MZ-1556 and

MZ-1557 as 8- and 4-nucleotide RNA targets, respectively, and MZ-1560 and MZ-1561 as analogous DNA targets, respectively. For the heparin-supplemented reactions, heparin was pre-mixed with

the target NAs before adding them to the binding reaction mixture so that the final heparin concentration was 100 ng/µl. Radiolabelled substrates were detected and quantified using a

phosphor imager. The results were analysed with OptiQuant and OriginPro software. The Kd was calculated from the following formula:

{S_{0} \frac{100 - A1}{{100}} - E_{0} - K_{d} + \sqrt {\left( {S_{0} \frac{100 - A1}{{100}} + E_{0} + K_{d} } \right)^{2} - 4S_{0} E_{0} \frac{100 - A1}{{100}}} } \right)}}{2}.$$

where SNB unbound substrate, nM; S0 initial substrate concentration, nM; E0 initial protein complex concentration, nM; Kd dissociation constant, A1 nonbinding fraction of substrate,

%.

AfAgo used for crystallization was pre-treated with RNase A/T1 Mix (ThermoFisher Scientific): 2 µl of RNase Mix was added to 2 ml of 1.9 mg/ml AfAgo in a storage buffer and incubated for 30

min at ambient temperature. Complexes of AfAgo with DNA were prepared by mixing protein solution in a storage buffer with an equimolar amount of oligoduplex in the presence of 2 mM DTT and 5

 mM MgCl2. Glycerol was removed using NAP columns (GE Healthcare) equilibrated with 20 mM Tris–HCl (pH 7.5 at 25 °C), 150 mM NaCl, 5 mM MgCl2 and 2 mM DTT. Complexes were concentrated by

ultrafiltration. The concentration of the complexes used in crystallization trials was in the range of 90–120 µM (as monomer). Crystallization experiments were prepared by mixing the protein

solution with equal volumes of crystallization buffers (Supplementary Table S2) in sitting drops. Crystals were grown in a cold room (4–8 °C). Prior to flash cryo-cooling to 100 K, crystals

were washed in the cryo-protection buffers (Supplementary Table S2).

Four datasets were collected at EMBL P14 and P13 beamlines on the PETRA III ring of DESY synchrotron in Hamburg (Germany. The datasets were processed by XDS46 and by CCP4 software47. The

structures were solved by molecular replacement using MOLREP v11.6.0448 with PDB entries 1YTU and 2W42 as models. Structures were refined with REFMAC v5.8.023049 and PHENIX v1.1350 and

remodelled using COOT v0.8.9.151. The data collection and refinement statistics are presented in Supplementary Table S2. The representative electron density maps for the AfAgo interactions

with gA1 and tT1' bases are presented in the Supplementary Fig. S6.

Cited: Archaeoglobus fulgidus DSM 4304 genomic sequence, GenBank accession no. NC_000917.1. Protein AfAgo, GenBank accession no. NP_070147.1. AfAgo complexed with a 16 nt DNA duplex, PDB ID:

2W42. AfAgo complexed with 21 nt RNA duplex, PDB ID: 1YTU. Ternary RsAgo complex containing guide RNA paired with target DNA, PDB ID: 6D8P. Obtained in this work: Raw RNA sequencing reads

from this study, BioProject accession number PRJNA763829, https://www.ncbi.nlm.nih.gov/bioproject/763829. AfAgo in complex with dsDNA, PDB IDs: 6T5T, 6TUO, 6XUP, 6XU0.

References Olina, A. V., Kulbachinskiy, A. V., Aravin, A. A. & Esyunina, D. M. Argonaute Proteins and Mechanisms of RNA Interference in Eukaryotes and Prokaryotes. Biochem. 83, 483–497.

https://doi.org/10.1134/S0006297918050024 (2018).

Article  CAS  Google Scholar

Wu, J., Yang, J., Cho, W. C. & Zheng, Y. Argonaute proteins: Structural features, functions and emerging roles. J. Adv. Res. 24, 317–324. https://doi.org/10.1016/j.jare.2020.04.017 (2020).

Article  CAS  PubMed  PubMed Central  Google Scholar

Song, J.-J., Smith, S. K., Hannon, G. J. & Joshua-Tor, L. Crystal structure of argonaute and its implications for RISC slicer activity. Science (80-.) 305, 1434–1437.

https://doi.org/10.1126/science.1102514 (2004).

Article  ADS  CAS  Google Scholar

Nakanishi, K. Anatomy of four human Argonaute proteins. Nucleic Acids Res. 5, 1–21. https://doi.org/10.1093/nar/gkac519 (2022).

Article  CAS  Google Scholar

Park, M. S., Sim, G., Kehling, A. C. & Nakanishi, K. Human Argonaute2 and Argonaute3 are catalytically activated by different lengths of guide RNA. Proc. Natl. Acad. Sci. 117, 28576–28578.

https://doi.org/10.1073/pnas.2015026117 (2020).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Kwak, P. B. & Tomari, Y. The N domain of Argonaute drives duplex unwinding during RISC assembly. Nat. Struct. Mol. Biol. 19, 145–151. https://doi.org/10.1038/nsmb.2232 (2012).

Article  CAS  PubMed  Google Scholar

Jin, S., Zhan, J. & Zhou, Y. Argonaute proteins: Structures and their endonuclease activity. Mol. Biol. Rep. https://doi.org/10.1007/s11033-021-06476-w (2021).

Article  PubMed  Google Scholar

Ryazansky, S., Kulbachinskiy, A. & Aravin, A. A. The expanded universe of prokaryotic Argonaute proteins. MBio 9, 1–20. https://doi.org/10.1128/mBio.01935-18 (2018).

Article  Google Scholar

Pratt, A. J. & MacRae, I. J. The RNA-induced silencing complex: A versatile gene-silencing machine. J. Biol. Chem. 284, 17897–17901. https://doi.org/10.1074/jbc.R900012200 (2009).

Article  CAS  PubMed  PubMed Central  Google Scholar

Frank, F., Hauver, J., Sonenberg, N. & Nagar, B. Arabidopsis Argonaute MID domains use their nucleotide specificity loop to sort small RNAs. EMBO J. 31, 3588–3595.

https://doi.org/10.1038/emboj.2012.204 (2012).

Article  CAS  PubMed  PubMed Central  Google Scholar

Frank, F., Sonenberg, N. & Nagar, B. Structural basis for 5′-nucleotide base-specific recognition of guide RNA by human AGO2. Nature 465, 818–822. https://doi.org/10.1038/nature09039 (2010).

Article  ADS  CAS  PubMed  Google Scholar

Nakanishi, K., Weinberg, D. E., Bartel, D. P. & Patel, D. J. Structure of yeast Argonaute with guide RNA. Nature 486, 368–374. https://doi.org/10.1038/nature11211 (2012).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Lisitskaya, L., Aravin, A. A. & Kulbachinskiy, A. DNA interference and beyond: Structure and functions of prokaryotic Argonaute proteins. Nat. Commun. 9, 5165.

https://doi.org/10.1038/s41467-018-07449-7 (2018).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Swarts, D. C. et al. The evolutionary journey of Argonaute proteins. Nat. Struct. Mol. Biol. 21, 743–753. https://doi.org/10.1038/nsmb.2879 (2014).

Article  CAS  PubMed  PubMed Central  Google Scholar

Koopal, B. et al. Short prokaryotic Argonaute systems trigger cell death upon detection of invading DNA. Cell 185, 1471-1486.e19. https://doi.org/10.1016/j.cell.2022.03.012 (2022).

Article  CAS  PubMed  PubMed Central  Google Scholar

Zaremba, M. et al. Short prokaryotic Argonautes provide defence against incoming mobile genetic elements through NAD+ depletion. Nat. Microbiol. https://doi.org/10.1038/s41564-022-01239-0

(2022).

Article  PubMed  Google Scholar

Swarts, D. C. Prokaryotic Argonautes function beyond immunity by unlinking replicating chromosomes. Cell 182, 1381–1383. https://doi.org/10.1016/j.cell.2020.08.037 (2020).

Article  CAS  PubMed  Google Scholar

Hegge, J. W., Swarts, D. C. & Van Der Oost, J. Prokaryotic Argonaute proteins: Novel genome-editing tools?. Nat. Rev. Microbiol. 16, 5–11. https://doi.org/10.1038/nrmicro.2017.73 (2018).

Article  CAS  PubMed  Google Scholar

Peters, L. & Meister, G. Argonaute proteins: Mediators of RNA silencing. Mol. Cell. 26, 611–623. https://doi.org/10.1016/j.molcel.2007.05.001 (2007).

Article  CAS  PubMed  Google Scholar

Vaucheret, H. Plant Argonautes. Trends Plant Sci. 13, 350–358. https://doi.org/10.1016/j.tplants.2008.04.007 (2008).

Article  CAS  PubMed  Google Scholar

Hutvagner, G. & Simard, M. J. Argonaute proteins: Key players in RNA silencing. Nat. Rev. Mol. Cell Biol. 9, 22–32. https://doi.org/10.1038/nrm2321 (2008).

Article  CAS  PubMed  Google Scholar

Kuzmenko, A., Yudin, D., Ryazansky, S., Kulbachinskiy, A. & Aravin, A. A. Programmable DNA cleavage by ago nucleases from mesophilic bacteria clostridium butyricum and Limnothrix rosea.

Nucleic Acids Res. 47, 5822–5836. https://doi.org/10.1093/nar/gkz379 (2019).

Article  CAS  PubMed  PubMed Central  Google Scholar

Kim, S., Jung, Y. & Lim, D. Argonaute system of Kordia jejudonensis is a heterodimeric nucleic acid-guided nuclease. Biochem. Biophys. Res. Commun. 525, 755–758.

https://doi.org/10.1016/j.bbrc.2020.02.145 (2020).

Article  CAS  PubMed  Google Scholar

Kropocheva, E. V. et al. Prokaryotic Argonaute proteins as a tool for biotechnology. Mol. Biol. https://doi.org/10.1134/S0026893322060103 (2022).

Article  PubMed  PubMed Central  Google Scholar

Kropocheva, E., Kuzmenko, A., Aravin, A. A., Esyunina, D. & Kulbachinskiy, A. A programmable pAgo nuclease with universal guide and target specificity from the mesophilic bacterium Kurthia

massiliensis. Nucleic Acids Res. 1, 1–28. https://doi.org/10.1093/nar/gkab182 (2021).

Article  CAS  Google Scholar

Liu, Y. et al. A programmable omnipotent Argonaute nuclease from mesophilic bacteria Kurthia massiliensis. Nucleic Acids Res. 4, 1–12. https://doi.org/10.1093/nar/gkaa1278 (2021).

Article  CAS  Google Scholar

Hegge, J. W. et al. DNA-guided DNA cleavage at moderate temperatures by Clostridium butyricum Argonaute. Nucleic Acids Res. 47, 5809–5821. https://doi.org/10.1093/nar/gkz306 (2019).

Article  CAS  PubMed  PubMed Central  Google Scholar

Miyoshi, T., Ito, K., Murakami, R. & Uchiumi, T. Structural basis for the recognition of guide RNA and target DNA heteroduplex by Argonaute. Nat. Commun. 7, 1–12.

https://doi.org/10.1038/ncomms11846 (2016).

Article  CAS  Google Scholar

Liu, Y. et al. Accommodation of helical imperfections in rhodobacter sphaeroides argonaute ternary complexes with guide RNA and target DNA. Cell Rep. 24, 453–462.

https://doi.org/10.1016/j.celrep.2018.06.021 (2018).

Article  CAS  PubMed  PubMed Central  Google Scholar

Garb, J. et al. Multiple phage resistance systems inhibit infection via SIR2-dependent NAD+ depletion. Nat. Microbiol. 7, 1849–1856. https://doi.org/10.1038/s41564-022-01207-8 (2022).

Article  CAS  PubMed  Google Scholar

Parker, J. S., Roe, S. M. & Barford, D. Crystal structure of a PIWI protein suggests mechanisms for siRNA recognition and slicer activity. EMBO J. 23, 4727–4737.

https://doi.org/10.1038/sj.emboj.7600488 (2004).

Article  CAS  PubMed  PubMed Central  Google Scholar

Parker, J. S., Roe, S. M. & Barford, D. Structural insights into mRNA recognition from a PIWI domain-siRNA guide complex. Nature 434, 663–666. https://doi.org/10.1038/nature03462 (2005).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Koopal, B., Mutte, S. K. & Swarts, D. C. A long look at short prokaryotic Argonautes. Trends Cell Biol. 2, 1–14. https://doi.org/10.1016/j.tcb.2022.10.005 (2022).

Article  CAS  Google Scholar

Ma, J. B. et al. Structural basis for 5′ -end-specific recognition of guide RNA by the A. fulgidus Piwi protein. Nature. 434, 666–670. https://doi.org/10.1038/nature03514 (2005).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Parker, J. S., Parizotto, E. A., Wang, M., Roe, S. M. & Barford, D. Enhancement of the seed-target recognition step in RNA silencing by a PIWI/MID domain protein. Mol. Cell. 33, 204–214.

https://doi.org/10.1016/j.molcel.2008.12.012 (2009).

Article  CAS  PubMed  PubMed Central  Google Scholar

Olovnikov, I., Chan, K., Sachidanandam, R., Newman, D. K. & Aravin, A. A. Bacterial Argonaute samples the transcriptome to identify foreign DNA. Mol. Cell. 51, 594–605.

https://doi.org/10.1016/j.molcel.2013.08.014 (2013).

Article  CAS  PubMed  Google Scholar

Guo, X. et al. A hyperthermophilic Argonaute from ferroglobus placidus with specificity on guide binding pattern. Front. Microbiol. 12, 1–10. https://doi.org/10.3389/fmicb.2021.654345

(2021).

Article  ADS  Google Scholar

Zander, A., Holzmeister, P., Klose, D., Tinnefeld, P. & Grohmann, D. Single-molecule FRET supports the two-state model of Argonaute action. RNA Biol. 11, 45–56.

https://doi.org/10.4161/rna.27446 (2014).

Article  CAS  PubMed  Google Scholar

Swarts, D. C. et al. Autonomous generation and loading of DNA guides by bacterial Argonaute. Mol. Cell. 65, 985-998.e6. https://doi.org/10.1016/j.molcel.2017.01.033 (2017).

Article  CAS  PubMed  PubMed Central  Google Scholar

Golovinas, E. et al. Prokaryotic Argonaute from Archaeoglobus fulgidus interacts with DNA as a homodimer. Sci. Rep. 11, 4518. https://doi.org/10.1038/s41598-021-83889-4 (2021).

Article  ADS  CAS  PubMed  PubMed Central  Google Scholar

Heidrich, N. et al. The primary transcriptome of Neisseria meningitidis and its interaction with the RNA chaperone Hfq. Nucleic Acids Res. 45, 6147–6167. https://doi.org/10.1093/nar/gkx168

(2017).

Article  CAS  PubMed  PubMed Central  Google Scholar

Schubert, M., Lindgreen, S. & Orlando, L. AdapterRemoval v2: Rapid adapter trimming, identification, and read merging. BMC Res. Notes. 9, 88. https://doi.org/10.1186/s13104-016-1900-2

(2016).

Article  PubMed  PubMed Central  Google Scholar

Li, H. & Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 25, 1754–1760. https://doi.org/10.1093/bioinformatics/btp324 (2009).

Article  CAS  PubMed  PubMed Central  Google Scholar

Li, H. et al. The sequence alignment/map format and SAMtools. Bioinformatics 25, 2078–2079. https://doi.org/10.1093/bioinformatics/btp352 (2009).

Article  CAS  PubMed  PubMed Central  Google Scholar

Crooks, G. E., Hon, G., Chandonia, J.-M. & Brenner, S. E. WebLogo: A sequence logo generator. Genome Res. 14, 1188–1190. https://doi.org/10.1101/gr.849004 (2004).

Article  CAS  PubMed  PubMed Central  Google Scholar

Kabsch, W. XDS. Acta Crystallogr. Sect. D. 66, 125–132. https://doi.org/10.1107/S0907444909047337 (2010).

Article  CAS  Google Scholar

N. 4 Collaborative Computational Project, The CCP4 suite: Programs for protein crystallography, Acta Crystallogr. Sect. D Biol. Crystallogr. 50 (1994) 760–763.

https://doi.org/10.1107/S0907444994003112.

Vagin, A. MOLREP: An automated program for molecular replacement. J. Appl. Crystallogr. 30, 1022–1025 (1997).

Article  CAS  Google Scholar

Murshudov, G. N., Vagin, A. A. & Dodson, E. J. Refinement of macromolecular structures by the maximum-likelihood method. Acta Crystallogr. Sect. D Biol. Crystallogr. 53, 240–255 (1997).

Article  CAS  Google Scholar

Afonine, P. V. et al. Towards automated crystallographic structure refinement with phenix. refine. Acta Crystallogr. Sect. D Biol. Crystallogr. 68, 352–367 (2012).

Article  CAS  Google Scholar

Emsley, P., Lohkamp, B., Scott, W. G. & Cowtan, K. Features and development of coot. Acta Crystallogr. Sect. D Biol. Crystallogr. 66, 486–501 (2010).

Article  CAS  Google Scholar

Download references

Authors gratefully acknowledge prof. Virginijus Siksnys for fruitful discussions and comments on the manuscript. The authors also acknowledge Audrone Ruksenaite for mass spectrometry of

AfAgo proteins. The synchrotron X-ray data were collected at beamlines P13 and P14 operated by EMBL Hamburg at the PETRA III storage ring (DESY, Hamburg, Germany). We would like to thank dr.

Gleb Bourenkov for assistance in using the beamline.

This work was supported by the Research Council of Lithuania (LMTLT) [S-MIP-20–37 to M.Z.]. The access to P13 and P14 was supported by the Horizon 2020 programme of the European Union, iNEXT

(H2020 Grant # 653706). Funding for open access charge: The Research Council of Lithuania.

These authors contributed equally: Elena Manakova and Edvardas Golovinas.

Authors and Affiliations Life Sciences Center, Institute of Biotechnology, Vilnius University, Sauletekio Av. 7, 10257, Vilnius, Lithuania

Elena Manakova, Edvardas Golovinas, Reda Pocevičiūtė, Giedrius Sasnauskas, Algirdas Grybauskas, Saulius Gražulis & Mindaugas Zaremba

AuthorsElena ManakovaView author publications You can also search for this author inPubMed Google Scholar

Edvardas GolovinasView author publications You can also search for this author inPubMed Google Scholar

Reda PocevičiūtėView author publications You can also search for this author inPubMed Google Scholar

Giedrius SasnauskasView author publications You can also search for this author inPubMed Google Scholar

Algirdas GrybauskasView author publications You can also search for this author inPubMed Google Scholar

Saulius GražulisView author publications You can also search for this author inPubMed Google Scholar

Mindaugas ZarembaView author publications You can also search for this author inPubMed Google Scholar

M.Z. designed the study; E.M. performed crystallographic experiments and analysis; E.G. and R.P. performed biochemistry experiments; A.G. and S.G. performed RNA-seq analysis; M.Z. wrote the

initial manuscript with input from E.M., E.G., G.S. and other authors.

Corresponding author Correspondence to Mindaugas Zaremba.

The authors declare no competing interests.

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Information 2.Supplementary Information 3.Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or

format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or

other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in

the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the

copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and permissions

About this articleCite this article Manakova, E., Golovinas, E., Pocevičiūtė, R. et al. Structural basis for sequence-specific recognition of guide and target strands by the Archaeoglobus

fulgidus Argonaute protein. Sci Rep 13, 6123 (2023). https://doi.org/10.1038/s41598-023-32600-w

Download citation

Received: 23 November 2022

Accepted: 29 March 2023

Published: 14 April 2023

DOI: https://doi.org/10.1038/s41598-023-32600-w

Share this article Anyone you share the following link with will be able to read this content:

Get shareable link Sorry, a shareable link is not currently available for this article.

Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative

This article is cited by Auto-inhibition and activation of a short Argonaute-associated TIR-APAZ defense system Lijie GuoPingping HuangYibei Xiao Nature Chemical Biology (2024)
