ABSTRACT The primary requirement for electrode materials in direct methanol fuel cells (DMFC) is efficient electrocatalyst that exhibit high tolerance to methanol oxidation, excellent

stability, and reasonable cost. The combination of distinct active materials with distinctive architectures may facilitate the attainment of this objective. The present study included the

preparation of a Carbon Xerogel Doped with various metal oxides derived from Banana peels. The nanocomposites were thoroughly examined utilizing several characterization modalities including

XRD, FTIR, and SEM. The electrocatalytic performance of Carbon xerogel doped with Iron (Fe3O4/CX), carbon xerogel doped with magnesium (MgO/CX), and carbon xerogel doped with Copper

2, and 6.60698 mA.cm − 2, respectively, in the optimized electrolyte for methanol oxidation. The stability of Fe3O4/CX, MgO/CX, and CuO/CX electrodes was examined using chronoamperometry and

the Cyclic Stability method. The results revealed that the (Fe3O4/CX) electrode exhibited outstanding stability throughout the whole 60-minute chronoamperometry Technique and demonstrated

great stability for 100 cycles in the Cyclic Stability technique. The remarkable electrochemical activity and stability may be attributed to the synergistic effect of Fe3O4/CX, which

provided sufficient active sites for methanol electro-oxidation and reduced the equivalent series resistance, as shown by the electrochemical impedance spectroscopy analysis. This work used

environmentally friendly materials, which presents a novel opportunity to enhance the efficiency of methanol oxidation via the utilization of affordable catalysts. This study of the

theoretical technique methods for establishing the route of methanol decomposition, and systematizes their confirmation with experimental data, within the methodological framework. SIMILAR

CONTENT BEING VIEWED BY OTHERS IMPACT OF IONOMERS ON POROUS FE-N-C CATALYSTS FOR ALKALINE OXYGEN REDUCTION IN GAS DIFFUSION ELECTRODES Article Open access 31 January 2025 MONOSYMMETRIC FE-N4

SITES ENABLING DURABLE PROTON EXCHANGE MEMBRANE FUEL CELL CATHODE BY CHEMICAL VAPOR MODIFICATION Article Open access 17 May 2024 IMPROVING THE POWER PRODUCTION EFFICIENCY OF MICROBIAL FUEL

CELL BY USING BIOSYNTHESIZED POLYANALINE COATED FE3O4 AS PENCIL GRAPHITE ANODE MODIFIER Article Open access 02 January 2025 INTRODUCTION The growing need for renewable energy as a

replacement for fossil fuels has resulted in a major increase in both academic and industrial activities in recent years. These initiatives are aimed at developing sustainable technology

that will attain carbon neutrality. Because of its high power density, long-term stability, and enhanced safety features, supercapacitors have been highlighted as one of the most promising

energy storage device1. Fuel cells, which create electricity by electrochemical energy conversion, are critical to tackling the global energy dilemma. Various types of fuel cells are being

developed, with an emphasis on alcohol fuel cells due to their low operating temperatures and cost-effectiveness2. Methanol, ethanol, glycerol, glucose, and sugar alcohols are being

investigated as potential fuel cell possibilities, with methanol standing out due to its simple chemical structure. The use of ecologically acceptable and sustainable energy supplies, such

as hydrogen and carbon biofuels (methanol and ethanol), offers enormous promise for fuel cells. Because of their great efficiency and dependability, these resources are appropriate for a

wide range of applications, from handheld devices to large-scale power plants3. The emphasis on the development and optimization of this technology is thus justified. Direct Methanol Fuel

Cells (DMFCs), a form of proton-exchange membrane fuel cell (PEMFC), have a small footprint, run on liquid fuel, have a low operating temperature, and have a high energy density. These

qualities make DMFCs a tempting alternative to regular batteries4. However, heavy platinum loading into electrodes, the expensive cost of noble metals, low durability, and sluggish kinetics

in both anodic and cathodic processes all pose difficulties to the commercialization of DMFCs. Overcoming these obstacles is critical for the successful integration of DMFCs into real-world

applications5. Fuel cells have three parts: cathode, anode, and membrane, and each part contains its distinct purpose. Fuel cells have been viewed as a viable renewable energy source with

different uses in portable electronics such as cellular phones, laptops, notebooks, battery chargers, electronic appliances, stationary objects, electric vehicles, military equipment and

remote controlled gadgets6. These can be additionally employed in the domestic, industrial, and commercial purpose for the generation of power and heat. Fuel cell technology can also address

the challenges of power fluctuation and intermittent nature associated to the other green renewable energy sources including solar and wind systems3. The fundamental principle of DMFCs is

based on the electrochemical reactions of methanol and oxygen in anode and cathode, respectively, demonstrated as followed equ 1,2and 37: Anode

$$\:{CH}_{3}OH+{H}_{2}O\to\:{CO}_{2}+{6H}^{+}+6{\text{e}}^{-},$$ (1) Cathode $${\text{3}}/{\text{2O2}}\,+\,{\text{6H}}\,+\,+\,{\text{6}}{{\text{e}}^ - } \to ~{\text{3H2O,}}$$ (2) Overall:

$$\:{CH}_{3}OH+{3/2O}_{2}\:\to\:{CO}_{2}+\:{2H}_{2}O.$$ (3) The anode must display specified features, such as good stability, a high surface area, enhanced electrical conductivity, and a

significant number of electrochemically active sites8. For instance, the employment of porous materials with extraordinary surface areas results in an increased number of active sites,

leading to the saturation of the catalyst surface with by-products created during the methanol oxidation process9. Carbon xerogels have garnered considerable attention in the literature over

the past decade and can be made in numerous forms (as powder, thin-film, cylinders, spheres, discs, or can be custom shaped)10. The most essential qualities of these materials are their

high porosity, surface area and pore volume, regulated pore structure, narrow and controlled pore size distribution, low electrical resistance, and superior thermal and mechanical

capabilities11.Carbon Xerogel is a carbon support with three-dimensional morphology that exhibits outstanding properties such a high degree of porosity, a huge surface area, controlled pore

size, and good conductivity12. Due to its flexible surface area and porosity depending on the synthesis circumstances, carbon gel has recently found uses in diverse sector such as energy

storage and catalysis12. Till date, most of the preparations of carbon gels were carried out in basic media utilizing sodium carbonate as a polymerization catalyst. Carbon gel affords

additionally the option to be doped with metals to promote its activity13. Recently, Transition metal oxides that show potential as alternative catalyst supports for DMFCs. This is due to

their excellent chemical stability and capacity to tolerate higher levels of CO, which are two important criteria that affect the operation of the cell14. So DMFCs that use metal oxides

catalysts such as NiOx, CoOx, CuOx, CrOx, ZnOx, MnOx, MgOx and FeOx, have demonstrated enhanced reaction kinetics as well as high antipoisoning potential15. Therefore, transition metal

oxides and their composites have garnered substantial attention as electrocatalysts due to their low electrical resistance, low cost, facile synthesis, and outstanding catalytic activity16.

the carbon xerogel generated from the Plant waste displays a large surface area, porosity, strong graphitization, and balanced hydrophilic/hydrophobicity and electronic conductivity similar

to the traditional carbons, which makes it an ideal spot to add heteroatoms to improve the activity of the catalyst12. With beneficial features, carbon xerogels exhibit tremendous promise in

the fields of energy conversion and storage17. Materials derived from carbon xerogels present compelling options across various applications, serving as electrode materials for double-layer

capacitors or supercapacitors, adsorption materials for gas separation, column packing materials for chromatography, and catalyst supports for hydrogen storage10. The catalytic performance

of carbon materials is dependent on their surface characteristics, where the surface chemistry assumes a key role in affecting catalytic qualities18. This requires furnishing active areas

capable of chemisorbing reactants and producing suitably robust surface intermediates18. The current study aims to prepare carbon xerogels doped with iron, magnesium, and copper from tannins

which extracted from waste plant. The new modified Carbon xerogels characterized using different modalities. Moreover, the ability of doped CXs with high electrochemical activity for

methanol oxidation Reactions (MOR). The electrochemical performances of CX/metal oxides toward the MOR in a Na2S2O8 medium were compared. And studies IT Stability of Fe3O4/CX, MgO/CX and

CuO/CX and Cyclic stability of optimum catalyst and EIS in different concentration from methanol. MATERIALS AND METHODS MATERIALS Tannin extracted from Banana Peels, NaOH (Merck Millipore),

Ferric Nitrate Extra pure (LOBA CHEMIE), magnesium chloride (PIOCHEM), copper Sulphate pentahydrate ( sigma Aldrich), Nickle Chloride Hexahydrate Extra pure(LOBA CHEMIE), Cobalt (II)

Chloride hexahydrate(WINLAB), polyvinyl alcohol PVA(CASTRO COMPOSITES), isopropanol(MERCK ) and distilled water . METHODS EXTRACTED TANNIN FROM BANANA PEELS Gather newly gathered banana

peels and dehydrate them in an oven set at 60 °C for length of 24 h. Next, smash the dried banana peels into a fine powder using a grinder. Weigh out 80 g of this powdered material and

submerge it in 800 milliliters of hot water, maintaining a temperature of roughly 80 °C, for a duration of approximately 2 h. Stir the mixture throughout this time. Strain the mixture

through a cheesecloth or filter paper to separate the liquid (containing tannins) from the solid (finely crushed banana peel). Ultimately, apply an oven to desiccate the solution at a

temperature of 105 °C for a period of 24 h in order to get solid tannin19. PREPARATION OF CARBON XEROGEL DOPED WITH METAL OXIDES CARBON XEROGEL DOPED WITH IRON (FE3O4/CX), CARBON XEROGEL

DOPED WITH MAGNESIUM (MGO/CX) AND CARBON XEROGEL DOPED WITH COPPER (CUO/CX) Tannin extracted was dissolved in 50 ml of distilled water at room temperature. Then, 1 gram of the tannin and 1.1

 ml of formaldehyde (37% w/w) were added to 9 g of (Ferric Nitrate, or Magnesium Chloride or Calcium Sulphate) to generate (Fe3O4/CX) or (MgO/CX) or (CuO/CX). Then, the solution was

continually stirred. Next, 9 g of sodium hydroxide were mixed in 50 ml of distilled water and added to the mixture. Subsequently, rinsed the mixture numerous times with distilled till pH is

neutral. Following this, the material was exposed to oven drying at a temperature of 100 °C for 24 h. The composites were then exposed to calcination in a muffle furnace at a specified

temperature of 400 °C for 30 min in a nitrogen atmosphere20. PREPARATION OF CX DOPED WITH DIFFERENT METAL OXIDES/GRAPHITE ELECTRODES For ink slurry of 0.02 g of the produced materials, i.e.,

Fe3O4/CX, MgO/CX or CuO/CX, with 0.01 g of polyvinyl alcohol (PVA). All the components were combined properly and dissolved in 2 ml isopropanol/distilled water 1:2. The generated mixes were

poured in closed small bottle of 5 ml then sonicated for 30 min at room temperature. After that, the catalyst ink was put onto a Graphite sheet using a micropipette. The modified Graphite

sheets was allowed for 24 h to dry at room temperature before the electrochemical Measurements. CHARACTERIZATION OF THE CATALYST The synthesized materials’ crystalline structure was assessed

through X-ray diffraction (XRD) analysis, employing an X-ray diffractometer (PANalytical, Empyrean, Netherlands) that utilized Cu Ka radiation with a wavelength of 1.54045 Å). The XRD was

operated at a voltage of 40 kV and a current of 30 mA. To identify various functional groups Fourier, transform infrared (FTIR) spectra of the samples were recorded using a Vertex 70 system

(Bruker, Germany) within the wavenumber range of 400–4000 cm − 1. Furthermore, the surface characteristics of the samples were examined via scanning electron microscopy (SEM) using a ZEISS

Sigma 500 VP microscope. Energy-dispersive X-ray spectroscopy (STM.EDX) was used to identify the chemical composition. ELECTROCHEMICAL MEASUREMENTS The electrochemical measurements were

recorded using OrigaFlex potentiostat (OrigaLys ElectroChem., OGF01A, Rillieux, France) device was used. A standard Two electrode electrochemical cell was used at room temperature. the

modified Graphite Sheet with Fe3O4/CX, MgO/CX or CuO/CX was used as the working electrode and have 1 cm2 surface area. the counter electrode was a Pt-electrode with the same dimensions. A

solution of 0.5 M Na2S2O8 was used as the electrolyte in the presence and absence of methanol to evaluate the electrocatalytic activity of the prepared electrodes. Cyclic voltammetry (CV)

measurements were performed at scan rates 100 mV s − 1 in a potential window between − 1 and 1 V. The chronoamperometry (CA) tests were measured at 01 V for 3600 s. Electrochemical impedance

spectroscopy (EIS) analysis was performed at 1 V with 10 mV amplitude in a frequency range between 100 kHz and 0.01 Hz. COMPUTATIONS METHOD To fig out the change of activity of the Fe3O4/CX

surface with the introduction of Co atoms, the adsorption of CH3OH on the Fe3O4/CX surface was investigated using the Materials Studio based on the density functional theory (DFT). The

adsorption energies of CH3OH and CO on the surfaces this following Eq. 4 $$\:\varDelta\:E\:or\:{E}_{diss}={\left({E}_{adsorbate\:}\right)}_{1}-{\left({E}_{adsorbate\:}\right)}_{2}$$ (4)

where (E adsorbate)1 is the total energy of CH3OH on the Fe3O4/CX surfaces, (E adsorbate)2 is the total energy of CO on the Fe3O4/CX surface. Thus negative \(\:\varDelta\:\)Eads or Ediss

indicates exothermic chemisorption and positive values indicate an endothermic process. RESULT AND DISCUSSION STRUCTURE PROPERTIES OF SAMPLES The diffraction patterns indicated the existence

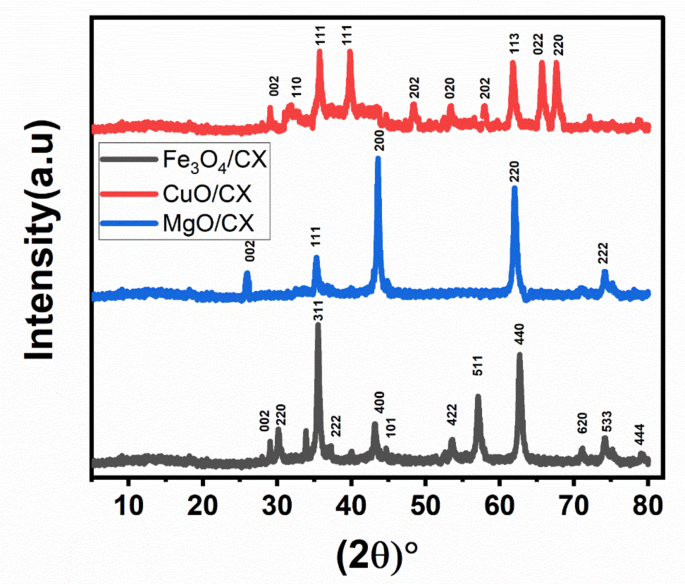

of two distinct phases: graphite (JCPDS 00-012-0212) and magnetite Fe3O4 (01-089-0691). The diffractograms exhibit the characteristic carbon peaks observed at 2θ angles of 29° and

44.6°.These values approximately correspond to the (002) and (101) crystallographic planes, respectively. The graphite 002 planes displayed diffraction at a 29° angle. The integration of CX

with the Fe framework has resulted in a tendency towards increased value. These modifications cause flaws in the lattice structure, leading to the displacements that are seen. The presence

of this phenomenon might be attributed to the diffusion of carbon into the structure, which occurs due to the elevated temperature (400 °C) used during thermal treatment. Outside21.The

diffraction patterns for the CX material doped with Magnesium are shown in Fig. 1. The diffractograms display distinct peaks at 2θ angles of 25.3°, 36.5°, 43.2°, 62.6°, and 75°, which are

distinctive. These values closely correlate to the crystallographic planes (002), (111), (200), (220), and (222) as reported by22. X-ray diffraction (XRD) pattern of MgO/CX exhibits a

prominent and powerful peak corresponding to the (200) orientation, indicating a high degree of crystallinity. Figure 1 illustrates the alignment and arrangement of CX doped with Copper,

showcasing its orientation and crystalline structure. The recorded values of the peaks in their standing condition are as follows: 25.3°, 32.4°, 36.2°, 40°, 48.4°, 53.5°, 59.0°, 61.3°, 65°,

and 67.8°. These values correspond to the crystallographic planes (002), (110), (111), (111), (202), (020), (202), (113), (022), and (220). The presence of CuO particles grouped in an

orderly manner at various levels shows the successful creation of a crystalline structure23. FTIR SPECTRA ANALYSIS Figure 2 displays the infrared spectra of the adsorbents Fe3O4/CX, CuO/CX,

and MgO/CX.The bands seen at 3855 cm− 1, 3759 cm− 1, 3751 cm− 1, and 3703 cm− 1 correspond to the hydroxyl (–OH) group23. The bands seen at wavelengths of 3430 cm − 1, 3432 cm − 1, 3415 cm −

 1, and 3405 cm− 1 are attributed to the hydroxyl (–OH) group, indicating the existence of O-H stretching, carboxyl, and phenolic groups24.The absorption peaks seen from 2925 cm− 1 to 2923

cm− 1 are due to the stretching vibration of C-H bonds. These vibrations are connected with both asymmetric and symmetric vibrations of aliphatic and aromatic structures, providing evidence

for the presence of Carbon xerogel25. The prominent peaks at 2378 cm− 1, 2377 cm− 1, 2376 cm− 1, and 2375 cm− 1 observed in the CX material may be attributed to the presence of the C-O

group, which is associated with uncompensated ambient CO224. The absorption peaks observed at 2312 cm− 1 and 2310 cm− 1 in the case of Fe3O4/CX were attributed to the presence of − C ≡ C−23.

The occurrence of absorption bands at 1645 cm− 1, 1631 cm− 1, and 1625 cm− 1 in the CX compound can be attributed to the C = C aromatic structure26. The bands at 1529 cm− 1 can be ascribed

to the stretching vibrations of C = O groups in diketone, ketoester, and keto-enol structures of the Tannin precursor26. The peaks detected at 1476.46 cm− 1 and 1467.03 cm− 1 are associated

with the –COOH functional group, and their positions were altered as a result of the introduction of MgO and CuO doping26. The bands within the range of 1381 cm− 1 to 1120 cm− 1,

particularly for CX, were identified as the C-O vibrations associated with compounds such as esters, ethers, lactones, carboxyls, or phenols in Tannins23. The spectral peaks at 1035 cm− 1

and 1029 cm− 1 were identified as resulting from the stretching vibrations of C–O–C bonds, with some contributions from C–O–H and C–C–H bonds27. The presence of peaks at 862.21 cm− 1 and

882.27 cm− 1 can be attributed to the vibrations of alkyl amines in the C–O group’s in-plane bending and the aromatic group’s out-of-plane bending of the C–H bonds (Jiang et al., 2020). The

bands observed at 599 cm-1 and 561 cm-1 correspond to the vibrations of the Fe–O bond. The Mg-O peak was seen at approximately 599.85 cm− 1 and 489.48 cm− 1, suggesting the presence of

MgO19. The existence of peaks at wavenumbers 449.46 and 561.71 cm–1 verified the successful production of Cu–O19. MORPHOLOGICAL ANALYSIS Scanning electron microscopy (SEM) technique was used

to study the morphology of different samples of Carbon Xerogel doped with various metal oxides. Fe3O4/CX material is composed of many layers arranged in a stacked formation. Each layer has

a Fiber-like structure with varying sizes of cavities and a high level of porosity which were presented at Fig. (3). These characteristics play a crucial role in facilitating the methanol

oxidation process. While CuO/CX appears as a rod-shaped morphology, as illustrated in the Fig. 3b. Furthermore, the nanohybrids efficiently protect and equally cover the material, as

demonstrated in Fig. (3). The nanorod crystals exhibited a consistent and well-grown structure, appearing as one-dimensional structures. The length of these crystals ranged from 500 to 980

nm, as shown in the SEM images shown in Fig. 3b. This shape might provide drawbacks for the electrode, as it hinders quick surface reactions and blocks the access of electrolyte ions to the

electrode interlayers. Consequently, this leads to a decrease in the active site and results in poor capacitance behaviour for CuO/CX. In morphology of MgO/CX indicated that Fig. (3c)

demonstrate the distribution of particles in MgO/CX as clusters of irregular shaped flakes grouped as flower-like clusters. SEM reveal the crystal flakes in a particular configuration

resembling a crystalline flower. The morphology of Fe3O4/CX developed may provide a suitable surface for interaction between the catalyst and methanol, thereby enhancing the methanol

oxidation process. The morphology of Fe3O4/CX maintains after electrochemical measurement with presence some protrusions in the matrix as a result to consecutive measurements which

respresented at Fig. 3 (d). METHANOL OXIDATION FUEL CELL (MOFC) OF FE3O4/CX, MGO/CX AND CUO/CX The electro-catalytic performance of the produced electrodes Fe3O4/CX, MgO/CX, and CuO/CX was

evaluated in a 0.5 M Na2S2O8 electrolyte solution. The potential range used was − 1 to 1 V, and the scan rate was 100 mV/s at room temperature. The results are shown in Fig. 4(a-c). The

platinum wire served as the counter electrode. Figure 4(a) shows the cyclic voltammetry (CV) of the produced electrodes at a scan rate of 100 mV/s in a solution of 0.5 M Na2S2O8. The

Fe3O4/CX electrode demonstrates superior electrochemical activity, achieving a current density of 19 mA/cm2. In contrast, the MgO/CX and CuO/CX electrodes exhibit lower current densities.

The notable electroactivity of Fe3O4/CX can be due to the existence of a Fiber-like structure with various diameters of cavities and a high degree of porosity. This enhances the conductivity

of the electrode by allowing electron transmission. The effect of varying scan rates for methanol electro-oxidation of Fe3O4/CX was studied in 0.5 M Na2S2O8 and 1.5 M CH3OH at low scan rate

(5, 10, 20mV s− 1) and high scan rate (40,50 mV s− 1). The results are illustrated in Fig. 5 (a and b)., which indicates that the anodic current density gradually increases with increasing

scan rate from 33.4 to 39. 3 mA.cm− 2 for 5 to 50 mA. S− 1 respectively. As the scan rate increased, the anodic peak potential (Epa) shifted towards more positive values, while the cathodic

peak potential (Epc) shifted to more negative potentials. This shows that there are diffusion-controlled systems and the electro-oxidation of methanol on catalysts24. The electrochemically

active surface area (ECSA) of the Fe3O4/CX electrode represents the area of the electrode surface that is accessible to the electrolyte and is used for evaluating the charge transfer and/or

storage. The determination of this surface area is essential in electrocatalysis to provide surface-normalized intrinsic catalytic activity. Under a non-Faradaic region, a series of CV scans

were performed at different scan rates (5, 10, 20, 30, 40,50 mV s− 1). The average difference between the anodic and cathodic charging current densities were plotted as a function of scan

rate For calculating the double-layer capacitance (Cdl)in fig() is (0.0852 Mf/CM2) and calculated The specific capacitance (Cs) is (6.908676304 mF/g) can be calculated by equations to

determine ECSA. $$\:Cdl=\:\frac{\Delta{J}}{2V} = SLOPE$$ Where ν is the scan rate in V/s, and △J are different between the anodic and cathodic current densities25. $$\:{C}_{S}=\:\frac{A}{2

\times m \times v \times dV}$$ Where A: Area under the current (I) vs. potential (E) curve, m: Mass of the electrode material (mg). ν: Scan rate (mV/s). dV: Potential window (the difference

in potential mV)25. The ECSA for this composite electrode was found to be 12.33 cm2 illustrated in eq(). By gwyddion software determined Roughness from the SEM image is 26.33. This indicates

that the ECSA when the Roughness factor is increased and which proves the effect of Fe3O4/CX on the surface area and increasing active sites26.

$$\:\text{E}\text{C}\text{S}\text{A}\:=\:\frac{Cdl}{{C}_{S}},$$ Catalyst ECSA (cm2 ) RF Fe3O4/CX electrode 12.33 26.33 To study the effect of methanol concentration on the MOR process of

Fe3O4/CX, MgO/CX, and CuO/CX, the CV analysis was performed at a constant concentration of 0.5 M Na2S2O8 with different concentrations of methanol (0.25, 0.5, 0.75, 1, 1.25, and 1.5 M) at a

scan rate of 100 mV/s which were shown at Fig. 6( a-c). When methanol concentration is increased from 0.25 M to 1.5 M, 0.25 M to 1.25 M, and 0.25 M to 0.75 M, the current density increases

to 42.9862 mA.cm2, 28.3 mA.cm− 2, and 6.6 mA.cm2 during the MOR in Fe3O4/CX, MgO/CX, and CuO/CX, respectively. However, this trend is reversed when the methanol concentration reaches 2 M,

1.5 M, and 1 M in Fe3O4/CX, MgO/CX, and CuO/CX, respectively. A further decrease in current density is observed. The reason probably can be the resistance against the occupancy of active

sites of the catalyst with the side-products resulting from the oxidation of methanol after a certain critical concentration27.did not improve the final activity and even prevented molecule

diffusion28. Therefore, This behavior indicated that the MOR depended on the available active sites for methanol adsorption and the oxidation reaction was a diffusion-controlled process29.

The methanol concentration of 1.5 M of Fe3O4/CX, 1.25 M of MgO/CX and 0.75 M of CuO/CX were chosen as the optimum concentration to be used in the Salts solution. A chronoamperometric test

was carried out to characterize the stability of the methanol oxidation reaction for the Fe3O4/CX, MgO/CX and CuO/CX in 0.5 M Na2S2O8 and 1.5 M, 1.25 M and 0.75 M of methanol respectively at

room temperature for 3600s at Fig. 7. The results showed that the peak current values of the catalyst decreased rapidly in the early stage of measurement from 40 mA.cm− 2 to 17 mA.cm− 2 For

Fe3O4/CX, 26.6 mA.cm− 2 to 5 mA.cm− 2 For MgO/CX and For CuO/CX This showed a slow decrease until the end of measurement to 16 mA cm− 2, 4.9 mA. cm− 2 and 1.3 mA. cm− 2 for Fe3O4/CX, MgO/CX

and CuO/CX respectively. The initial rapid decline is caused by poisoning of the electrode surface or by the adsorption of CO, hydrocarbons, and oxygenates30. As seen in Fig. 7 the Carbon

Xerogel with Different metal oxides catalyst started with a higher peak current. It showed better stability and catalytic efficiency after 3600 s. As a result, it has been shown that

Fe3O4/CX has higher catalytic activity and efficiency and this means that the favorite catalyst used in fuel cell energy is Fe3O4/CX. Besides, Fe3O4/CX has been demonstrated to possess

superior catalytic activity and efficiency, making it the preferred catalyst for fuel cell energy. The Fe3O4/CX consists of many layers organized in a stacked arrangement. The structure of

each layer consists of fibers arranged in a manner similar to that of a fiber. These fibers have different sizes of empty spaces and a significant level of porosity. The design of the

surface facilitates the interaction between the catalyst and methanol, leading to an enhanced process of methanol oxidation it was seen that the data obtained were comparable with MgO/CX and

CuO/CX. The higher values were obtained the proposed mechanism of the methanol oxidation process can be expressed as follows using a 6 electrons mechanism in Eqs. (5), (6), (7) and (8).

$$\:catalyst-{CH}_{3}OH\:\to\:\:catalyst-{{CH}_{3}OH}_{ads}$$ (5)

$$\:\text{c}\text{a}\text{t}\text{a}\text{l}\text{y}\text{s}\text{t}-{\text{C}\text{H}}_{3}\text{O}\text{H}\:\text{a}\text{d}\text{s}\:+\:4{\text{O}\text{H}}^{-}\:\to\:\:\text{c}\text{a}\text{t}\text{a}\text{l}\text{y}\text{s}\text{t}-{\left(\text{C}\text{O}\right)}_{\text{a}\text{d}\text{s}\:}+\:4{\text{H}}_{2}\text{O}\:+\:{4\text{e}}^{-}\:\:\:\:$$

(6)

$$\:\text{c}\text{a}\text{t}\text{a}\text{l}\text{y}\text{s}\text{t}\:+\:{\text{O}\text{H}\:}^{-}\to\:\:\text{c}\text{a}\text{t}\text{a}\text{l}\text{y}\text{s}\text{t}-{\text{O}\text{H}\:}_{\text{a}\text{d}\text{s}}\:+\:{\text{e}}^{-}\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:\:$$

(7)

$$\:\text{c}\text{a}\text{t}\text{a}\text{l}\text{y}\text{s}\text{t}-{\text{C}\text{O}}_{\text{a}\text{d}\text{s}}\:+\:\text{c}\text{a}\text{t}\text{a}\text{l}\text{y}\text{s}\text{t}-{\text{O}\text{H}\:}_{\text{a}\text{d}\text{s}}+\:{\text{O}\text{H}\:}^{-}\:\to\:\text{c}\text{a}\text{t}\text{a}\text{l}\text{y}\text{s}\text{t}\:+\:{\text{C}\text{O}}_{2}\:+\:{\text{H}}_{2}\text{O}+{\text{e}}^{-}\:\:\:\:\:$$

(8) One of the crucial characteristics of a catalyst suitable for use in fuel cells is its ability to maintain cyclic stability during the process of methanol oxidation reactions (MOR)31.To

assess the durability of Fe3O4/CX in the methanol oxidation process, a series of 100 consecutive cyclic voltammetry (CV) cycles were conducted in a salt solution containing 0.5 M Na2S2O8 in

presence of 1.5 M methanol at room temperature, with a scan rate of 100 mV/s which presented at Fig. 8. Observably, after the 100th cycle, Fe3O4/CX retains approximately 82% from its

performance, accompanied by a slight reduction in its peak oxidation current density. In the initial cycles, the electrodes interact with active sites shared with electrolyte ions and

methanol. However, as the number of cycles increases, the catalyst surface becomes saturated with methanol byproducts. Consequently, there is an initial decline in current density followed

by its stabilization. Additionally, the consistent stability of iso-potential points and the absence of distortion in CV curves highlight the pronounced electrochemical stability of the

catalyst throughout the Methanol Oxidation Reactions process27. These observations signify the excellent stability of Fe3O4/CX in the context of Methanol Oxidation Reaction. The impedance of

an electrochemical system is determined by the charge transfer between the active electrode and the electrolyte contact32. Figure 9(a-d). displays a Nyquist plot of Fe3O4/CX, MgO/CX and

CuO/CX measured in 0.5 M Na2S2O8 and 1.5 M ,1.25 M and 0.75 M from Methanol of Fe3O4/CX, MgO/CX and CuO/CX correspondingly Typically, two sections can be distinguished in Nyquist plots:

semicircles related to charge-transfer (Rct) and capacitive (Qdl) impedances, and linear parts attributable to mass-transfer (Warburg) resistance33. These EIS spectra clearly demonstrated

mixed kinetic and diffusion control systems34. The composites Fe3O4/CX, MgO/CX, and CuO/CX exhibited higher conductivity and reduced equivalent series resistance (Rct), as evidenced by the

semicircles and linear patterns that were drawn. Figure 7 demonstrates that Fe3O4/CX had the lowest semicircle with a Rct of (44 KΩ), significantly less than those of MgO/CX (15 KΩ) and

CuO/CX (24 KΩ), indicating that Fe3O4/CX has rapid and effective electron transport. These catalysts demonstrate the importance of the inclusion of Fe3O4 with Carbon Xerogel, which reduces

the resistance of Fe3O4/CX and enhances its conductivity. Bode graphs for the Fe3O4/CX electrode in Na2S2O8 in presence of 1.5 M Methanol and 25 ◦C was represented at Fig. 9b. Bode plots of

Fe3O4/CX showed the fluctuation of the total impedance with frequency, inset of Fig. 7b. and the variation of phase with frequency. This figure depicts the resistive regime at low

frequencies in addition to capacitive contribution at high frequencies32. These regimes are associated to the charge transfer resistance (Rct) and the double-layered capacitance (Cdl) of the

electrode. The highest phase shift (max = -28.94 ◦) is detected at 2.65 Hz. In order to verify the oxidation of methanol and reduce its concentration in the solution, measurements of total

organic carbon (TOC) were conducted. In order to address this matter, the electrolyte samples were obtained from the electrolytic cell to measure the total organic carbon (TOC) over several

cycles of methanol oxidation. The measurements were conducted at a scan rate of 100 mV s− 1, using a solution containing 0.5 M Na2S2O8 and 1.5 M methanol. The selected cycles for methanol

oxidation were cycles 2, 5, 7, and 10. Figure 10 illustrates that the significant decrease in total organic carbon (TOC) content was caused by the oxidation of methanol on the Fe3O4/CX

catalyst. This phenomenon can be attributed to the oxidative conversion of methanol into inorganic carbon, specifically CO2 and carbonates. The electrochemical activity of the spent Fe3O4/CX

electrode leads to the oxidation of inorganic carbon, resulting in a decrease of approximately 30% in the methanol content of Na2S2O8 as the electrolyte35. To clarify the impact of Fe3O4/CX

in the methanol oxidation, the process of methanol dissociation and the ability of Fe3O4/CX to tolerate CO verified using DFT simulations. Given that the (111) facet of both

electrocatalysts was mostly active for the reaction, we devised a cleaved surface for the (111) facet of the Fe3O4/CX. The process of CH3OH dehydrogenation initiates with the adsorption of

CH3OH onto the electrocatalysts. Subsequently, the dissociative chemisorption of CH3OH occurs in a sequence of successive stages. The process leads to the creation of hydroxymethyl

intermediates (CHxOH*) and surface-adsorbed protons (H*), as depicted in the figure. The optimization of atomic energy in the dehydrogenation of CH3OH leads to the formation of C-H or O-H

bonds, resulting in the sequential generation of intermediates such as CH2OH (C-H bond cleavage), CHOH (O-H bond cleavage), and CHO (O-H bond cleavage). Prior to examining the energetic

properties of CH3OH dehydrogenation, we performed computations to evaluate the structural modifications and binding energies of the reaction intermediates. We confirm that our adsorption

energies are in good agreement with those obtained from other theories in terms of fairness and accuracy. In general, the addition of CX-doped iron facilitates a thermodynamically favorable

step-by-step removal of hydrogen from CH3OH36, leading to a reduction in the energy needed for the last stages of hydrogen removal illustrated in Eq. (9). The final steps involve the

reaction pathway that results in the creation of adsorbed CO and H species on Fe3O4/CX (111) with an energy of -0.215 eV shown in Eq. (10). The energy of this system is affected by the

effects of Fe3O4/CX (111) on the reaction pathway with the highest level of activity which was graphed at Fig. 11. $${\text{CH}}_{{\text{3}}} {\text{OH }} \to {\text{ CH}}_{{\text{3}}}

{\text{O }} \to {\text{ CH}}_{{\text{2}}} {\text{O }} \to {\text{ CHO }} \to {\text{ CO}},$$ (9) $${\text{E}}_{{{\text{diss}}}} = {\text{ E}}_{{{\text{ad}}}} \left( {{\text{CH}}_{{\text{3}}}

{\text{OH}} - {\text{Fe}}_{{\text{3}}} {\text{O}}_{{\text{4}}} /{\text{CX}}} \right){\text{ }} - {\text{ E}}_{{{\text{ad}}}} \left( {{\text{CO}} - {\text{Fe}}_{{\text{3}}}

{\text{O}}_{{\text{4}}} /{\text{CX}}} \right) ,$$ $${{\text{E}}_{{\text{diss}}}}={\text{ }} - 0.{{733ev }}--{\text{ }}\left( { - 0.{{518 ev}}} \right)\,=\, - \,0.{{215ev}}.$$ (10) In

addition to the experimental examination, DFT simulations were performed to gain understanding of the electrical influence of CO inclusion on the Fe3O4/CX surface. The DFT experiments

revealed that the adsorption energies of methanol (Eads) on Fe3O4/CX (111) and its facets were − 0.733 eV. The energy required for the dissociation of methanol and its conversion to carbon

monoxide is -0.215 eV. The negative ∆Eads signifies an exothermic chemisorption process. CONCLUSION This study presents the fabrication of nanocomposites involving of CX and metal oxides

(Fe3O4, CuO, and MgO) using a straightforward method that does not require annealing or energy-intensive procedures. The nanocomposites are synthesized by utilizing tannin extracted from

banana peels. The F3O4/CX material consists of many layers that are placed in a stacked configuration. The structure of each layer is similar to the fibres with different sizes of empty

spaces and a significant level of porosity. This allows for the smooth flow of methanol oxidation process. The oxidation and dissociation using F3O4/CX was confirmed via Density Functional

Theory (DFT).Furthermore, Fe3O4/CX demonstrated exceptional catalytic efficiency in the oxidation of methanol in a direct methanol fuel cell .It also maintains a retention of 82% and

possesses the lowest charge transfer resistance of 44 Ω compared to the other produced electrodes. Hence, our study advocates for the uncomplicated procedure of producing nanocomposites

consisting of CX-metal oxides, with the intended purpose of using them as anode components in DMFCs. DATA AVAILABILITY All data generated or analysed during this study are included in this

published article. REFERENCES * Tong, Y., Yan, X., Liang, J. & Dou, S. X. Metal-based electrocatalysts for methanol Electro-Oxidation: Progress, opportunities, and challenges. _Small_ 17

(9). https://doi.org/10.1002/SMLL.201904126 (2021). * Rashidi, S. et al. “Progress and challenges on the thermal management of electrochemical energy conversion and storage technologies:

Fuel cells, electrolysers, and supercapacitors._ Progress in Energy and Combustion Science_, vol. 88. https://doi.org/10.1016/j.pecs.2021.100966 (Elsevier Ltd, 2022). * Baruah, B. & Deb,

P. Performance and application of carbon-based electrocatalysts in direct methanol fuel cell._ Mater. Adv._ 2(16), 5344–5364. https://doi.org/10.1039/d1ma00503k (2021). * Forootan Fard, H.,

Khodaverdi, M., Pourfayaz, F. & Ahmadi, M. H. Application of N-doped carbon nanotube-supported Pt-Ru as electrocatalyst layer in passive direct methanol fuel cell. _Int. J. Hydrogen

Energy_ 45 (46), 25307–25316. https://doi.org/10.1016/j.ijhydene.2020.06.254 (2020). Article  ADS  CAS  Google Scholar  * Tellez-Cruz, M. M., Escorihuela, J., Solorza-Feria, O. & Compañ,

V. Proton exchange membrane fuel cells (Pemfcs): Advances and challenges._ Polymers_ 13(18). https://doi.org/10.3390/polym13183064 (2021). * Arshad, M. S. et al. Advances and perspectives

on solid oxide fuel cells: from nanotechnology to power electronics devices._ Energy Technol._ 11(12). https://doi.org/10.1002/ente.202300452 (2023). * Xia, Z., Zhang, X., Sun, H., Wang, S.

& Sun, G. Recent advances in multi-scale design and construction of materials for direct methanol fuel cells._ Nano Energy_ 65. https://doi.org/10.1016/j.nanoen.2019.104048 (2019). *

Ugalde-Reyes, O., Liu, H. B., Roquero, P., Alvarez-Ramirez, J. & Sosa-Hernández, E. EIS and relaxation times study for CO adsorbed on bimetallic Pt-Mo catalysts during the methanol

oxidation reaction. _Electrochim. Acta_ 418 https://doi.org/10.1016/j.electacta.2022.140309 (2022). * Salarizadeh, P., Taghi, M., Moghadam, T. & Askari, M. B. Comparison of methanol

oxidation reaction process for NiCo 2 O 4 /X (X = rGO, MWCNTs, HCNs) nanocatalyst. https://doi.org/10.1016/j.diamond.2022.109534 (2022). * Mokary Yazdely, T., Ghorbanloo, M. &

Hosseini-Monfared, H. Oxovanadium catalyst based on nano-porous carbon xerogel: an efficient heterogeneous nano-catalyst for aerobic oxidation of olefins. _Desalin. Water Treat._ 158,

256–265. https://doi.org/10.5004/dwt.2019.24226 (2019). Article  CAS  Google Scholar  * Jin, H. et al. Enhanced electrocatalytic performance of N-doped carbon xerogels obtained through dual

nitrogen doping for the oxygen reduction reaction. _RSC Adv._ 12 (21), 13440–13447. https://doi.org/10.1039/d2ra01238c (2022). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  *

Mansy, H. E., Khedr, M. H. & Abdelwahab, A. Palladium functionalized carbon xerogel nanocomposite for oxygen reduction reaction. _Mater. Chem. Phys._ 313.

https://doi.org/10.1016/j.matchemphys.2023.128797 (2024). * Bailón-García, E., Drwal, E., Grzybek, T., Henriques, C. & Filipa Ribeiro, M. Catalysts based on carbon xerogels with high

catalytic activity for the reduction of NOx at low temperatures. https://doi.org/10.1016/j.cattod.2020.03.004 (2020). * Hsu, Y. H., Nguyen, A. T., Chiu, Y. H., Li, J. M. & Hsu, Y. J.

Au-decorated GaOOH nanorods enhanced the performance of direct methanol fuel cells under light illumination. _Appl. Catal. B Environ._ 185, 133–140.

https://doi.org/10.1016/j.apcatb.2015.11.049 (2016). Article  CAS  MATH  Google Scholar  * Liaqat, R. et al. Fabrication of metal (Cu and Cr) incorporated nickel oxide films for

electrochemical oxidation of methanol. _Crystals_ 11 (11). https://doi.org/10.3390/cryst11111398 (2021). * ur Rehman, A. et al. Fabrication of binary metal doped CuO nanocatalyst and their

application for the industrial effluents treatment._ Ceram. Int._ 47(5), 929–5937. https://doi.org/10.1016/j.ceramint.2020.11.064 (2021). * Gommes, C. J. & Chaltin, F. The electrical

impedance of carbon xerogel hierarchical electrodes. _Electrochim. Acta_ 433, 141203. https://doi.org/10.1016/j.electacta.2022.141203 (2022). Article  CAS  MATH  Google Scholar  * Ding, D.,

Yang, S., Qian, X., Chen, L. & Cai, T. Nitrogen-doping positively whilst sulfur-doping negatively affect the catalytic activity of biochar for the degradation of organic contaminant.

https://doi.org/10.1016/j.apcatb.2019.118348 (2019). * Kilpeläinen, P., Liski, E. & Saranpää, P. Optimising and scaling up hot water extraction of tannins from Norway spruce and scots

pine bark. _Ind. Crops Prod._ 192, 116089. https://doi.org/10.1016/J.INDCROP.2022.116089 (2023). Article  Google Scholar  * de Moraes, N. P. et al. Synthesis of novel ZnO/carbon xerogel

composites: Effect of carbon content and calcination temperature on their structural and photocatalytic properties. _Ceram. Int._ 45 (3), 3657–3667.

https://doi.org/10.1016/J.CERAMINT.2018.11.027 (2019). Article  MATH  Google Scholar  * de Moraes, N. P. et al. Zinc oxide/carbon xerogel composites for photocatalytic applications developed

through acidic and alkaline synthesis routes: structural, morphological, and photocatalytic evaluations. _J. Nanopart. Res._ 22 (6). https://doi.org/10.1007/s11051-020-04893-9 (2020). *

Nigam, A., Saini, S., Rai, A. K. & Pawar, S. J. Structural, optical, cytotoxicity, and antimicrobial properties of MgO, ZnO and MgO/ZnO nanocomposite for biomedical applications. _Ceram.

Int._ 47 (14), 19515–19525. https://doi.org/10.1016/j.ceramint.2021.03.289 (2021). Article  CAS  Google Scholar  * Siddiqui, V. U., Ansari, A., Chauhan, R. & Siddiqi, W. A. Green

synthesis of copper oxide (CuO) nanoparticles by Punica granatum peel extract._ Materials Today: Proceedings_, 751–755 (Elsevier Ltd, 2019). https://doi.org/10.1016/j.matpr.2020.05.504. *

Boostani, N., Vardak, S., Amini, R. & Mohammadifard, Z. Optimization of Ni-Co-metallic-glass powder (Ni60Cr10Ta10P16B4) (MGP) nanocomposite coatings for direct methanol fuel cell (DMFC)

applications. _Int. J. Hydrogen Energy_ 48 (27), 10002–10015. https://doi.org/10.1016/j.ijhydene.2021.10.010 (2023). Article  ADS  CAS  Google Scholar  * Raveendran, A. et al. Layer-by-Layer

Assembly of CTAB-rGO-Modified MXene Hybrid films as multifunctional electrodes for hydrogen evolution and oxygen evolution reactions, supercapacitors, and DMFC applications. _ACS Omega_ 8

(38), 34768–34786. https://doi.org/10.1021/acsomega.3c03827 (2023). Article  CAS  PubMed  PubMed Central  Google Scholar  * Salarizadeh, P., Askari, M. B. & Di Bartolomeo, A.

MoS2/Ni3S2/reduced graphene oxide nanostructure as an electrocatalyst for alcohol fuel cells. _ACS Appl. Nano Mater._ 5 (3), 3361–3373. https://doi.org/10.1021/acsanm.1c03946 (2022). Article

  CAS  Google Scholar  * Askari, M. B. et al. Hierarchical nanostructures of MgCo2O4 on reduced graphene oxide as a high-performance catalyst for methanol electro-oxidation. _Ceram. Int._ 47

(11), 16079–16085. https://doi.org/10.1016/j.ceramint.2021.02.182 (2021). Article  CAS  MATH  Google Scholar  * Askari, M. B. et al. MnCo2O4/NiCo2O4/rGO as a catalyst based on binary

transition metal oxide for the methanol oxidation reaction. _Nanomaterials_ 12 (22). https://doi.org/10.3390/nano12224072 (2022). * Kotp, A. A., Abdelwahab, A., Farghali, A. A., Rouby, W. M.

A. E. & Enaiet Allah, A. Evaluating the electrocatalytic activity of flower-like Co-MOF/CNT nanocomposites for methanol oxidation in basic electrolytes. _RSC Adv._ 13 (40), 27934–27945.

https://doi.org/10.1039/d3ra05105f (2023). Article  ADS  CAS  PubMed  PubMed Central  Google Scholar  * Bekmezci, M. et al. Synthesis of a functionalized carbon supported platinum-iridium

nanoparticle catalyst by the rapid chemical reduction method for the anodic reaction of direct methanol fuel cells. _New. J. Chem._ 46 (45), 21591–21598. https://doi.org/10.1039/d2nj03209k

(2022). Article  CAS  Google Scholar  * Elancheziyan, M. et al. Facile synthesis of polyaniline/titanium carbide (MXene) nanosheets/palladium nanocomposite for efficient electrocatalytic

oxidation of methanol for fuel cell application. _Fuel_ 303 https://doi.org/10.1016/j.fuel.2021.121329 (2021). * Mohamed, F., Rabia, M. & Shaban, M. Synthesis and characterization of

biogenic iron oxides of different nanomorphologies from pomegranate peels for efficient solar hydrogen production. _J. Mater. Res. Technol._ 9 (3), 4255–4271.

https://doi.org/10.1016/j.jmrt.2020.02.052 (2020). Article  CAS  MATH  Google Scholar  * Abbasi, Y., Jalali, F. & Sheikhi, S. Preparation of nickel/copper sulfides from metal-organic

frameworks. Applications to energy storage in a symmetric supercapacitor and electrocatalytic methanol oxidation. _J. Alloys Compd._ 938. https://doi.org/10.1016/j.jallcom.2022.168450

(2023). * Ying, D. et al. Insight into pseudocapacitive-diffusion mixed kinetics and conversion-alloying hybrid mechanisms of low-cost Zn-Mn perovskite fluorides anodes for powerful

Li-ion/dual-ion storage. _Chem. Eng. J._ 388. https://doi.org/10.1016/j.cej.2020.124154 (2020). * Ruiz-López, E., Caravaca, A., Vernoux, P., Dorado, F. & de Lucas-Consuegra, A.

Over-faradaic hydrogen production in methanol electrolysis cells. _Chem. Eng. J._ 396. https://doi.org/10.1016/j.cej.2020.125217 (2020). * Moura, A. S., Fajín, J. L. C., Mandado, M. &

Cordeiro, M. N. D. S. Ruthenium-platinum catalysts and direct methanol fuel cells (DMFC): A review of theoretical and experimental breakthroughs._ Catalysts_ 7(2).

https://doi.org/10.3390/catal7020047 (2017). Download references FUNDING Open access funding provided by The Science, Technology & Innovation Funding Authority (STDF) in cooperation with

The Egyptian Knowledge Bank (EKB). AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Chemistry Department, Faculty of Science, Beni-Suef University, Beni-Suef, 62514, Egypt Fatma Mohamed &

Omnia M. Salem * Nanophotonics and Applications (NPA) Lab, Faculty of Science, Beni-Suef University, Beni-Suef, 62514, Egypt Fatma Mohamed & Omnia M. Salem * Materials Science Research

Lab, Chemistry Department, Faculty of Science, Beni-Suef University, Beni-Suef, 62514, Egypt Fatma Mohamed * Department of Physics, Faculty of Science, Islamic University of Madinah, P. O.

Box: 170, 42351, Madinah, Saudi Arabia Mohamed Shaban Authors * Fatma Mohamed View author publications You can also search for this author inPubMed Google Scholar * Mohamed Shaban View

author publications You can also search for this author inPubMed Google Scholar * Omnia M. Salem View author publications You can also search for this author inPubMed Google Scholar

CONTRIBUTIONS The contributions of all authors must be described in the following manner: The authors confirm contributmed mohaion to the paper as follows: study conception and design:,Fatma

Mohamed, omnia salem; data collection: omnia salem, fatma analysis and interpretation of results: Fatma Mohamed, mohamed shaban , ; draft manuscript preparation: Fatma Mohamed , Mohamed

Shaban, omnia salem. All authors reviewed the results and approved the final version of the manuscript. An author name can appear multiple times, and each author name must appear at least

once. For single authors, use the following wording: The author confirms sole responsibility for the following: study conception and design, data collection, analysis and interpretation of

results, and manuscript preparation. CORRESPONDING AUTHOR Correspondence to Fatma Mohamed. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL

INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. ELECTRONIC SUPPLEMENTARY MATERIAL Below is

the link to the electronic supplementary material. SUPPLEMENTARY MATERIAL 1 RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0

International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the

source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative

Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by

statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Mohamed, F., Shaban, M. & Salem, O.M. Metal oxides carbon xerogel nanocomposite

for methanol oxidation fuel cell. _Sci Rep_ 15, 4603 (2025). https://doi.org/10.1038/s41598-025-85579-x Download citation * Received: 21 July 2024 * Accepted: 03 January 2025 * Published:

07 February 2025 * DOI: https://doi.org/10.1038/s41598-025-85579-x SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a

shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative KEYWORDS * CX * Banana peels * Methanol

oxidation * Fuel cell * Theoretical approach
