ABSTRACT This study investigated the colourful secondary particles formed by controlling the aggregation states of colloidal silica particles and the enhancement of the structural

colouration of the secondary particles caused by adding black particles. We obtained glossy, partially structurally coloured secondary particles in the absence of NaCl, but matte, whitish

secondary particles were obtained in the presence of NaCl. When a small amount of carbon black was incorporated into both types of secondary particles, the incoherent multiple scattering of

light from the amorphous region was considerably reduced. However, the peak intensities in the reflection spectra, caused by Bragg reflection and by coherent single wavelength scattering,

COLLOIDAL PHASE SEGREGATION Article Open access 17 May 2023 MAGNETIC PROPERTIES OF DIFFERENT PHASES IRON OXIDE NANOPARTICLES PREPARED BY MICRO EMULSION-HYDROTHERMAL METHOD Article Open

access 06 January 2025 NOVEL PATHWAY FOR THE SONOCHEMICAL SYNTHESIS OF SILVER NANOPARTICLES WITH NEAR-SPHERICAL SHAPE AND HIGH STABILITY IN AQUEOUS MEDIA Article Open access 18 January 2022

INTRODUCTION Aggregations composed of fine submicron spherical colloidal particles (hereafter referred to as “colloidal particles”) can exhibit a decrease in the density of optical states

(DOS) in the visible light range, depending on the states of aggregation and the contrast of the refractive index of the photonic structure1,2,3,4,5. In many previous reports, the

aggregations of colloidal particles were required to possess long-range order and periodicity, _i.e._, a colloidal crystal structure, to completely suppress the DOS or to exhibit a photonic

band gap (PBG). Such an aggregation can exhibit structural colour as a result of the reflection of specific wavelengths of visible light by the PBG. However, it has been recently recognised

that colloidal amorphous arrays also show structural colours despite their lack of long-range order. Coloration mechanisms of amorphous systems have been interpreted as the single (and

partially double) scattering process of light with the short-range order6,7,8,9, while several studies have suggested that there is a significant suppression in the DOS that results in the

coloration10,11,12. The coloration characteristics of these aggregations are expected to differ depending on the type of aggregation of the colloidal particles: a colloidal crystal exhibits

a glossy and angle-dependent structural colour depending on the viewing and illumination angles, whereas a colloidal amorphous array exhibits a matte and angle-independent structural

colour8,13,14,15. In the past two decades, membrane assemblies of colloidal particles have been the subject of extensive studies16,17,18,19,20,21 because of their potential application in

energy-saving displays22 and sensors23, which utilise the optical characteristics of these assemblies. Recently, because of the advancement in technologies for preparing colloidal

assemblies, researchers have been able to prepare not only membrane assemblies but also assemblies with various shapes and sizes24,25. One of the most extensively studied assemblies is the

secondary particle formed from colloidal particles, which can be useful for the development of coloured materials used in displays and for biological and chemical

screenings26,27,28,29,30,31. Because structurally coloured secondary particles do not contain conventional dyes, they can exhibit a colour that does not fade. Additionally, because the

chemical species currently available for products are limited and pose a significant environmental risk, structurally coloured assemblies composed of safer chemicals can be used as

environmentally friendly pigments13. For example, because the dyes and pigments available for cosmetic products are strictly controlled, structurally coloured materials prepared from safer

colloidal particles are expected to be useful as new, colourful pigments. In this study, we prepared colourful secondary particles by controlling the aggregation states of the colloidal

particles and by adding black particles to the aggregations. To create the secondary particles, we used environmentally friendly materials that enabled them to be used as green pigments.

Fine colloidal silica particles (hereafter referred to as “silica particles”) were used as colloidal particles, which appear white to the naked eye when the colloidal particles are in random

states. The toxicity of silica particles greater than 300 nm in diameter has not been detected _in vivo_32. We used carbon black (CB) or magnetite as black particles, both of which are

known to be environmentally friendly and biologically harmless pigments. RESULTS First, we describe the appearance of the secondary particles composed of only silica particles. To prepare

the secondary particles in a typical experiment, drops of an aqueous suspension of the silica particles (with diameters of 280 or 360 nm) were added to a stirred oil phase at 60°C in a

round-bottom flask using a microsyringe30. After the reaction had proceeded for more than 12 hours, we allowed the mixture to reach room temperature before collecting the sediments. The

sediments were washed using n-hexane and then dried in an oven. Subsequently, dried and spherical secondary particles, composed of the silica particles with a coefficient of variation of

15%, were obtained. The average size of the secondary particles can be changed from 100 to 500 μm by varying the inner diameter of the needle connected to the microsyringe and the drip rate

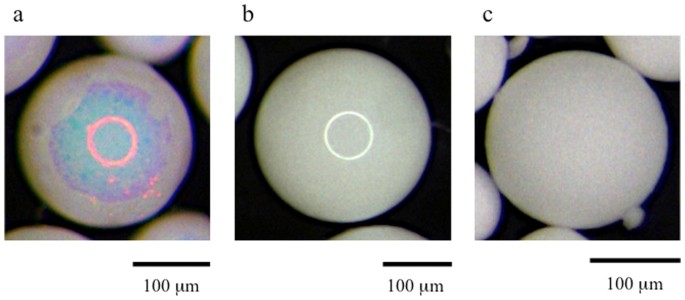

of the suspension under our experimental conditions. Glossy secondary particles were obtained when pure water was used as a dispersion medium for the suspension (Figs. 1a and 1b). The

surface of the glossy secondary particles was sufficiently smooth to permit a ring-shaped light to be reflected through a microscope using white light. The ring-shaped specular colour

appeared red when silica particles 360 nm in diameter were used. The glossy secondary particles composed of silica particles 280 nm in diameter also exhibited the same optical property and

the ring-shaped specular colour appeared faint green. However, the secondary particles prepared using an aqueous suspension of silica particles and NaCl exhibited a colour that appeared

matte and white, irrespective of the size of the silica particles (Fig. 1c). In pure water, the silica particles likely form a non-close-packed crystal structure due to the repulsive force

between the electric double layers of each particle when the aqueous suspension is concentrated in hot oil33. Consequently, a close-packed crystal structure similar to the non-close-packed

crystal structure is formed after drying. The structural colour must result from the occurrence of the p-PBG due to the formation of the crystal structure composed of the silica particles34.

In contrast, the thickness of the electric double layer of the silica particles decreases when NaCl, which acts as an electrolyte in water, is added to the aqueous suspension; consequently,

the repulsive force between the silica particles diminishes. Therefore, the silica particles are flocculated by the evaporation of water. Thus, it appears that the silica particles form an

amorphous array in the dried state of the secondary particles. Although the amorphous array of silica particles can reveal wavelength-specific constructive reflection, observing the

structural colour from the relatively thick amorphous array is difficult because of the large contribution of incoherent multiple scattering13,14,35. Colloidal crystals and colloidal

amorphous arrays composed of colloidal particles containing a small number of black particles, such as CB, are known to exhibit bright structural colours due to the reduction in the

incoherent scattering, which is due to the addition of the black particles13,14. In this study, a small amount of CB was first introduced into the secondary particles. Fig. 2a presents an

optical image of the glossy secondary particles primarily composed of 360-nm-diameter silica particles, both with and without the addition of CB. The glossy secondary particles with the CB

appear red in colour, whereas the glossy secondary particles without the CB appear white to the naked eye. When observed with a microscope, the glossy secondary particles with the CB exhibit

a completely red colour; additionally, a specularly reflected, ring-shaped light is clearly observed that appears red in colour (Fig. 2b). These observations indicate that there are two

reflection mechanisms causing the red colour of the secondary particles: a diffuse reflection and a specular one. Interestingly, we have found that the lighting method has a large effect on

the angular dependence. Figs. 3a and 3b show the colour behaviours of the glossy secondary particles with the CB on a flat, black board depending on the lighting and the viewing angle. The

samples were observed at various angles relative to the normal position of the planar surface of the black board. Under diffuse lighting, the colour from the glossy secondary particles with

the CB only slightly changes with the viewing angle (Fig. 3a), whereas under directional lighting, the colour from the glossy secondary particles with the CB drastically changes with the

viewing angle (Fig. 3b). Fig. 4a presents an optical image of the secondary particles prepared from the aqueous suspensions of the silica particles 360 nm in diameter with both CB and NaCl

(left) compared with an image of the secondary particles prepared with only CB (right). The secondary particles obtained using both CB and NaCl also exhibited a bright red colour, although

the red colour was somewhat pale and matte. Additionally, because the position of the peak in the reflection spectra from the secondary particles can vary depending on the size of the silica

particles, we obtained differently coloured secondary particles using silica particles of different sizes (Fig. 4b). We know that both the single coherent scattering, which is

wavelength-selective and the multiple scattering of light throughout the entire visible region contribute to the optical properties of amorphous arrays. When CB was incorporated into the

secondary particles, the multiple scattering of light was considerably reduced, whereas the reflectance peak intensity caused by the single scattering was only slightly decreased.

Consequently, the saturation of the structural colour of the secondary particles is sufficiently enhanced that it can be observed with the naked eye. To investigate the microstructures, we

first observed the aggregation states of the silica particles in the secondary particles using a scanning electron microscope (SEM). Fig. 5 presents SEM images of the glossy secondary

particles. The ordered colloidal crystal structure of the silica particles can be observed on the surface of a glossy secondary particle (Fig. 5a). This secondary particle, which has an

ordered crystal structure, has been studied by many groups and is known as the “Photonic Ball”30. The inset in Fig. 5a presents a Fourier transform (FT) image that has six-fold symmetry; the

aggregation of the silica particles results in a colloidal crystal with long-range order and periodicity. There are grain boundaries with sizes ranging from a few micrometres to a few dozen

micrometres in the colloidal crystal region, which are similar to those found in membrane colloidal crystals. However, based on the cross-sectional images presented in Figs. 5b and 5c, the

silica particles form a random arrangement inside the secondary particles while forming a crystalline structure on the surface. Although the thickness of the crystalline structure varies in

different regions, the silica particles form crystalline structures that range in thickness from six to ten layers. Based on this structural information, we conclude that there are two

mechanisms associated with the coloration of the glossy secondary particles, as indicated in the previous paragraph. The first mechanism is the development of colour by Bragg reflection

caused by the crystal arrangement on the surface and the second is the development of colour by the coherent single scattering from the arrangement of the amorphous array. Fig. 5d presents

an SEM image that reveals the surface and interior of a glossy secondary particle that includes a small amount of CB. We observe that the CB is dispersed throughout the secondary particle.

Therefore, we confirmed that CB can be uniformly dispersed in the secondary particle using our preparation procedure. In contrast, we observed that the silica particles form a uniform and

random arrangement in the matte secondary particles, irrespective of the surface and interior structures (Fig. 6). The circular ring pattern in the FT image, shown in the inset of Fig. 6a,

indicates that the microstructure of the aggregations composed of silica particles is isotropic and has short-range order. We were unable to observe any differences in the arrangement of the

silica particles between the surface area and interior of the secondary particles in the cross-sectional images (Figs. 6b and 6c). As demonstrated above, we confirmed that the silica

particles form an amorphous array in the matte secondary particles obtained by adding NaCl to the aqueous suspension. The reflection spectra of the secondary particles were measured and

provide information about the internal microstructure of the secondary particles. Fig. 7a presents the reflection spectra of the glossy and matte secondary particles composed of silica

particles 360 nm in diameter. For the glossy secondary particles, we observed a peak wavelength, λmax, of 660 nm and a half bandwidth, Δλ, of approximately 80 nm. The value of Δλ/ λmax is

0.121, which is larger than the value of 0.049 that was theoretically obtained for the (111) plane of a face-centred cubic opal crystal, the most energetically stable structure36. This

difference may be due to the limited number of crystalline layers or to the imperfect arrangement of the primary particles. In contrast, a λmax of 645 nm was observed in the reflection

spectrum of the matte secondary particle. The half bandwidth, Δλ, of the peak of the matte secondary particle was considerably broader than that observed for the peak of the glossy particle,

which is a characteristic optical property for a colloidal amorphous array35,37. Although wavelength-specific constructive reflection was observed from both types of secondary particles in

the reflection spectra, strong light scattering in the entire visible region was also observed in both spectra. This strong light scattering is incoherent multiple scattering by individual

particles inside the secondary particles. Because the incoherent light scattering from these secondary particles is significant across the entire visible region, both types of secondary

particles appeared white to the naked eye. However, the contribution of the coherent single scattering became more prominent when the incoherent multiple scattering was reduced due to the

addition of the CB, as shown in Figs. 7b and 7c13,14,38,39. Consequently, the structural colours due to the pronounced wavelength-specific constructive reflection of these secondary

particles became more saturated. In addition, we prepared secondary particles from the silica particles containing magnetite as a black particle to obtain colour pigments with variable

performances. Magnetite is a commonly used, non-toxic and environmentally friendly black particle. Fig. 8a shows a secondary particle prepared using a suspension of silica particles 360 nm

in diameter and a small amount of magnetite. This secondary particle also exhibits a bright red colour. Because magnetite is magnetic, we can move and collect the coloured secondary

particles using an external magnetic field (Fig. 8b and Movie 1). If we place the larger droplets of the aqueous solution, which are approximately a few millimetres in diameter and include

the silica particles and a small amount of magnetite, into oil at 60°C during the preparation of the secondary particles, the heaviest magnetite (5.2 g/cm3) accumulates on the bottom of the

droplet before drying. Consequently, we obtained flattened Janus secondary particles, in which one side is red and the other side is white (Fig. 8c). Using 280-nm-diameter silica particles,

the hue of the coloured side of the flattened Janus secondary particles can be changed (Fig. 8c). Because the coloured portion contains magnetite, the Janus secondary particles face the same

direction in the presence of an external magnetic field (Fig. 8d and Movie 2). The skin colour of fish can generally change through the active concentration or dispersion of pigment

granules in the interior region of the pigment cell. The analogous colour change in artificial materials may be achieved using stimuli-responsive structurally coloured pigments. DISCUSSION

We observed two mechanisms that are associated with the wavelength-specific constructive reflection in the secondary particles of this study. The first mechanism is Bragg reflection, which

results from the crystalline structure of the silica particles. The second mechanism is coherent single scattering by the amorphous array of the silica particles. Because these

wavelength-specific constructive reflections exhibit different angular dependences, these particles appear as different colours under various lighting conditions. For example, using a

directional light and changing the viewing angle, iridescence from the glossy secondary particles can be observed because of the coloration mainly caused by the Bragg reflection (Fig. 3b).

In contrast, under diffuse lighting, the change in the structural colour of the glossy secondary particles with different viewing angles is very small because the coloration caused by the

amorphous structure is more significant under this lighting condition (Fig. 3a). Therefore, in the case of the matte secondary particles, only the coherent single scattering mechanism

contributes to the coloration. If we create fine secondary particles with various sizes, the colour appearance may also be changed. As noted above, the coloration of the secondary particles

is affected by multiple factors, including the size of the primary particle, the aggregation state, the number of crystalline layers, the method of illumination, the viewing angle, and, most

likely, the size of the secondary particle. The key to obtaining colourful pigments with an appropriate colour is the careful control of these factors. If the prepared secondary particles

are used as pigments in some solvents, the colours can differ from those in air due to the different refractive indices. We know that colloidal amorphous arrays exhibiting good colour

saturation as a result of decreasing refractive index contrast can be achieved31. For example, our glossy secondary particles displaying a whitish colour in the dried state exhibit good

saturation of colour in solvents (Fig. 9a) because of a reduction in the refractive index contrast. Moreover, it is expected that the wavelength becomes longer because the optical length is

increased. The magnitude of reflectance will also be decreased due to the smaller refractive index contrast. Therefore, to realise the desired optical properties, it will be necessary to

adjust the size of the primary particles, the number of crystalline layers and the size of the secondary particles. Meanwhile, the glossy secondary particles with black components exhibit

black colour in solvents (Fig. 9b), whereas the secondary particles display a vivid colour in the dried state. It may be possible to coat the secondary particle with a protective layer that

prevents a solvent from penetrating into the interior of the secondary particle. In this case, similar optical properties to those observed in air are expected. Such an approach is now under

investigation. In conclusion, we observed that we can change the aggregation states of secondary particles composed of silica particles, which were prepared by placing droplets of a

suspension containing silica particles into hot oil followed by drying, with or without NaCl. A glossy secondary particle is obtained in the absence of NaCl, whereas a matte secondary

particle is obtained in the presence of NaCl. The addition of a black particle, such as CB or magnetite, to the aqueous suspension of the silica particles results in a brighter structural

colour of the secondary particles. Because all of the materials used to prepare these structurally coloured secondary particles are non-toxic and environmentally friendly, we expect that

these secondary particles can be useful as green pigments. Additionally, with the addition of stimuli-responsive particles, such as magnetite, we can prepare highly functional “colourful

balls”. METHODS MATERIALS We used an aqueous suspension containing 25 wt% of the silica particles. The silica particles used in this study were 280 and 360 nm in diameter. The CB used in

this study had an average particle diameter of 100 nm and had carboxyl groups on the surface, enabling it to be dispersed in water. The average diameter of the magnetite was 10 nm and it was

used in conjunction with a dispersing agent. The concentration of NaCl in the suspension was 0.1 mol/L. To obtain the secondary particles composed of the silica particles and the CB, we

used silicone oil with a kinetic viscosity of 100 cSt at 25°C. Hexadecane oil was used to prepare the secondary particles that were composed of the silica particles and the magnetite.

PREPARATION OF SECONDARY PARTICLES A typical experimental procedure for preparing the secondary particles is described as follows. Tiny droplets of the aqueous suspension of the silica

particles were obtained using a microsyringe and a needle with an inner diameter of 1 mm. These droplets were placed into 800 mL of hot oil at a rate of 1 mL/min at 60°C; the oil was stirred

in a 2-L, round-bottomed flask with a stirrer. After stirring for 12 h, the water in the droplets had completely evaporated. After the recovered sedimented product was repeatedly washed

with hexane and dried in a thermostat bath, we obtained secondary particles composed of silica particles. CHARACTERISATION Photographs evidencing the structural colours of the samples were

collected using a digital camera and a digital microscope (KEYENCE VHX-500). Angular dependence was also examined under two types of illumination. In the first type (diffuse illumination),

the illuminating light did not come from a specific direction; the sample was illuminated by several ceiling lights and by the secondary scattering from the surrounding walls. In the second

type, a fibre optic illuminator (Olympus, LG-PS2) was employed to realise directional illumination. The illuminating light came from a direction tilted by approximately 50 degrees from the

normal direction of the sample surface and the tilting direction was nearly along the upper direction of the photographs in Fig. 3. The arrangement of the silica particles in the secondary

particles was investigated using a scanning electron microscope (Hitachi, Miniscope TM3000). To observe the cross section of the secondary particles, we prepared samples using two methods as

follows. In the first method, we placed the secondary particles in a pot containing liquid nitrogen and gently ground them. In the second method, the secondary particles were first embedded

in a polymer and an ultramicrotome was then used to obtain ultra-thin sections. These samples were coated with a 10-nm Au-Pd layer and images were obtained using an SEM operated at 15 kV.

The 2D Fourier power spectra of the SEM images were obtained using image analysis software (Image Pro). An Ocean Optics USB2000 fibre optic spectrometer and a UV-Vis spectrometer (Nippon

Bunko Company, V-670) with an absolute reflectance measurement unit (ARMN-735) were also used to measure the relative reflectance spectra. REFERENCES * John, S. Strong Localization of
