ABSTRACT The present study highlights the zeta potential effect of electrokinetic flow in a disk cone system. The study sheds light on the shape of nanoparticles on ternary nanofluid flow

with surface catalyzed chemical reaction. The potential implication is optimization of microfluidic appliances and reactors. The pace of reaction on the surface is analyzed by homogeneous

and heterogeneous reactions in the presence of surface catalyzed chemical reactions. The designed model is a system of coupled partial differential equations. Utilization of self-similar

variables along with normalization converted the system of partial differential equations into ordinary differential equations. Fourth order collocation method by using MATLB helped to

SIMILAR CONTENT BEING VIEWED BY OTHERS NUMERICAL APPROACH TOWARDS GYROTACTIC MICROORGANISMS HYBRID NANOLIQUID FLOW WITH THE HALL CURRENT AND MAGNETIC FIELD OVER A SPINNING DISK Article Open

access 26 April 2021 UPSHOT OF HETEROGENEOUS CATALYSIS IN A NANOFLUID FLOW OVER A ROTATING DISK WITH SLIP EFFECTS AND ENTROPY OPTIMIZATION ANALYSIS Article Open access 08 January 2021

DISSIPATED ELECTROOSMOTIC EMHD HYBRID NANOFLUID FLOW THROUGH THE MICRO-CHANNEL Article Open access 19 March 2022 INTRODUCTION In a disk-cone system a unique flow pattern is developed due to

counter rotating and co-rotating disk and cone. In the past few years scientists have been scrambling to optimize the microfluidic devices, reactor design, synthesis of chemical and

development of pharmaceuticals with disk shaped chamber and cone shape outlet. Gas turbines, which similarly use cone-disk arrangements, use adjustable diffusers to condense air and help

cool the system1. Fewell and Hellums2 investigated flow fields, gap angle, and Reynolds number affected disk-cone systems. It has been found that for constant angular velocity the shear

force is reduce, and secondary flow is negligible. Sdougos et al.3 used visualization tools and heat transfer probes to test experimentally this result. Shevchuk4 created self-similar

solutions, which aided in the study of fluid dynamics and heat transfer in disk-cone systems. With a constant temperature at the cone and fluctuating temperatures throughout the disk,

rotationally symmetric and time-independent airflows have been assessed. Velocity and temperature profiles are examined by either component rotated independently, as well as cases in which

both rotated in the same or opposing directions. Notably, all of the research mentioned have looked at circumstances in which either the cone or the disk rotates, or when both components

rotate in the same or opposing directions. However, less attention has been paid to the case in which the entire structure remains constant while the fluid is formed to twirl applying an

additional twirling mechanism. The scientific community claims that Shevchuk5 was the first to modify the formulas that govern and extract self-similar parameters to replicate fluid movement

in a static cone-disk structure. With increased global energy rivalry, improving heat transmission has become a top concern in thermal process areas. Theoretical and experimental research

suggests that introducing thermally conductive particles into base fluids improves heat transfer qualities. Maxwell6 first proposed the idea of mixing solids and liquids to improve heat

conductivity more over a century ago. Particle sedimentation and agglomeration, caused by increasing particle size and density, are significant problems in many practical cooling

applications. Choi7 developed an unusual kind of binary liquids called nanofluids, which were design possible by nanotechnology, in order to address these issues. Nanofluids are created by

colloidally floating minuscule elements, for example metallic and oxides, which have a volume percentage of less than 5% and are usually 1–100 nm in diameter, in regular base fluids such

water, oil, or biological liquids. Even low concentrations of nanoparticles can drastically modify the thermophysical characteristics of base fluids. For example, choice of nano particles of

\(A{l_2}{O_3}\)is based on higher thermal conductivity, inexpensive and availability. And particle of \(Zr{O_2}\)having comparatively low thermal conductivity, but these particles are

chemically inert and suitable to synthesize ternary nanofluid. \(CNT\) can be chosen due to highest value of thermal conductivity. Nanofluids, with their increased heat transfer efficiency

due to larger surface area and applicability to a wide range of applications, hold significant promise in a variety of sectors. Aside from their functions in tribological and medicinal

applications, nanofluids are appreciate in industries that require effective heat removal, such as automotive and nuclear energy. Researchers such as Wang and Majumdar8, Wen et al.9, and Yu

and Xie10 have examined nanofluid fabrication methods, characteristics, stability, and application. The dual-phase speculation, which asserts that nanoparticles are present autonomously

within a vehicle liquid, was first forth by Buongiorno11 in 2006. In addition to offering justifications for the enhanced heat transfer observed in nanofluids, the present research

highlighted the importance of the speed differential between the fluid being analyze and nanoparticles. When seven escape procedures were investigate in non-turbulent environments, it was

discover that thermophoresis and Brownian diffusion had a significant impact. As outcome, four transport equations created especially for nanofluids were included in a two-phase

inhomogeneous stability system. When electrified ionic liquids combine with an electric field, electroosmotic flow (EOF) occurs. By resolving equation of momentum and continuity affected by

an additional electronic body power, the equation of Poisson-Boltzmann is frequently use to analyze EOF features in smaller channels and on media like disks or plates. The Debye-Hückel (DH)

assumption can use to solve these equations numerically for a variety of structures, flow variables and electrolytes. This approach makes it possible to represent the potential profile

explicitly mathematically, particularly for wall of zeta potential that are less than 0.025 V. When current electric field directly given to a permeable substance through electrodes,

positively charged electrons drawn to the negatively charged electrode (cathode), causing electroosmosis and electrochemical treatment processes12. The double-layer charge and the related

counterion charge in the void fluid provide an explanation for particle fluidity. Electroosmotic flow (EOF) arises between electrodes because of the cations dragging the pore fluid across

the porous substrate and the motion of particles relayed to nearby fluid molecules13. The water removal process boosted by a zone of electric effect, which offers a far higher EOF than a

hydraulic field. When dealing with impeded flow materials such fine soils, sediments, and mud, electroosmotic dewatering processes works better than conventional dewatering processes

techniques. This approach, first innovated by Casagrande, has been successfully employed in a variety of industrial industries, including soil consolidation, sludge dewatering14, soil

remediation15,16, food processing17, metallurgical waste management18,19, and even nuclear applications20. Shajar21 Abbas used the constant proportional Caputo (CPC) fractional operator and

Laplace method to see the impact of Hall current on the multiphase thermal transfer of an electrically conductive Jeffery fluid. Mudassar Nazar22 use the fractional calculus and Laplace

transform method to explore the unsteady MHD Casson fluid flow across the accelerating porous plate. Mushtaq Ahmed23 exploit the Soret effect across the oscillating plate to study the

unsteady MHD Casson fluid flow for introduce the constant proportional Caputo operator. To assess the unsteady Casson fluid across the heat radiation and mass diffusion using Caputo-Fabrizio

fractional operator24. Poly Karmakar25,26,27,28,29,30,31,32,33 explores bio electromagnetics in blood circulation and analyze the effect of electroosmosis, heat transfer for the innovation

of medical devices. Reactions of chemicals that take place between substances in an identical phase whether they be liquids, gas, or solids and in which the reactants and products stay in

the same state are known as homogeneous reactions. While, heterogeneous reactions take place between substances in different state, including solids and gases, liquids and gases, and solids

and liquids. A solid catalyst, which offers a surface for contact with reactant molecules, is extensively use in these reactions to speed up the process. Homogeneous reactions, unlike

heterogeneous reactions, rarely require a catalyst because reactants are already sufficiently close within the same phase34. Ternary nanofluid research has become a developing area of fluid

dynamics and thermal science with potential uses in both the commercial and technical domains. Compared to conventional fluids, ternary nanofluids have improved stability and thermal

properties by combining three different kinds of nanoparticles with a base fluid. The behavior of CY ternary nanofluid thin films on a rotating porous disk has been the subject of recent

studies that have investigated changes in thin film thickness under partial slip situations35. The above literature survey indicates that envisaged mathematical models give several novel

contributions in context of surface catalyzed reaction and electrostatics. It couples the shape effect of nanocomposites in the counter rotating and rotating disk cone system. Debye-Hückel

(DH) approximation for electroosmotic effects are studied by using Boltzmann distribution, assuming no overlap of the electric double layer (EDL).The zeta potential enhance the radial

velocity and surface catalyzed reactions decrease the concentration profile. The present solution is sought by using BVPs built in MATLAB. However, various numerical schemes24,36,37 are

available to solve the highly non-linear problem. But BVP4C is an efficient and more accurate methodology to find the solution of above problem. Table 1 gives the comparison of the effects

considered in the present study with the existing literature. MATHEMATICAL FORMULATION The incompressible movement of a ternary nanofluid between a disk and a cone is explore in cylindrical

coordinates, with a focus on electroosmosis, radiant heat, and homogeneous-heterogeneous processes. The study is conduct under the following assumptions: * Assumed the flow is steady in disk

cone system. * The zeta potential induced by Electrical Double Layer (EDL). * External effects are negligible. * The surface catalyzed reaction. * Analyze effect of ternary fluid and shape

factors. * The disk has a rotational velocity of in the forward direction, whereas the cone circulates at Ω within the rotational plane. This study eliminates the amount of pressure

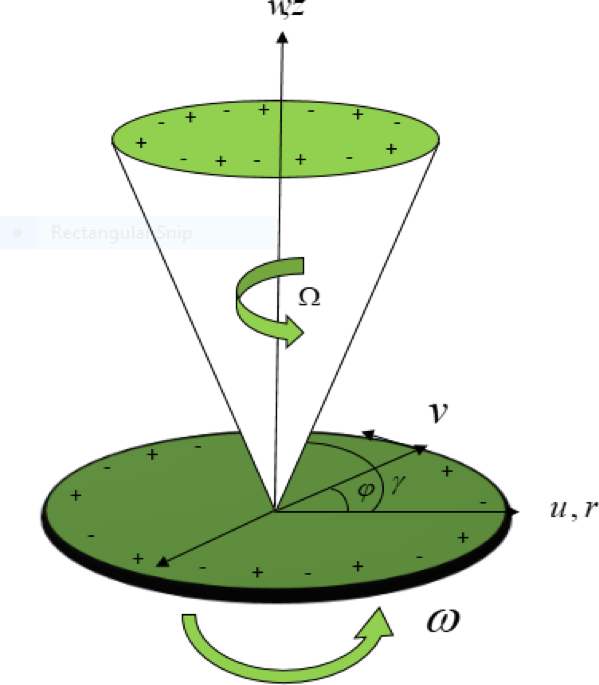

gradient. Figure 1 shows the axisymmetric fluid flow equations, and the interpretation is perform for three different physical ways: Here are the benchmark cases of the study. (i) Both the

disk and the cone are spinning, i.e. \({\operatorname{Re} _\omega } \ne 0\,\)and \({\operatorname{Re} _\Omega } \ne 0\)(ii) a stationary cone with a revolving disc, i.e. \({\operatorname{Re}

_\Omega }=0\)and \({\operatorname{Re} _\omega } \ne 0\)(iii) a rotating cone with a stationary disc, i.e. \({\operatorname{Re} _\Omega } \ne 0\)and\({\operatorname{Re} _\omega }=0\). Using

flow analysis, the homogeneous cubic autocatalytic reaction between species A and B can be examine and is represented below: $$2B+A \to 3B,{\text{rate}}=a{b^2}{k_c}$$ (1) A first-order

isothermal reaction on a catalyst’s surface is depict in the format below. $$A \to B,{\text{rate}}=a{k_s}$$ (2) The expression uses the rate constants\({k_c}\)​and\({k_s}\)with _a_ and _b_

denoting the concentrations of chemical species _A_ and _B_ respectively. Both reaction processes have considered isothermal. According to the above assumptions the component form of the

Eqs34,41,42,43,44,45: $$\frac{{\partial u}}{{\partial r}}+\frac{u}{r}+\frac{{\partial w}}{{\partial z}}=0$$ (3) $$\left( {u\frac{{\partial u}}{{\partial r}} -

\frac{{{v^2}}}{r}+w\frac{{\partial u}}{{\partial z}}} \right){\rho _{tnf}}= - \frac{{\partial p}}{{\partial r}}+\left( {\frac{{{\partial ^2}u}}{{\partial {r^2}}}+\frac{1}{r}\frac{{\partial

u}}{{\partial r}} - \frac{u}{{{r^2}}}+\frac{{{\partial ^2}u}}{{\partial {z^2}}}} \right){\mu _{tnf}} - {\sigma _{tnf}}B_{0}^{2}u+{\rho _e}{\phi _x}$$ (4) $$\left( {u\frac{{\partial

v}}{{\partial r}}+\frac{{uv}}{r}+w\frac{{\partial v}}{{\partial z}}} \right){\rho _{tnf}}=\left( {\frac{{{\partial ^2}v}}{{\partial {r^2}}}+\frac{1}{r}\frac{{\partial v}}{{\partial r}} -

\frac{v}{{{r^2}}}+\frac{{{\partial ^2}v}}{{\partial {z^2}}}} \right){\mu _{tnf}} - {\sigma _{tnf}}B_{0}^{2}v$$ (5) $$\left( {u\frac{{\partial w}}{{\partial r}}+w\frac{{\partial w}}{{\partial

z}}} \right){\rho _{tnf}}= - \frac{{\partial p}}{{\partial z}}+\left( {\frac{{{\partial ^2}w}}{{\partial {r^2}}}+\frac{1}{r}\frac{{\partial w}}{{\partial r}}+\frac{{{\partial

^2}w}}{{\partial {z^2}}}} \right){\mu _{tnf}}$$ (6) $$\begin{gathered} \left( {u\frac{{\partial T}}{{\partial r}} + w\frac{{\partial T}}{{\partial z}}} \right)\left( {\rho c_{p} }

\right)_{{tnf}} = \left( {\frac{{\partial ^{2} T}}{{\partial r^{2} }} + \frac{1}{r}\frac{{\partial T}}{{\partial r}} + \frac{{\partial ^{2} T}}{{\partial z^{2} }}} \right)k_{{tnf}} + \\

\frac{{16\sigma ^{ * } T_{\infty } ^{3} }}{{3K^{ * } }}\left( {\frac{{\partial ^{2} T}}{{\partial r^{2} }} + \frac{1}{r}\frac{{\partial T}}{{\partial r}} + \frac{{\partial ^{2} T}}{{\partial

z^{2} }}} \right) + Q_{ \circ } \left( {T - T_{b} } \right) + \sigma _{{tnf}} B_{0}^{2} \left( {u^{2} + v^{2} } \right) \\ \end{gathered}$$ (7) $$u\frac{{\partial a}}{{\partial

r}}+w\frac{{\partial a}}{{\partial z}}={D_A}\left( {\frac{{{\partial ^2}a}}{{\partial {r^2}}}+\frac{1}{r}\frac{{\partial a}}{{\partial r}}+\frac{{{\partial ^2}a}}{{\partial {z^2}}}} \right)

- {k_c}a{b^2} - S{k_s}a$$ (8) $$u\frac{{\partial b}}{{\partial r}}+w\frac{{\partial b}}{{\partial z}}={D_B}\left( {\frac{{{\partial ^2}b}}{{\partial {r^2}}}+\frac{1}{r}\frac{{\partial

a}}{{\partial r}}+\frac{{{\partial ^2}b}}{{\partial {z^2}}}} \right)+{k_c}a{b^2}+S{k_s}a$$ (9) ELECTRICAL POTENTIAL45 Dispersion of electrical potential in the electric double layer (EDL) is

explained by the Boltzmann–Poisson Eq.  $$divD={\rho _e}$$ (10) In this context,\(D(={\varepsilon _{ef}}\overline {\phi } )\), \({\rho _e}\)represents the volume density of change

and\({\varepsilon _{ef}}\)is the permittivity of dielectric. $$div( - {\varepsilon _{ef}}grad\overline {\phi } )={\rho _e}$$ (11) Positioning on the permeable disc’s surface has no effect on

the permittivity. $${\nabla ^2}\overline {\phi } = - \frac{{{\rho _e}}}{{{\varepsilon _{ef}}}}$$ (12) And $${\rho _e}=\overline {e} \overline {{{z_1}}} ({n^+} - {n^ - }),$$ (13) In this

scenario, \({n^ - }\)and\({n^+}\)signify the densities of anions and cations, both deemed to have a overall concentration of\({n_0}.\) Thus, the Boltzmann distribution can formulate as

follows, considering the electric double layer (EDL) does not coexist. $${n^ \pm }={n_0}\exp \left( { \pm \frac{{\overline {{{z_1}}} \overline {e} \overline {\phi } }}{{{K_B}{T_W}}}}

\right).$$ (14) In this context, \(\overline {e}\)represents the electric charge, \(\overline {{{z_1}}}\)denotes the balance of charge,\({K_B}\)is the Boltzmann constant, and

\({K_B}\)corresponds to the usual temperature of the electrolyte solution. $${\rho _e}= - 2\overline {e} \overline {{{z_1}}} {n_0}\sinh \left( { \pm \frac{{\overline {e} \overline {{{z_1}}}

\overline {\phi } }}{{{K_B}{T_W}}}} \right).$$ (15) The charge density second order differential equation, for the electric potential distribution is putting into Boltzmann-Poisson Eq.

$$\frac{1}{r}\frac{\partial }{{\partial r}}\left( {r\frac{{\partial \overline {\phi } }}{{\partial r}}} \right)+\frac{{{\partial ^2}\overline {\phi } }}{{\partial {z^2}}}= - 2\overline {e}

\overline {{{z_1}}} {n_0}\sinh \left( { \pm \frac{{\overline {e} \overline {{{z_1}}} \overline {\phi } }}{{{K_B}{T_w}}}} \right).$$ (16) BOUNDARY CONDITIONS34,45,39 $$\begin{gathered}

\overline {\phi } ={\phi _o}{\text{,}}{D_A}\left( {\frac{{\partial a}}{{\partial z}}} \right){\text{=}}{{\text{k}}_s}a{\text{,}}{D_B}\left( {\frac{{\partial b}}{{\partial z}}}

\right){\text{=-}}{{\text{k}}_s}a, \hfill \\ u=0,v=\omega r,w=0,T={T_d}{\text{ }}at{\text{ z=0,}}\,\, \hfill \\ u{\text{ }}={\text{ }}0,{\text{ }}v{\text{ }}={\text{ }}\Omega r,w{\text{

}}={\text{ }}0,{\text{ }}T{\text{ }}={\text{ }}{T_b}{\text{,}} \hfill \\ \phi \to {\text{0,}}a \to {a_o}{\text{,}}b \to 0{\text{ }}at{\text{ }}z{\text{ }}=rtan\gamma , \hfill \\

\end{gathered}$$ (17) SELF-SIMILAR TRANSFORMATIONS34,45,39 $$\begin{gathered} \eta =\frac{z}{r},F(\eta )=\frac{{ur}}{{{\nu _f}}},G(\eta )=\frac{{vr}}{{{\nu _f}}},H(\eta )=\frac{{wr}}{{{\nu

_f}}}, \hfill \\ \theta \left( \eta \right)=\frac{{T - {T_b}}}{{\Delta T}},\phi \left( \eta \right)=\frac{{C - {C_b}}}{{\Delta C}},P=\frac{{p{r^2}}}{{{\rho _f}{\nu _f}^{2}}} \hfill \\ {\phi

_A}\left( \eta \right)=\frac{a}{{{a_o}}},{\phi _B}\left( \eta \right)=\frac{b}{{{b_o}}},\overline {\phi } =\frac{{{K_B}{T_W}}}{{\overline {{{z_1}}} \overline {e} }}\phi \hfill \\

\end{gathered}$$ (18) SELF-SIMILAR MODEL The above Eqs. (3)–(9) are change into the following form $$H^{\prime} - \eta F^{\prime}=0$$ (19) $$\begin{gathered} {A_1}\left( {1+{\eta ^2}}

\right)F^{\prime\prime}+\left( {3{A_1}\eta - {A_2}H+{A_2}\eta F} \right)F^{\prime}+{A_2}{F^2}+{A_2}{G^2} \\ +2P+\eta P^{\prime} - {A_5}MF - {U_e}{m^2}\sinh \phi =0 \\ \end{gathered}$$ (20)

$${A_1}\left( {1+{\eta ^2}} \right)G^{\prime\prime}+\left( {3{A_1}\eta +{A_2}\eta F - {A_2}H} \right)G^{\prime} - {A_5}MG=0$$ (21) $${A_1}\left( {1+{\eta ^2}} \right)H^{\prime\prime}+\left(

{{A_2}F\eta - {A_2}H+3{A_1}\eta } \right)H^{\prime}+\left( {{A_1}+{A_2}F} \right)H - P^{\prime}=0$$ (22) $$\begin{gathered} \left( {1+{\eta ^2}} \right)\left( {{A_4}+Rd} \right)\frac{1}{{\Pr

}}\theta ^{\prime\prime}+\theta ^{\prime}\left[ {\eta \left( {{A_4}+Rd} \right)\frac{1}{{\Pr }}+{A_3}\left( {F\eta - H} \right)} \right] \\ +Q\theta +{A_5}\Pr MEc\left( {{F^2}+{G^2}}

\right)=0 \\ \end{gathered}$$ (23) $${\phi ^{\prime\prime}_A}\left( {1+{\eta ^2}} \right)+Sc\eta F{\phi ^{\prime}_A} - ScH{\phi ^{\prime}_A}+\eta {\phi ^{\prime}_A} - Sc{K_1}{\phi _A}{\phi

_B}^{2} - {K_{vs}}{\phi _A}=0$$ (24) $$\delta {\phi ^{\prime\prime}_B}\left( {1+{\eta ^2}} \right)+Sc\eta F{\phi ^{\prime}_B} - ScH{\phi ^{\prime}_B}+\eta {\phi ^{\prime}_B}+Sc{K_1}{\phi

_A}{\phi _B}^{2}+{K_{vs}}{\phi _A}=0$$ (25) $$\phi ^{\prime\prime}={m^2}\sinh \left( \phi \right)$$ (26) After solving Eq. (20) and Eq. (22), we get the following results $$\begin{gathered}

F^{\prime\prime\prime}{A_1}{\left( {1+{\eta ^2}} \right)^2}+F^{\prime\prime}\left( {10\eta {A_1} - {A_2}H+{A_2}\eta F+10{A_1}{\eta ^3}+{A_2}{\eta ^3}F - {\eta ^2}{A_2}H} \right)+ \hfill \\

F^{\prime}\left( {6{A_1}+21{A_1}{\eta ^2}+3{A_2}F+6{\eta ^2}{A_2}F - 3{A_2}\eta H+{A_5}M} \right)+3H\left( {{A_2}F+{A_1}} \right)+ \hfill \\ 2{A_2}FF^{\prime}+2{A_2}GG^{\prime} -

{U_e}{m^2}\cosh \left( \phi \right)=0 \hfill \\ \end{gathered}$$ (27) The relevant boundary conditions in dimensionless form are: $$\begin{gathered} F\left( 0 \right)=0,\,G\left( 0

\right)=R{e_\omega },H\left( 0 \right)=0,\theta \left( 0 \right)=1, \hfill \\ \phi \left( 0 \right)=\tau ,{{\phi ^{\prime}}_A}\left( 0 \right)={K_2}{\phi _A}\left( 0 \right),\delta {{\phi

^{\prime}}_B}\left( 0 \right)= - {K_2}{\phi _A}\left( 0 \right) \hfill \\ F\left( {{\eta _o}} \right)=0,H\left( {{\eta _o}} \right)=0,G\left( {{\eta _o}} \right)=R{e_\Omega },\theta \left(

{{\eta _o}} \right)=0, \hfill \\ \phi \to 0,{\phi _A}\left( {{\eta _o}} \right)=1,{\phi _B}\left( {{\eta _o}} \right)=0 \hfill \\ \end{gathered}$$ (28) The diffusion coefficients of species

_A_ and _B_ are nearly same, implying that\({D_B}\)​and\({D_A}\)​are equivalent (represented by\(\delta =1\)). Thus, in accordance with references34,35, we get: $${\phi _A}+{\phi _B}=1$$

(29) According to this assumption Eq. (24) and Eq. (25) to $${\phi ^{\prime\prime}_A}\left( {1+{\eta ^2}} \right)+Sc\eta F{\phi ^{\prime}_A} - ScH{\phi ^{\prime}_A}+\eta {\phi ^{\prime}_A} -

Sc{K_1}{\phi _A}{\left( {1 - {\phi _A}} \right)^2} - {K_{vs}}{\phi _A}=0$$ (30) With boundary conditions as $$\phi _{A}^{\prime }(0)={K_2}{\phi _A}(0),{\phi _A}({\eta _o})=1$$ (31) The

choice of nano particles of \(A{l_2}{O_3}\)is due to the reason that these particles have high thermal conductivity as shown in Table 2, inexpensive and availability. Table 2 indicates that

particle of \(Zr{O_2}\)have comparatively low thermal conductivity, but these particles are chemically inert and suitable to synthesize ternary nanofluid. Additionally, these particles are

highly stable at extreme temperatures. \(CNT\) are used as nanoparticles having highest value of thermal conductivity as shown in Table 2. These particles have exceptional mechanical

strength which make them suitable in extreme temperature environment. The following are the pro and cons of these particles used in Table 2. Table 3 gives the mathematical expression for

thermophysical properties, Table 4 gives the numerical values thermophysical properties. Table 5 gives the values of sphericity values for various shapes of particles. The dimensionless

parameters are used. $$\begin{gathered} \Pr =\frac{{{{\left( {\rho {c_p}} \right)}_f}{v_f}}}{{{k_f}}},{m^2}={K^2}{r^2},\tau =\frac{{\overline {z} \overline {e} {\phi

_o}}}{{{K_B}{T_w}}},M=\frac{{{\sigma _f}B_{0}^{2}{r^2}}}{{{\rho _f}{v_f}}} \\ \delta =\frac{{{D_B}}}{{{D_A}}},Sc=\frac{v}{{{D_A}}},{K^2}=\frac{{ - 2\overline {{{z_1}}} \overline {e}

{n_0}}}{{{\varepsilon _{ef}}{K_B}{T_H}}},c=\frac{{{v_f}}}{{{r^2}}},{S_v}=S{a_o},Ec=\frac{1}{{\Delta T{r^2}}}{\left( {\frac{{{v^2}}}{{{c_p}}}} \right)_f} \\ {U_{HS}}= - \frac{{{\varepsilon

_{ef}}{K_B}{T_d}{\phi _x}}}{{\overline {{{z_1}}} \overline {e} {\mu _f}}},{U_e}=\frac{{{U_{HS}}}}{{{u_w}}},Rd=\frac{{16{\sigma ^*}T_{b}^{3}}}{{3{k^*}{k_f}}},{K_s}=\frac{{ks}}{{{D_A}}}, \\

Q=\frac{{{Q_0}}}{{c{{\left( {\rho {c_p}} \right)}_f}}},{k_1}=\frac{{{k_c}a_{o}^{2}}}{{{\Omega _1}}},{k_2}=\frac{{r{k_s}}}{{{D_A}}},{K_{vs}}={S_v}{K_s} \\ \end{gathered}$$ (32) In this

context \({m^2}\)demonstrate as electroosmosis parameter, \(\Pr\)depict the Prandtl number, parameter of electric field is \({U_e}\), \({U_{HS}}\)indicate the Helmholtz-Smoluchowski

velocity, \(Rd\)is the radiation parameter, \({K_{vs}}\)exhibit the surface catalyst, \(Sc\)is the Schmidt number, _Q_ indicate the heat generation parameter, \(\tau\)is the zeta potential.

Nusstle number and skin friction is define as: $$N{u_d}= - \left( {\frac{{{k_{tnf}}}}{{{k_f}}}+Rd} \right)\theta ^{\prime}\left( 0 \right),N{u_c}= - \left( {\frac{{{k_{tnf}}}}{{{k_f}}}+Rd}

\right)\theta ^{\prime}\left( {{\eta _o}} \right)$$ (33) $${({C_f})_d}=\left( {\frac{{{\mu _{tnf}}}}{{{\mu _f}}}\frac{{{\rho _f}}}{{{\rho _{tnf}}}}} \right)F^{\prime}\left( 0

\right),{({C_f})_c}=\left( {\frac{{{\mu _{tnf}}}}{{{\mu _f}}}\frac{{{\rho _f}}}{{{\rho _{tnf}}}}} \right)F^{\prime}\left( {{\eta _o}} \right)$$ (34) Table 6 gives the heat transfer rate in

both cases RTC and stationary disk, RTD and stationary cone when Prandtl number vary from 0.1 to1 and \(n=0\) then our results match with the previous studies Shevchuk41 and Wang et al.38.

SOLUTION METHODOLOGY The MATLAB BVP4C method, designed for solving nonlinear equations with boundary conditions, first requires the governing ODEs to be reformulated into a system of

first-order ODEs before proceeding with the numerical solution $$H={y_1},H^{\prime}=y{y_1},$$ (35) $$F={y_2},F^{\prime}={y_3},F^{\prime\prime}={y_4},F^{\prime\prime\prime}=y{y_2},$$ (36)

$$G={y_5},G^{\prime}={y_6},G^{\prime\prime}=y{y_3},$$ (37) $$\theta ={y_7},\theta ^{\prime}={y_8},\theta ^{\prime\prime}=y{y_4},$$ (38) $$\phi _{A}^{\prime }={y_{10}},\phi _{A}^{\prime

\prime }=y{y_5},$$ (39) $$\phi ={y_{11}},\phi ^{\prime}={y_{12}},\phi ^{\prime\prime}=y{y_6}$$ (40) So the transformed first order equations are $$y{y_1}=\eta {y_3},$$ (41) $$y{y_2}=\left(

{\frac{1}{{{A_1}{{(1+{\eta ^2})}^2}}}} \right)\left[ \begin{gathered} \left( { - {y_4}} \right)\left( {10\eta {A_1} - {A_2}{y_1}+{A_2}\eta {y_2}+10{A_1}{\eta ^3}+{A_2}{\eta ^3}{y_2} - {\eta

^2}{A_2}{y_1}} \right) - \hfill \\ {y_3}(6{A_1}+21A{\eta ^2}+3{A_2}{y_2}+6{A_2}{\eta ^2}{y_2} - 3{A_2}\eta {y_1} - {A_5}M) - 3{y_1}({A_2}{y_2}+{A_1}) \hfill \\ - 2{A_2}{y_2}{y_3} -

2{A_2}{y_5}{y_6}+{U_e}{m^2}\cosh ({y_{11}}) \hfill \\ \end{gathered} \right],$$ (42) $$y{y_3}=\left( {\frac{1}{{{A_1}{{(1+{\eta ^2})}^2}}}} \right)\left[ { - {y_6}(3{A_1}\eta +{A_2}\eta

{y_2} - {A_2}{y_1})} \right],$$ (43) $$y{y_4}=\left[ { - {y_8}\left( {\left( {\frac{{{A_4}+Rd}}{{\Pr }}} \right)\eta +{A_3}({y_2} - {y_1})} \right)+Q{y_7} - {A_5}\Pr MEc\left(

{y_{1}^{2}+y_{4}^{2}} \right)} \right]\frac{1}{{({A_4}+Rd)/\Pr (1+{\eta ^2})}},$$ (44) $$y{y_5}= - {y_2}{y_{10}}\eta Sc+Sc{y_1}{y_{10}}+Sc{k_s}{y_9}{(1 - {y_9})^2},$$ (45)

$$y{y_6}={m^2}\sinh {y_{11}}$$ (46) And the transformed boundary conditions are $$\begin{gathered} {y_1}\left( 0 \right)=0,{y_2}\left( 0 \right)=0,{y_5}\left( 0 \right)={\operatorname{Re}

_\omega },{y_7}\left( 0 \right)=1,{y_9}(0)=1,{y_{11}}(0)=\tau , \hfill \\ {y_2}\left( {{\eta _0}} \right)=0,{y_1}\left( {{\eta _0}} \right)=0,{y_5}\left( {{\eta _0}}

\right)={\operatorname{Re} _\Omega },{y_7}\left( {{\eta _0}} \right)=0,{y_9}({\eta _0})=0,{y_{11}}({\eta _0})=0 \hfill \\ \end{gathered}$$ (47) There are some advantages of BVP4C. * BVP4C

provides high accuracy and reliable results. * It is robust scheme and can handle a wide range of BVPs. * It is computationally efficient and can solve BVPs quickly. * It is flexible for

boundary conditions. * It can handle singularities and discontinuities in the solution. * It is use in various fields like engineering, physics and biology. RESULTS AND DISCUSSION The

influence of key parameters on velocity, temperature and concentration profile is depicted in Figs. 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 and 13. Figure 2 represent the effect of electric field

parameter on radial velocity profile. Near the disk, the radial velocity profile is increasing. Moving away from the boundary, the deceleration in radial velocity occurs. Physically, in

cone-disk systems, raising the electric field parameter increases Coulomb forces, which directly accelerate charged particles. This increased acceleration mitigates the effects of

centrifugal forces and viscous drag, allowing particles to travel radially inward more efficiently. Furthermore, the electric field modifies plasma behavior by reducing resistive forces and

increasing radial velocity. As the field strength increases, the inward particle movement becomes more dynamic and fast. Radial inflow is compensated for by the axial outflow. The impact of

electroosmosis parameter _m_ on the radial velocity is shown in Fig. 3. The enhancement in radial velocity near the disk and deceleration in fluid motion is witnessed. Physical significance

is by increasing the electroosmosis parameter _m_ reduces the Debye length, affecting the distribution of electrical potential, which maintains the flow and alters the force balance. Figure

4 draws the tangential velocity profile, when the cone’s velocity increases while the disk rotates at a constant speed. The enhancement in fluid’s tangential velocity is due to increased

shear stresses at the fluid-cone contact. The increased cone velocity imparts additional angular momentum to the fluid, leading to amplifying the rotational motion. Additionally the

interaction between the cone’s motion and the fluid layers increases the tangential velocity, resulting in a greater rotating flow field across the system. Figure 5 describes the tangential

velocity when the cone moves at a constant speed while the disk accelerates. Similar behavior is observed as shown in Fig. 4. The tangential velocity increases due to improved momentum

transfer from the faster-moving disk to the fluid. The increasing speed of disk causes larger shear pressures at the disk-fluid interface, which accelerates the neighboring fluid layers

tangentially. This momentum spreads across the flow, resulting in a greater tangential velocity across the system. Figure 6 draws the zeta potential on radial velocity profile. Physically,

increase in zeta potential boosts the electric double layer (EDL) effects, leading to more electroosmotic flow. This increases the body force in the radial momentum equation and therefore

accelerates the radial velocity. The higher the zeta potential, the greater the driving force for fluid motion due to the increased coupling between the electric field and the fluid. This

causes a more prominent radial flow in the system. Figure 7 shows the surface-catalyzed parameter\({K_{vs}}\)on the dimensionless concentration\(\phi \left( \eta \right)\). The results

reveal that increasing the surface-catalyzed parameter reduces concentration. The escalating values of surface catalyzed parameter boosts the rate of reaction and therefore the concentration

profile declined rapidly. Figures 8 and 9 show the effect of homogeneous and heterogeneous reaction parameters on the concentration profile. Increasing\({K_1}\)and\({K_2}\)decreases mass

transfer. As the chemical reaction, parameters increase the rate of reaction increases. Therefore, reactants are transform into the products. Figure 10 manifests the shape factor of

nanoparticle for spherical and lamina shape by increasing radiation parameter. It is observed that lamina shape (\(sf=3\)) of particle is more sensitive to the enhancement in radiation

parameter as compared to the spherical shape\(sf=16.1576\). The enhancement in radiation parameter will results in the heating of disk cone system. A greater \(Rd\)improves the fluid’s

diffusion coefficient, which accelerates heat transfer inside the layer. This leads to increased thermal radiation emission. Figure 11 depicts a bar chart of heat transfer rates for various

radiation parameter values. At the disk, the heat transfer rate increases as the radiation parameter increases, with lamina shapes having a bigger increase than spherical shapes. At the

cone, however, the heat transfer rate drops as radiation parameters increase, with spherical shapes showing a larger reduction than lamina shapes. Figure 12 depicts a bar chart of the heat

transfer rate at various local Reynolds number \({\operatorname{Re} _\omega }\) values. At the disk, the heat transfer rate increases as the local Reynolds number \({\operatorname{Re}

_\omega }\) grows, with lamina shapes showing a greater increase than spherical shapes. At the cone, the heat transfer rate reduces as the local Reynolds number \({\operatorname{Re} _\omega

}\) increases, with spherical geometries seeing a greater decline than lamina shapes. Figure 13 depicts a bar chart of the heat transfer rate at various local Reynolds number values. At the

disk, the heat transfer rate reduces as the local Reynolds number rises, with spherical geometries showing a greater reduction than lamina shapes. In contrast, at the cone, the heat transfer

rate increases with greater local Reynolds numbers, with lamina shapes showing a steeper increase than spherical shapes. CONCLUSION To address the challenges in microfluidic devices and

various reactors the present mathematical model provides the complex interaction between nanoparticles of \(A{l_2}{O_3}\),\(Zr{O_2}\),\(CNT\) of Lamina and spherical shape in the presence of

electroosmotic forces. The key findings are as follows: * 1. The radial velocity profile is dependent on electric field parameter. Which clarifies newly developed theoretical frameworks.

For example, in Electrostatic flow control in heat exchangers, electrostatic filters and various thermal management devices. * 2. Momentum of the flowing fluid is escalating for the rotating

disk-cone system which is helpful in the design of rotatory machinery system, turbines and pumps by considering non-Newtonian fluids. * 3. The presence of surface catalyzed reaction

enhances the rate of reaction. Understanding the reaction kinetics is helpful in electrochemical reactors. It can be further extended to developed newly catalyst materials to obtain maximum

reaction rates in various techniques photoelectron spectroscopy and atomic force microscopy. * 4. Increase in zeta potential boosts the electric double layer (EDL) effects, leading to more

electroosmotic flow. It highlights the importance of zeta potential in electroosmotic flow in electrochemical systems. The study can be further enhanced to simulate EDL dynamics in various

electrochemical reactors. * 5. The lamina shape of particle is more sensitive to the enhancement in radiation parameter as compared to the spherical shape. This can inform the specific

particle shape in chemical processing, radiation therapy and energy production. More non spherical shapes can also be studied\. LIMITATIONS The some limitations of the study are. *

Thermophysical properties are consider to be the constant in present study. However, due to temperature variations these properties may varies. * It is a theoretical base not an experimental

study. * This study specific design and shape of disk cone system. * The flow behavior is considered to be steady. FUTURE RESEARCH DIRECTIONS There is some future directions are. *

Thermophysical properties can be considered as a function of temperature. . * Unsteady flow behavior can be considered to make problem more innovative. * Various more shapes of particles can

be studied. DATA AVAILABILITY The datasets used and/or analysed during the current study available from the corresponding author on reasonable request. ABBREVIATIONS * \(D_A\) and \(D_B\) :

Diffusion coefficient \(\left( {m^2 s^{ - 1} } \right)\) * \(F\left( \eta \right),G\left( \eta \right),H\left( \eta \right)\) : Velocity profiles * \(K_1\) : Parameter of homogeneous

reaction * \(K_2\) : Heterogeneous parameter * \(k_c ,k_s\) : Rate constant * \(k_f\) : Thermal conductivity \(\left( {Wm^{ - 1} K^{ - 1} } \right)\) * \(Nu_c\) : Nusselt number at cone

surface * \(Nu_d\) : Nusselt number at disk surface * \(\Pr\) : Prandtl number * \(p\) : Pressure \(\left( {N/m^2 } \right)\) * \(Q_o\) : Heat source \(\left( J \right)\) * \(Sc\) : Schmidt

number * \(T_b\) : Ambient temperature \(\left( K \right)\) * \(T_d\) : Surface temperature \(\left( K \right)\) * \(T\) : Temperature \(\left( K \right)\) * \(\left( {u,v,w} \right)\) :

Velocity components \(\left( {ms^{ - 1} } \right)\) * \(\left( {r,\phi ,z} \right)\) : Cylindrical coordinates \(\left( m \right)\) * \(\rho_f\) : Density \(\left( {kgm^{ - 3} } \right)\) *

\(\mu_f\) : Dynamic viscosity \(\left( {kgs^{ - 1} m^{ - 1} } \right)\) * \(\rho C_p\) : Heat capacitance \(\left( {kgm^{ - 1} s^{ - 2} K^{ - 1} } \right)\) * \(\phi \left( \eta \right)\) :

Profile of dimensionless concentration * \(\theta \left( \eta \right)\) : Profile of dimensionless temperature * \(\delta\) : Parameter of rate of mass diffusion * \(\nu_f\) : Viscosity of

kinematics \(\left( {m^2 s^{ - 1} } \right)\) * \(\operatorname{Re}_\Omega\) and \(\operatorname{Re}_\omega\) : Local Reynolds numbers * \(\omega ,\Omega\) : Angular velocities of disk and

cone \(\left( {s^{ - 1} } \right)\) * \(f\) \(tnf\) : Fluid Ternary nanofluid * \(nf\) : Nanofluid * \(tnf\) : Ternary nanofluid * \(T_b\) : Ambient temperature \(\left( K \right)\) *

\(D_A\) and \(D_B\) : Diffusion coefficient \(\left( {m^2 s^{ - 1} } \right)\) * \(Q_o\) : Heat source \(\left( J \right)\) * \(K_2\) : Heterogeneous parameter * \(Nu_c\) : Nusselt number at

cone surface * \(Nu_d\) : Nusselt number at disk surface * \(K_1\) : Parameter of homogeneous reaction * \(\Pr\) : Prandtl number * \(\phi \left( \eta \right)\) : Profile of dimensionless

concentration * \(\theta \left( \eta \right)\) : Profile of dimensionless temperature * \(p\) : Pressure \(\left( {N/m^2 } \right)\) * \(k_c ,k_s\) : Rate constant * \(Sc\) : Schmidt number

* \(T_d\) : Surface temperature \(\left( K \right)\) * \(T\) : Temperature \(\left( K \right)\) * \(k_f\) : Thermal conductivity \(\left( {Wm^{ - 1} K^{ - 1} } \right)\) * \(\left( {u,v,w}

\right)\) : Velocity components \(\left( {ms^{ - 1} } \right)\) * \(F\left( \eta \right),G\left( \eta \right),H\left( \eta \right)\) : Velocity profiles REFERENCES * Owen, J. M. &

Rogers, R. H. _Flow and Heat Transfer in Rotating Disc Systems_, Vol. 1 (Rotor-Stator systems, 1989). * Fewell, M. E. & Hellums, J. D. The secondary flow of newtonian fluids in

cone-and‐plate viscometers. _Trans. Soc. Rheology_. 21 (4), 535–565 (1977). Article  ADS  Google Scholar  * Sdougos, H. P., Bussolari, S. R. & Dewey, C. F. Secondary flow and turbulence

in a cone-and-plate device. _J. Fluid Mech._ 138, 379–404 (1984). Article  ADS  Google Scholar  * Shevchuk, I. V. A self-similar solution of Navier–Stokes and energy equations for rotating

flows between a cone and a disk. _High Temp._ 42 (1), 104–110 (2004). Article  CAS  Google Scholar  * Shevchuk, I. V. Laminar heat transfer of a swirled flow in a conical diffuser.

Self-similar solution. _Fluid Dyn._ 39 (1), 42–46 (2004). Article  ADS  Google Scholar  * Maxwell, J. C. A treatise on electricity and magnetism. _Clarendon Press. Google Schola_. 2,

3408–3425 (1873). Google Scholar  * Choi, S. U. & Eastman, J. A. _Enhancing thermal conductivity of fluids with nanoparticles_ (No. ANL/MSD/CP-84938; CONF-951135-29). (Argonne National

Lab. (ANL), 1995). * Wang, X. Q. & Mujumdar, A. S. A review on nanofluids-part I: theoretical and numerical investigations. _Braz. J. Chem. Eng._ 25, 613–630 (2008). Article  CAS  Google

Scholar  * Wen, D., Lin, G., Vafaei, S. & Zhang, K. Review of nanofluids for heat transfer applications. _Particuology_ 7 (2), 141–150 (2009). Article  CAS  Google Scholar  * Yu, W.

& Xie, H. A review on nanofluids: preparation, stability mechanisms, and applications. _J. Nanomaterials_. 2012 (1), 435873 (2012). Article  Google Scholar  * Buongiorno, J. Convective

transport in nanofluids. (2006). * Martin, L., Alizadeh, V. & Meegoda, J. Electro-osmosis treatment techniques and their effect on dewatering of soils, sediments, and sludge: A review.

_Soils Found._ 59 (2), 407–418 (2019). Article  Google Scholar  * Alshawabkeh, A. N. & Acar, Y. B. Electrokinetic remediation. II: theoretical model. _J. Geotech. Eng._ 122 (3), 186–196

(1996). Article  CAS  Google Scholar  * Iwata, M., Tanaka, T. & Jami, M. S. Application of electroosmosis for sludge dewatering—a review. _Drying Technol._ 31 (2), 170–184 (2013).

Article  Google Scholar  * Cameselle, C. & Gouveia, S. Electrokinetic remediation for the removal of organic contaminants in soils. _Curr. Opin. Electrochem._ 11, 41–47 (2018). Article

CAS  Google Scholar  * Liu, L., Li, W., Song, W. & Guo, M. Remediation techniques for heavy metal-contaminated soils: principles and applicability. _Sci. Total Environ._ 633, 206–219

(2018). Article  ADS  CAS  PubMed  Google Scholar  * Menon, A., Mashyamombe, T. R., Kaygen, E., Nasiri, M. S. M. & Stojceska, V. Electro-osmosis dewatering as an energy efficient

technique for drying food materials. _Energy Procedia_. 161, 123–132 (2019). Article  Google Scholar  * Lee, J. K., Shang, J. Q. & Xu, Y. Electrokinetic dewatering of mine tailings using

DSA electrodes. _Int. J. Electrochem. Sci._ 11 (5), 4149–4160 (2016). Article  CAS  Google Scholar  * Cánovas, M., Valenzuela, J., Romero, L. & González, P. Characterization of

electroosmotic drainage: application to mine tailings and solid residues from leaching. _J. Mater. Res. Technol._ 9 (3), 2960–2968 (2020). Article  Google Scholar  * Lamont-Black, J., Jones,

C. J. & White, C. Electrokinetic geosynthetic dewatering of nuclear contaminated waste. _Geotext. Geomembr._ 43 (4), 359–362 (2015). Article  Google Scholar  * Abbas, S. & Nazar, M.

Fractional analysis of unsteady magnetohydrodynamics Jeffrey flow over an infinite vertical plate in the presence of hall current. _Math. Methods Appl. Sci._ 48 (1), 253–272 (2025). Article

  MathSciNet  Google Scholar  * Abbas, S. et al. Effect of chemical reaction on MHD Casson natural convection flow over an oscillating plate in porous media using Caputo fractional

derivative. _Int. J. Therm. Sci._ 207, 109355 (2025). Article  CAS  Google Scholar  * Abbas, S. et al. Soret effect on MHD Casson fluid over an accelerated plate with the help of constant

proportional Caputo fractional derivative. _ACS Omega_. 9 (9), 10220–10232 (2024). Article  CAS  PubMed  PubMed Central  Google Scholar  * Abbas, S. et al. Application of heat and mass

transfer to convective flow of Casson fluids in a microchannel with Caputo–Fabrizio derivative approach. _Arab. J. Sci. Eng._ 49 (1), 1275–1286 (2024). Article  Google Scholar  * Karmakar,

P. & Das, S. A neural network approach to explore bioelectromagnetics aspects of blood circulation conveying tetra-hybrid nanoparticles and microbes in a ciliary artery with an endoscopy

span. _Eng. Appl. Artif. Intell._ 133, 108298 (2024). Article  Google Scholar  * Das, S., Karmakar, P. & Ali, A. Electrothermal blood streaming conveying hybridized nanoparticles in a

non-uniform endoscopic conduit. _Med. Biol. Eng. Comput._ 60 (11), 3125–3151 (2022). Article  CAS  PubMed  Google Scholar  * Karmakar, P., Ali, A. & Das, S. Circulation of blood loaded

with trihybrid nanoparticles via electro-osmotic pumping in an eccentric endoscopic arterial Canal. _Int. Commun. Heat Mass Transfer_. 141, 106593 (2023). Article  CAS  Google Scholar  *

Das, S., Karmakar, P. & Ali, A. Simulation for bloodstream conveying bi-nanoparticles in an endoscopic Canal with blood clot under intense electromagnetic force. _Waves Random Complex.

Media_, 1–38. (2023). * Karmakar, P. & Das, S. Electro-blood circulation fusing gold and alumina nanoparticles in a diverging fatty artery. _BioNanoScience_ 13 (2), 541–563 (2023).

Article  Google Scholar  * Karmakar, P. & Das, S. Modeling non-Newtonian magnetized blood circulation with tri-nanoadditives in a charged artery. _J. Comput. Sci._ 70, 102031 (2023).

Article  Google Scholar  * Karmakar, P., Barman, A. & Das, S. EDL transport of blood-infusing tetra-hybrid nano-additives through a cilia-layered endoscopic arterial path. _Mater. Today

Commun._ 36, 106772 (2023). Article  CAS  Google Scholar  * Karmakar, P. & Das, S. EDL induced electro-magnetized modified hybrid nano-blood circulation in an endoscopic fatty charged

arterial indented tract. _Cardiovasc. Eng. Technol._ 15 (2), 171–198 (2024). Article  PubMed  Google Scholar  * Karmakar, P., Das, S., Mahato, N., Ali, A. & Jana, R. N. Dynamics

prediction using an artificial neural network for a weakly conductive ionized fluid streamed over a vibrating electromagnetic plate. _Eur. Phys. J. Plus_. 139 (5), 407 (2024). Article

Google Scholar  * He, Z. et al. Theoretical exploration of heat transport in a stagnant power-law fluid flow over a stretching spinning porous disk filled with homogeneous-heterogeneous

chemical reactions. _Case Stud. Therm. Eng._ 50, 103406 (2023). Article  Google Scholar  * Alipour, N., Jafari, B. & Hosseinzadeh, K. Thermal analysis and optimization approach for

ternary nanofluid flow in a novel porous cavity by considering nanoparticle shape factor. _Heliyon_ 9 (12). (2023). * Abbas, S. et al. Heat and mass transfer through a vertical channel for

the Brinkman fluid using prabhakar fractional derivative. _Appl. Therm. Eng._ 232, 121065 (2023). Article  Google Scholar  * Abbas, S. et al. Analysis of fractionalized Brinkman flow in the

presence of diffusion effect. _Sci. Rep._ 14 (1), 22507 (2024). Article  CAS  PubMed  PubMed Central  Google Scholar  * Wang, F. et al. The effects of nanoparticle aggregation and radiation

on the flow of nanofluid between the gap of a disk and cone. _Case Stud. Therm. Eng._ 33, 101930 (2022). Article  Google Scholar  * John, A. S., Mahanthesh, B. & Shevchuk, I. V. Study of

nanofluid flow and heat transfer in a stationary cone-disk system. _Therm. Sci. Eng. Progress_. 46, 102173 (2023). Article  CAS  Google Scholar  * Manjunatha, S. et al. Influence of

non-linear thermal radiation on the dynamics of homogeneous and heterogeneous chemical reactions between the cone and the disk. _High Temp. Mater. Processes (London)_. 43 (1), 20240052

(2024). Article  CAS  Google Scholar  * Shevchuk, I. V. Laminar heat and mass transfer in rotating cone-and-plate devices. (2011). * Shevchuk, I. V. An asymptotic expansion method vs a

self-similar solution for convective heat transfer in rotating cone-disk systems. _Phys. Fluids_, 34 (10). (2022). * Shevchuk, I. V. _Convective Heat and Mass Transfer in Rotating Disk

Systems_, Vol. 45, 1–239 (Springer, 2009). * Basavarajappa, M. & Bhatta, D. Study of flow of Buongiorno nanofluid in a conical gap between a cone and a disk. _Phys. Fluids_, 34 (11).

(2022). * Balaji, R., Prakash, J., Tripathi, D. & Anwar Bég, O. Heat transfer and hydromagnetic electroosmotic von Kármán swirling flow from a rotating porous disc to a permeable medium

with viscous heating and joule dissipation. _Heat. Transf._ 52 (5), 3489–3515 (2023). Article  Google Scholar  * Khan, W. A. & Pop, I. M. Effects of homogeneous–heterogeneous reactions

on the viscoelastic fluid toward a stretching sheet. (2012). * Bachok, N., Ishak, A. & Pop, I. On the stagnation-point flow towards a stretching sheet with homogeneous–heterogeneous

reactions effects. _Commun. Nonlinear Sci. Numer. Simul._ 16 (11), 4296–4302 (2011). Article  ADS  Google Scholar  * Alharbi, K. A. M. et al. Computational valuation of Darcy ternary-hybrid

nanofluid flow across an extending cylinder with induction effects. _Micromachines_ 13 (4), 588 (2022). Article  PubMed  PubMed Central  Google Scholar  * Alshahrani, S. et al. Numerical

simulation of ternary nanofluid flow with multiple slip and thermal jump conditions. _Front. Energy Res._ 10, 967307 (2022). Article  Google Scholar  * Arif, M., Kumam, P., Kumam, W. &

Mostafa, Z. Heat transfer analysis of radiator using different shaped nanoparticles water-based ternary hybrid nanofluid with applications: A fractional model. _Case Stud. Therm. Eng._ 31,

101837 (2022). Article  Google Scholar  * Chatterjee, D., Biswas, N., Manna, N. K. & Sarkar, S. Effect of discrete heating-cooling on magneto-thermal-hybrid nanofluidic convection in

cylindrical system. _Int. J. Mech. Sci._ 238, 107852 (2023). Article  Google Scholar  Download references FUNDING This work was supported and funded by the Deanship of Scientific Research at

Imam Mohammad Ibn Saud Islamic University (IMSIU) (grant number IMSIU-DDRSP2503). AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Department of Mathematical Science, Fatima Jinnah Women

University, The Mall, Rawalpindi, 46000, Pakistan Saima Riasat & Aneesa Kousar * Department of Mechanical Engineering, College of Engineering, Imam Mohammad Ibn Saud Islamic University

(IMSIU), Riyadh, 11432, Saudi Arabia Chemseddine Maatki * Department of Mathematics, Air University, Sector E-9, PAF Complex Islamabad, Islamabad, Pakistan M. Bilal * Department of Chemical

Engineering, College of Engineering, Imam Mohammad Ibn Saud Islamic University (IMSIU), Riyadh, 11432, Saudi Arabia Bilel Hadrich * Department of Electrical Engineering, College of

Engineering, University of Ha’il, Ha’il City, 81451, Saudi Arabia Badr M. Alshammari * Department of Mechanical Engineering, College of Engineering, University of Ha’il, Ha’il City 81451,

Saudi Arabia Lioua Kolsi Authors * Saima Riasat View author publications You can also search for this author inPubMed Google Scholar * Chemseddine Maatki View author publications You can

also search for this author inPubMed Google Scholar * Aneesa Kousar View author publications You can also search for this author inPubMed Google Scholar * M. Bilal View author publications

You can also search for this author inPubMed Google Scholar * Bilel Hadrich View author publications You can also search for this author inPubMed Google Scholar * Badr M. Alshammari View

author publications You can also search for this author inPubMed Google Scholar * Lioua Kolsi View author publications You can also search for this author inPubMed Google Scholar

CONTRIBUTIONS S. R, gave the conceptualization, C. M interpreted the results , A.K simulated the results, S. B investigated the results , N. H. A reviewed the results, B. M. A wrote the

introduction, L. K obtain the numerical results. CORRESPONDING AUTHOR Correspondence to Saima Riasat. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests.

ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. ELECTRONIC SUPPLEMENTARY

MATERIAL Below is the link to the electronic supplementary material. SUPPLEMENTARY MATERIAL 1 RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons

Attribution-NonCommercial-NoDerivatives 4.0 International License, which permits any non-commercial use, sharing, distribution and reproduction in any medium or format, as long as you give

appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if you modified the licensed material. You do not have permission

under this licence to share adapted material derived from this article or parts of it. The images or other third party material in this article are included in the article’s Creative Commons

licence, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by

statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit

http://creativecommons.org/licenses/by-nc-nd/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Riasat, S., Maatki, C., Kousar, A. _et al._ Electrical double layer induced

zeta potential effect in a disk cone system with surface catalyzed reaction. _Sci Rep_ 15, 16464 (2025). https://doi.org/10.1038/s41598-025-00637-8 Download citation * Received: 13 February

2025 * Accepted: 29 April 2025 * Published: 12 May 2025 * DOI: https://doi.org/10.1038/s41598-025-00637-8 SHARE THIS ARTICLE Anyone you share the following link with will be able to read

this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative

KEYWORDS * Disk-cone system * Lamina * Spherical * Zeta potential * Surface catalyzed
